CENA706W SPRINGFIT 6.5" CEILING SPEAKER

8OHM AND 100V - AUDAC

Code: 38902070

1.60 kg
5414795042285
EACH
Out of Stock!
$65 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

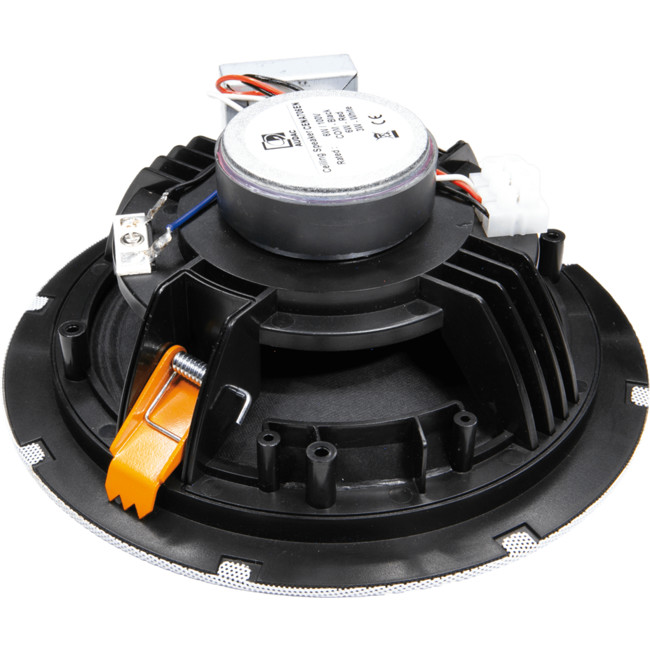

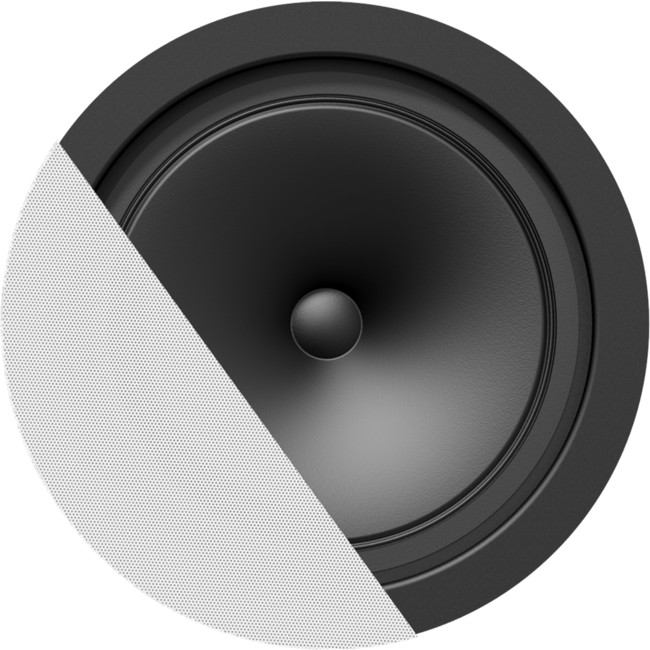

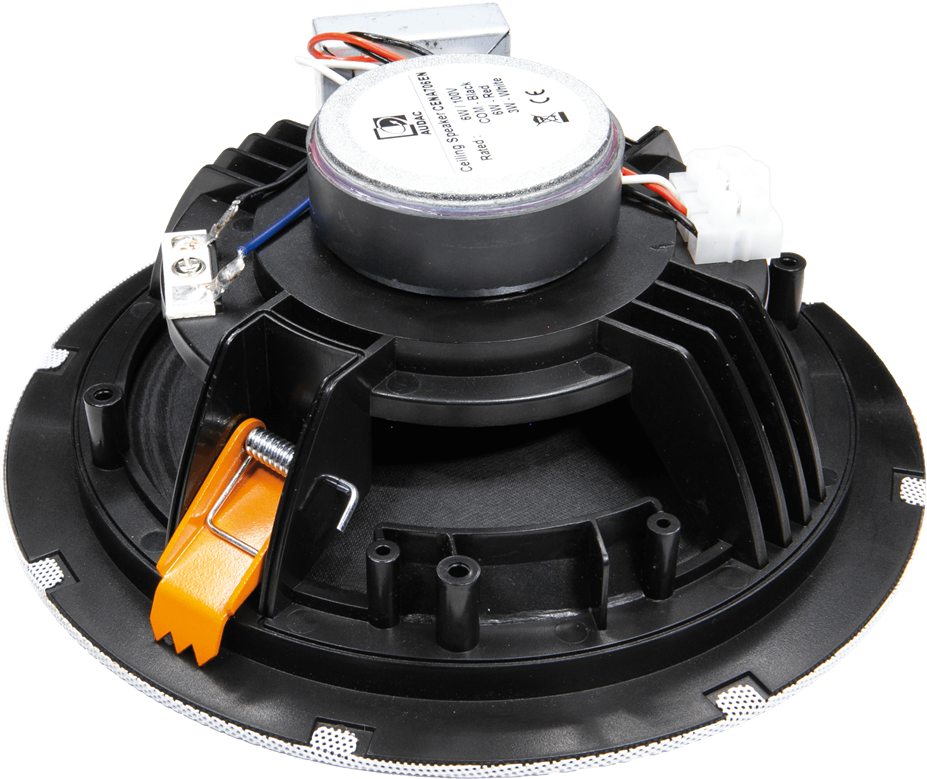

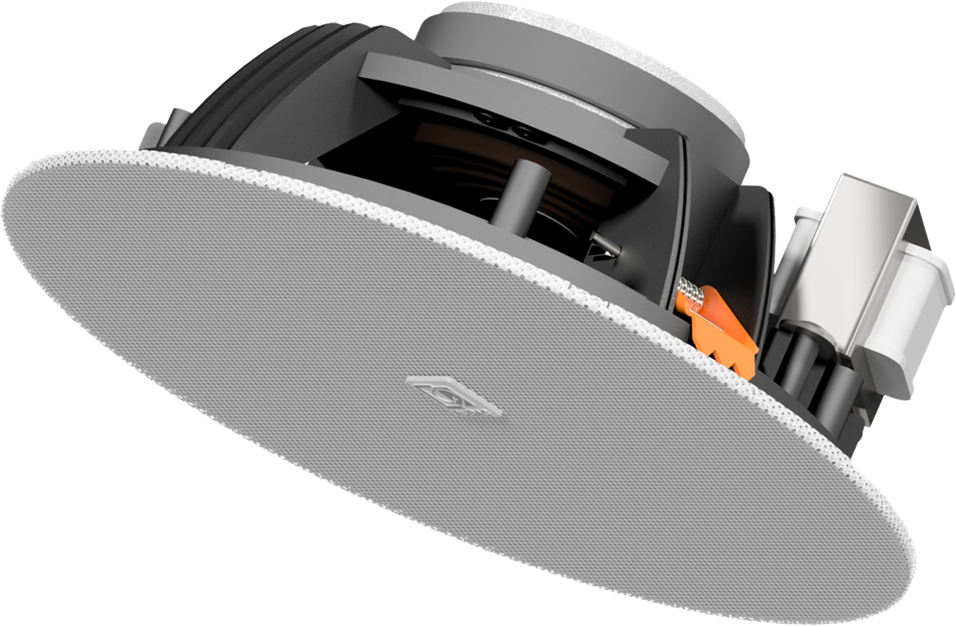

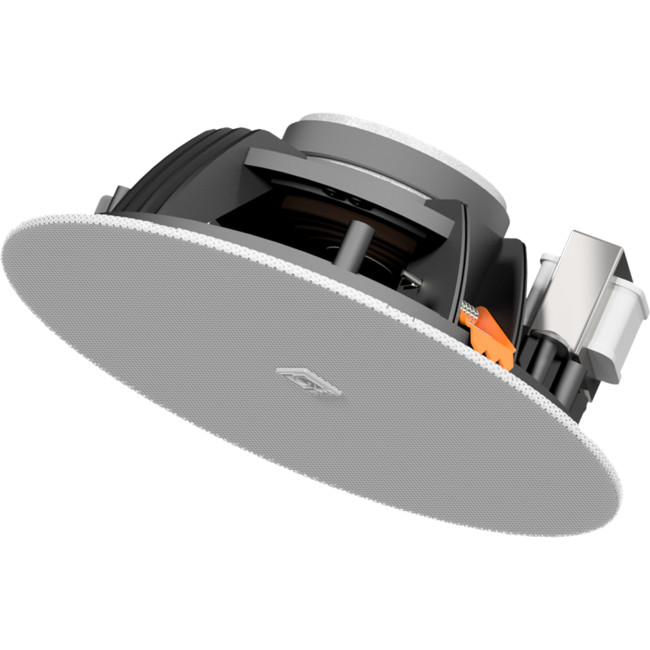

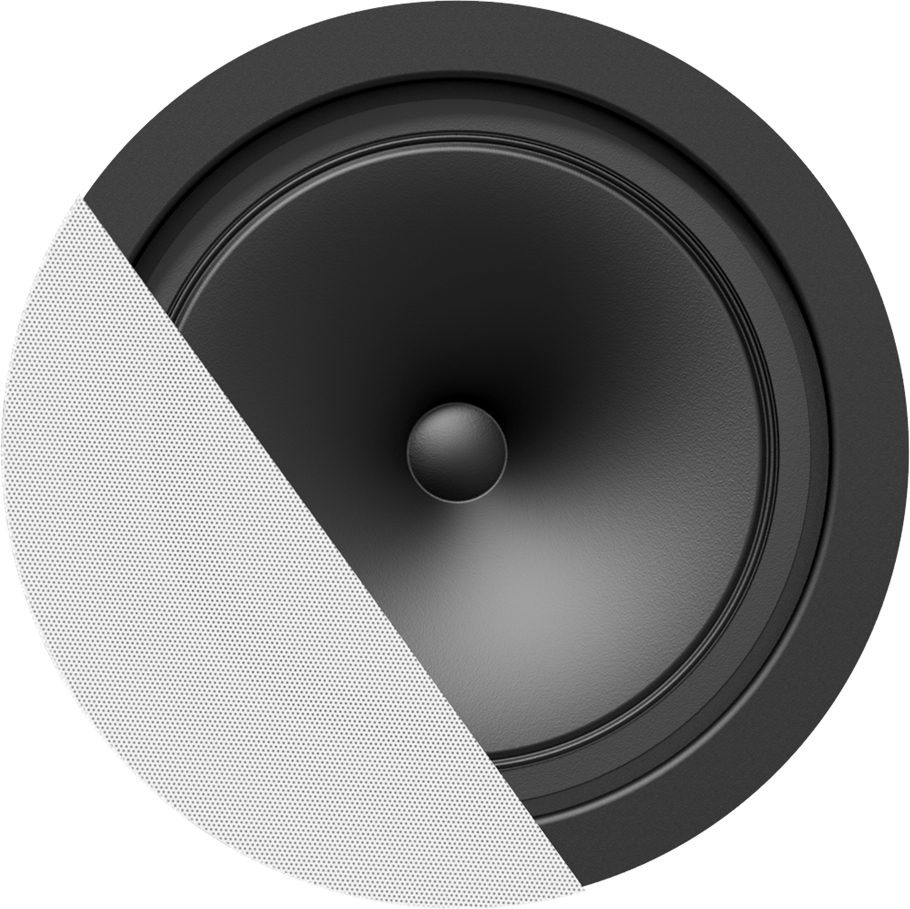

AUDAC -CENA7 SPRINGFIT™ 6.5" CEILING SPEAKER - WHITE

The unbeatable one. The CENA series are full-range ceiling speakers, designed to offer an unmatched solution for large scale public address projects.

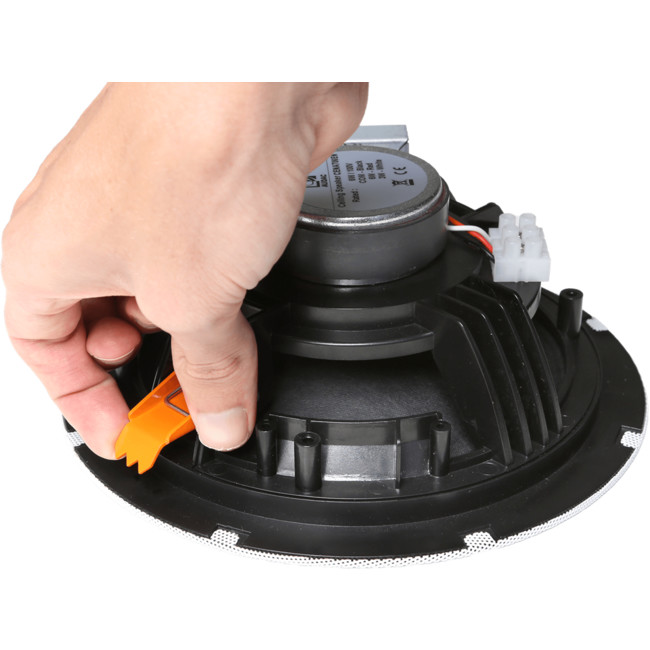

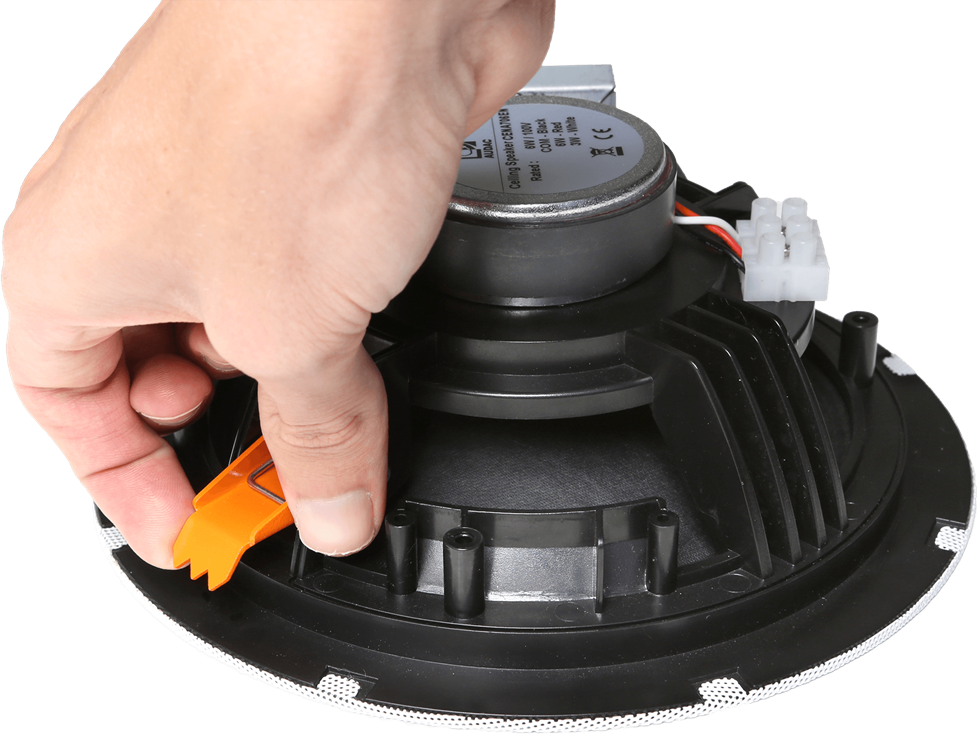

The SpringFit™ fixation offers the fastest possibleinstallation time of any speaker available on the market, while the borderless grill design is absolutely unseen for any ceiling speaker in this segment.

With the selection of high-quality cone materials, exceptional intelligibility and background music performanceare guaranteed.

The CENA Series are equipped with SnapConnect™, a faster, more reliable and safer choice for fixed installations, accepting solid and stranded wires with sections up to 4.0 mm .

The CENA706 features a 6.5” broadband driver with acontinuous power handling of 10 Watt (RMS) and maximum powerhandling of 20 Watt.

It is fitted with a multi-tapping 100V line transformer with tappings for 6W and 3W.

VARIANTS

  • CENA706/W - White version - 8Ω and 100V
  • Also available CENA706/B - Black version - 8Ω and 100V



SYSTEM SPECIFICATIONS
Max. Power 20 W
RMS Power 10 W
Sensitivity (1W/1m) 96 dB
Speaker type Broadband
Impedance 8 ? (CENA706)
16 ? (CENA710D)
Connection Screw terminal
Drivers 6.5” Full Range
Sound Pressure (Max. W/1m) @ 100 V 106 dB
Frequency Response (± 3 dB) 100 Hz - 15 kHz
Range (-10 dB) 70 Hz - 18 kHz
Line Transformer Tappings 1 6 W / 1667 ?
2 3 W / 3333 ?
Dispersion Conical 140°
PRODUCT FEATURES
Cut-out measurement 167 mm (Ø)
Dimensions 193 x 67 mm (Ø x D)
Construction ABS
Front finish borderless finely perforated steel grill
Built-in depth 67 mm
Mounting SpringFit™ mounting system
Colours White (RAL9003) (CENA706/W)
Black (RAL9005) (CENA706/B)
Operating temperature -15 °C ~ 55 °C
