ZD20L 16W BATTERY POWERED SOLDERING IRON

2024 Doss Soldering Range Sell Sheet

View our entire range of Doss Soldering Stations and Irons by downloading the 2024 Doss Soldering Range Sell Sheet

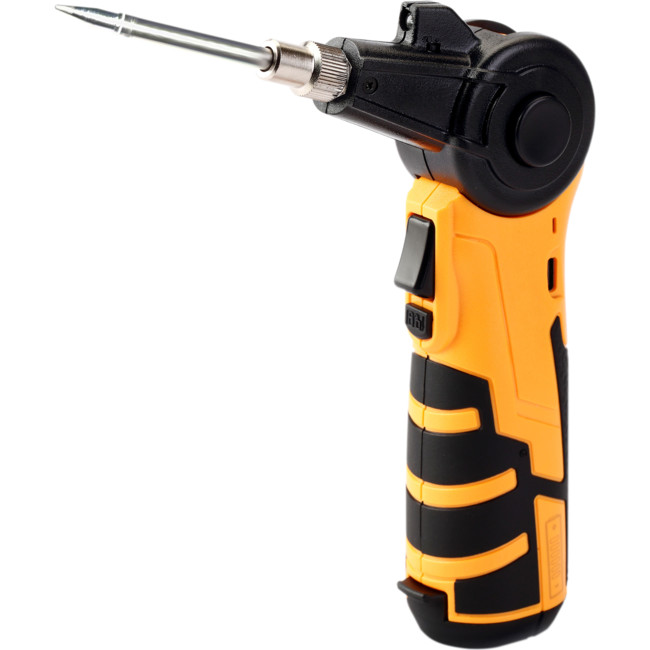

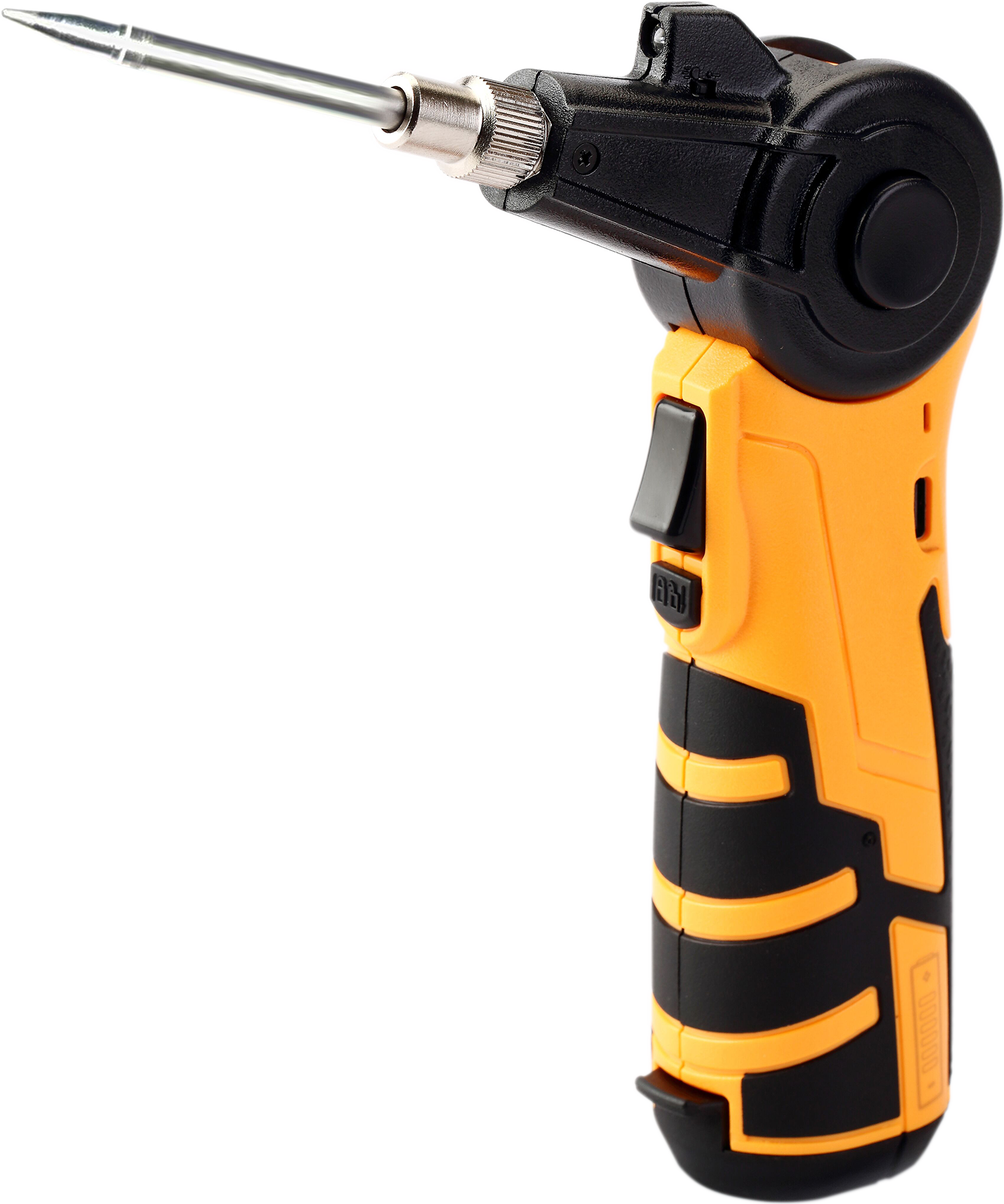

16W Battery Powered Soldering Iron with Pivoting Head

• Heats up quickly up to max 450°C temperature.
• A small LED light with an on/off switch to light up the solder object.
• Easy to disassemble and replace the soldering tip.
• The pivoting head can be adjusted into different angles from 0° to 75°
• Equipped with a safety lock that prevents accidental heating during transportation or travel.
• Rubber-coated housing and sturdy structure make it easy to hold and operate.
• Powered by one single 3.7V 18650 lithium-ion battery.
• Runs for more than 2 hours when the battery is fully charged (based on 2200mA 18650 battery).
• USB type C interface to charge the 18650 battery with built-in battery lifespan protection. The charging current is automatically reduced when the battery level reaches 90%, then trickle charging until it is full.
• The internal chip of the battery operates with constant current/constant voltage and heat regulation to maximize battery management efficiency, without the risk of overheating.
• No battery consumption when the switch is off.
• LED indicator to show the battery charging status.
• Comes with 2 in 1 non-detachable heater with a tip (79-0021).

NOTE: Do not charge and solder at the same time

Specifications

• Temperature: Max 450°C
• The pivoting head adjustment angle range from 0° to 75°
• Power: 16W
• Powered by 1PC of 3.7V 18650 Lithium Ion rechargeable battery

In The Box

• 1 × Soldering Iron
• 1 × 3.7V 18650 2200mAh rechargeable battery
• 1 × USB Type-C charging lead
• Manual
