ZD917 SOLDERING/ DESOLDERING STATION

2024 Doss Soldering Range Sell Sheet

View our entire range of Doss Soldering Stations and Irons by downloading the 2024 Doss Soldering Range Sell Sheet

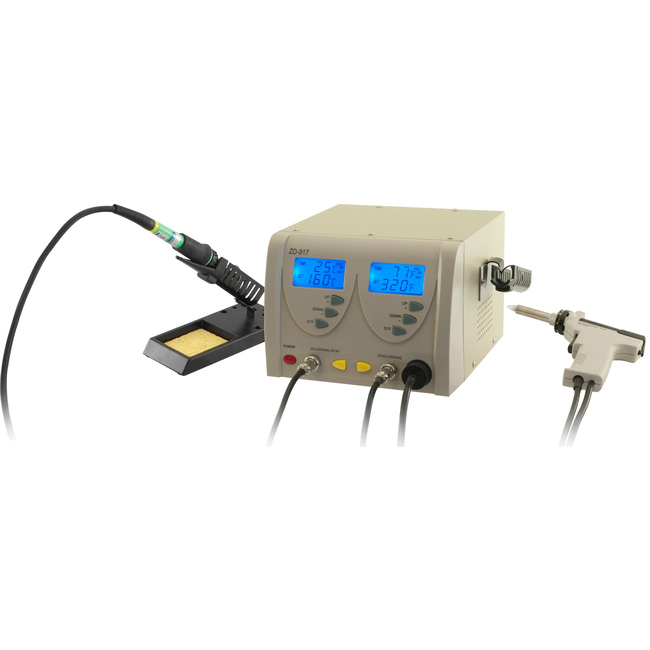

ZD917 2-IN-1 / DUAL LCD DISPLAY SOLDERING/DESOLDERING STATION

The Doss ZD-917 soldering station is a high-performance and multi-functional station for electronic product research, production and rework. The soldering iron and the desoldering gun tool of the soldering station are automatically controlled by two micro-processors. The digital control electronics, high-quality sensor, and heat exchange system guarantee precise temperature control at the soldering tip.

The highest degree of temperature precision and optimal dynamic thermal behavior under load conditions is obtained by the quick and accurate recording of the measured values in a closed control circuit. This design is specifically for the lead-free production techniques.

The high power and slim design of the iron makes it a great choice for fine soldering work. The sensor on the soldering tip can control the soldering temperature quickly and accurately and the heating element is made of PTC. This iron gun is applicable for fine desoldering work due to its high power and gun type design. The heating element is made of PTC and the sensor on the desoldering tip is able to quickly and accurately control the desoldering temperature.

In The Box

• 1 × ZD917 main unit
• 1 × ZD415 soldering iron with N4-1 tip
• 1 × soldering iron stand
• 1 × ZD552 desoldering gun
• 1 × Tip N5-1 Ø1.0mm
• 1 × Tip N5-3 Ø1.3mm
• 1 × Filter 5519 Ø20.8mm
• 3 × Filter 5518 Ø16.8mm
• 3 × Soldering Iron Clearer Pin Ø0.7/0.9/1.2mm

Specifications
