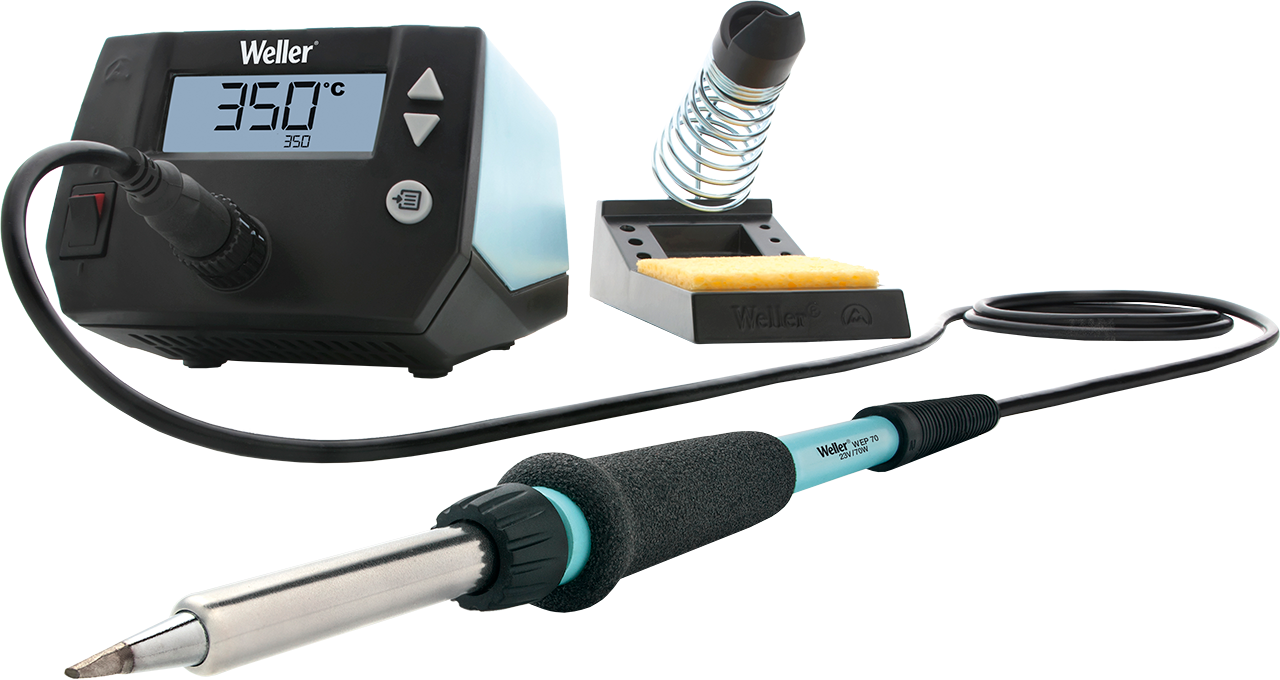

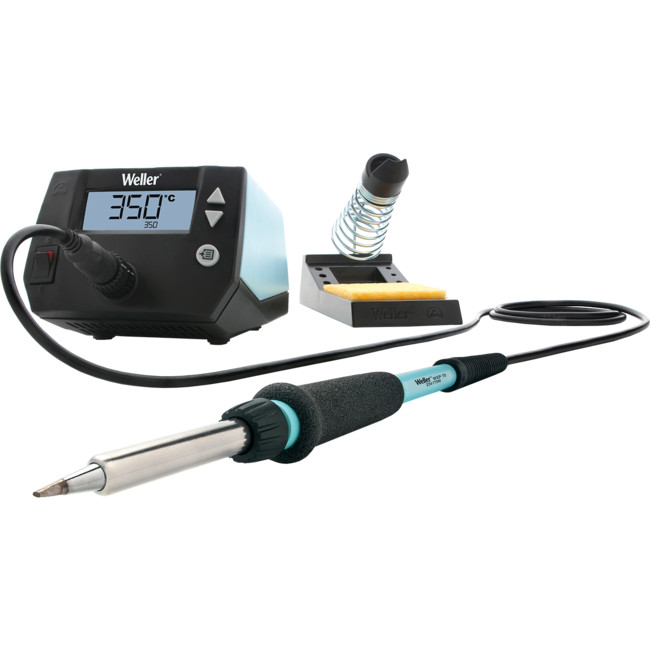

WE1010 70W DIGITAL SOLDERING STATION

{tab Overview}

WE1010 70W DIGITAL SOLDERING STATION - WELLER

Get It Soldered

Weller Efficiency ? the most powerful station in its class now in a new design

Weller introduces a new soldering station designed for vocational and professional uses. The WE station is ready when you are ? just switch it on and start soldering.

Powerful, user friendly and cost-efficient

• 40% more powerful ? gets your soldering job done faster

• Easy to handle high performance iron

• Intuitive navigation

• Low total cost of ownership

Maximum reliability and protection

• ESD safe station, iron, and heat-resistant silicon cable for safe handling

• Reinforced safety rest for secure iron storage

• Temperature stability ( /- 4°F, 2°C ) and temperaturelock protects tips and components, affording
  a consistently high quality process with repeatable soldering results

• Standby mode and auto setback conserves energy, protects equipment

• Password-protected to preserve settings

70W power station

• 40% more power housed in functional new design

• Faster heat-up and recovery

ET tip family

• Choose from a wide range of longlife ET tips

{tab Features}

Safe handling

• ESD safe

• Both station and iron have passed inspection and havereceived a Certificate of Compliance for electrical safety (CE, UL)

• The flexible silicon cable withstands heat because itmeets the highest industry standards for mechanical strength(overload/stress).
• Because it?s certified ESD safe, the WE station can beused for professional use.


Temperature stability

• /- 4°F, 2°C (even better than MIL Spec)

• Temperature lock stabilizes heat levels to protect tips and components and aid in producing uniformly high quality solder joints - reliable and repeatable soldering results


Standby mode

• Station automatically powers down to a given temperature when not in use


Automatic set-back

• Sets temperature back automatically when not in use to save energy and increase tip lifetime


Password-protected

• All settings can be secured with a password, so that predefined settings can be maintained in
  order to ensure process quality


Gets your soldering job done faster

• Digital 70 W soldering station, 40% more powerful thanthe WES/WESD station. This allows the iron to heat up fasterand to provide a faster recovery time ? gets the job done quicker with more efficiency and precision.


Easy to handle high performance iron

New high performance 70 W soldering iron with an ergonomic handle and easy toolless tip change solution:

• The iron was designed in a light weight pencil style with a co-molded grip.

• The new and improved safety rest has additional support so that the iron is stored securely in place in between use.


Intuitive navigation

• The station is designed in a state-of-the-art housing with front panel power switch for easy access.

• The digital WE soldering station features an easy-toread LCD screen with 3 push buttons providing easy temperature control, a front switch for easy on/off and intuitive navigation through all new SW features.


Easy tip change and low total cost of ownership

• Change hot tips out by hand by twisting the plastic knurled nut on the soldering pencil without an additional tool.

• The soldering set and the genuine Weller ET series tips provide the best performance and an extraordinary lifetime.

• Choose from a wide selection of existing high quality, affordable, genuine Weller ET tips. Here?s where the station starts to pay for itself.

{tab Specifications}

Dimensions: L x W x H 150 x 125 x 100 mm
Power supply: 230 V / 50 Hz; 120 V / 60 Hz
Power: 70 W
Temperature range: 2 0 0 °F?850°F; 100°C? 450°C
Temperature accuracy: /- 17°F , 9°C
Temperature stability: /- 4°F , 2°C
ESD safe: yes
Supplied tip: ETA
