KPLC116 16 WAY PCL SPLITTER

{tab Overview}

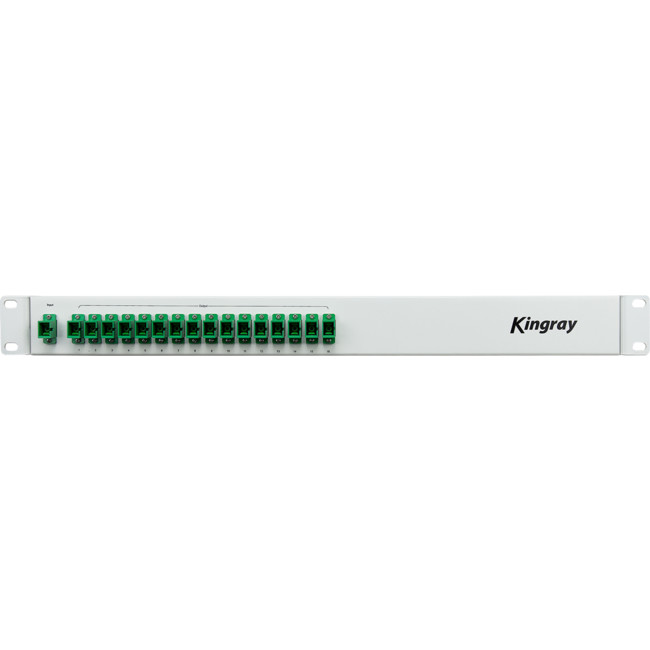

KPLC116 16 WAY PCL SPLITTER - KINGRAY

This 16 Way Planar Optical Waveguide Optical Splitter (PLC Splitter) is an integration waveguide optical power distribution device that is based on quartz substrate,has a wide working wavelength range, high reliability and excellent uniformity of optical split. It is especially suitable for connecting a local unit with a terminal unit inpassive optical networks (EPON, BPON, GPON, etc.) to achieveoptical signal splitting.

The main design divides optical signals in optical communication systems into multi-way output.

{tab Features}

• 1 in 16 Out Optical Splitter

• Optical Wavelength: 1260nm~1650nm

• Maximum Insertion Loss: 13.9dB

• Return Loss >55dB

• Low insertion loss, high uniformity

• Low polarization loss

• Wide working wavelength range

• High stability and reliability

• Size: 1RU, 19" Rack Mountable

• Connections: SC/APC

{tab In The box}

• KPLC116

{/tabs}
