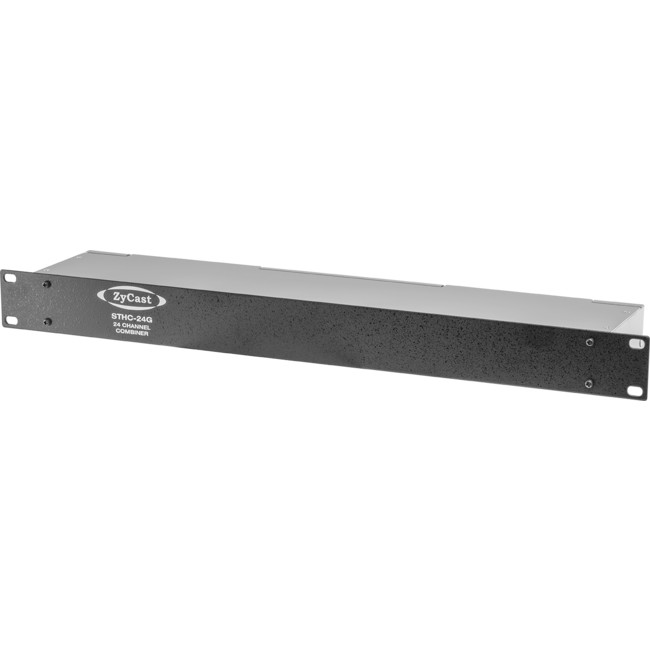

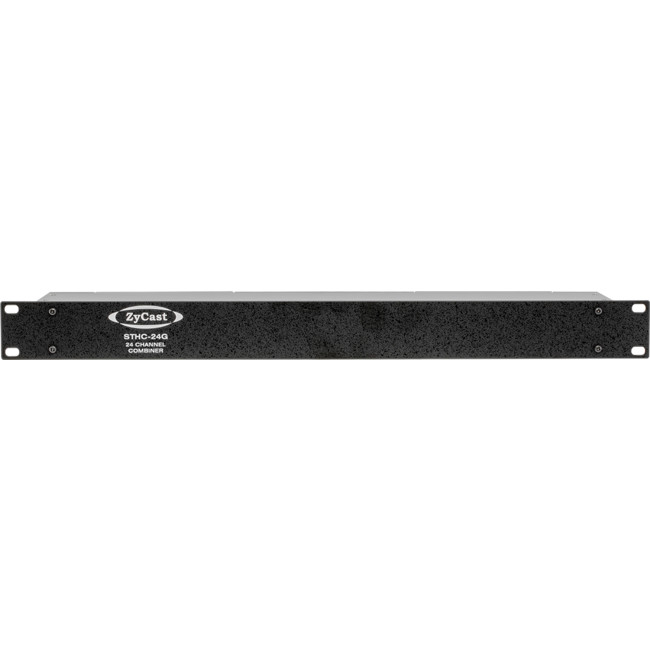

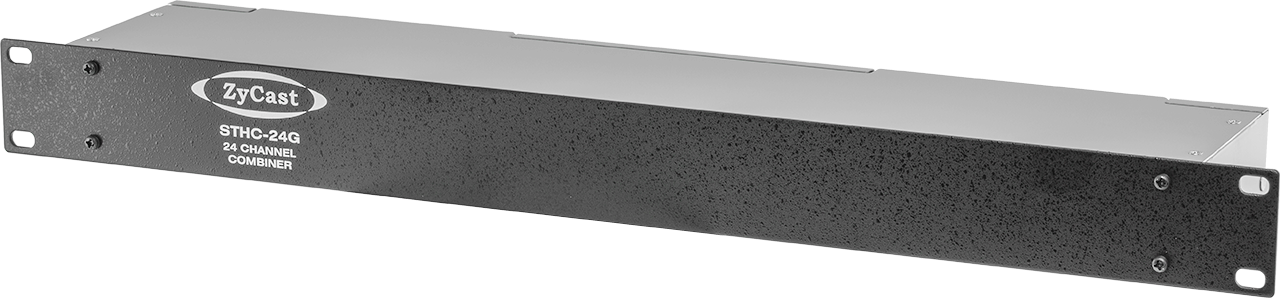

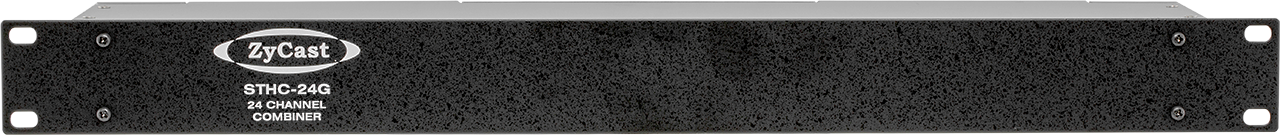

STHC24G 24 PORT PASSIVE COMBINER

COMBINES 24 INPUTS TO 1 OUTPUT

Code: 37400454

1.40 kg
9328202020543
EACH
8
Low Stock
TRADE ALERT!
$299 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

24 PORT PASSIVE COMBINER

Features

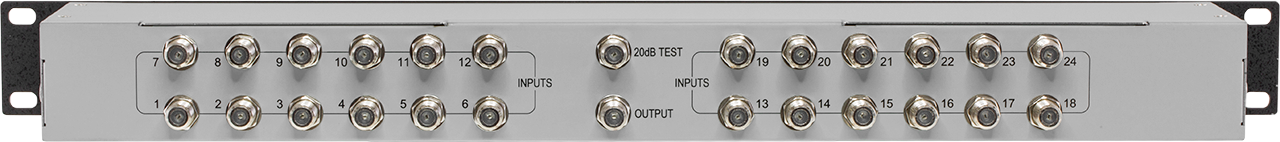

24 channel combiner takes 24 RF inputs and combines them into 1 output.

Features one 20dB test port.


Specifications


Bandwidth 40-1000MHz
Input Number 24 ports
Impedance 75Ω (Ohms)
Insertion Loss

19dB typical @ 40-450 MHz

21dB typical @ 450-1000MHz
Input Return Loss

16dB typical @ 40-450 MHz

16dB typical @ 450-1000MHz
Output Return Loss

16dB typical @ 40-450 MHz

16dB typical @ 450-1000 MHz
Port-to-port Isolation Adjacent Ports 30dB typical
Port-to-port Isolation Opposing Ports 40dB typical
Test Port −20dB
Connectors F-type
Dimensions (W×H×D) 482.6mm × 44.45mm × 76.2mm
Weight1.08kg
