HD4002DM QUAD INPUT HD MODULATOR

DVB-T MPEG2/4 RESILINX

Code: 37400265

4.41 kg
9328202020475
EACH
3
Low Stock
$5999 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

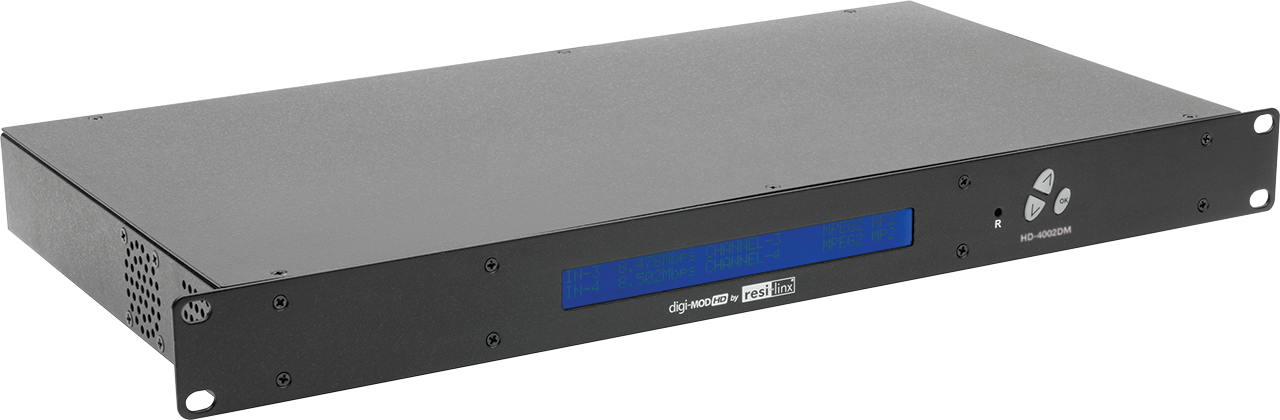

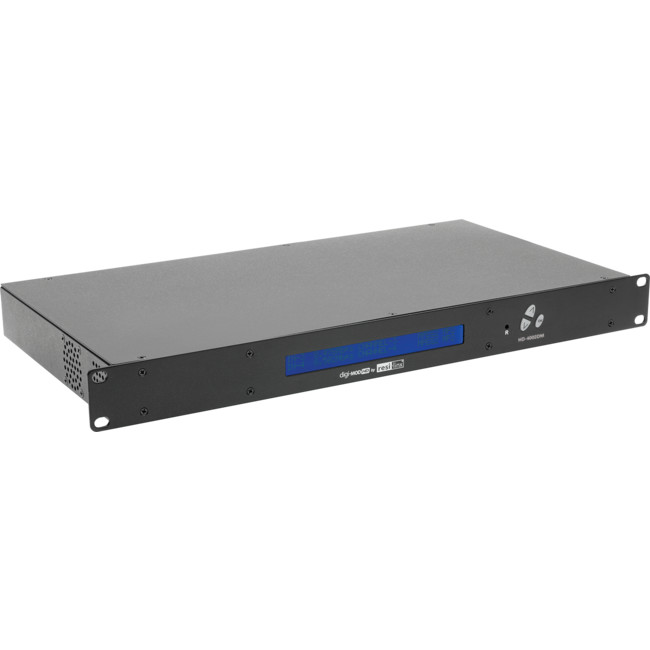

HD-4002DM – Professional Digital Modulator

Quad Input High Definition DVB-T MPEG-2/4

The HD-4002DM is a Quad Input High Definition DVB-T Professional Commercial Modulator.

Dual mode DVB-T distribution with both MPEG-2 / AVC (MPEG-4) encoding - along with IP Streaming available inthe one product- ensuring the product is compatible with allHD TV's.

Up to 1080P HD Distribution: 576i / 720P / 1080i / 1080P(AVC only)


Features

  • Quad Input High Definition DVB-T Modulator that converts HD video and audio signals to digital COFDM DVB-T Channel
  • Dual Mode - MPEG-2 & AVC (MPEG-4) Encoding
  • Simulcastng IP Multicast Broadcasting
  • Distributes 576i / 720P / 1080i / 1080P picture quality (1080P only available on AVC)
  • Programmable Channel, Network Names and LCN

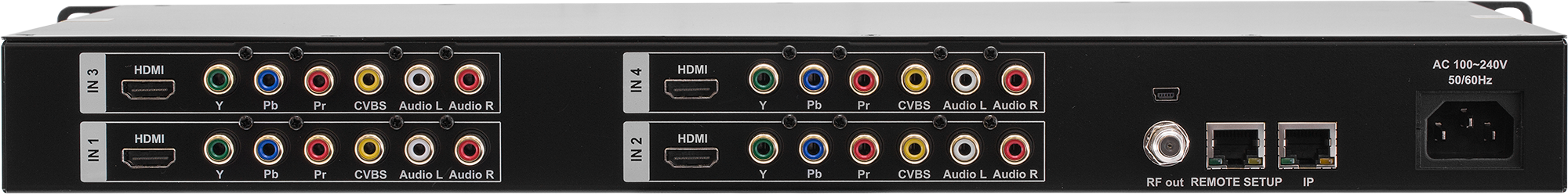

  • HDMI, Component, CVBS, Analogue Audio, Digital Coaxial/Optical inputs
  • MER - 43dB
  • Full function front LCD display for adjustments
  • Web Management for easy programming and monitoring
  • 2K/8K Carriers
  • Adjustable VHF / UHF Output (6-69)
  • Adjustable Attenuation (98dB launch)
  • Desk, Wall and Rack Mountable

Specifications


Video InputHDMI / Component / CVBS
Audio InputHDMI / Analogue Stereo / Digital
Resolutions Supported576i / 720P / 1080i / 1080P
Output Channels6-69
Output ConnectorF type
Output Level98dBuV
Output Level Adjustment20dB typ.
Number of Inputs4
Video ResolutionMPEG-2 / H.264 (MPEG-4)
