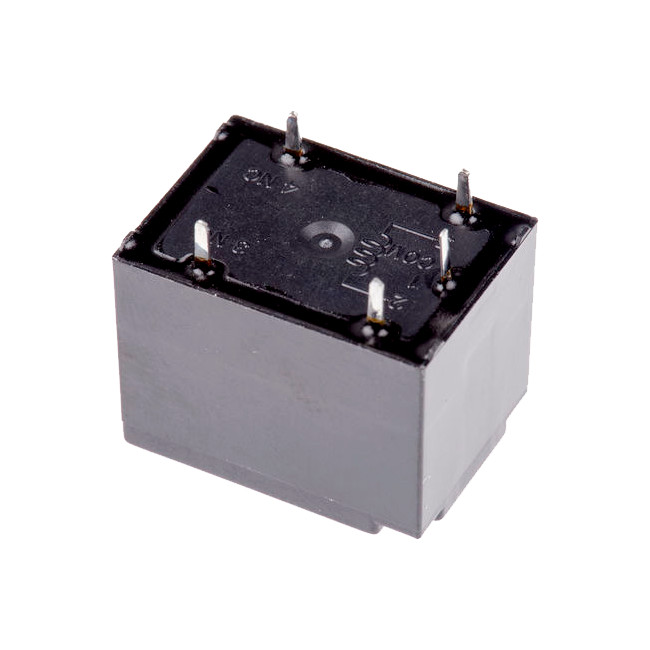

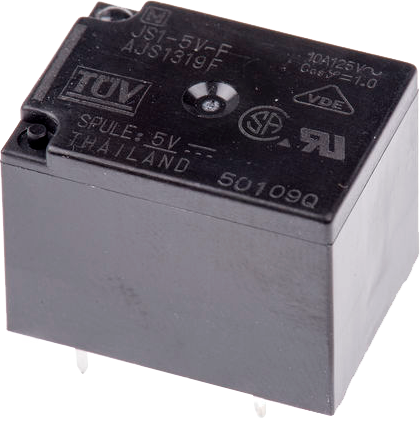

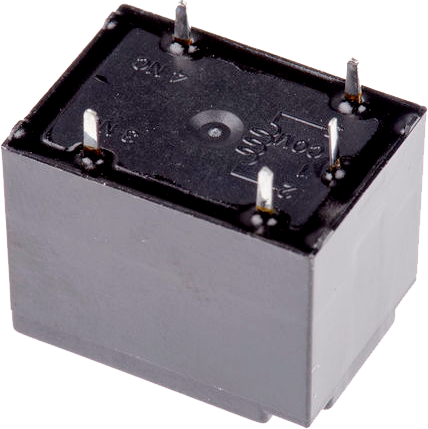

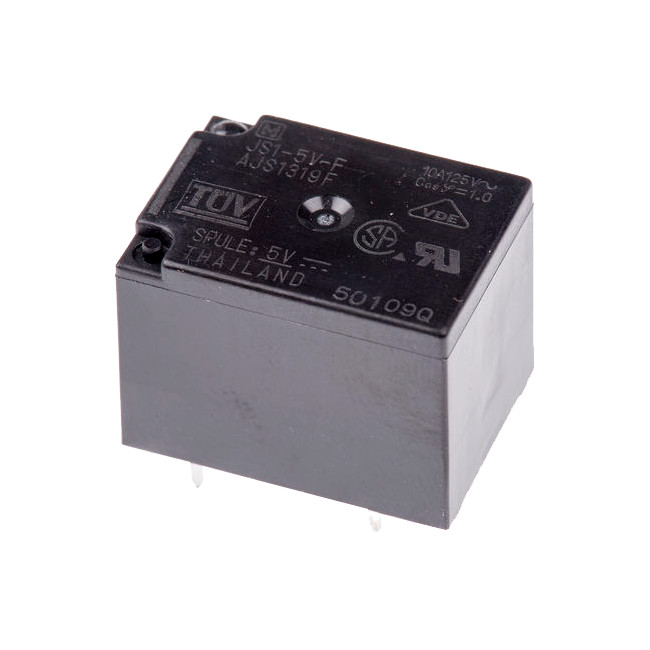

RWSH105D 5V DC 10A SUB-MINIATURE RELAY

5V DC 10A SUB- MINIATURE RELAY

Subminiature relay with low profile package and lightweight, suited for a wide range of consumer equipment, industrial machines & automotive applications.

Application : Domestic Appliances, Office Machines, AudioEquipment, Coffee-Pots, Control units, etc.

FEATURES:

• RW Series Relay covers switching capacity by 10A is spite of miniature size to comply with user’s wide selection.
• RWH is approved C-UL & TÜV safety standard.
• The employment of suitable plastic materials is applied under high temperature condition and various chemical solutions.
• Complete protective construction is designed form dust and soldering flux. The plastic sealed type is available for washing procedure.
• 12A at 120VAC for RW & 12A at 240VAC for RWH are UL approved.


SPECIFICATIONS:

• Nominal Load (Resistive Load Cosφ=1)
  • Contact Capacity:
• RW
  • 12A at 120VAC.(UL)
  • 10A at 120VAC.
  • 10A at 24VDC.
• RWH
  • 12A at 250VAC.(UL)
  • 10A at 277VAC(TUV)
  • TV-5 at 120VDC.
  • 15A at 24VDC.
• Rated Carrying Current........RW: 10A & RWH: 15A.
• Max. Allowable Current .......RW: 10A & RWH: 15A.
• Max. Allowable Voltage ........AC 240V, DC 110V.
• Max. Allowable Power Force.
  • RW: 1500 VA, 240W.
  • RWH: 1800VA, 360W.
• Min. Switching Load
  • RW: DC 5V, 10mA.
  • RWH: DC5V, 15mA.
• Contact Material
  • RW: Ag Alloy.
  • RWH: AgSnO2.

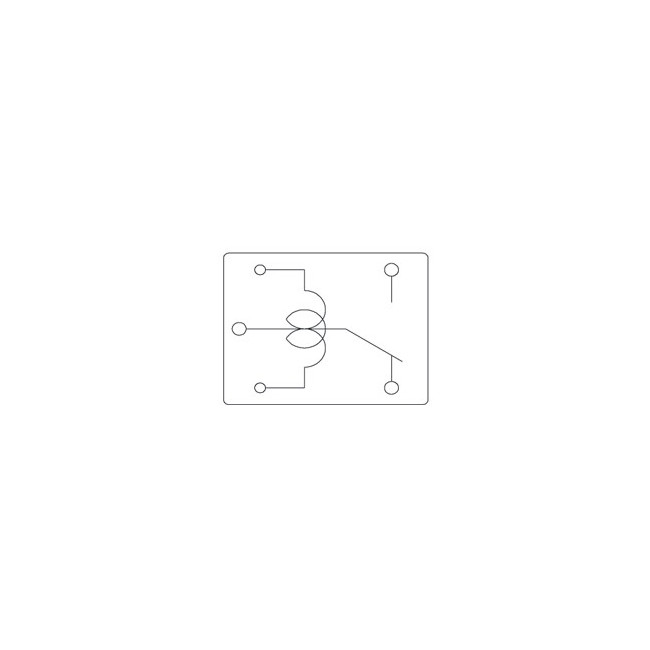

• Contact Form..........................SPST & SPDT.
• Contact Resistance .................100mΩ Max.@1A,6VDC
• Operate Time..........................10 mSec. Max.
• Release Time ...........................5 mSec. Max.
• Dielectric Strength :
  • Between Coil & Contact........1,000VAC at 50/60 Hz for one minute.
  • Between Contacts ..................500VAC at 50/60 Hz for one minute.
• Surge Resistance .....................3,000V (betweenCoil & Contact 1.2x50μSec.)
• Insulation Resistance..............100 MegaΩ Min. at 500VDC.
• Max. On/Off Switching :
  • Electrical.................................. 30 Ops per Minute.
  • Mechanical.............................. 300 Ops per Minute.
• Temperature Range ................ -30 - 55°C
• Humidity Range..................... 45 - 85% RH.
• Coil Temperature Rise............ 35°C Max.
• Vibration :
  • Endurance ............................... 10 to 55 Hz dual amplitude width 1.5mm.
  • Error Operation ...................... 10 to 55 Hz dual amplitude width 1.5mm.
• Shock :
  • Endurance ............................. 1,000 m/S2 Min.
  • Error Operation ...................... 100 m/S2 Min.
• Life Expectancy :
  • Mechanical ............................ 100,000,000 Operations at No Load condition.
    Electrical ................................ 1,000,000 Operations at Rated Resistive Load.
• Weight..................................... About 11 g.
• Safety Standard & Its File Number :
  • RW:
    • UL ............................................ E141060
    • CSA.......................................... LR76598
  • RWH:
    • C-UL........................................ E141060
    • TÜV......................................... R9854380
