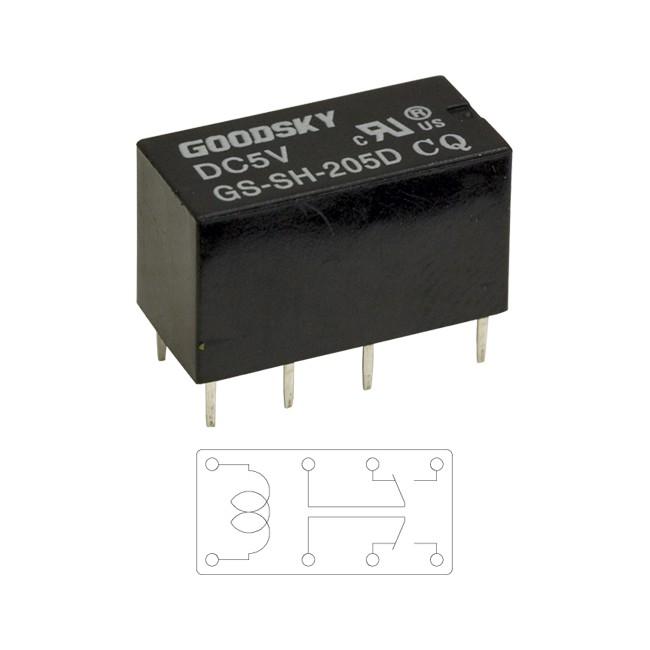

GSSH205D 5V DC 2A DUAL INLINE RELAY

5V DC 2A DUAL INLINE RELAY

The Dual-in Line relay is designed to offer a completelydust and water-proof package with bifurcated and crossbar contacts for assuring high reliability.

Plastic sealed package and DIP terminal for flow-soldering process

Application : Telecommunication, domestic appliances, office machine, audio equipment, Remote Control, etc

FEATURES:

• 92/8 gold silver alloy on silver palladium contact type is suitable for low level switching application.
• Small size and light weight can provide high density P.C. Board mounting.
• 2.54gmm Terminal Pitch.
• Low Coil Power Consumption of GS-T Type and high Coil Power Consumption of GS-D type are available to meet user’s selection.
• Employment of suitable plastic materials to be applied to high temperature and various chemical solution.
• Plastic epoxy resin sealed type for washing procedure.


SPECIFICATIONS:

• Contact Resistance.............100mΩMax.@0.1A,6VDC
• Operate Time
  • GS-D 6 mSec. Max.
  • GS-T 8 mSec. Max
• Release Time......................4 mSec. Max.
• Dielectric Strength :
  • Between Coil & Contact.......1,000VAC at 50/60 Hz for one minute.
  • Between Contacts................500VAC at 50/60 Hz for one minute.
• Surge Strength.....................1,500V (between coil & contact 1.2x50μSec.)
• Insulation Resistance..........100 MegaΩ Min. at 500VDC.
• Max. On/Off Switching :
  • Electrical..............................30Cycles per Minute.
  • Mechanical 300 Cycles per Minute.
• Temperature Range..............-30 - 80°C
• Humidity Range....................45 - 85% RH.
• Coil Temperature Rise:
  • 25°C Max. (D Type)
  • 20°C Max. (T Type)
• Vibration:
  • Endurance.............................10 to 55 Hz dual amplitude width 1.5mm.
  • Error Operation.....................10 to 55 Hz dual amplitude width 1.5mm.
• Shock:
  • Endurance ...........................1,000 m/S2 .
  • Error Operation.....................100 m/S2 .
• Life Expectancy:
  • Mechanical ..........................100,000,000 Operations at No Load condition.
  • Electrical ..............................1,000,000 Operations at Rated Resistive Load.
• Weight...................................About 4.8 g.
• Safety Standard & Its File Number
  • C-UL(D&T only)....................E141060
  • CSA(D&T only).....................LR109368
