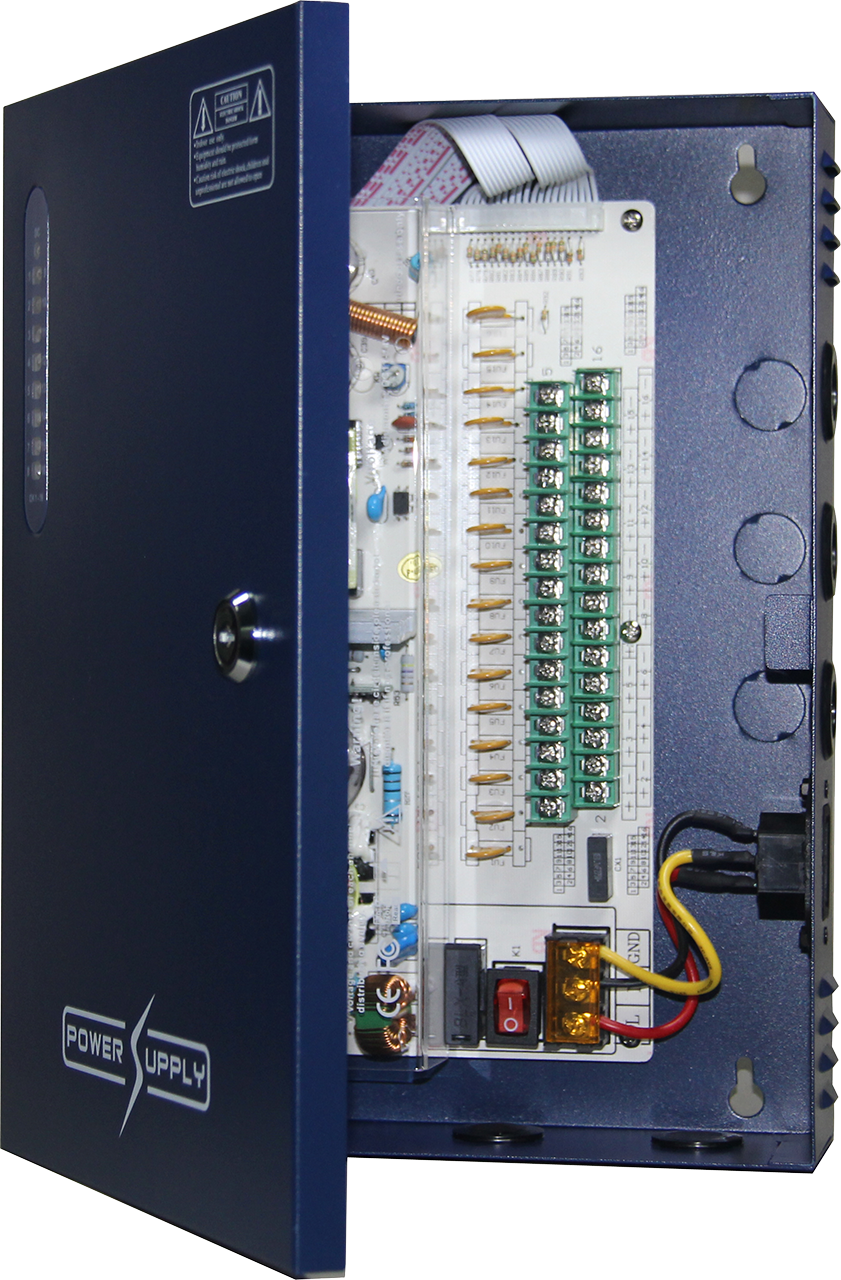

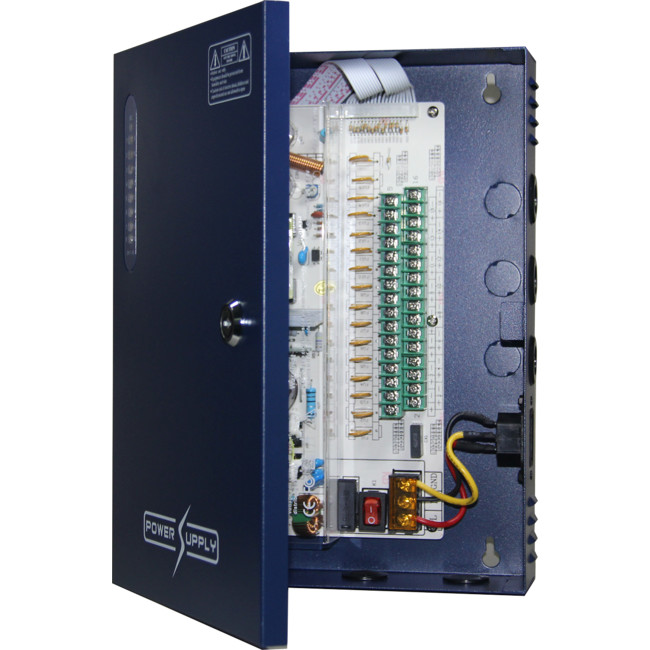

PW1812B20 18 WAY 12V DC 20A POWER SUPPLY

The Doss range power supply boxes also knows as a power distribution boxes offer a great power solution for CCTV system as well as other system powered by DC 12V. It enablessurveillance system installers to easily manage the power tomultiple CCTV cameras at a central point and allows your camera installation to be neater. The DOSS power supply boxes are very simple to install, simply screw each cameras power cable in to the power supply terminal in the power supply box.

Features

• Universal AC input range: 96-264VAC, 47~63Hz
• Each channel is protected seperately. There is one tube fuse (Glass fuse) for the main board and PTC (Polymeric temperature control) fuse for every individual channel.
• Short circuit, over current and overload protection
• Models with power larger than 60W are configured with PFC function.
• Meet the European energy efficiency standard
• 5kA surge protection
• High quality cooling fin to reduce power consumption
• External LED indicators for each channel output
• Extra AC jack on the side of box (AC power lead is not included)
• Buit-in EMI wave filter with 100% full load burn-in test
• Using 105°C long life electrolytic capacitors
• Wall type blue baking finished shell

Specifications

• Input: 93 - 264V AC
• Output: DC 12V 20A
• Operating temperature: 30&cC~70°C
• Size: 290mm (H) x 215mm (W) x 65mm (D)
