PW408U 4A 8 PORT DC12V REGULATED PS

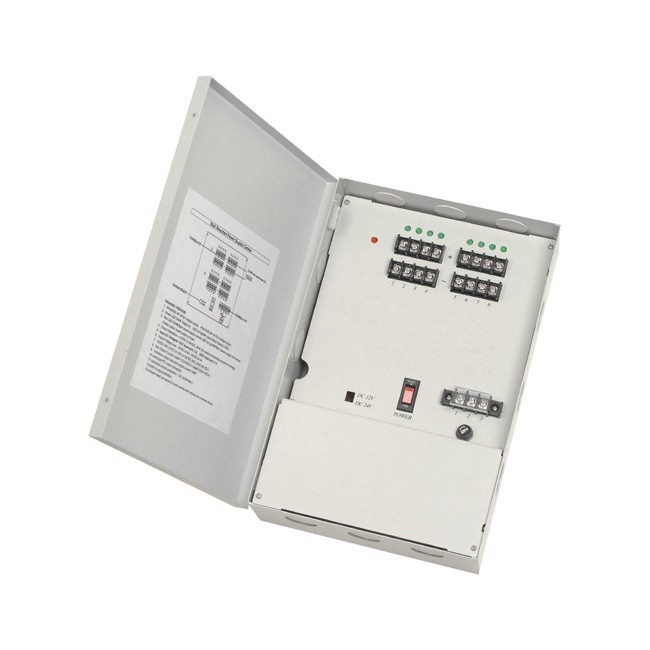

PW408U DC12V REGULATED POWER SUPPLY

Specifications:

• 4AMP„» 8 Port Voltage output
• Green LED ON: Output ok, LED not light: output failed (check LOAD)
• Red LED ON: Major power supply normal, LED not light„»Major power supply not normal (check output: power switch or fuse)
• Input AC Voltage„» 100V ~ 240V, L = LiveWire, N = Neutral Wire, E = Earth Wire.
• Output Voltage load: 12VDC Regulated at 4AMP. (Recharge Battery status: 3.5AMP Max.)
• Individual current protection: 1.1A, (2.5A/4sec.)
• Max Output Current: 4AMP (1CH~8CH)
  • Individual output: standard output current 1AMP
  • Individual PTC output protection.
  • Individual current protection: 1.1A, (2.5A/4sec.)
  • Built in surge protection
  • At least need one second to auto rework after remove the overload status.
• Built in 12V 3.3AMP Rechargeable Sealed Lead Acid Battery for power back up.
  • Automatic switch over to stand-by battery whenAC fails.
  • LED color Indication on Battery: Green: battery full, Yellow: battery recharging, Red: loss of AC, stand-by battery supplying power, Flash Red: low battery.

Features:

• PW408U: 8 Port Voltage output.
• Red LED for Main power.
  • Individual Green LED for power indication.
• Individual PTC 1.1Amp, (2.5A/4sec.) fuse on each output protection.
  • Toroidal transformer for high efficiency andlow operating temperature.
• Built in Surge Protection
  • Wall mounting metal box
  • Overall Dimension: 330 x 210 x 89.5 mm
