NTP8631 0.8-36V 0.1-3A 100W SWITCHMODE POWER SUPPLY

NTP8631 Programmable Laboratory Grade 100W SMPS with metered 2 Isolated USB outputs

This NTP-86XX series of 100W Remote Programming Switching Mode Power Supplies with 1 variable, Type C, and 5V USB auxiliary outputs. The variable output is fully programmable via a standard USB control interface. It comes with an application PC software for remote programming and cyclic tests, Command Sets, and the latest Python library for Windows and Linux platforms.

Both novice and advanced users will find this power supply highly adaptable and easy to use.

USB auxiliary outputs provide a maximum 2Amp and 3Amp current. They are ideal as USB power sources for DIY electronics such as Raspberry Pi and Arduino or as USB charging. Each output has its ammeter for monitoring the current consumption of your electronic device.

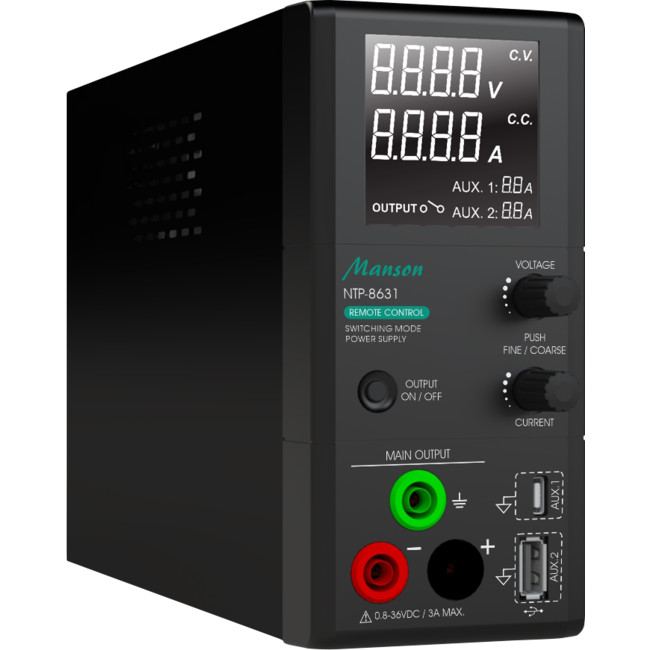

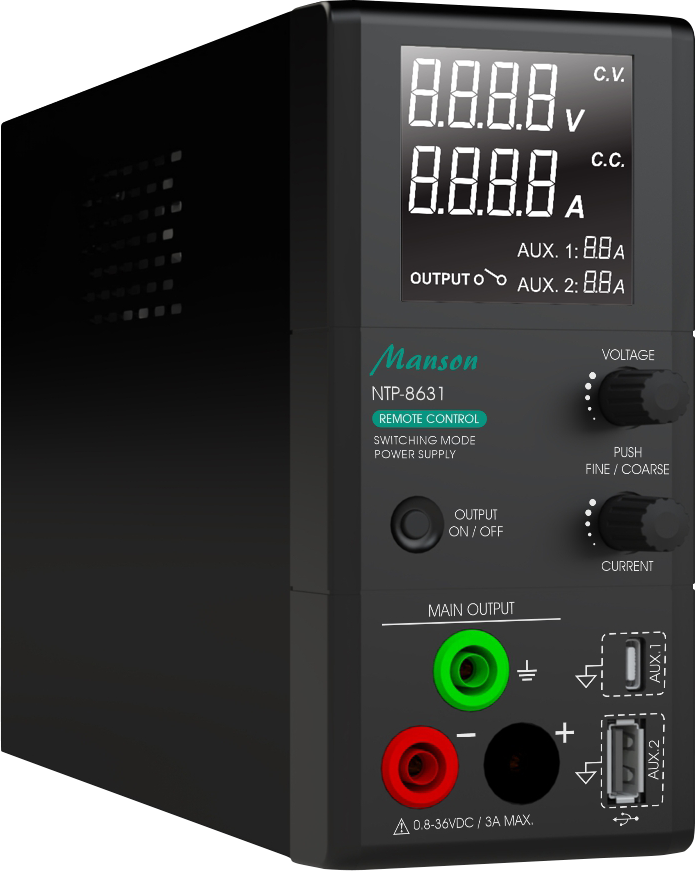

The variable output has a 4-digit display LCD of voltage and current. The slim tower housing makes it ideal for a tight workbench. It is light and conveniently portable with a collapsible handle.

The large and illuminated LCD provides clear and sharp readings even under dim light. The output power on-off switch allows safe and handy operations. The Tracking OVP (Output Over Voltage Protection) ensures better and tighter protection to voltage-sensitive loads. It has good line and load regulations, high efficiency, and low ripple & noise that are typical of advanced switching mode power supply. It meets the CE safety standards of EN-61010 for laboratory-grade power supply and respective EMC standards.

Features

• 1 variable output plus Type C which can output 5 / 9 / 12V and USB 3.0 5V auxiliary output
• Separate digit ammeter for each USB output
• 4-digit LCD voltage and current meters for the variable output

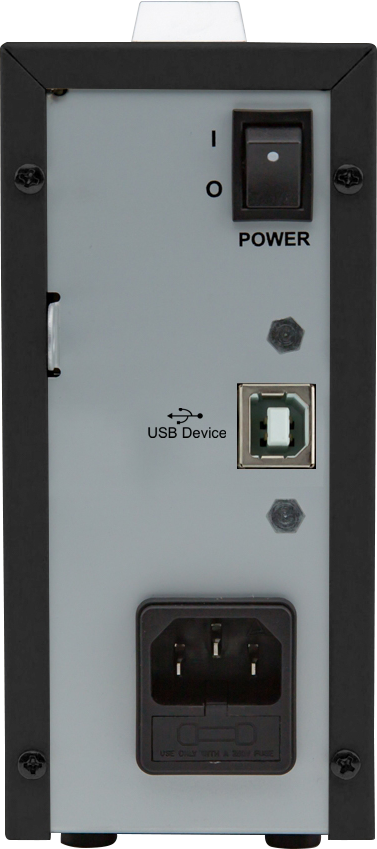

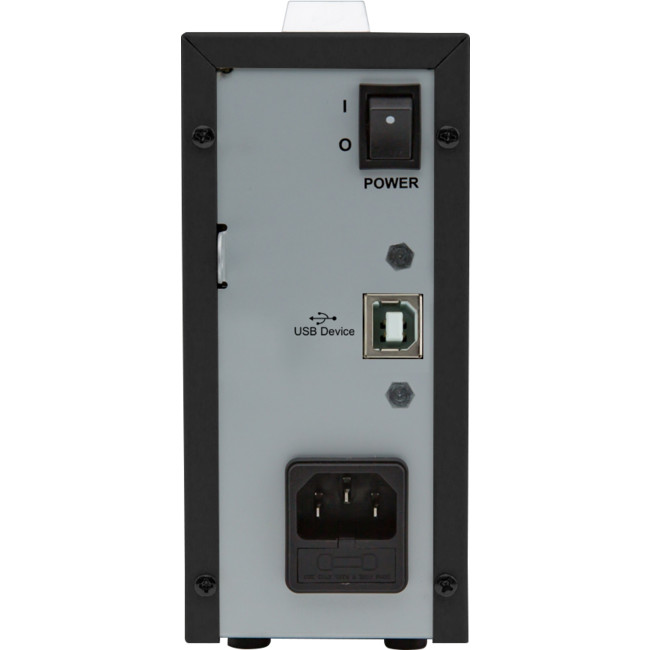

• Remote Programmable via USB for the variable output
• Supplied with application software for cyclic operations, command sets, and Python library
• Automatic Cross over CV and CC mode
• Illuminated LCD indications of A, V, Output ON/OFF, CC & CV
• Coarse & Fine Voltage and Current controls with Rotary encoder control;
• Collapsible handle
• Output power ON/OFF switch at the front panel
• Natural Convection Cooling
• Tracking OVP (output over-voltage protection), Short circuits, overload, and over-temperature protections
• Good line, load regulations, and low ripple and noise

What is in the box?

• NTP8631 × 1pc
• USB-A to USB-B lead × 1pc
