A1T ALPHA FIG 8 IN LINE POWER PROTECTION & FILTER

100K CONNECTED EQUIPMENT WARRANTY

Code: 33540818

EACH
Special
Buy-In
TRADE ALERT!
$99.95 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Interested in purchasing this product?
This product is a special buy-in. Special buy-in products are goods especially bought in on customer's request. After acceptance, special buy-in products cannot be cancelled or the goods returned, unless Radio Parts and its supplier agrees to the cancellation of the corresponding order and return of goods. Prices are subject to change and in the event that our purchase price has changed, we will notify you before finalising your order. Please call us on (03) 93218300 for availability, ETA, or if you have further questions.
Click here if you agree to these terms and to show the Add To Cart button.
View Product
Enter 4 digit postcode

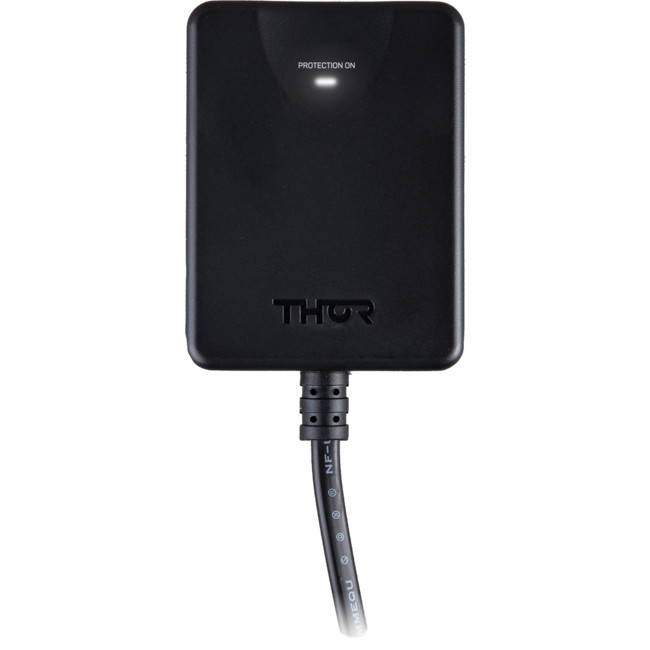

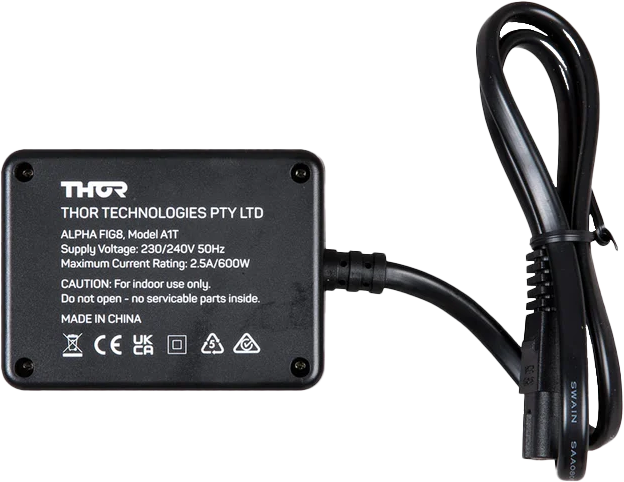

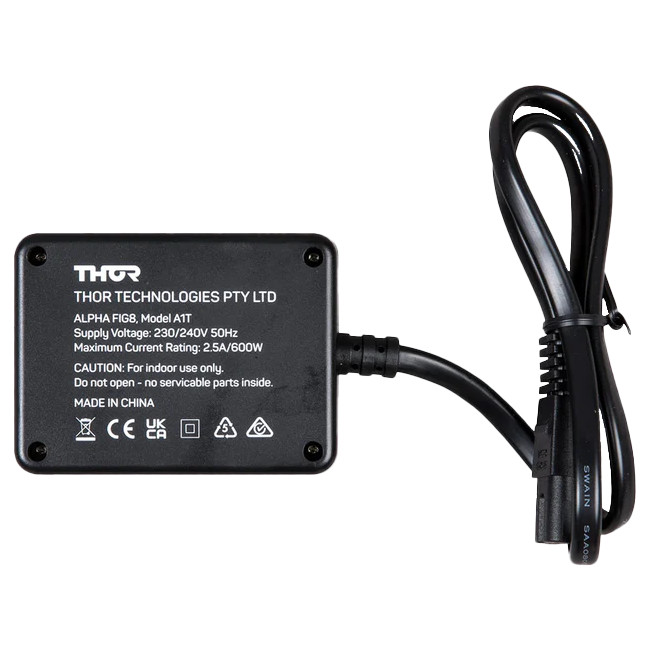

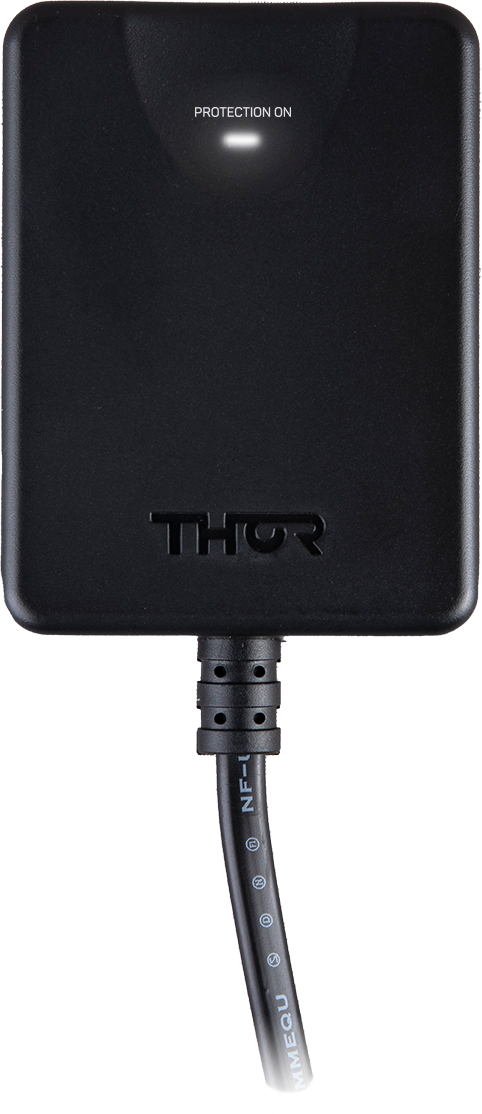

Thor A1T Alpha FIG 8 Inline surge protector and power filter

Features

  • In-Line Protected Outlet
  • Power LED
  • Alarm buzzer which detects if a surge circuit is damaged
  • Flame-proof MOV
  • Flame-retardant housing

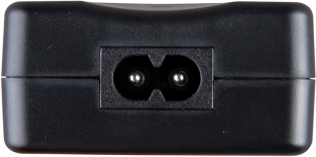

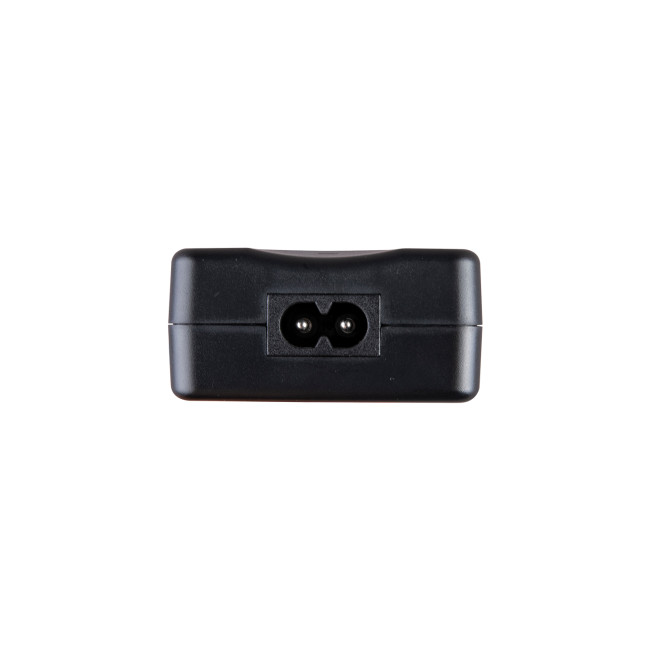

  • Figure-8 Connector
  • Slimline Design
  • 600mm Cable Length
  • $100K Connected Equipment Warranty
  • 6-Year Replacement Warranty

ALPHA FIG8 is the affordable way to have power protection for your most valuable electrical equipment. The new slimline design now means you can have surge protection and filtration anywhere.

ALPHA FIG8 is the latest addition to the Thor Technologies product range and includes newly developed Mains Super Filter (MSF) technology.

Inside the Brain

The MSF, Mains Super Filter technology, is aimed at ensuring only the cleanest power is delivered to your investment. This benefit means dirty power is not robbing your connected equipment of its performance. The effects of unwanted dirty power or interference is reduced or eliminated.

Now including Flameproof MOV

Flameproof MOV ensures the main protection components will not catch fire while protecting from dangerous surges. The choice of Flameproof components and the added flame retardant housing safeguards ensures your home and family will always be safe.

TV Mountable

The ALPHA FIG8’s slimline design enables it to be installed on a TV mount bracket, so it is out of sight.

Please note

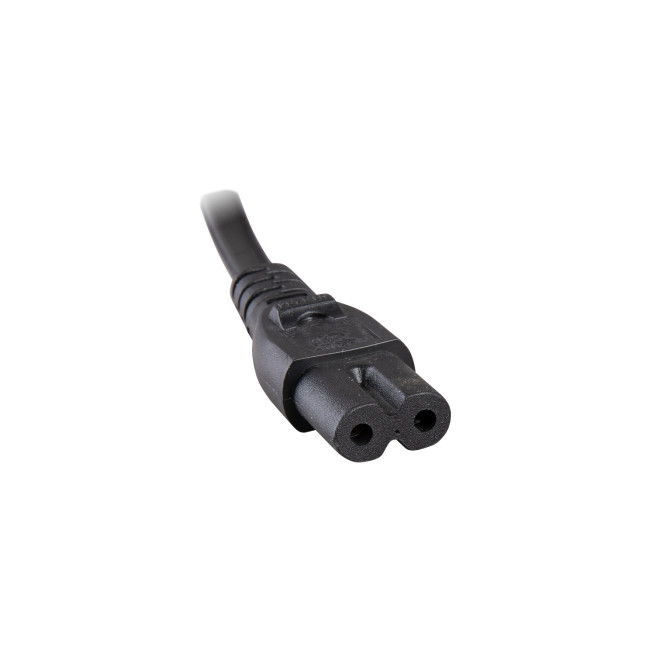

The ALPHA FIG8 is used in conjunction with your existing Figure 8 Cable or manufacturer's supplied Figure 8 Cable.

Protects:

  • 4K & 8K TVs
  • Computers
  • Gaming Consoles
  • Home Appliances
  • Sewing Machines
  • Anything using a FIG8 power cable

Technical Specifications

  • Product Code: A1T
  • EESS Registration Number: E2022073456
  • Supply voltage 230/240V 50Hz
  • Maximum current rating 2.5amps/600W (VA)
  • Clamping/Let Through Voltage 510VAC
  • Reaction time less than 1 nanosecond
  • Maximum energy dissipation 2115 Joules (equivalent to 705 Joules using UL1449 standard)
  • Protection modes (1 outlet protects on all 3 conductors): Active/Neutral, Active/Earth, Neutral/Earth
  • Total number of protected AC outlets: 1
  • Earth potential rise protection
  • Earth leakage range less than 1 milli amp
  • Operating conditions: Indoor/AC mains
  • Operating temperatures: -10C/ 60C
