THOR E145U SMART PROTECT 6
What's different about Thor - CHIPS
| THOR filters more unwanted noise from power lines for best possible picture and sound as well as fastest streaming and other signal processing |
| THOR has the highest joule ratings in their classesas well as a bulletproof design for handing power spikes ofany size or duration |
| Unlike designs which allow excessive power to reachplugged in products for some time THOR designs kick in and protect in less than one millionth of a second |
| All THOR products are backed by a Connected Equipment Warranty which will pay for the cost of surge damaged product repairs or replacement in the unlikely eventof failure |
| All THOR products use fire resistant technologies as well as overload failsafe circuits to ensure they protect lives just as much as products |
SMART TECHNOLOGY POWER PROTECTION AND FILTRATION

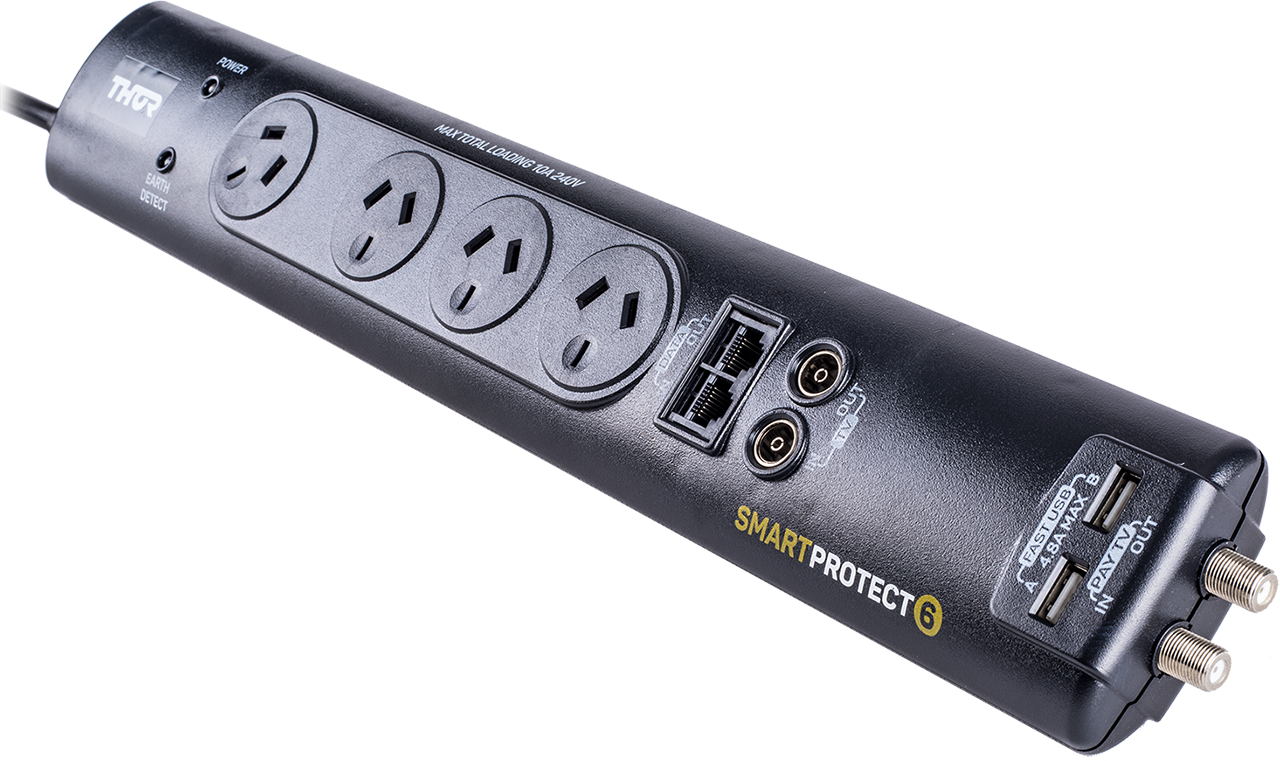

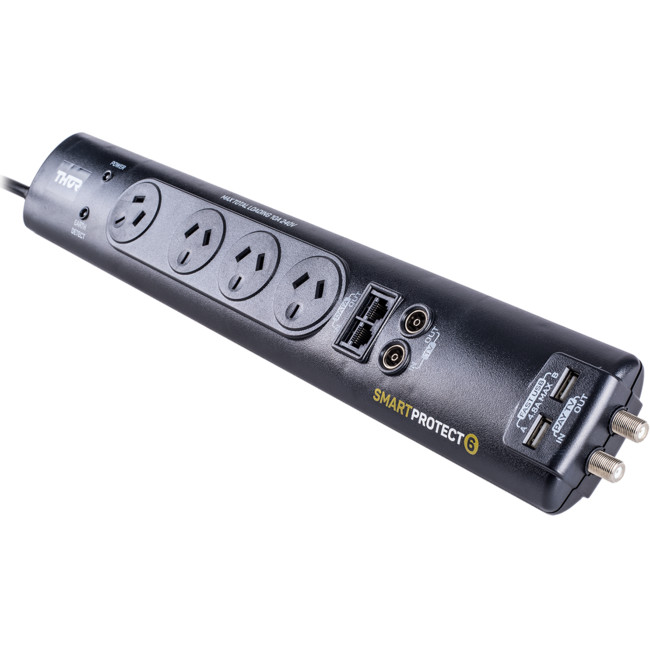

Universal Filter and Surge Protector with 4 Outlets 2 Xturbo chagrge USB (4.8A) with space saving angle plug for power packs.
Earth detection & protection LED’s, Coax/F-TypeAerial and RJ45 Data Protection.
1.2 metre extension cord with a space saving flat head plug,
The Thor E1/45U provides a powerful barrier against transient spikes and interferences which are major causes ofhardware and data failure.
Comes with multiple application identity tags, 6-year product replacement warranty and $75,000 connected equipmentwarranty.
Key Features
- Smart Technology Power Filtration circuit for best possible picture and sound as well as trouble free operation
- High level (joules) of protection for longest possibleproduct life and best possible operation
- Aerial and data line protection providing a complete bubble of protection for the system (both models)
- 4 Outlets (both)
- E1/45U adds 2 Turbo Charged USB ports (charge & protect)
Features
- 4.8 Amps USB max charge
- 3670 Joules Power protection
- High EMI / RFI noise filtration
- 1 Nano second reaction speed
- Up to $75K connected equipment warranty
- 4 PROTECTED OUTLETS
- LARGE PLUG ADAPTORS
- SPACE SAVING FLAT HEAD PLUG
- 1.2M CABLE LENGTH
- FIRE RETARDANT
- 6 YEAR REPLACEMENT WARRANTY
- AERIAL PROTECTION
- PAY TV PROTECTION
- DATA/VOICE PROTECTION
- 2 USB PORTS (MASSIVE 4.8A FAST CHARGING)
- EARTH DETECTION CIRCUIT
THE ULTIMATE PROTECTION
SmartProtect 6 does more than protect your valuable electronic equipment.
The two USB power ports automatically adjust to the voltage of your smart technology to charge your devices quicker.
Smart Brain
TRU AV - Unbeatable Sound & Video quality
The Thor Smart Brain not only protects from surges, it also filters and cleans electrical frequency noise to give you unbeatable sound and video quality.
Enjoy a truer AV experience with better picture quality and purer sound.
Protects
- ACTIVE / PASSIVE SPEAKERS
- OLED/LCD TV
- HIFI AND HOME THEATRE
- COMPUTERS - LAPTOPS/TABLETS
- PRINTERS & SCANNERS
Ideal for
- Home Theatre
- High Definition TV
- Bedroom/Office AV
- Home office IT system
- Office computer system
- Phone or other portable electronics charging
TECHNICAL SMARTS
- Product Dimensions: 430mm (L) x 35mm (H) x 75mm (W)
- Supply voltage 240/V AC 50/Hz
- Maximum current rating 10amps/2400W(VA)
- Clamping voltage 275V AC
- Reaction time less than 1 nanosecond
- Maximum translent spike impulse current 125,000 amps(equivalent to 31,200 amps using UL 1449 standard)
- Maximum energy dissipation 3670 Joules (equivalent to 1240 Joules using UL1449 standard)
- Protection modes (all 4 outlets protects on all 3 conductors). Active/Neutral, Active/Earth, Neutral/Earth
- EMI/RFI noise reduction filter type
- Total number of protected AC outlets: 4
- Total number of protected USB ports: 2

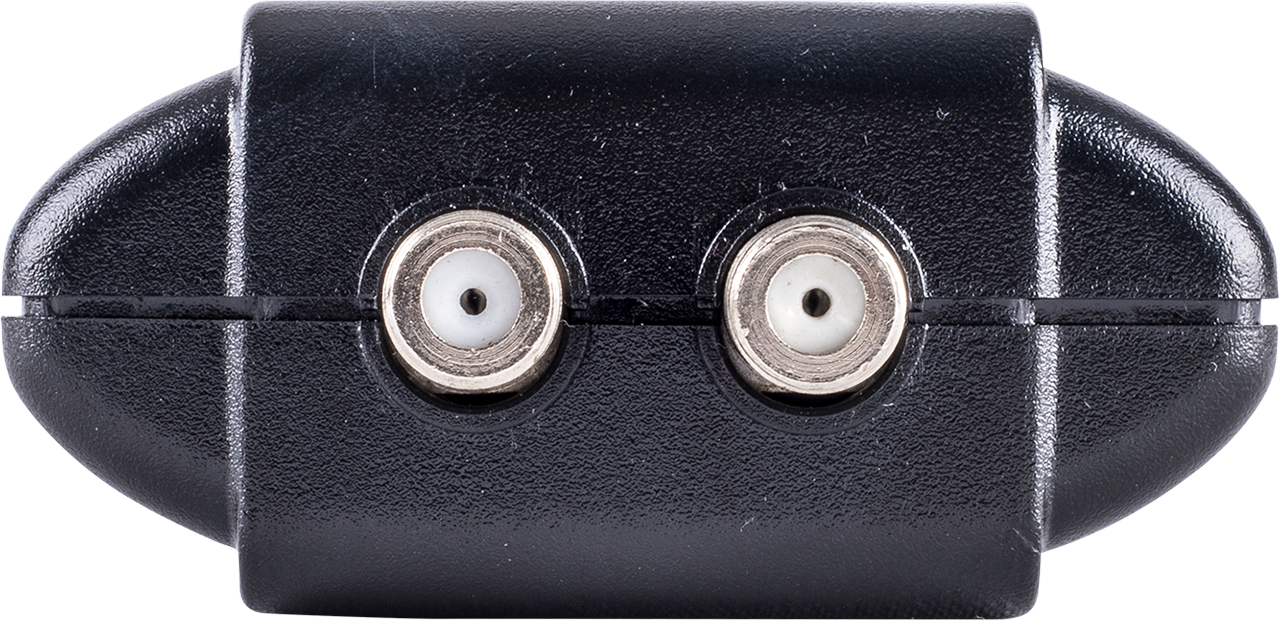

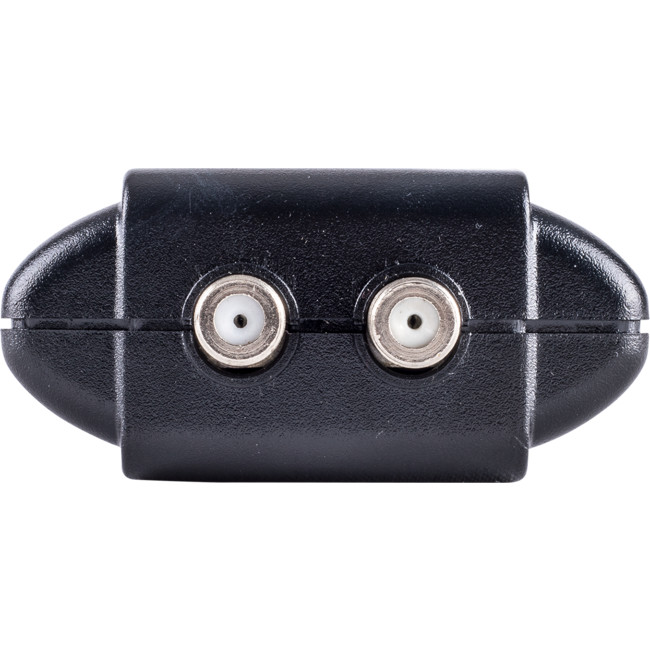

- Pay TV'F' type connection: 1 in and 1 out
- AV/TV antenna coax connection: 1 in and 1 out
- RJ 45 data protection: 1 in and 2 out
- Earth potential rise protection
- Earth leakage range less than 1 milli amp
- Operating conditions: Indoor/AC mains
- Operating temperatures: -10C/ 60C
- Cable length: 1.2m
- Model No: E1/45U
INSIDE THE BRAIN
- All serious power protection diverts excess energy to earth first.
- If there is good earth connection then the protector will last longer.

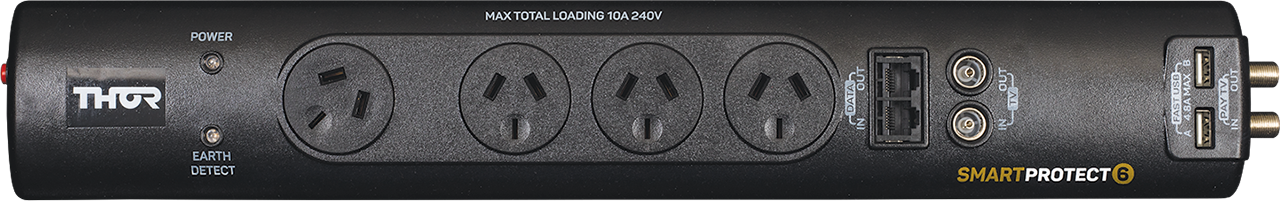

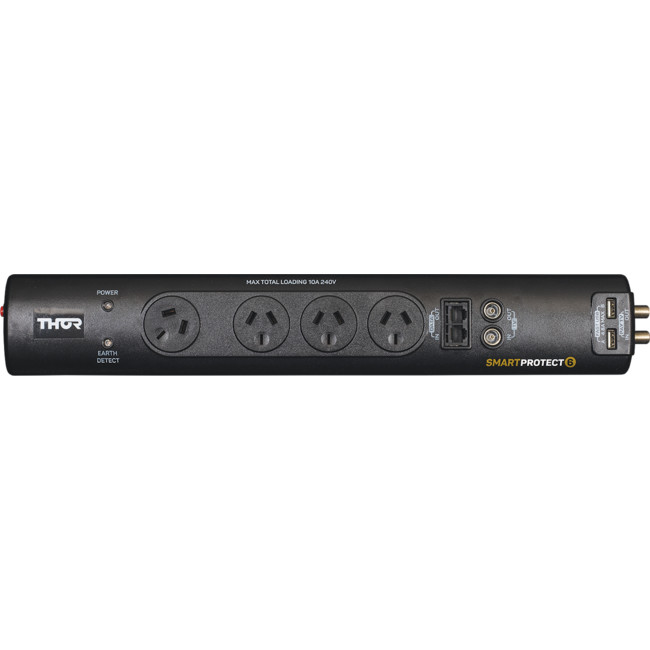

- E1/45U has an earth detection LED for this reason.
- SmartBrain entry level filter is a passive technology. Managing to cover a more comprehensive range of shielding tolike competitors by “cleaning” a wider range of unwanted frequency noise.
- The filter works both ways. Stopping noise from robbing equipment performance as well as connected devices’ noise contaminating power.
