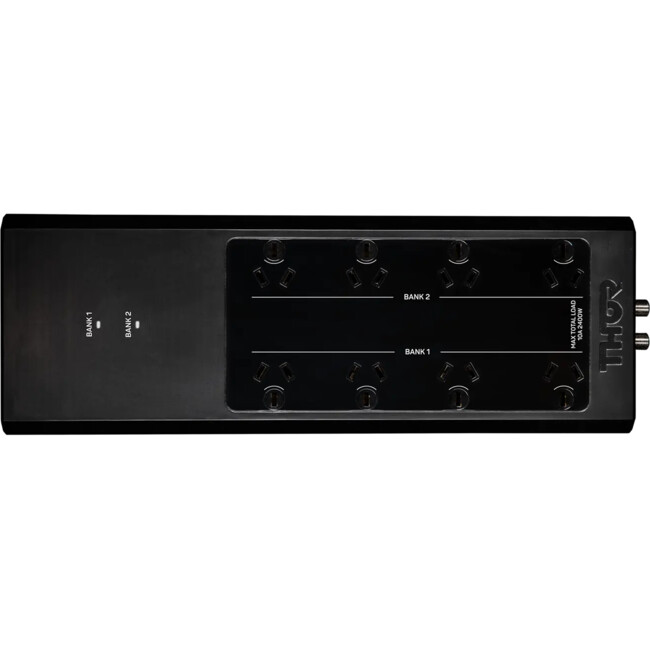

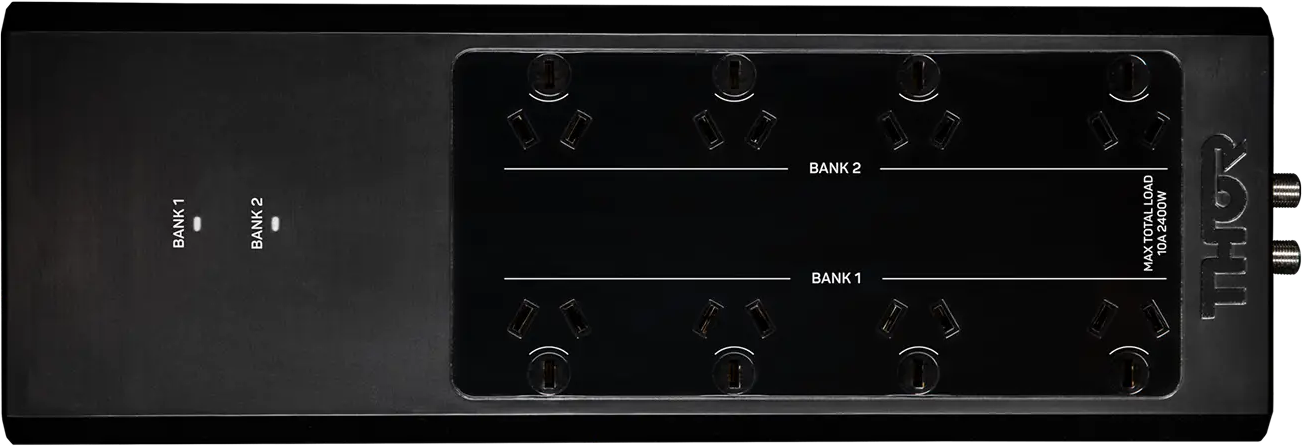

Thor B8A Smart filter 8
CLEVER PROTECTION FOR SMART TECHNOLOGY
SmartFilter 8 has two unique isolated banks offering fail-safe protection for your valuable electronic equipment, plus advanced noise filtering for improved sound and video quality.
Cascade Filter “cleans” around 20% more frequencies than other filtered boards to give you unbeatable sound and video quality. Enjoy a truer AV experience with better picture quality and purer sound. Can also improve computer gaming speeds and fix internet dropouts.
Key Features
- RJ 45 data protection (1 in and 1 out)
- Resettable safety 10 amp circuit breaker
- Bank 1 (4 outlets): Surge protection and filtering
- Bank 2 (4 outlets): Surge protection and filtering
- Space for large plug adaptors
- AV/TV connection (in and out)
- Easy pull side angle power plug
Key Technical features
- 5868 - Joules Power Protection
- 60% - More Filtration Than Australian Industry Standards
- Warranty - Up To AU$200K Connected Equipment
- Flame Retardant Housing
- 1 Nanosecond - Reaction time
- Fireproof - MOV Protection
Joule bank saving technology
The Earth diversion technology channels energy away from the device, utilizing the Joule bank only when necessary. This extends the product’s lifespan by handling everyday spikes and surges through diversion, reserving Joule usage for extreme events—eliminating the need for a high Joule capacity.
Fireproof - MOV Protection
Fireproof MOV ensures the main protection components will not catch fire while protecting from dangerous surges. The choice of Fireproof components and the added flame retardant housing safeguards your home and ensures your family will always be safe.
Ideal to Protect
OLED/LCD TV, HIFI and Home Theatre, Active/Passive Speakers, Computers, Printers and Scanners, Internet reduces NBN/ADSL dropout and Gaming improves speed
Smart Brain2
The Thor SmartBrain 2 not only protects from surges, it also filters and cleans electrical frequency noise. Cascade Filter “cleans” 60% more frequencies than other filtered boards to give you unbeatable sound and video quality. Enjoy a truer AV experience with better picture quality and purer sound. Can also improve computer gaming speeds and fix internet dropouts.
TECHNICAL SMARTS
- Supply voltage 230-240VAC 50/Hz
- Maximum current rating 10amps/2400 W (VA)
- Clamping voltage 300VAC
- Reaction time less than 1 nanosecond
- 5868 Joules (equivalent to 2122 Joules using UL1449 standard)
- Protection modes (all 8 outlets protects on all 3 conductors): Active/Neutral, Active/Earth, Neutral/ Earth
- EMI/RFI noise reduction filter type. Cascade dual bank isolation with 2 cascading circuits
- Number of multi-stage filter banks: 2
- Number of isolated banks: 2
- Number of dedicated outlets: 4+4
- Total number of protected AC outlets: 8
- RJ 45 data protection: 1 in and 1 out
- Cable TV ‘F’ type connection: In and out
- Earth potential rise protection
- Earth leakage range less than 1 milli amp
- Operating conditions: Indoor/AC mains
- Operating temperatures: -10C/+60C
- Cable length: 1.8m | Model No: B8A
INSIDE THE SMART BRAIN
- Earth Diversion Technology to minimise Joule Bank use
- Resettable safety 10 amp circuit breaker
- Extra large metal oxide protection varistors
- LED control resistors
- Safety bleeder resistor
- Safety fuse
- High voltage capacitors for filtration
- Status LED
- Rectification diodes
- Protection on all 3 conductors (active, neutral and earth) | Earth detection circuit
- Direct earth line for DC circuit
- Ultra fast DC communications protection circuit
- RJ 45 connector internet ready.
