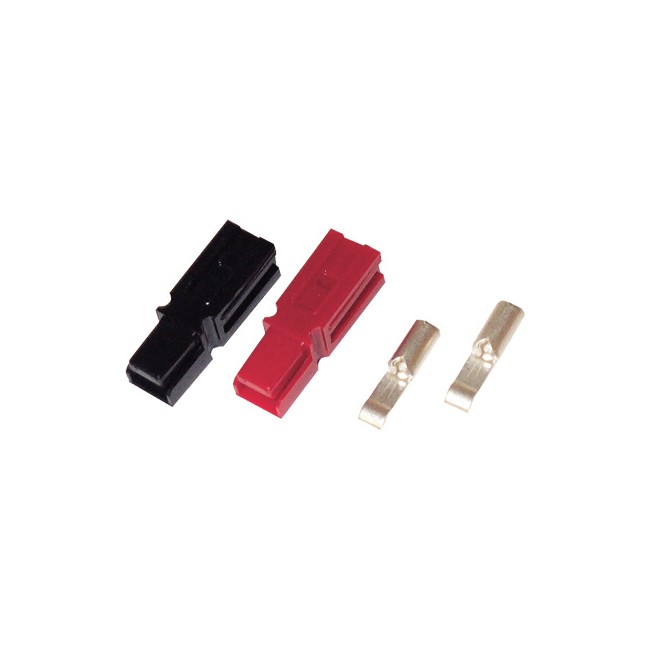

PW5010 75AMP ANDERSON CONNECTOR

Code: 30975010

0.0240 kg
9319236935521
EACH
Low Stock
$11.95 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode
  • 75A Anderson Connectors

  • At last! A high current DC connector.
  • These industry-standard connectors are used in automotive, marine, aviation, mining and most widely in industry.
  • They are the standard electric forklift track connector for example.
  • The body of the connector is cleverly designed to ensure correct polarity mating.
  • They are ideal for high current car wiring connectors.
  • Current Rating: 75A
  • Voltage: 600V (AC or DC)
  • Contact Barrel Wire Size (min/max): 8.4 - 33.6mm2 / #6- #16AWG
  • Maximum Insulation Dial to fit into back of housing: 11.10mm
  • Insertion Life (Cycles): 10,000 no load / 250 hot load(35A @ 12VDC)
  • Operating Temp: -20 - 105 degrees C
  • Flammability: UL94 V-O
