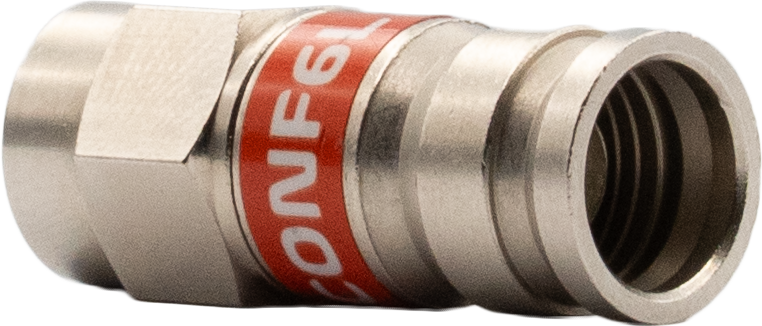

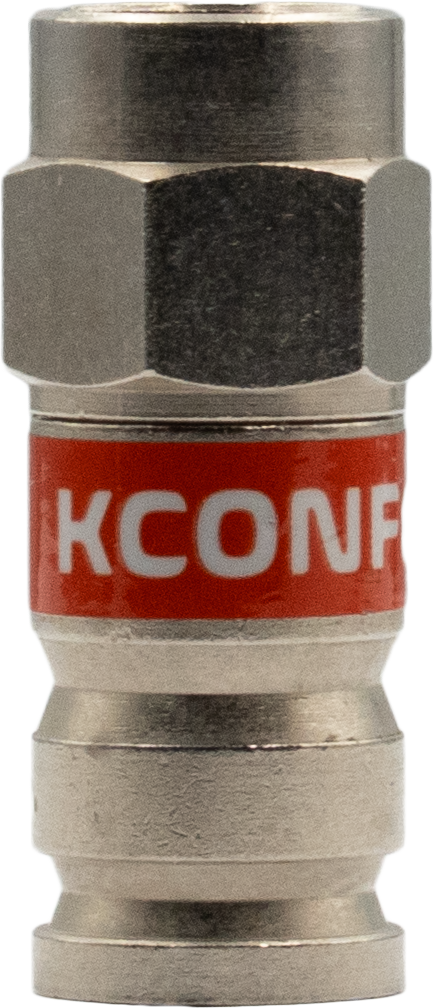

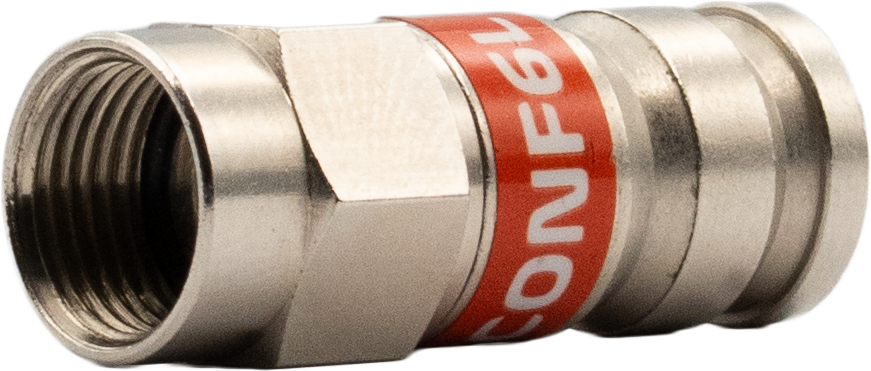

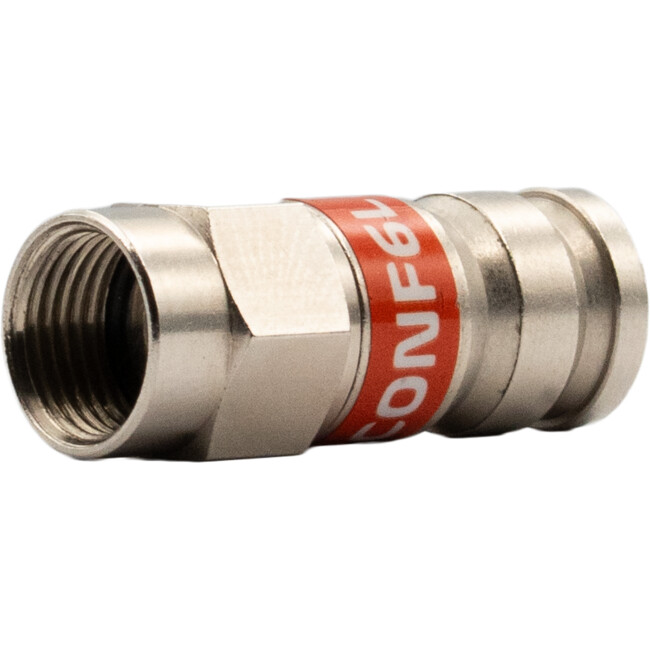

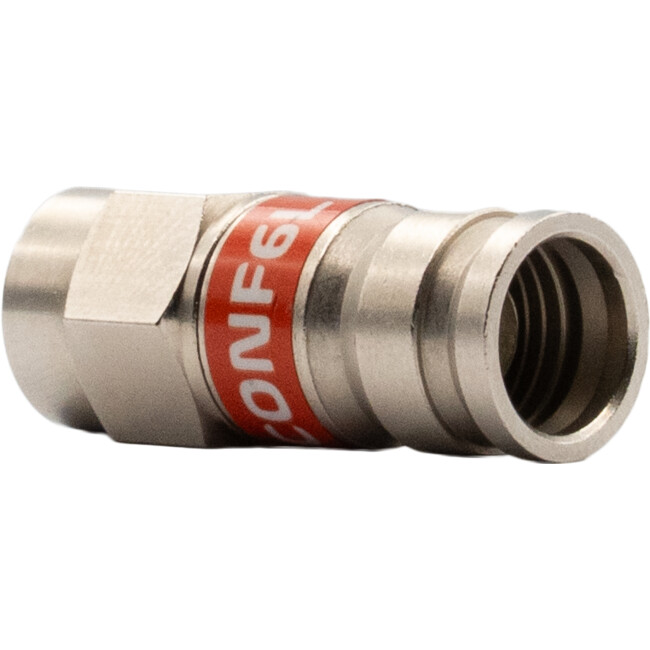

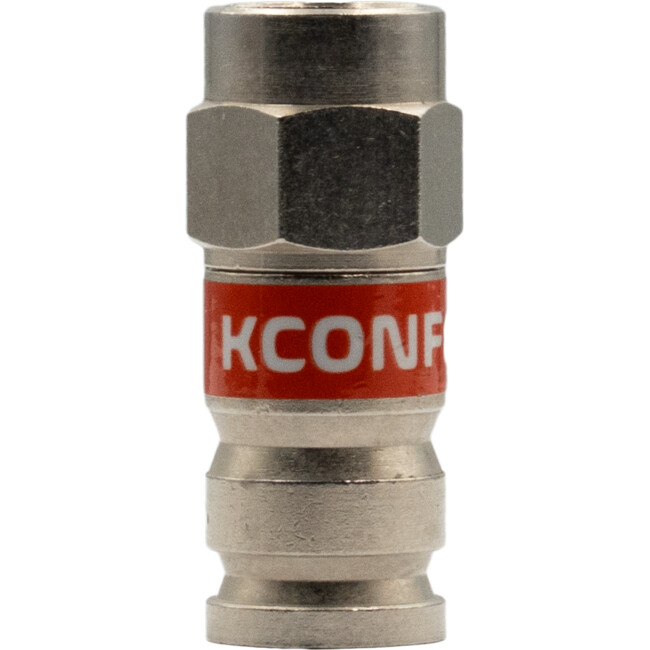

KCONF6L 'F' RG6 COMPRESSION CONNECTOR - KINGRAY
This is Kingray’s new Series 6 Premium Compression Connector, Torque Retaining, 18mm with continuous ground feature. Laboratory testing has proven that, even in a loosened state, the KCONF6L’s unique features keep the connection tight while providing enhanced shielding and continuous grounding.
The lock washer located beneath the post guarantees a secure, metal-to-metal connection between the F-male and F-female faces on the port ensuring a quality connection every time. Our connectors can be repeatedly tightened and loosened without any loss of torque retaining ability, ensuring a long life span in the field or home.
In addition to the torque retaining features, this connector also offer superior sealing protection through dual compression rings and dual O-rings. The specially designed post allows the O-ring, located in the face of the connector, to seat inside a small chamber allowing a true metal-to-metal contact with both the post and the face of the port. Typical most moisture enters through the threads of a connector. The dual O-ring design eliminates the need for an additional weather seal.
The KCONF6L is one of the few connectors on the market that maintains a high pass rate on the SCTE IPS moisture migration test without the use of weather boots during testing.
Compatible with 60% thru quad shield RG6 coaxial cable. Foxtel Approved. (F31218)
Features:
- RG6 F Type Compression Connector
- Bandwidth 5-3000 MHz
- 75 Ohm Impedance
- 18mm Stroke Length
- –40 to +140 °F (–40 to +60 °C)
- Nickel-plated brass
- Built in lock washer guarantees a secure, metal to metal quality connection between F male and female ports
- Patented split-ring lock washer
- Patented dual 360° compression rings
- Dual O-Ring Design
- Delivers supreme barriers against moisture intrusion without the need for an external grommet (i.e. weather seal)
- Retains its torque integrity even with repeated refastening to the female port
- FOXTEL Approved F31218
