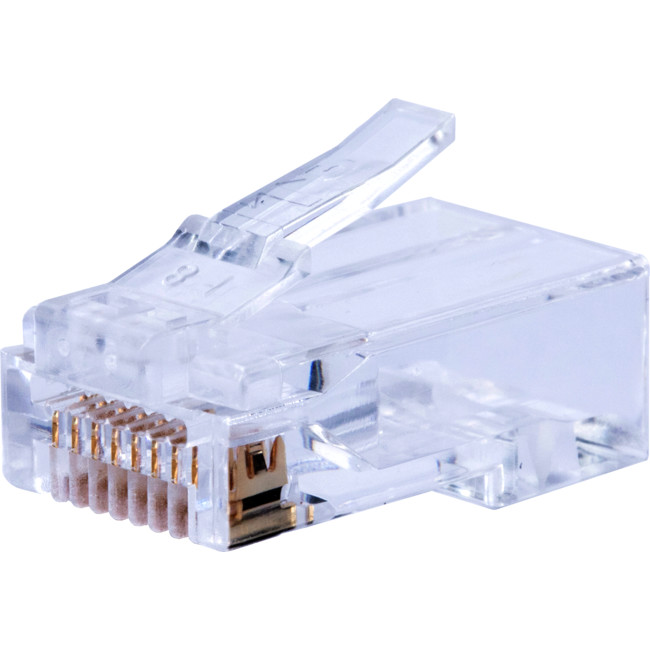

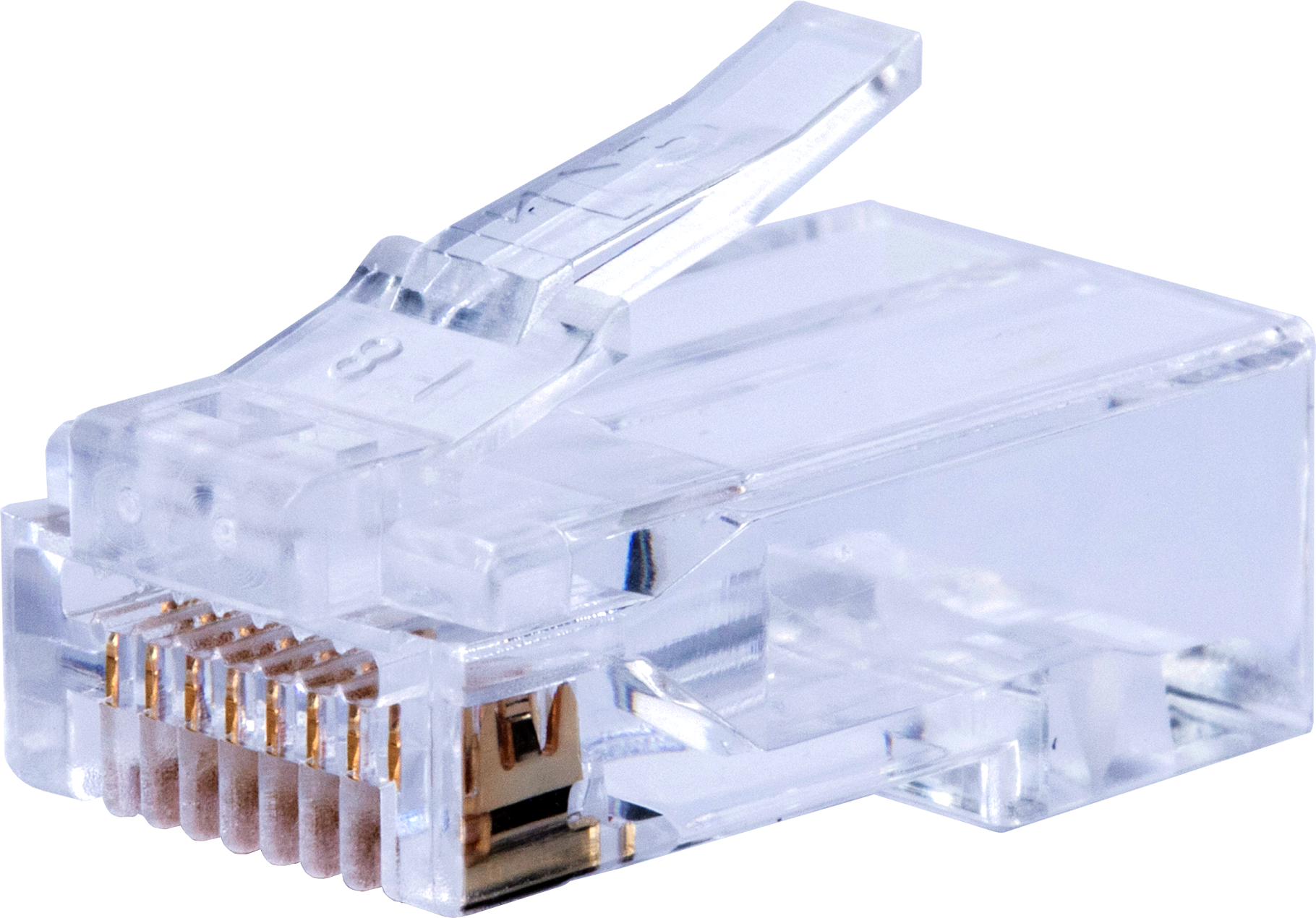

T3SPC6-50 UTP RJ45 CAT6 SOLID SNAP PLUG

1.00MM TO 1.05MM UTP RJ45 CAT6 SOLID SNAP PLUG – Pack of 50

The T3 Snap Plug™ and Snap Plug Tool are designed to simplify the process of terminating RJ45 modular plugs. It is a time-consuming process to assemble traditional RJ45 modular plugs, and the most difficult part would be putting the wire into the conductor in the correct order. The thicker the conductor is, the more difficult the job is going to be.

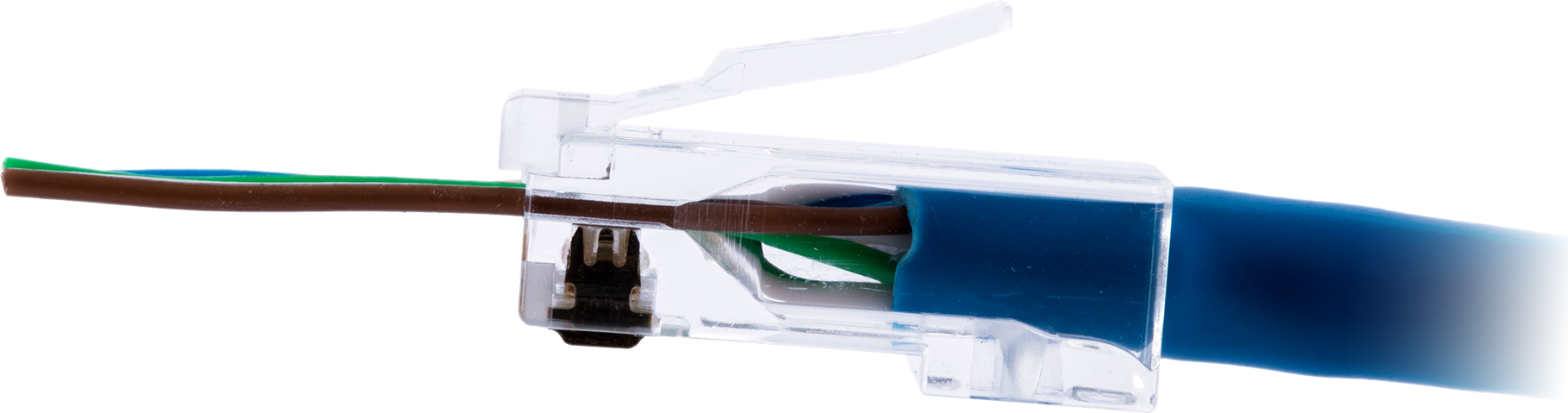

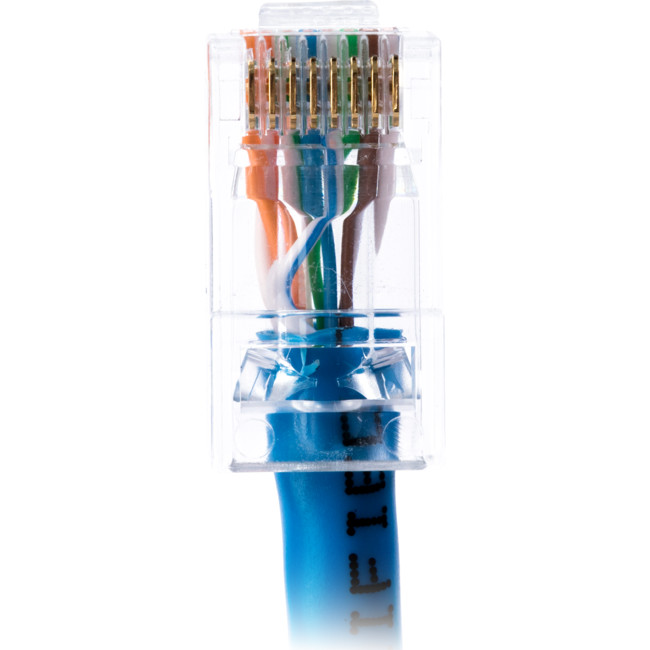

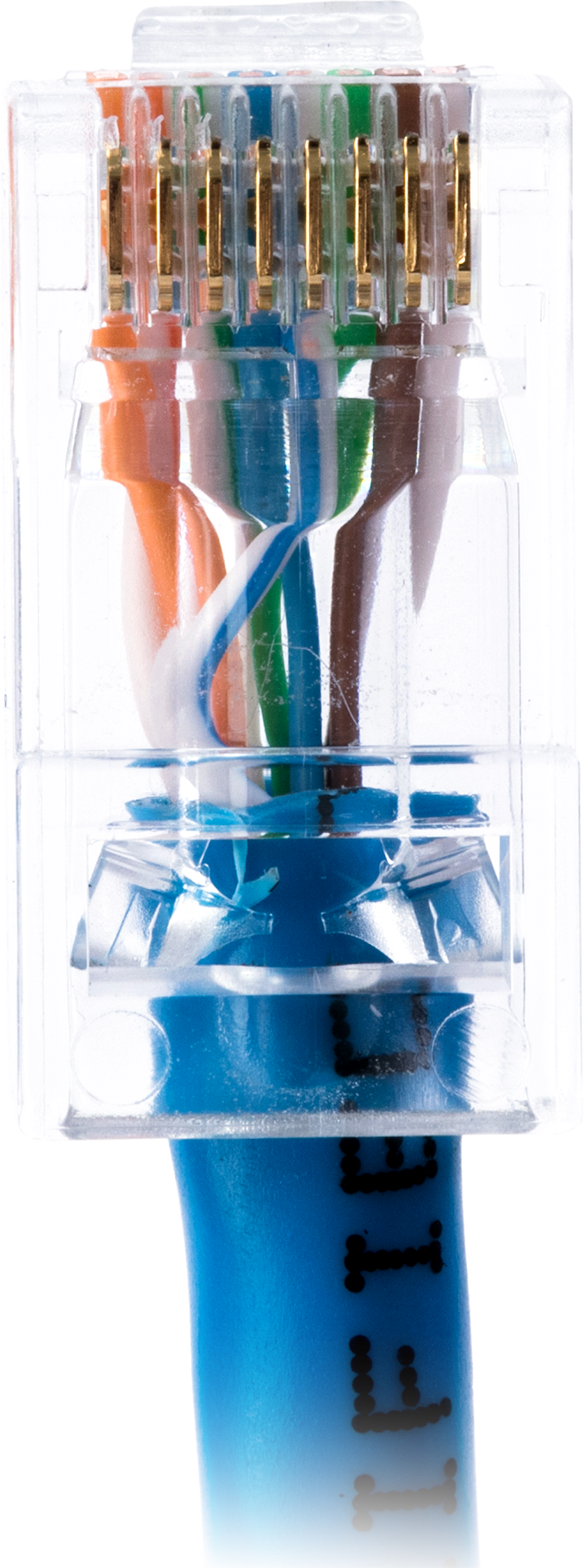

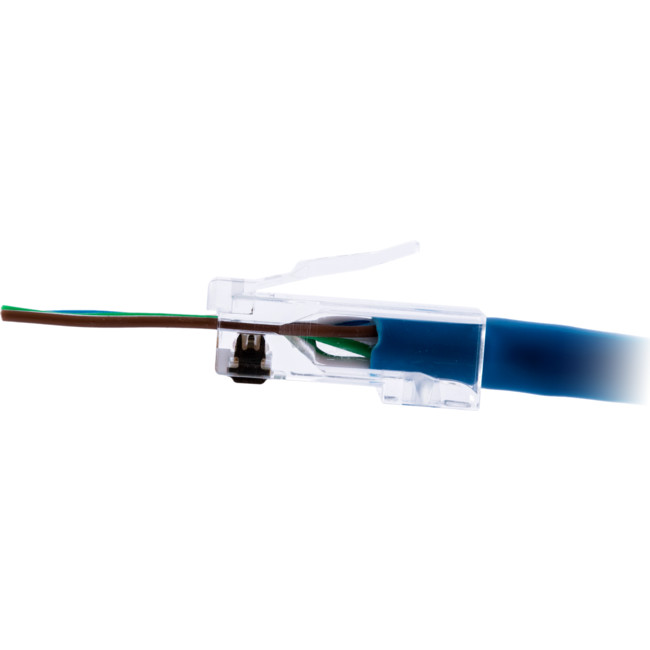

The T3 Snap Plug™ enables the conductors to pass through the connector itself, making it a lot easier to verify wiring order before crimp, reducing possible errors and waste of materials, save time and effort on terminating RJ45 connectors.
Use the Snap Plug Tool to crimp and trim in a single step, making professional wire termination fast and easy.

Specifications

• CAT6 UTP 1 piece 3 prongs.
• 50µm fully gold-plated contacts.
• Max. conductor ID: 1.0mm - 1.05mm / 0.04″. Solid or stranded 23 AWG.
• Compliant with PoE and PoH standards.
• Meets ANSI/TIA specifications.

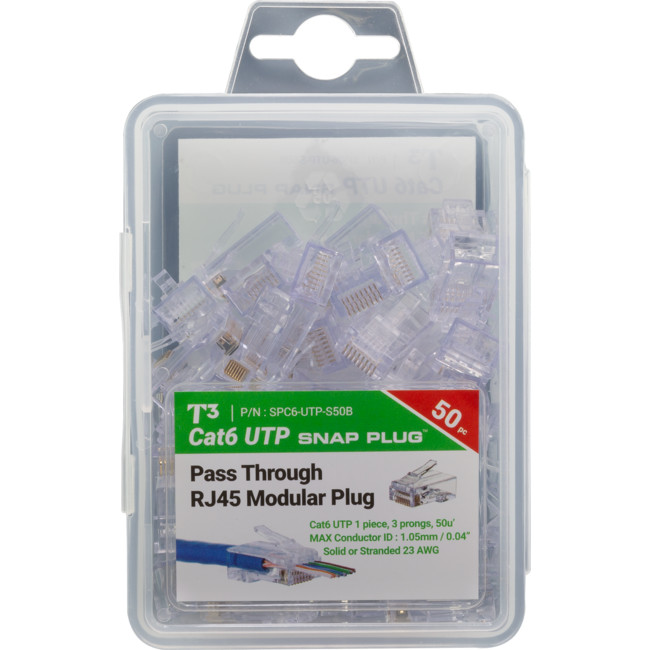

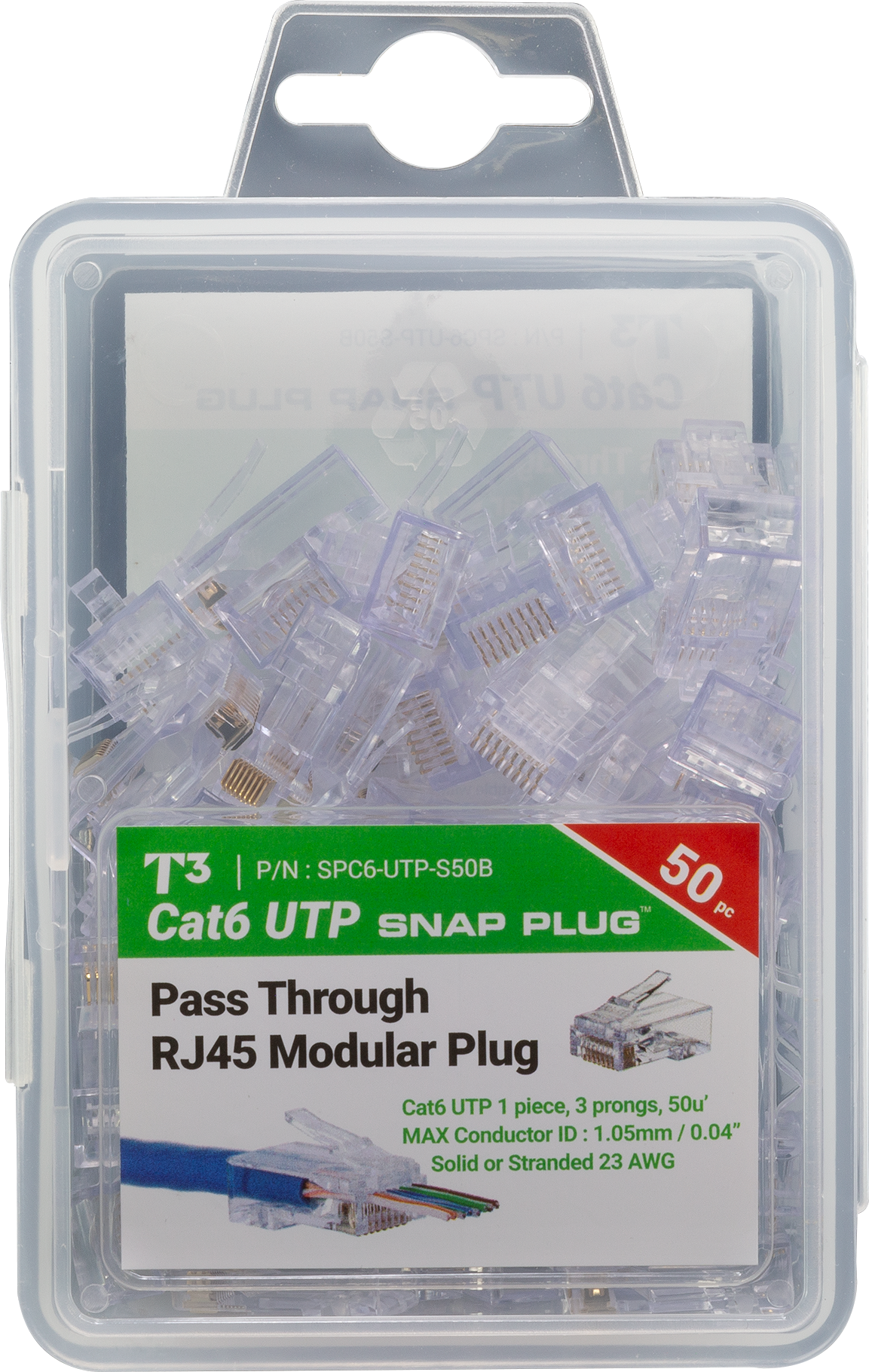

• Pack of 50 pieces.

Q: I have a Platinum Tools crimper EZRJPROHD that was designed for the Platinum Tools EZ connectors. Can I use this crimper on the T3 Snap Plug?

A: The T3 products are designed with tight tolerances to work perfectly together.Platinum Tools manufacture their EZ plugs in the US as opposed to Taiwan, sotheir matching crimper is designed to work with just their connectors. Havingsaid this, in our samples, the Platinum crimper still worked with T3 connectors.

Below is a picture of the end result. Note the slight indentation (damage) on the T3 connector left by the Platinum Tools crimper. Please be aware, as the crimp tool is not designed for other plugs, if you use it very often, your crimp tool will be worn out quickly.
