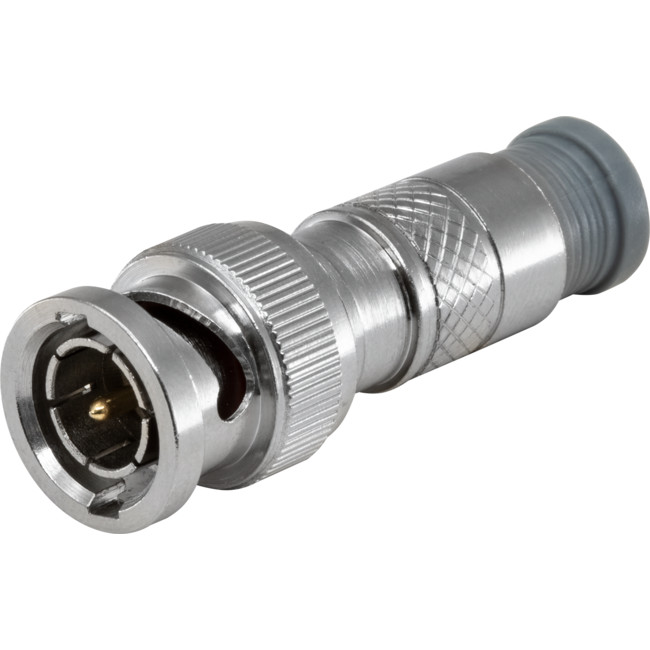

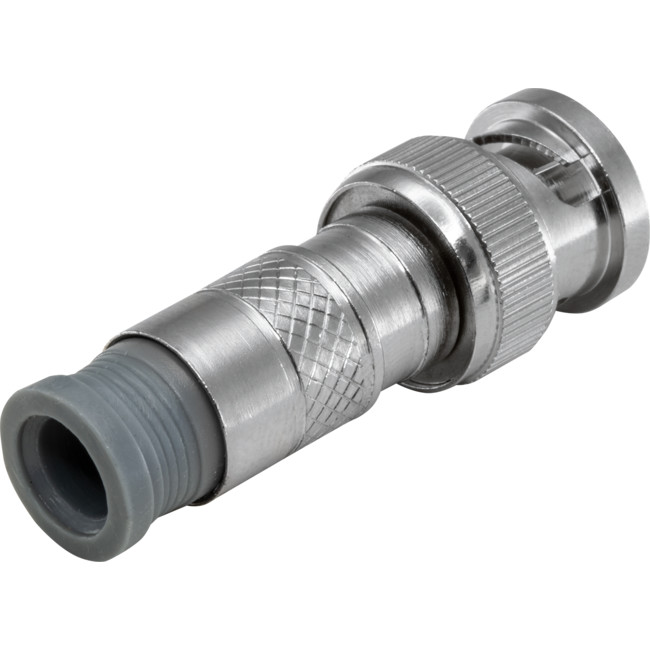

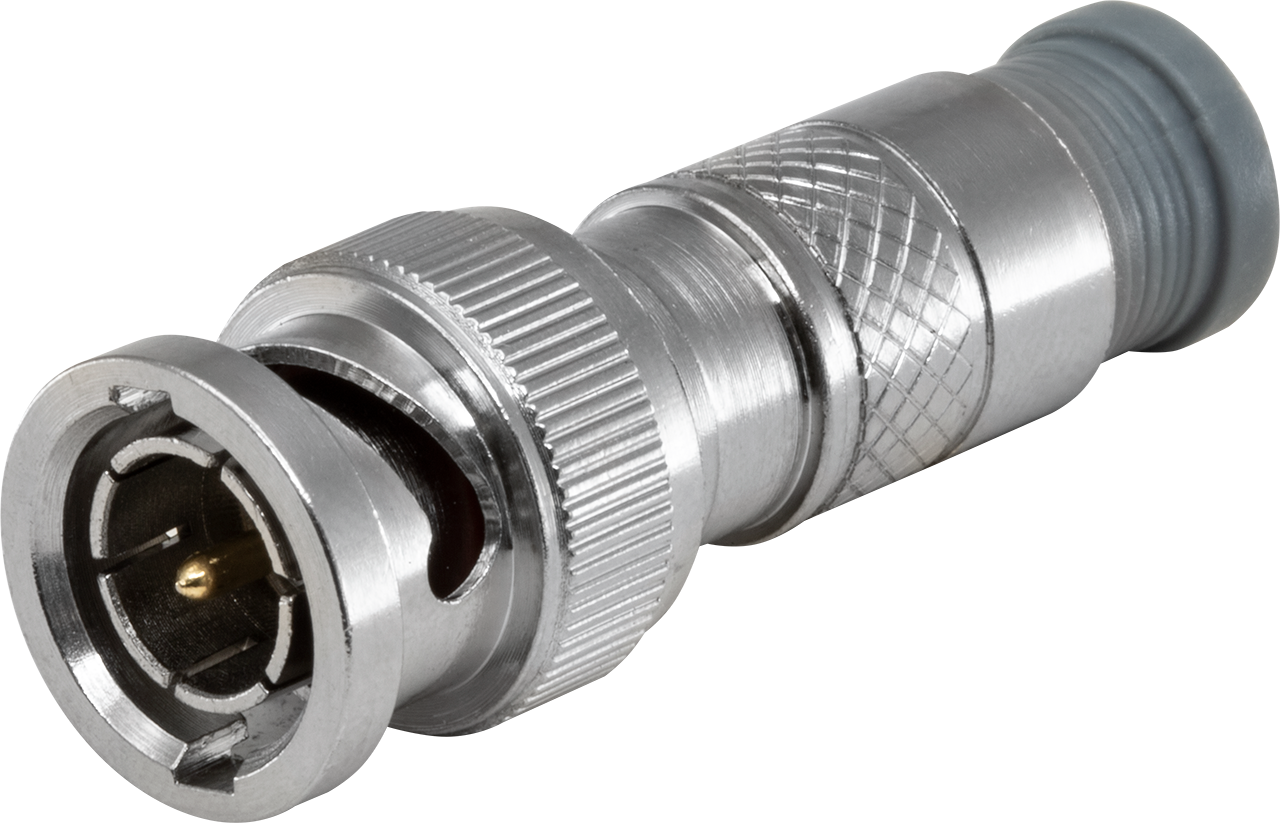

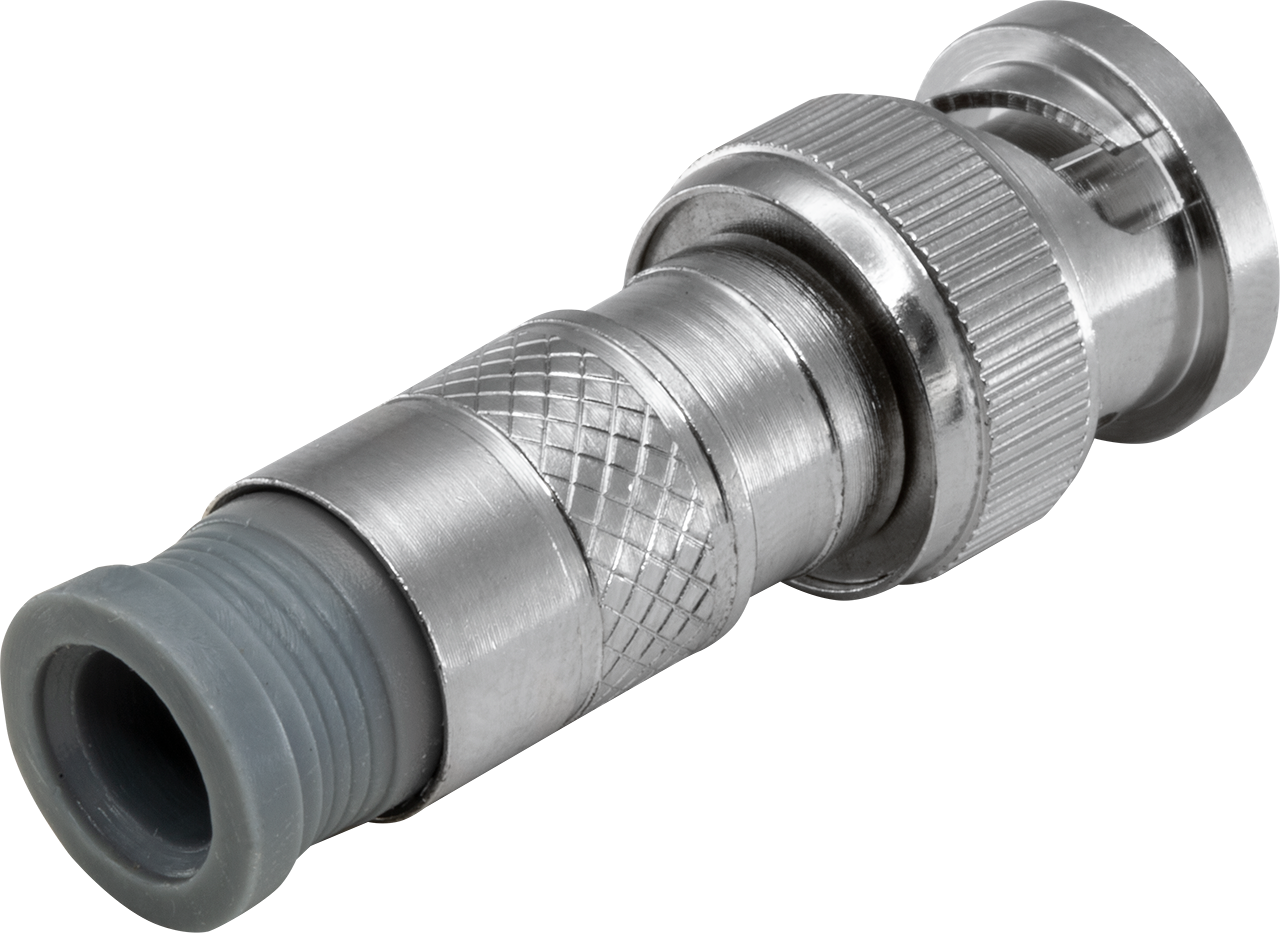

PG1098 BNC COMPRESSION PLUG

TO SUIT RG59

Code: 30521098

0.0140 kg
9328202032041
EACH
1000
In Stock
$1.95 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

Features:

  • Connector Type: BNC Compression Connector
  • Frequency Range: 0.3-3000MHZ
  • Cable Type: RG59
  • Impedance: 75ohm
  • Shielding Effectiveness: 110db@1 GHz

Structure Chart

Materials

  • Hull Material: Brass
  • Plating Material: Nikel
  • Copper Rate min: 58%
  • Plating Thickness: 1.8µ

Mechanic specifications

  • Corrosion Resistance: 1000hours
  • Cable Assembly Force: < 20lbs
  • Tensile Strength: > 40lbs
  • Breaking Torque: > 30 in-lbs
  • Operating Temperature: -40°C to 60°C

Return Loss:

  • 0.3 - 500 MHz: - 42.2dB
  • 500 - 860 MHz : - 40.1dB
  • 860 - 1000 MHz: - 37.8dB
  • 1000 - 3000 MHz : >- 30dB

Insertion Loss

  • 0.3 - 500 MHz: - 0.1dB
  • 500 - 3000 MHz: < - 0.3 dB
