WM5325H WIRELESS HEADSET MICROPHONE

F01 BAND - 636-666MHZ - TOA

Code: 28732956

0.4810 kg
EACH
Low Stock
TRADE ALERT!
$499 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

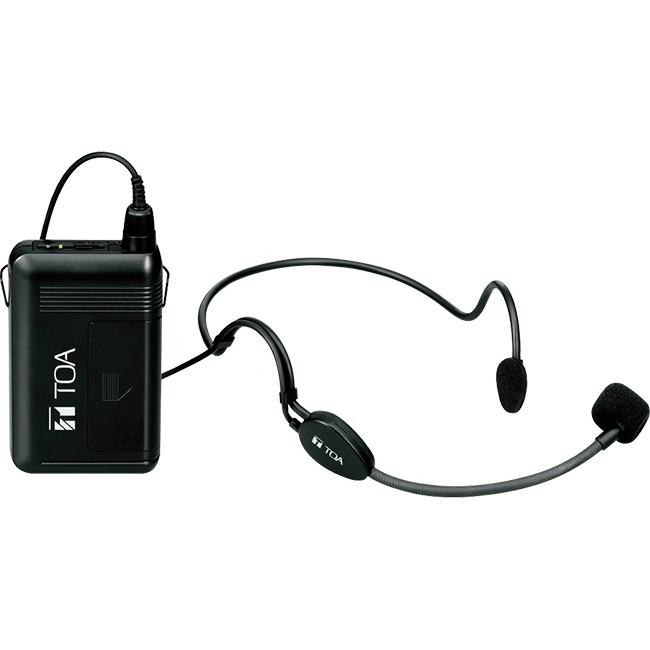

WM5325H WIRELESS HEADSET MICROPHONE TOA

  • The WM-5325H wireless transmitter has been manufactured for use with a UHF system. It is for use in speech reinforcement applications. Thanks to the PLL-synthesizer system, 64 different operating frequencies are made available. A high output power ensures stable radiosignal transmission.



All Toa stock we have is F01 band (636-666MHz)
For other regions there is also H01 band (578-606MHz) Only for areas where F01 (636-666MHZ) wireless models can?t be used, will be able to order in H01 frequency models (578-606MHz) as indent item! toafrequencycheck.australismusic.com.au/

Features:

  • 64 selectable channels
  • Maximum input level: -14 dB to -29 dB
  • Built-in circuitry minimizes ambient noise effects,
  • WB-2000 rechargeable battery or single AA battery operation for compact and lightweight body
  • Connector for 3.5 mini-plugs
  • Built-in antenna

Specs:

WM-5325H withHeadset microphone WH-4000H

Modulation Frequency modulation
Frequency Range 636 - 666 MHz, UHF
Channel Selectable 64 channels (the number of channels may differ from country to country)
RF Carrier Power 50 mW or less
Tone Frequency 32.768 kHz
Oscillator PLL synthesized
Maximum Input Level -14 dB to -29 dB (*1) (Audio level control: Min. to Max.)
Maximum Deviation ±40 kHz
Audio Frequency Response 100 Hz - 15 kHz
Battery WB-2000 (WB-2000-2 contains 2 pieces) rechargeable battery (option)
or AA alkaline dry cell battery
Battery Life Approx. 13 h (when the WB-2000 rechargeable battery is used)
Approx. 10 h (when the alkaline battery is used)
Indicator Power/Battery lamps
Antenna Built-in type
Connector φ3.5 mm (φ0.14") mini plug
Operating Temperature -10 ℃ to 50 ℃ (14 ゜F to 122 ゜F) (except battery)
Operating Humidity 30 % to 85 %RH (no condensation)
Finish Resin, coating
Dimensions 62 (W) × 102.5 (H) × 23 (D) mm(2.44" × 4.04" × 0.91")
Weight 90 g (0.2 lb) (with battery)
Accessory Screw driver …1, Storage case …1, Neck strap …1
Option
Headset microphone:: WH-4000H
