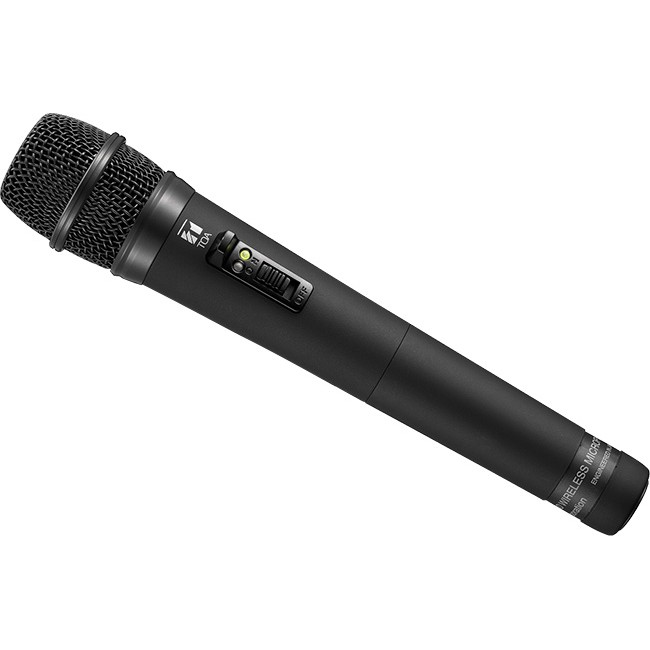

WM5225F01AS HANDHELD MICROPHONE

F01 BAND ( 636 - 666 MHZ )

Code: 28732951

0.3730 kg
EACH
Low Stock
TRADE ALERT!
$459 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

WM5225 WIRELESS HANDHELD MICROPHONE TOA

The WM-5225 Wireless Microphone employs an electret condenser microphone capsule and is suitable for any applications. Thanks to the PLL-synthesizer system, 64 different operating frequencies are made available. A high output power ensures stable radio signal transmission.



All Toa stock we have is F01 band (636-666MHz)
For other regions there is also H01 band (578-606MHz) Only for areas where F01 (636-666MHZ) wireless models can?t be used, will be able to order in H01 frequency models (578-606MHz) as indent item! toafrequencycheck.australismusic.com.au/

Features:

  • Handheld Speech Wireless Microphone
  • Electret condenser microphone unit: Unidirectional
  • 64 selectable channels
  • Maximum input level: 126 dB SPL
  • ON/OFF switch prevents the microphone from rolling.
  • WB-2000 rechargeable battery or single AA battery operation for compact and lightweight body
  • Built-in antenna

Specs:

Microphone Element Electret condenser microphone unit: Unidirectional
Modulation Frequency modulation
Frequency Range 636 - 666 MHz, UHF
Channel Selectable 64 channels (the number of channels may differ from country to country)
RF Carrier Power 50 mW or less
Tone Frequency 32.768 kHz
Oscillator PLL synthesized
Maximum Input Level 126 dB SPL
Maximum Deviation ±40 kHz
Audio Frequency Response 100 Hz - 15 kHz
Dynamic Range 95 dB or more (with WT-5800)
Battery WB-2000 (WB-2000-2 contains 2 pieces) rechargeable battery (option)
or AA alkaline dry cell battery
Battery Life Approx. 13 h (when the WB-2000 rechargeable battery is used)
Approx. 10 h (when the alkaline battery is used)
Indicator Power/Battery lamps
Antenna Built-in type
Operating Temperature -10 ℃ to 50 ℃ (14 ゜F to 122 ゜F) (except battery)
Operating Humidity 30 % to 85 %RH (no condensation)
Finish Resin, coating
Dimensions φ43.6 x 231.5 mm (φ1.72" × 9.11")
Weight 180 g (0.4 lb) (with battery)
