UF20SKITHB9 UF20S TRUE DIVERSITY SINGLE CH KIT 624-694MHZ

JTS Professional UF20SKITHB9 Wireless Microphone System

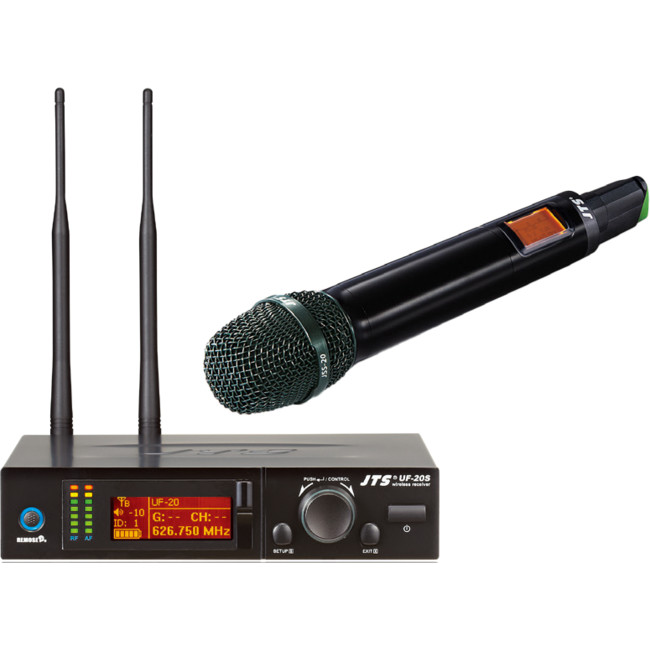

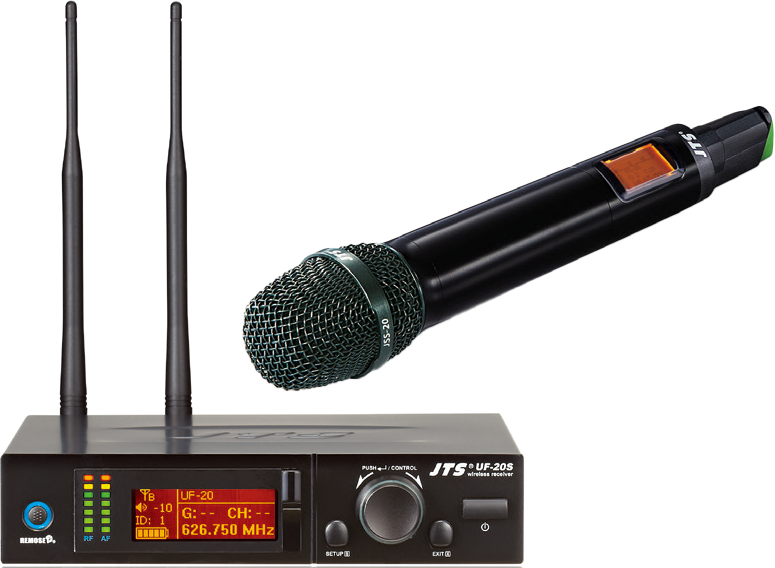

UF-20S receiver with JSS-20 Handheld transmitter 624-694MHz

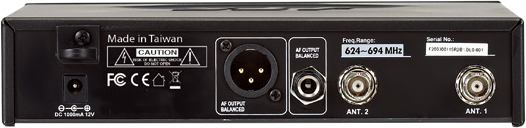

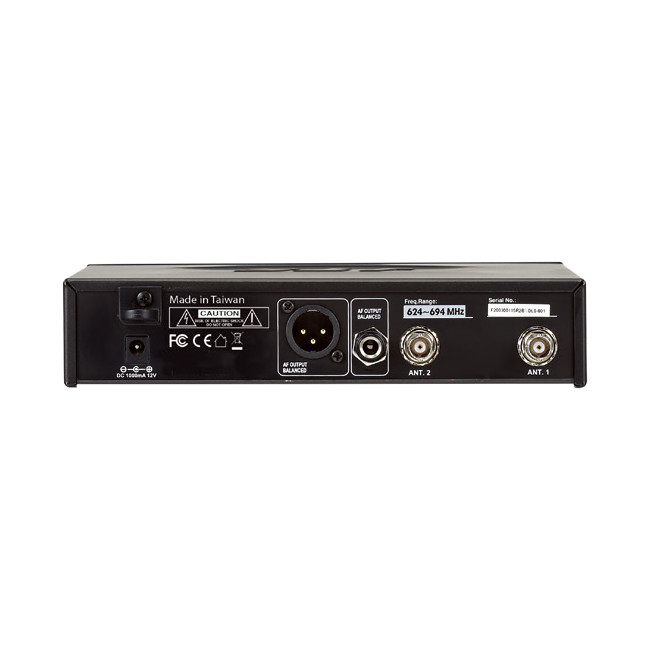

UF-20S

• UHF True diversity technology renders 200-480 meters of operation distance
• Maximum 2400 to 3000 selectable frequencies across 60 to 75 MHz
• Preset 15 groups each of up to 63 compatible channels
• User programmable 6 groups each of 64 channels
• Free space scan function
• JTS Patented obstacle-free RF function synchronizes a transmitter by pushing a button
• JTS LCX circuit design technology minimizes companding noise

NEWEST FEATURE:

• The is now not only sends the frequency data but also transmitter’s RF power, sensitivity, low cut, key lock and user's name.
• RF “NO SIGNAL” alert function.
• AF “MUTE” alert function.
• Transmitter “LOW BATTERY” alert function.
• Built in equalizer

SPECIFICATIONS

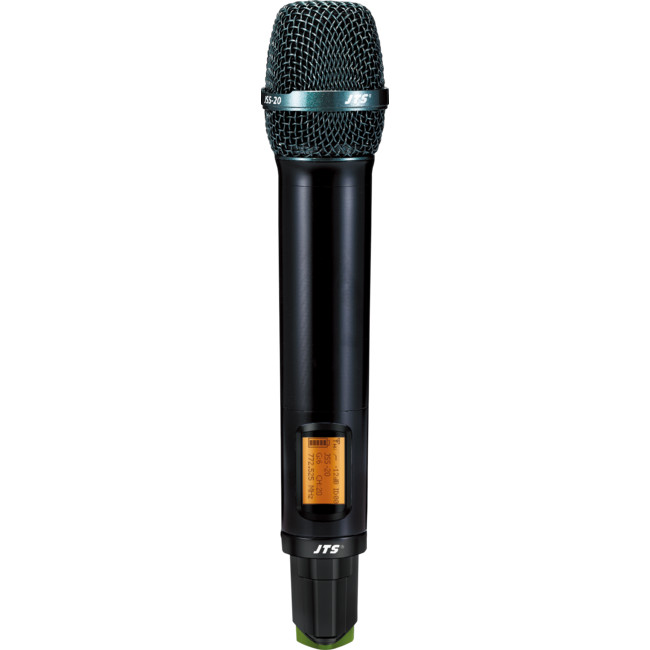

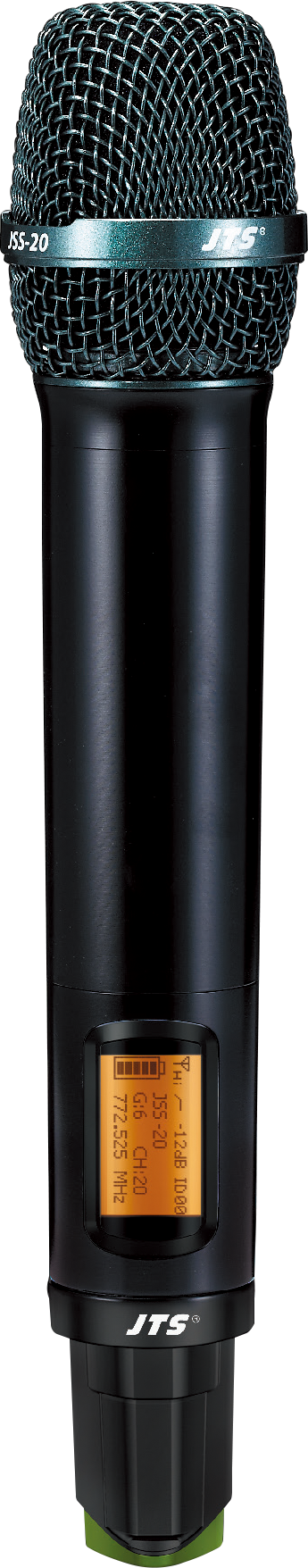

JSS-20

• 2400 to 3000 selectable frequencies
• Preset 15 groups each of up to 63 compatible channels
• Phase-Locked Loop (PLL) synthesized tune
• Adjustable transmission power between Low and High

NEWEST FEATURE :

• Low cut function.
• JTS newest development SAM-8WLN capsule assures outstanding acoustic performance while minimizes touching noise.
• Interchangeable capsule design for various choices including some classic capsule modules.
• It is designed with slot-in charging feature with two AA NiMH rechargeable batteries.

SPECIFICATIONS
