  • R4B1 R4 - 1RU 4 CHANNEL RECEIVER 520-556MHZ CASCADING ANTENNAS & POWER

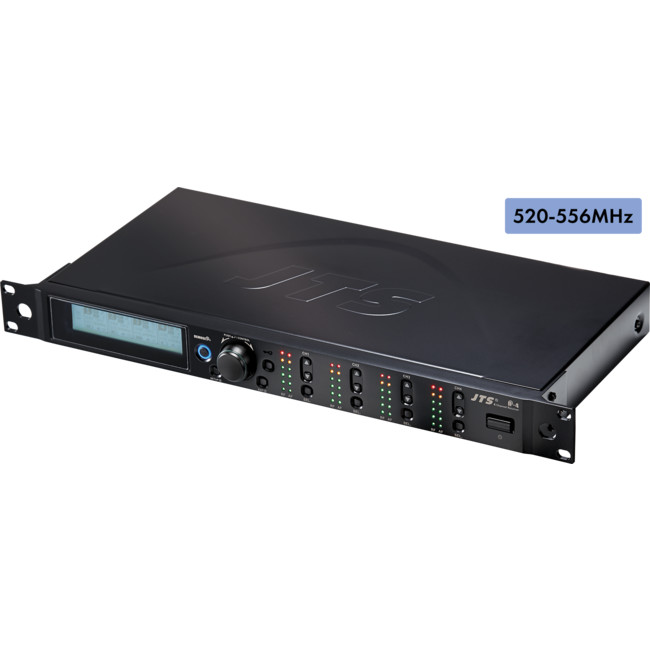

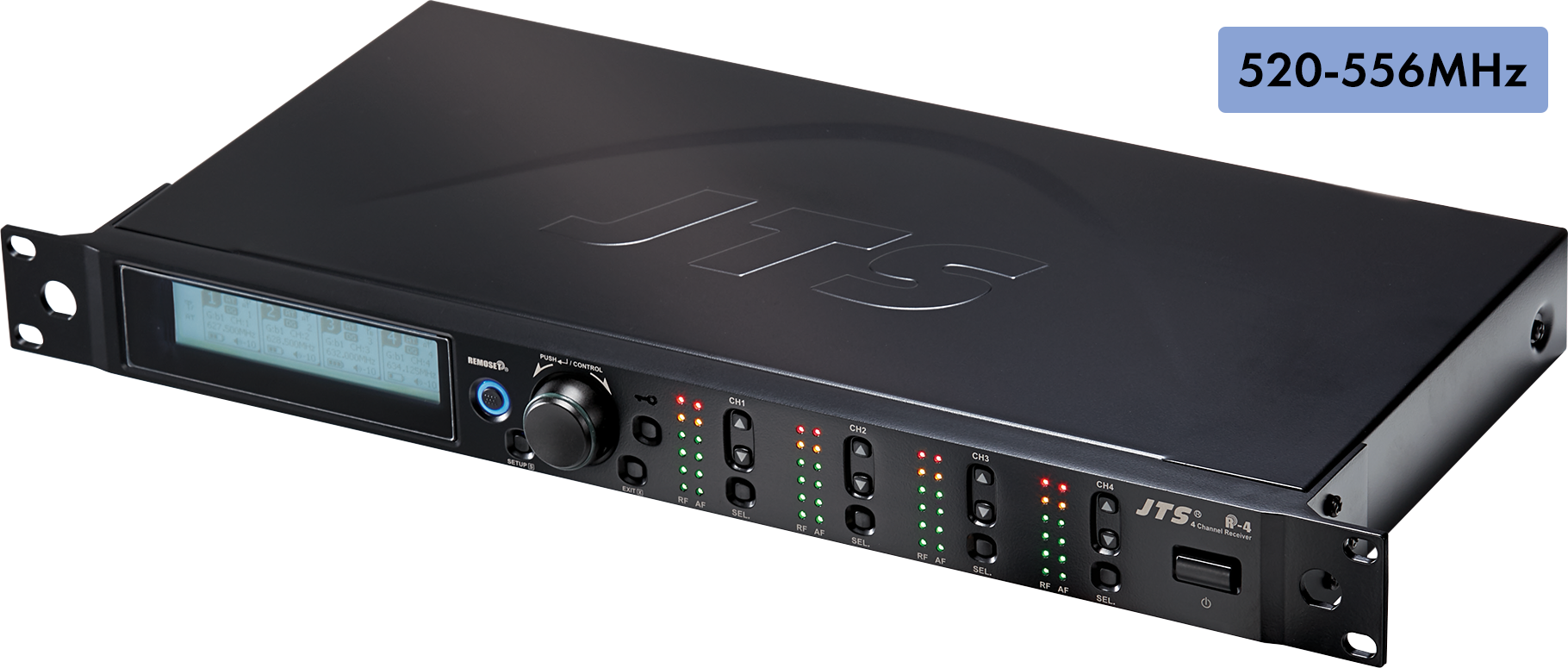

R4B1 R4 - 1RU 4 CHANNEL RECEIVER 520-556MHZ

CASCADING ANTENNAS & POWER

Code: 28732680

EACH
Low Stock
$1539 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

JTS JP-R4B1 R-4 receiver 520-556MHz

4 channels, 1RU cascading antennas and power

The system is designed with JTS newest generation wireless technology. To cope with the squeezed radio spectrum the system provides more compatible channels within limited bandwidth. The R-4 is a 4 channel system in a 19″ 1U case. Antenna outputs and AC power supply are designed to be cascaded. It provides great convenience to installation.

JTS patented REMOSET feature sends all microphone data by pushing of one button. Moreover all 4 microphones can receive correspondent data at the same time after one pushing. As always JTS provides detailed and full adjustment for best audio and radio performance.



SPECIFICATIONS

Frequency Preparation

PLL Synthesised Control

Carrier Frequency Range UHF 520-556MHz
S/N Ratio > 105dB
THD <0.6% @ 1KHz
Display Contents Group, Channel, Frequency, Antenna A/B, Mute Display, AF Meter (LED BAR), RF Meter (LED BAR), Battery Status
Controls Power On/Off, Group, Channel, Frequency Up/Down, Frequency Scan, Audio Level, Lock-on, Output Pad
Audio Output Level 12dB
AF Output Impedance 600O
Squelch

Pilot Tone & Noise Mute

Operating Voltage 100 ~ 240V
Output Connector 4 independent XLR outputs, and 1 Ø6.3mm and 1 XLR for mixed output
Dimensions (W×H×D) 212.3mm × 38.3mm × 144mm
Notes Actual product specifications may vary depending on region.
