IPA1MP ELECTRET CONDENSOR MICROPHONE PANEL

WITH PUSH BUTTON & STATUS INDICATOR

Code: 28657218

EACH
Special
Buy-In
TRADE ALERT!
$599 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

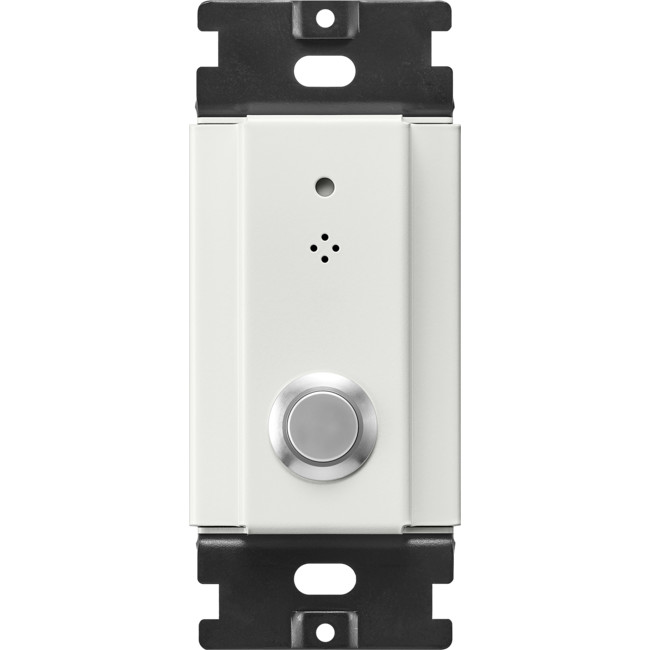

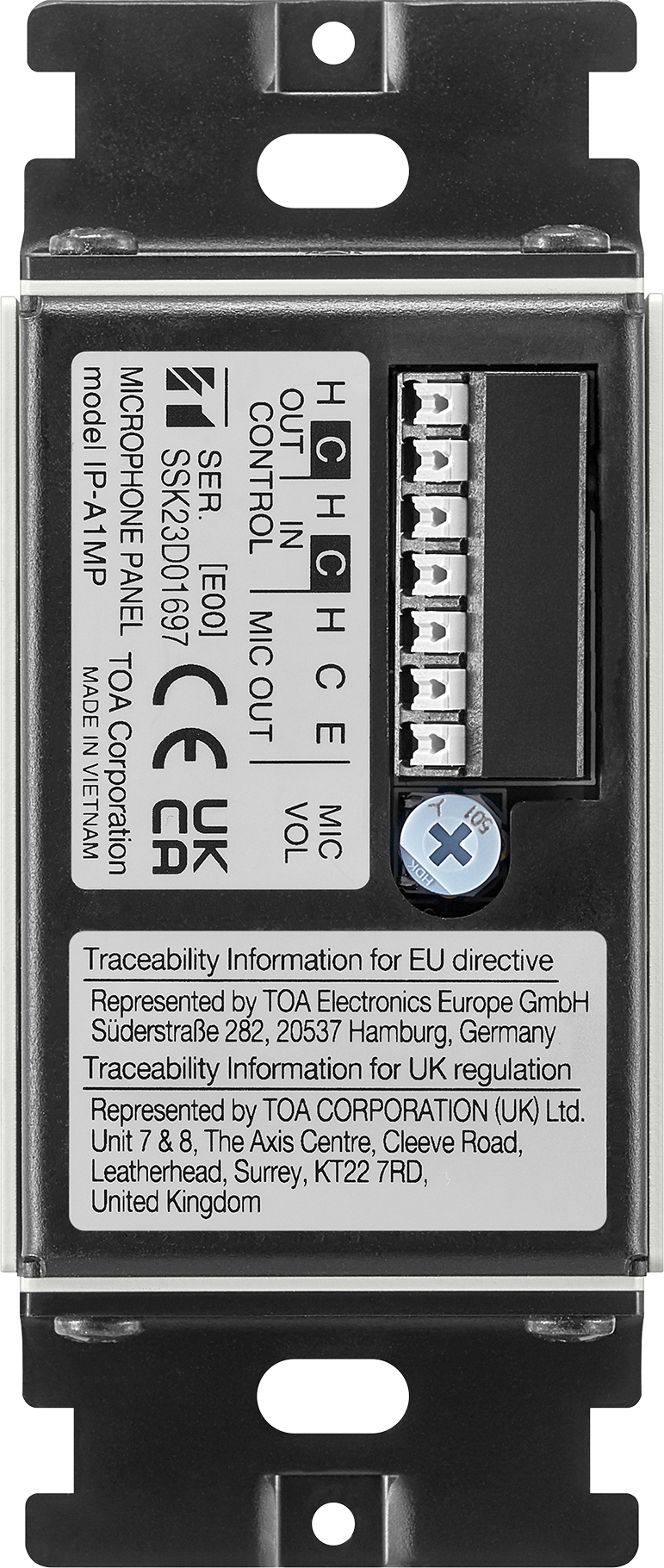

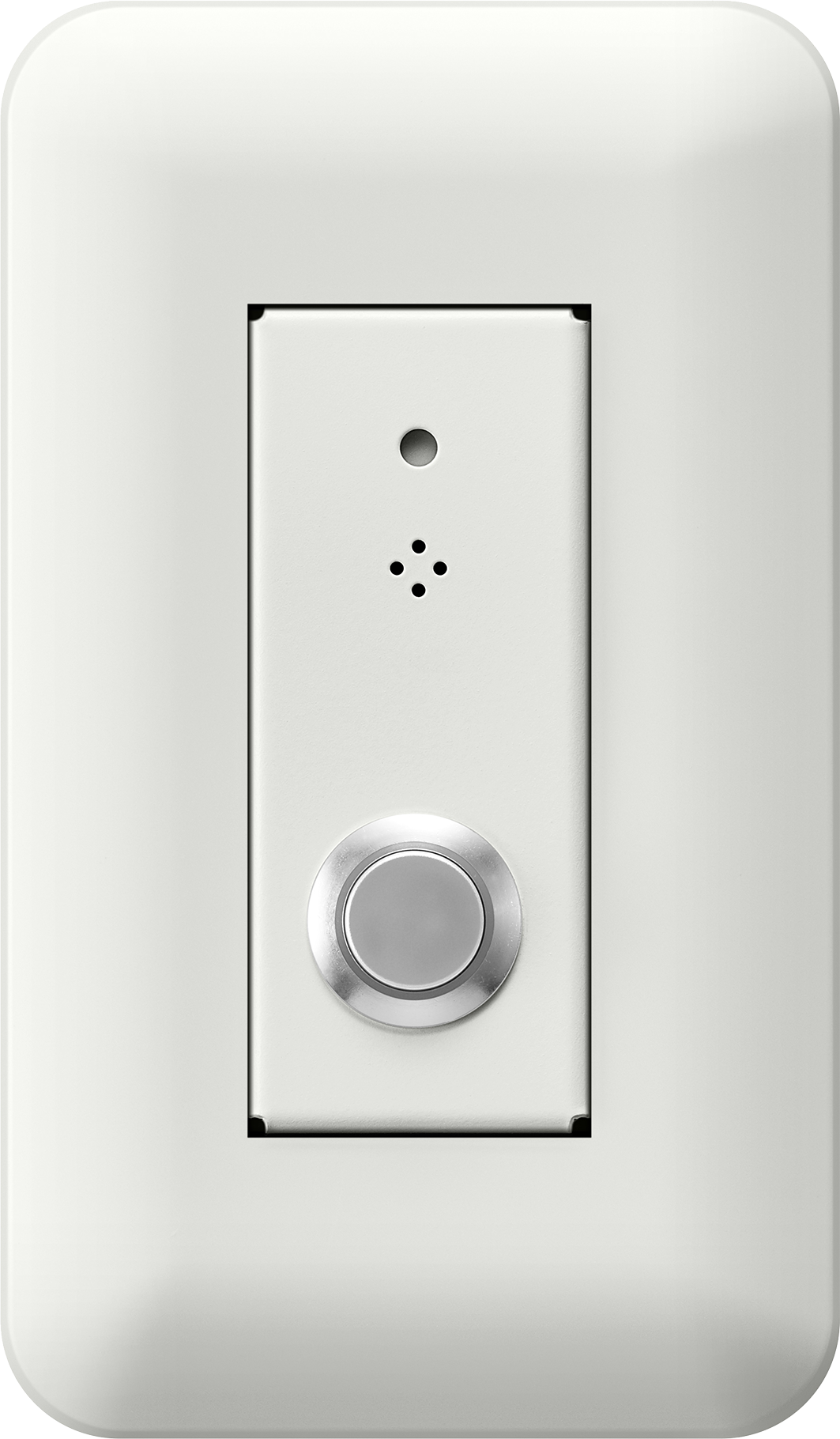

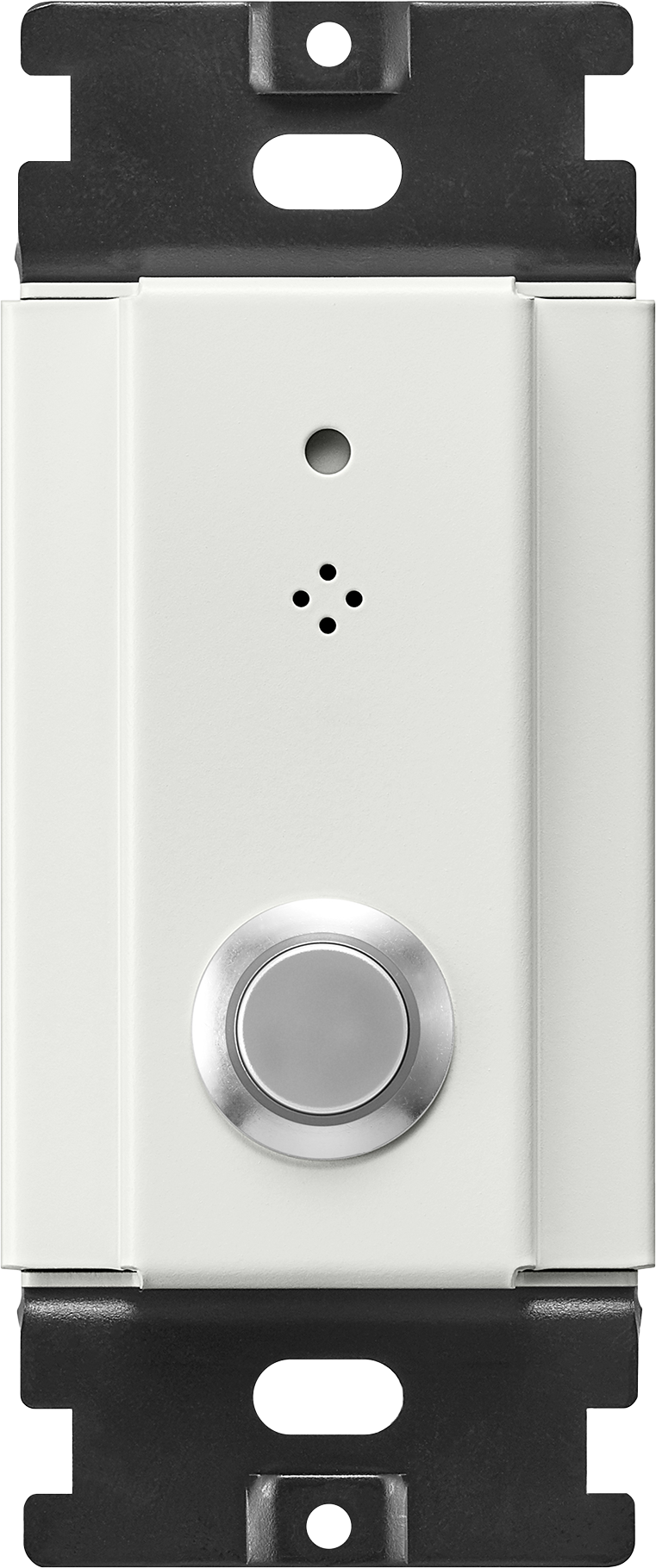

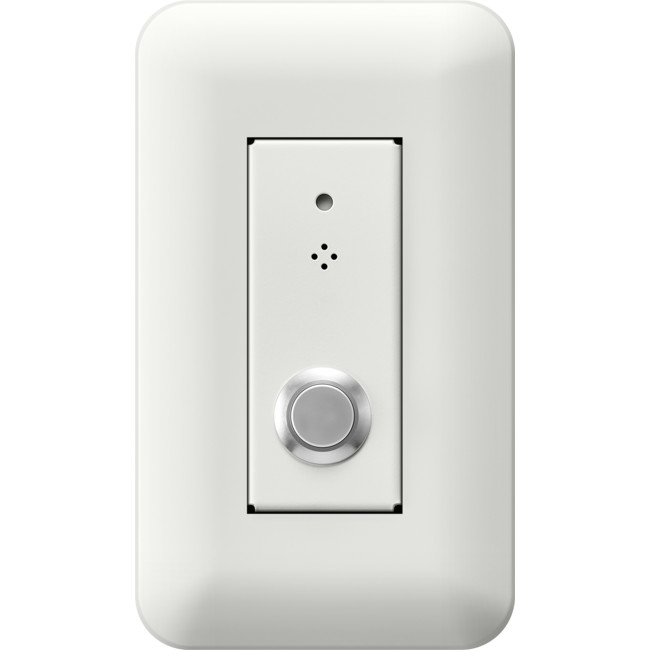

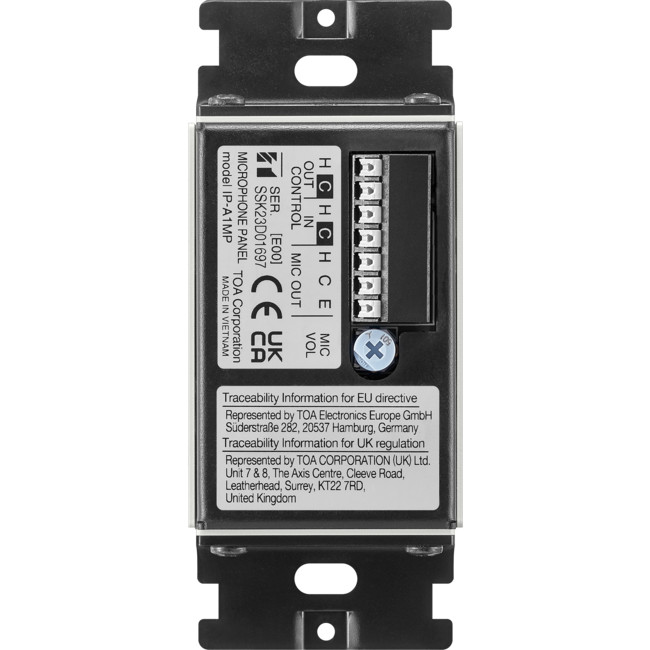

Toa IP-A1MP Microphone Panel

The IP-A1MP is a microphone panel that is equipped with a microphone, an activation switch and a status indicator. It can be installed with a standard electrical box as surface or flush mounting. This panel can be used as a two-way conversation or an audio monitoring microphone when used in conjunction with IP-A1 series devices.

  • Audio accessory unit to be used in conjunction with IP-A1 series devices for having two-way
  • conversations or audio monitoring
  • Omni-directional electret condensor microphone
  • Momentary type push switch to initiate a call
  • Indicator lights during control input is being triggered
  • 1 control input and 1 control output
  • 1 electronically-balanced audio output (0dB, 200Ω)
  • Surface or flush mounting with a standard electrical box

Specifications

  • Microphone
 Omni-directional electret condenser microphone
  • Control Input
 No-Voltage make contact input, open Voltage: 5V DC, short-circuit current: 0.2 mA or less, push-in terminal block
  • Control Output
 No-Voltage make contact output, withstand Voltage: 30 V DC, control current: 100 mA, push-in terminal block
  • Indication
 Green (Lit during control input) (*2)
  • Operating Temperature
 −20°C to +55°C (−4°F to 131°F)
  • Operating Humidity
 90% RH or less (no condensation)
  • Finish
  • Front Case: Surface-treated steel plate, white (RAL 9016 equivalent), semi-gloss, paint
  • Rear Case Bracket: Surface-treated steel plate, black zinc plating
  • Plate: ABS resin, white (RAL 9016 equivalent), gloss
  • Dimensions (W×H×D)
 44.6mm × 107mm × 29mm (1.76″ × 4.21″ × 1.14″) (excluding projection)
  • Weight
 170g (0.37lb)
  • Included Accessories
  • Plate × 1
  • Plate mounting screw (M3.5 × 5.5, preinstalled on the plate) × 2
  • Box mounting screw (M4 × 35) × 2
