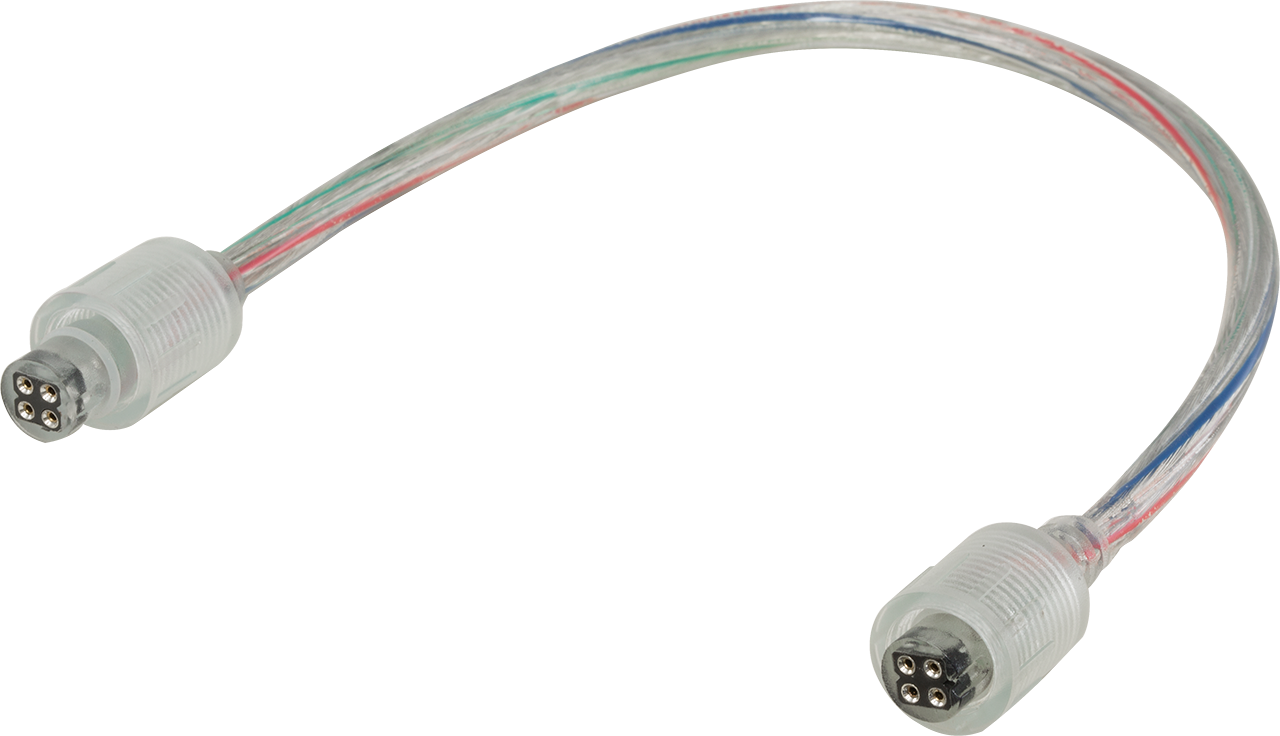

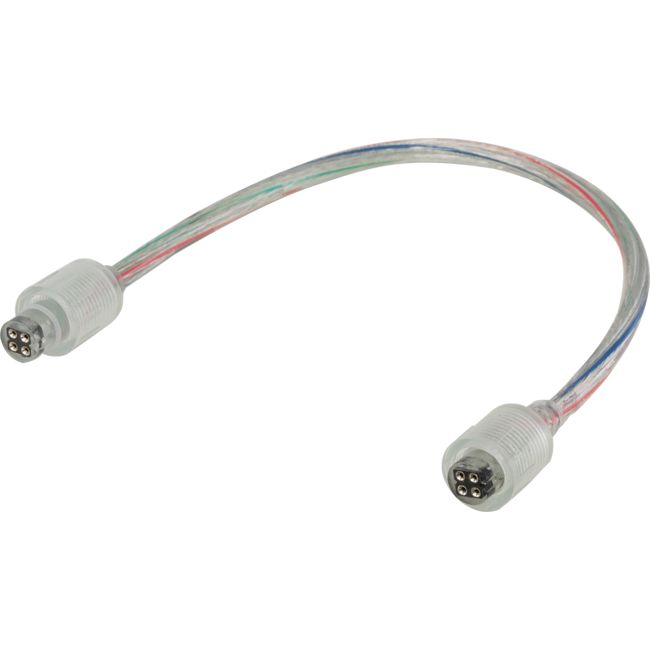

4 PIN WATERPROOF CONNECTOR SOCKET TO SOCKET LEADS
FEATURES
This is waterproof connector is to connect the RGB light.
Connection to transformer, for connecting LED strips, LEDwall-washers, LED underground light, LED rope right, LED belt light, curtain light, twinkle light and many application.
Package Included: 1 Set ofWaterproof Connector 4 Pin Push In Socket To Socket Wire RGB
Productive Craft:lead-free handmade soldering, once injection moulding and for all. Cable lenth: 15cm Voltage Rating: DC 0?24V,(AC110V,220V) Current Rating: 1~5A Breakdown Voltage: =1500V Grage of Waterproof: IP68 Working Temperature:-40 c~120c Material: Copper PVC(international standard) NOTE:
1.Finished products must have 100% electrical test, disallwing open circuit/short circuit, electrical sudden disconnection.
2.Insulation Resistance: 5.0M ohm/least.
3.Energy Impedance: 3.0 ohm
4. The products passed the RoHS environmental requirements.
5. Connecting point must be one to one.
SPECIFICATIONS
| IP68 Waterproof 4 pin Connector Socket to Socket |
| 1 | Model No. | |
| 2 | Material | Connector Body | Nylon(PA66) GF UL94V-0 1/16'' |
| 3 | Contact | Brass with Gold Plated |
| 4 | Sealing | Silica Gel |
| 5 | Property | Current Rating | 1-5A |
| 6 | Voltage Rating | 500V |
| 7 | Contact Resistance | <10mO |
| 8 | Insulation Resistance | 10MO at DC200V |
| 9 | Breakdown Voltage | 1.5KV/1minute |
| 10 | Temperature Rating | -40°C~ 120°C |
| 11 | Durability(Plug/Unplug) | 3000 times |
| 12 | Waterproof Rating | IP68 |
| 13 | Cable Max. Diameter | 10mm |
| 14 | Pins Range | 2,3, 4, 5, 6, 7, 8 |
| 15 | Certificate | CCC; CE; ROSH |
Material
Terminal: Space between 2.54 2*2P Pin Header, Plating gold/tin
Sizing Material: 35P-PVC, transparent
Waterproof Circle: Black
Nut shell: Transparent
Connect all kinds of LED lighting products for indoor andoutdoor, for example: LED Strips, LED Spotlights, LED Flood lights, LED Wall washers.
