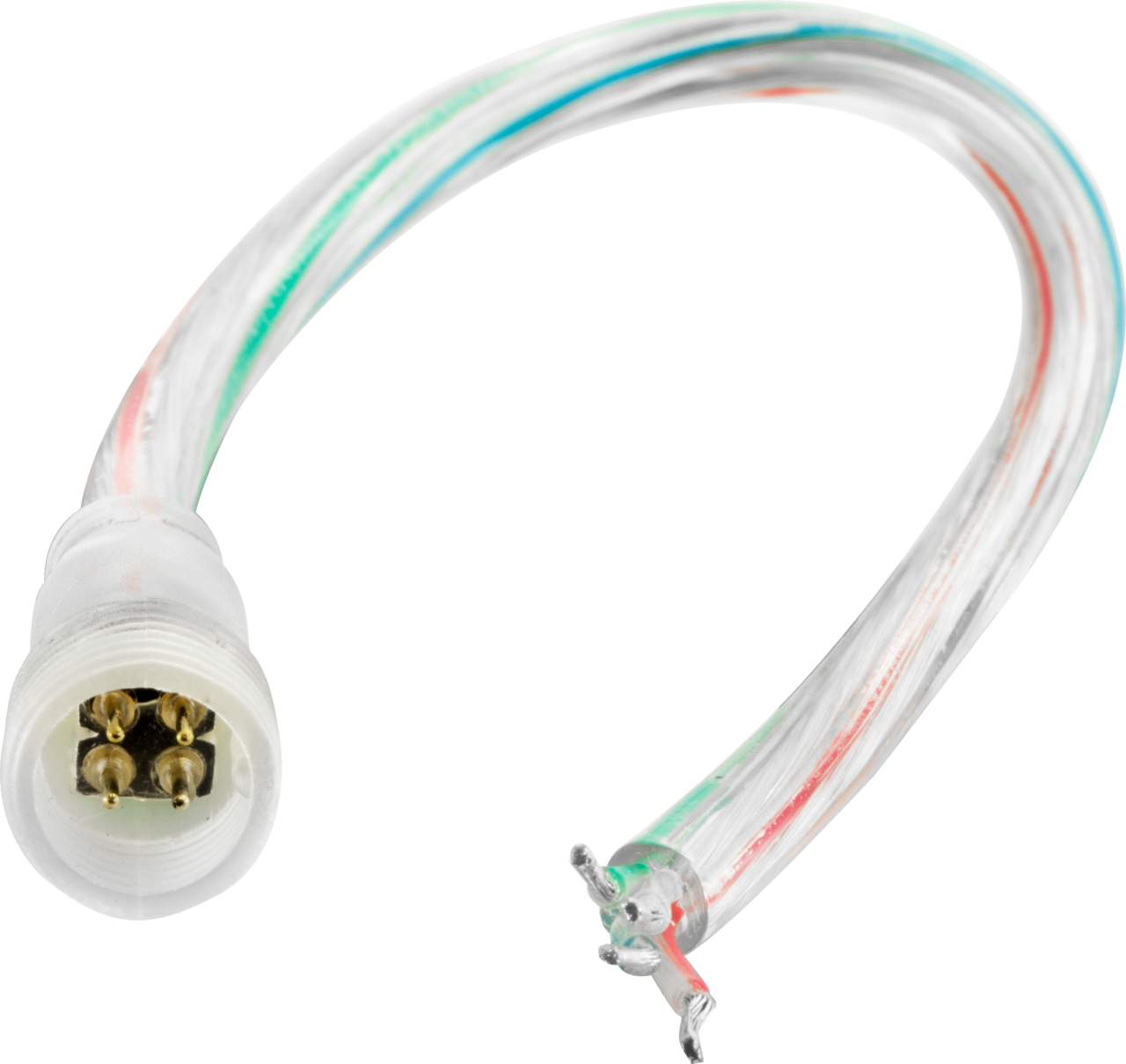

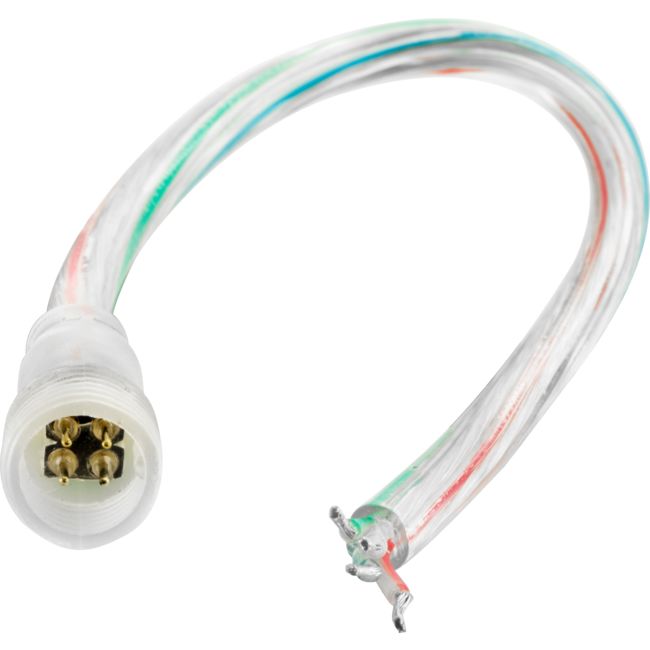

RGB15P 4 PIN WATERPROOF CONNECTOR

PLUG LEAD

Code: 25332710

0.0060 kg
9328202030351
EACH
In Stock
$1.95 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

Features

This is waterproof connector is to connect the RGB light.

Connection to transformer, for connecting LED strips, LEDwall-washers, LED underground light, LED rope right, LED belt light, curtain light, twinkle light and many application.

  • Productive Craft:lead-free handmade soldering, once injection moulding and for all.
  • Voltage Rating: DC 0?24V,(AC110V,220V)
  • Current Rating: 1~5A
  • Breakdown Voltage: =1500V
  • Grage of Waterproof: IP68
  • Working Temperature:-40?~120?
  • Material: Copper PVC(international standard)
NOTE:
  1. Finished products must have 100%electrical test, disallwing open circuit/short circuit, electrical sudden disconnection.
  2. Insulation Resistance: 5.0M ohm/least.
  3. Energy Impedance: 3.0 ohm
  4. The products passed the RoHS environmental requirements.
  5. Connecting point must be one to one.

Specifications

IP68 Waterproof 4 pin Connector Plug
1 Model No.
2 Material Connector Body Nylon(PA66) GF UL94V-0 1/16''
3 Contact Brass with Gold Plated
4 Sealing Silica Gel
5 Property Current Rating 1-5A
6 Voltage Rating 500V
7 Contact Resistance <10mO
8 Insulation Resistance 10MO at DC200V
9 Breakdown Voltage 1.5KV/1minute
10 Temperature Rating -40°C~ 120°C
11 Durability(Plug/Unplug) 3000 times
12 Waterproof Rating IP68
13 Cable Max. Diameter 10mm
14 Pins Range 2,3, 4, 5, 6, 7, 8
15 Certificate CCC; CE; ROSH

Material

Terminal: Space between 2.54 2*2P Pin Header, Plating gold/tin
Sizing Material: 35P-PVC, transparent
Waterproof Circle: Black
Nut shell: Transparent
