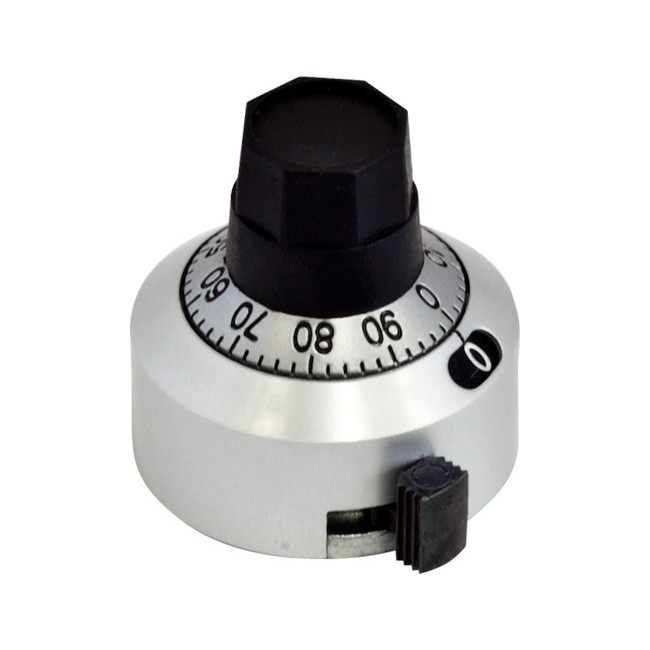

18MTD 0-14 MULTI TURN DIAL COUNTER

0-14 MULTI-TURN DIAL COUNTER FOR POTENTIOMETERS

The inner scale of the Model 18 Multidial is graduated in fiftieths of a turn. The outer scale counts the number offull turns (0-14) that have been completed.

FEATURES:

• No backlash
• Compact-requires minimal panel space (22.2 mm diameter requirement)
• For use with precision potentiometers or other rotating devices, up to 15 turns (Suits 534 series 10 turn pots)
• Designed for metal shaft
• High force “Click Brake” slide lock tab
• Black color on request
• High-impact, flame retardant case withstands shock and vibration abuse
• Compact design requires minimal space
• Allen key supplied


MECHANICAL SPECIFICATIONS:

• Accepts Shaft Diameter: 6.35 mm (0.250")
• Size : 22.2mm O.D
• Number of Turns: 0 to 15
• Dial Division: 50 per turn
• Torque with Brake Engaged: 5 oz. - in (350 gr - cm)min.
• Markings: Black or satin chrome
• Weight: 15 g
• Set Srew: UNC 2-56
• Hex Key Size: 1.27 mm (0.05")
• Bushing Extension Beyond Panel: 6.35 mm (0.250") max.
• Shaft Extension Beyond Panel: 18.1 mm (0.710") min. / 22.2 mm (0.875") max.
