The JVS-1V Kit includes:
This compact video intercom set has an attractive design that complements most interiors.
The JV Series Video Intercom comes in two convenient box sets.
JVS-1V and JVS-1F simply select your door station, then add an optional expansion station for a complete 1x2 system.System comes with a power supply.
The Master station features a 7″ screen to view visitors and configure settings. The electrostatic touch buttons to the right of the screen allow users to unlock the door and activate an exterior device. There are multiple call tone options available for the station. Communication with the door station can either be hands-free or push-to-talk. Still images from past calls can be viewed and deleted from the station. The station can store up to 30 images. Wiring for the system is 2-conductor between the JV-1MD and the door station (Aiphone 871802 PE insulated 18/2 cable is recommended).
Achieving a refined, noise-free, flat design by eliminating microphone or speaker slots from the front.
A harmonious integration of nighttime lighting and nameplate in a sleek and practical design.
The Picture Memory function is employed by the Master Monitor Station. Record an image automatically by pressing the call button on the Door Station. Verification of visitors during the absence is possible.
Note: Following functions are not available: Manual Recording, Protect to overwrite recordings, Play recordings on other devices
The Output Signal to release door lock is selectable from three ways. Choose appropriate one to suit the installation.
The optional output is adopted for controlling external devices such as Light, Garage gate, and other Electrical Lock etc. The duration time is selectable.
*1. Room to room communication is not available. *2. PT (AC transformer) is required when selecting dry contact.
Boxed sets

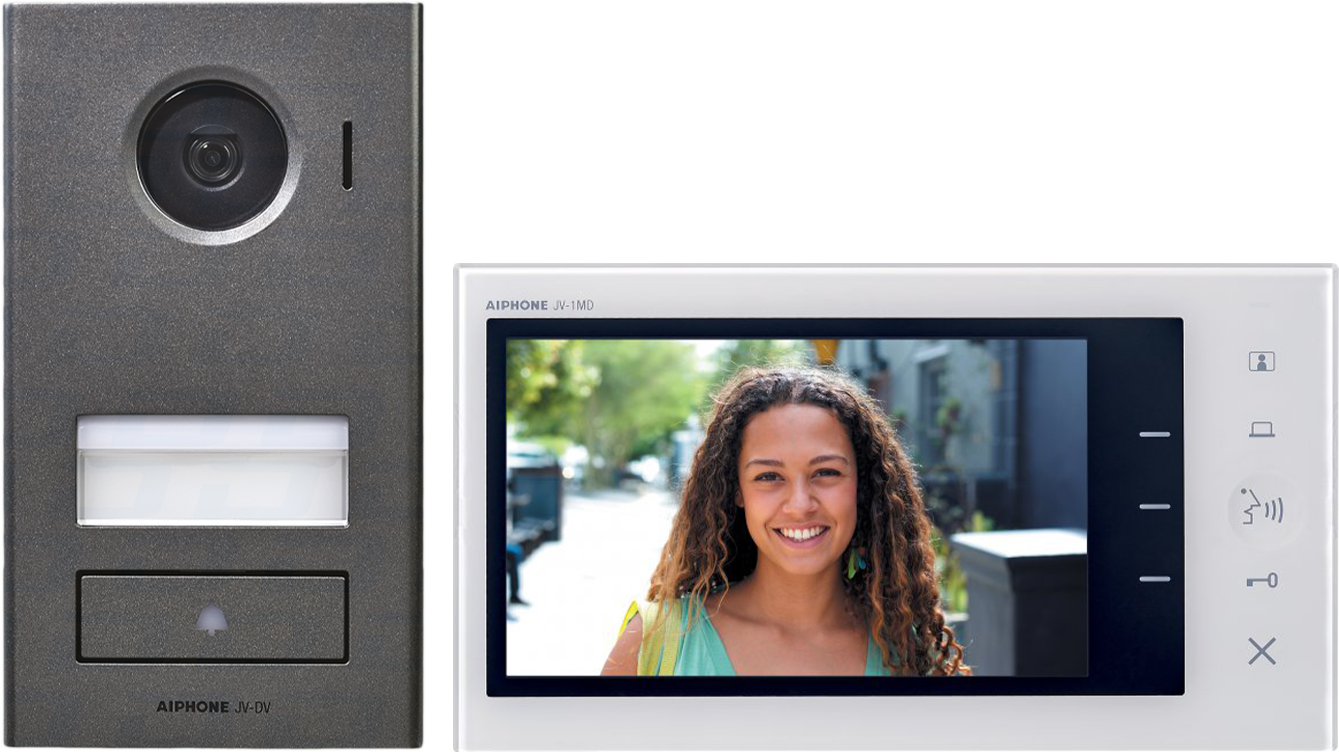

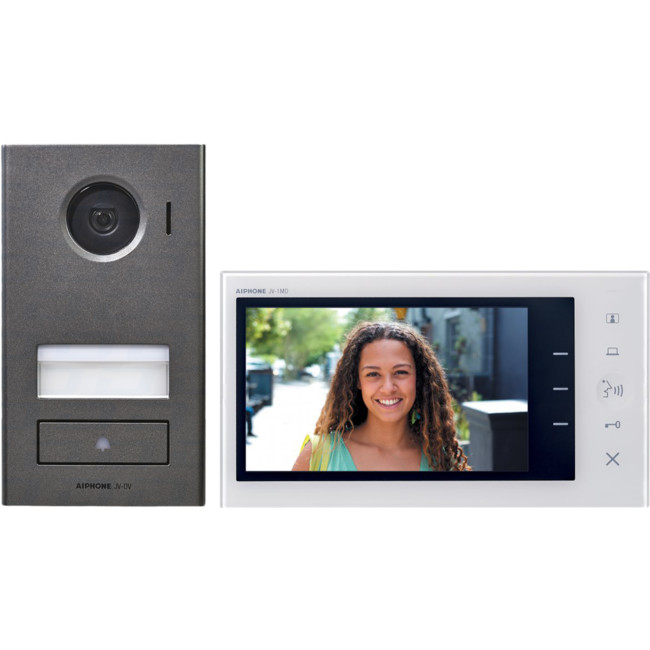

JVS-1V: JV-1MD, JV-DV, PS2420 JVS-1F: JV-1MD, JV-DVF, PS2420

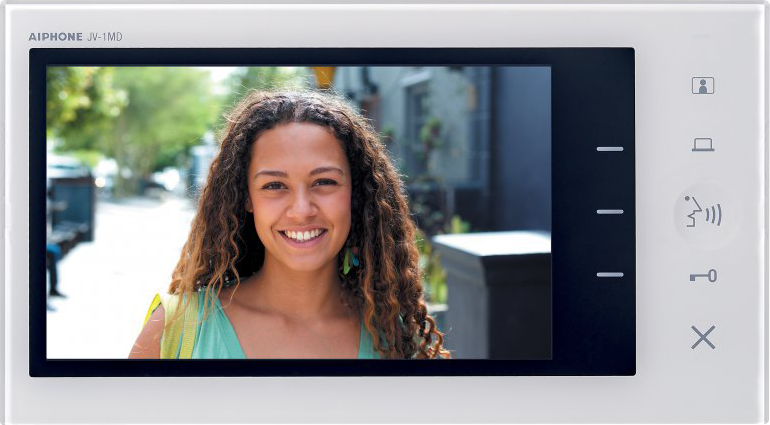

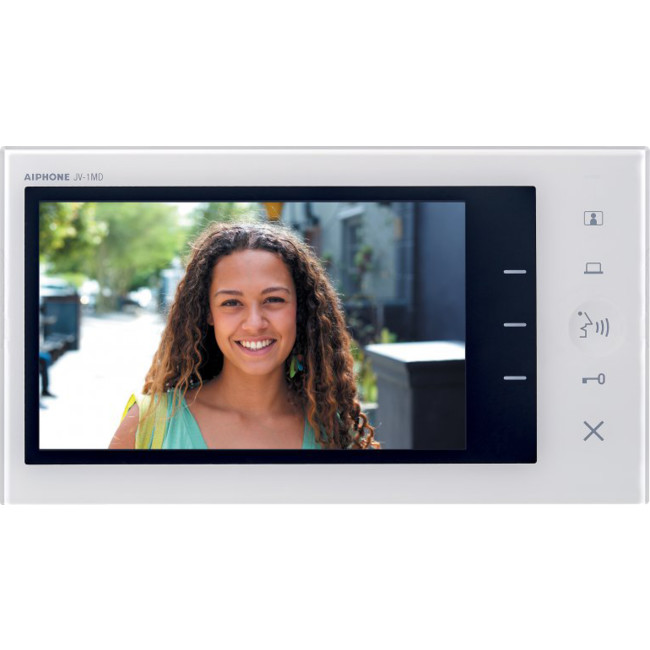

Master monitor station

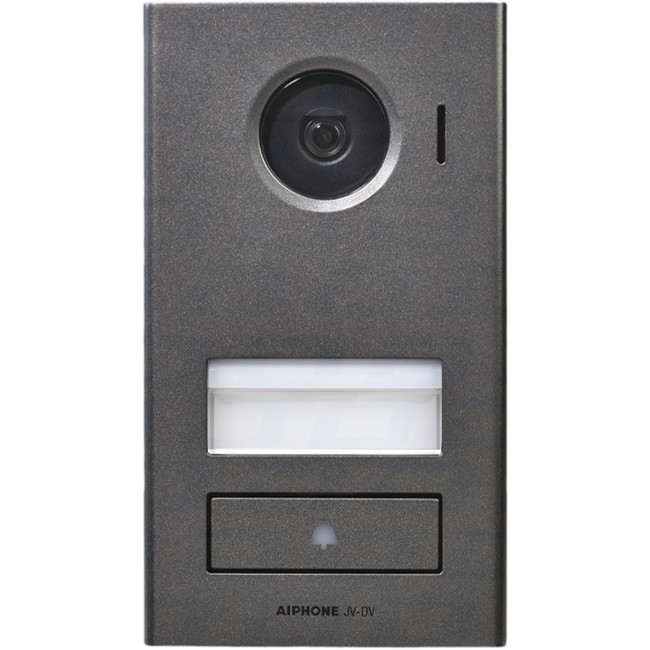

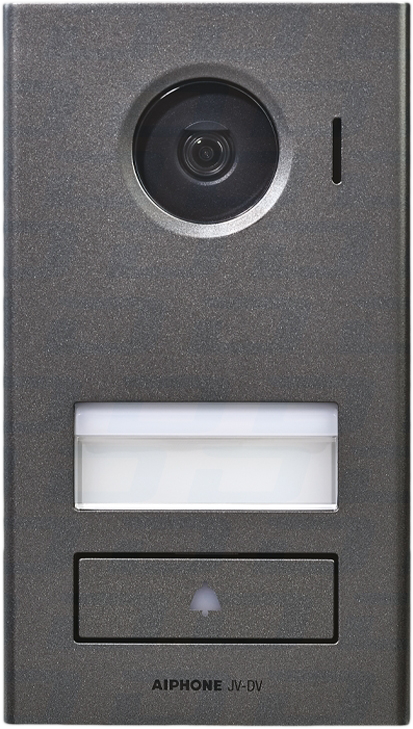

Door station
Expansion monitor station
