AC12038240SL 240V AC 120MM FAN

120mm 240VAC Sleeve Bearing Cooling Fan

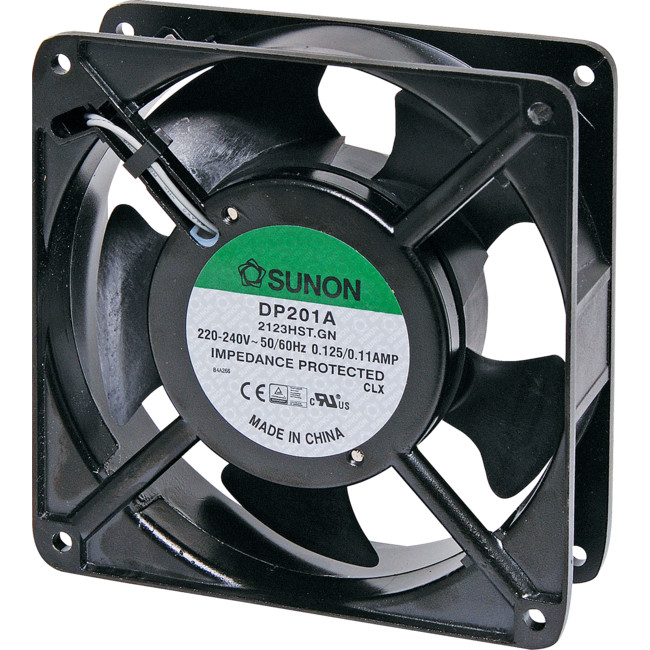

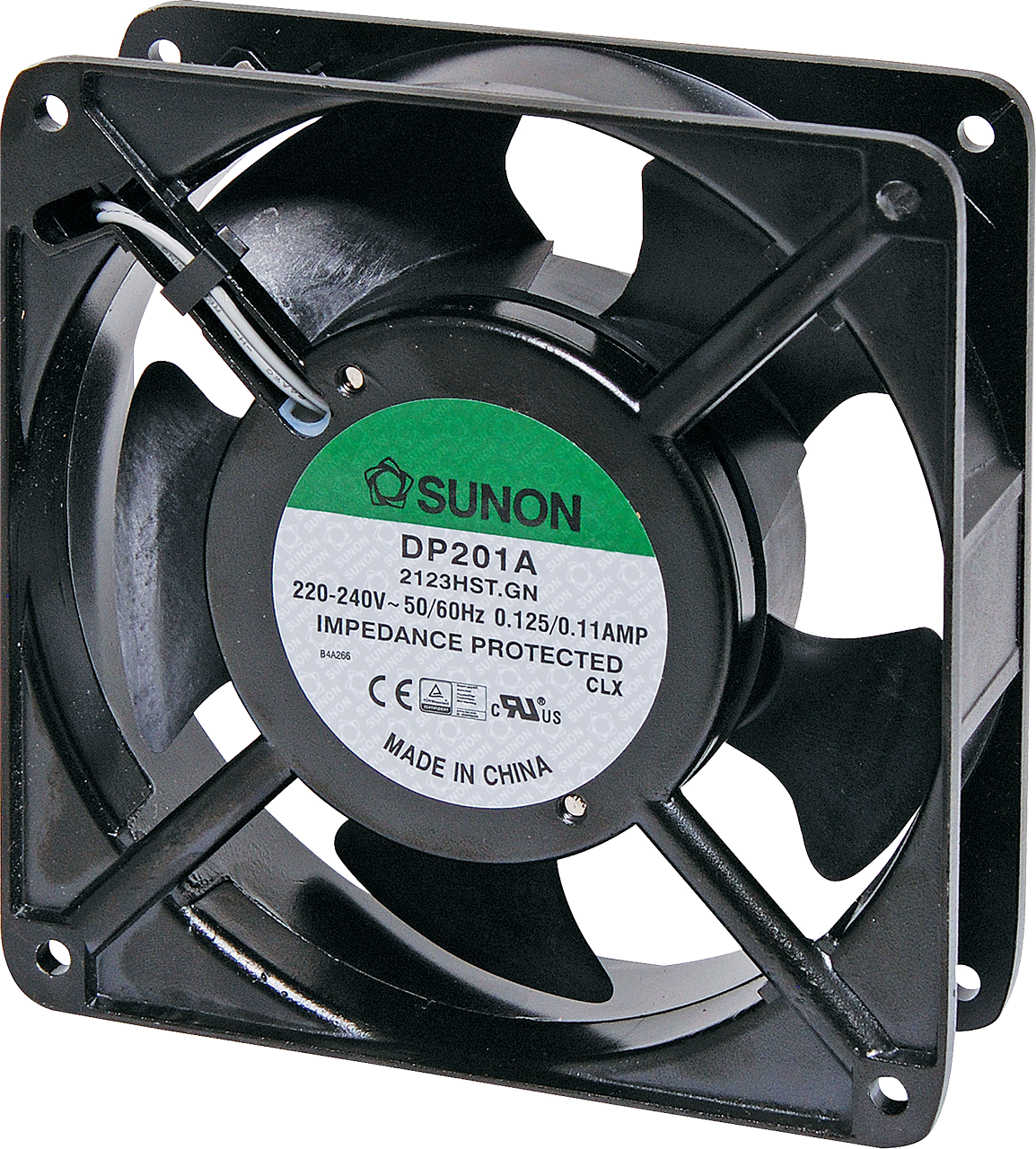

Sunon DP201A-2123HST.GN 240V AC 120mm Sleeve Bearing Cooling Fan with diecast aluminium frame. Designed for long-life and minimal noise operation. Sunon® fans are manufactured to a very high standard and hold CSA and UL listings. Altronics has been a Sunon distributor for many years and have found them to be of excellent overall quality and reliability.

Note: Other models are available for your specific OEM requirements, please contact us for details.

• Mechanical Characteristics
• Motor Design:Shaded pole motor construction
• Motor Protection: Impedance protected
• Bearing System:Lubricated sleeve bearing system
• Frame Material:Die-cast aluminium
• Blade Material: Thermoplastic PBT of UL94V-0
• Direction of Rotation:Counter clockwise viewed from the front of the fan blade
• Mounting Holes: 8x 4.3mm holes
• Weight:550g
• Dimensions:120 x 120 x 38mm
• Electrical Characteristics
• Rated Voltage:220-240V AC at 50/60Hz
• Rated Current:0.125/0.11A
• Rated Power:20/19W
• Operating Voltage Range:185-245V AC
• Starting Voltage:185V AC (25°C Power On/Off
• Operating Temperature:-10°C ~ 70°C
• Storage Temperature:-40°C ~ 70°C
• Performance Characteristics
• Rated Speed:2550/2900 RPM ±10%
• Air Flow:85/105 CFM
• Static Pressure:0.25/0.30 Inch-H2O
• Noise Level:43/48dB (A)
• Insulation Resistance:500MΩ (min) at 500V DC
• Dielectric Strength:1800V AC for one second
