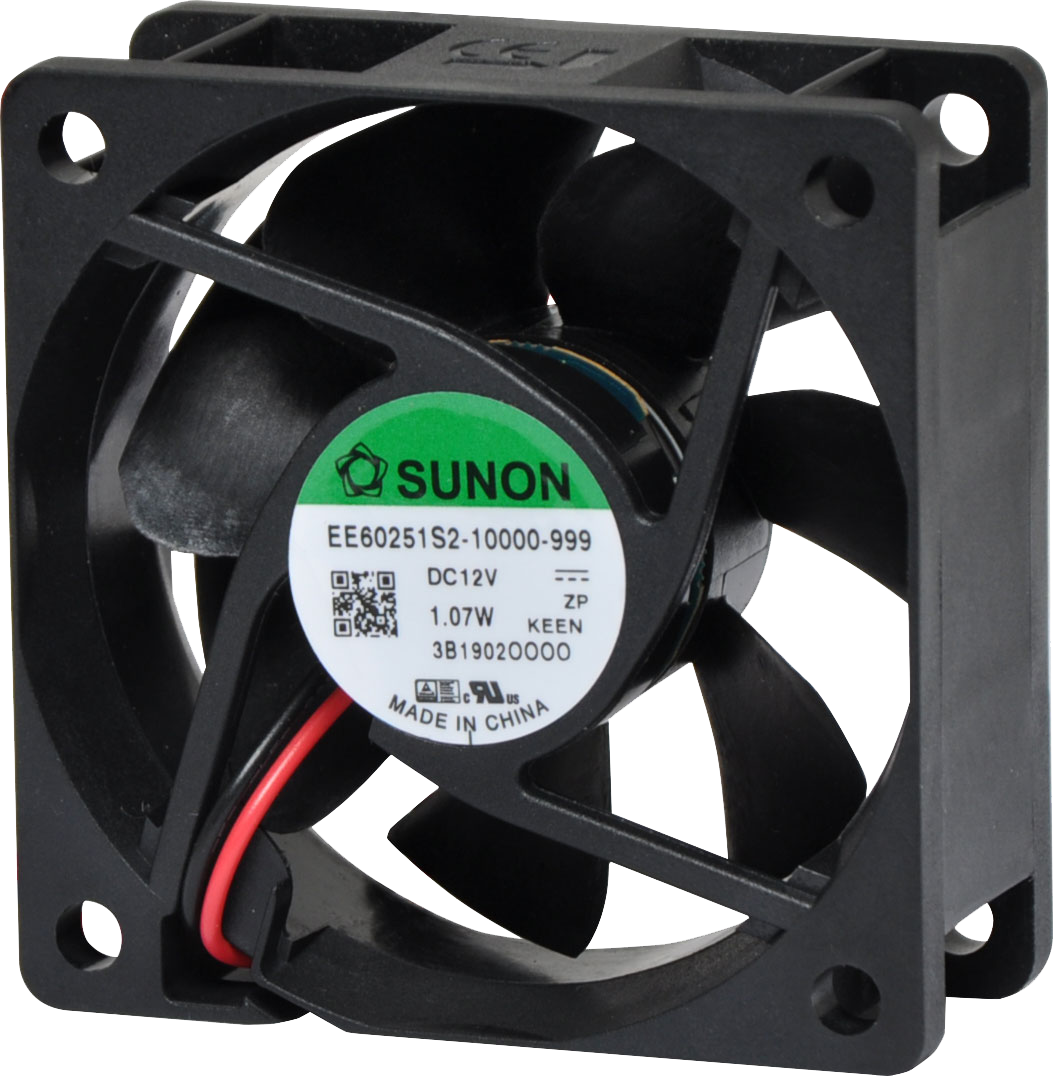

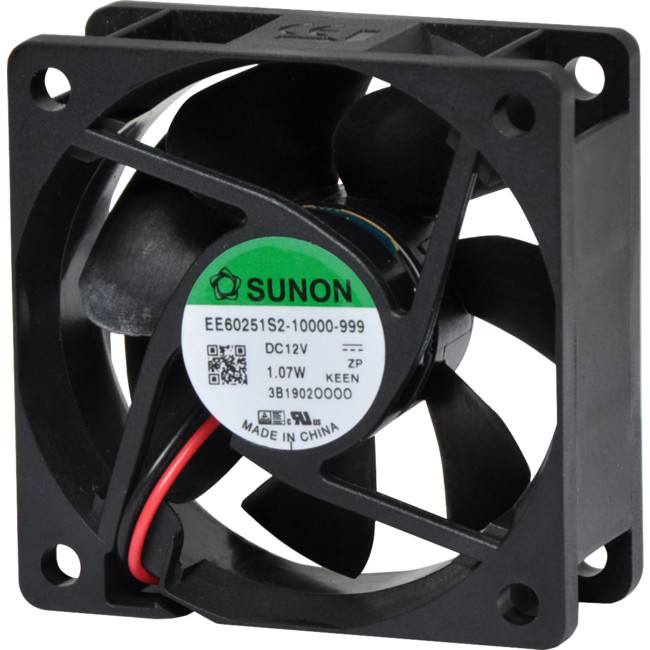

DC602512SL 12VDC 60MM SLEEVE BEARING FAN

Code: 12110648

0.0440 kg
9321758039465
EACH
200
In Stock
$11.95 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode
A 12V DC 60mm Sunon Sleeve Bearing Cooling Fan (#EB60251S2-0000-999) with thermoplastic frame. Designed for long-life and minimal noise operation. Sunon®fans are manufactured to a very high standard and hold CSA and UL listings. Altronics has been a Sunon distributor for many years and have found them to be of excellent overall quality and reliability.

Mechanical Characteristics

  • Motor Design:2 phases, 4 poles brushless DC motor
  • Bearing System: Lubricated sleeve bearing system
  • Frame Material: Thermoplastic PBT of UL94V-0
  • Blade Material: Thermoplastic PBT of UL94V-0
  • Direction of Rotation:Counter clockwise viewed from the front of the fan blade
  • Mounting Holes: 8x 4.3mm holes
  • Weight:45g
  • Dimensions:60 x 60 x 25mm

Electrical Characteristics

  • Rated Voltage:12V DC
  • Rated Current:85mA (98mA max)
  • Rated Power Consumption:1.02W (1.18W max)
  • Safety Power Consumption:1.07W
  • Operating Voltage Range:4.5~13.8V DC
  • Starting Voltage:4.5V DC (25°C Power On/Off)
  • Operating Temperature: -10°C ~ 70°C
  • Storage Temperature:-40°C ~ 70°C

Performance Characteristics

  • Rated Speed:3800 RPM ±15% at rated voltage
  • Air Flow:19.3 CFM
  • Static Pressure:0.15 Inch-H2O
  • Noise Level:22.0dB(A)
  • Insulation Class:UL Class A
  • Insulation Resistance:10MΩ at 500V DC between internal stator and lead wire ( )
  • Dielectric Strength:500V AC for once minute or 600V AC for 2 seconds between housing and lead wire ( )
  • Life Expectancy:35,000 hours at 40°C, 65% RH, 90% CL

      •
