DC402012DRM 12V DC 40MM DUST RESISTANT 20MM

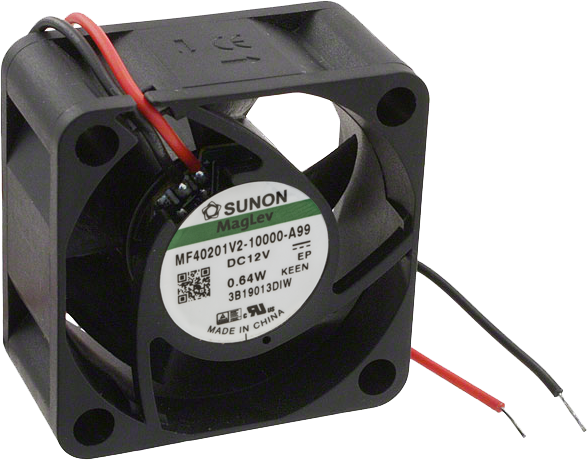

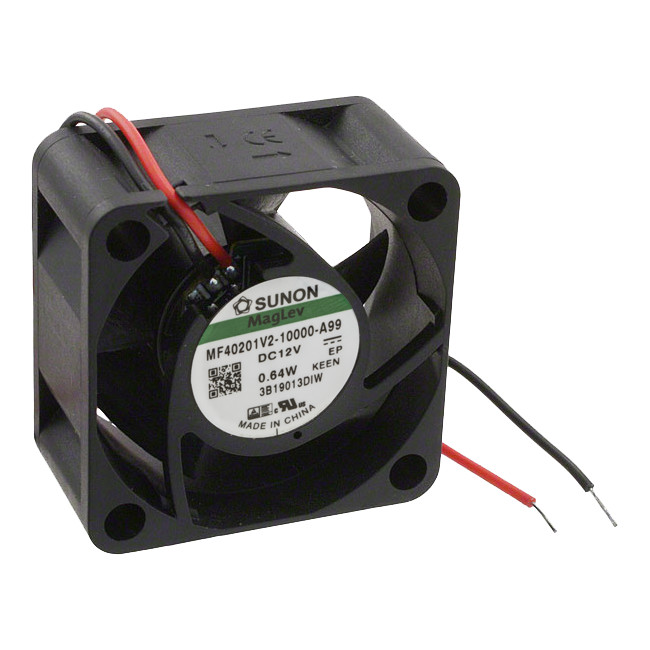

Sunon 12V 40mm X 40mm X 20mm DR MagLev Motor Fan VAPO Bearing

SUNON DR (Dust Resistant) MagLev Motor Fan uses the MagLev technology with new design features to increase dust-resistance and prevent oil leakage.

Features

• Better oil leak prevention. DR MagLev?s one-piece structure with the B&S (Blanked & Seamless) Technology and S&C (Seal & Clip) Design provides the best prevention of oil leakage.
• Better dust-resistance. The innovative S&C (Seal & Clip) Design provides the best resistance to dust invasion.
• Higher reliability. The S&C (Seal & Clip) Design can prevent the stator and impeller from falling offand help reduce noise that is caused by stator and impellermovement after a period of usage. The design greatly improves the life expectancy and the reliability.
• Longer life expectancy. Comparing the life expectancy of DR MagLev Motor design with other bearing systems, the life expectancy of the Precise VAPO bearing performs similar to 2 Ball bearing and therefore meets the customer?s requirements for continuous fan operation.

Model	P/N	Size	Bearing BALL VAPO SLEEVE	Rating Voltage (VDC)	Power Current (AMP)	Power Consumption (WATTS)	Speed (RPM)	Air Flow (CFM)	Static Pressure (Inch-H2O)	Noise (dBA)	PDF
MB40201V2-0000-A99		40X40X20		12	0.050	0.60	6200	7.7	0.16	21.0
