| PLAYABLE DISCS | BD-ROM | Ultra HD Blu-ray/ FULL HD 3D/ BD-Video | yes |
| BD-RE/BD-RE DL (Ver.3) | BDAV/ AVCHD/ AVCHD 3D/JPEG/ MPO | yes |
| BD-R (Ver.1.3) / BD-R DL (Ver.2) | BDAV/ AVCHD/ AVCHD 3D/ MKV/ JPEG/ MPO | yes |
| DVD | DVD-Video | yes |
| DVD-R*1/ DVD-R DL*1/ DVD-RW*1 | DVD-Video/ DVD Video Recording | yes |
| AVCHD/MKV | yes/ yes* (*DVD-R/ DVD-R DL) |
| FLAC/ WAV/ ALAC/ DSD/ WMA/ AAC/ MP3/ AIFF | yes (DVD-R/ DVD-R DL) |
| JPEG/ MPO | yes (DVD-R/ DVD-R DL) |
| R*1/ R DL*1/ RW*1 | Video/AVCHD | yes |
| CD, CD-R/ -RW | CD-DA/DTS-CD | yes |
| MKV | yes (CD-R/ -RW) |
| FLAC/ WAV/ ALAC/ WMA/ AAC/ MP3/ AIFF | yes (CD-R/ -RW) |
| JPEG/ MPO | yes (CD-R/ -RW) |
| AUDIO SYSTEM | Dolby Digital/ TrueHD | yes (Decode and Bitstream Output*2) |
| Dolby Digital Plus | yes (Decode and Bitstream Output*2) |
| DTS-HDMaster Audio/ DTS-HD High Resolution Audio | yes (Decode and Bitstream Output*2) |
| Dolby Atmos/ DTS:X | yes (Bitstream Output*2) |
| FLAC | yes (Max. 192 kHz/ 24 bit) |
| WAV | yes (Max. 384 kHz/ 32 bit) |
| ALAC | yes (Max. 96 kHz/ 32 bit (7.1ch), 176.4/192 kHz/ 32 bit (5.1ch)) |
| DSD (DFF, DSF) | yes (2.8 MHz (2ch/ 5.1ch), 5.6 MHz (2ch/ 5.1ch), 11.2 MHz (2ch)) |
| AIFF | yes (Max. 384 kHz/ 32 bit (2ch)) |
| USB | Front | 1 (USB 2.0 High Speed) |
| Rear | 1 (USB 3.0 Super Speed) |
| Playback | FLAC/ WAV/ ALAC/ AIFF/ DSD (DFF, DSF)/ WMA/ AAC/ MP3 | yes (Gapless Playback : FLAC/WAV/AIFF/DSD(DFF,DSF)) |
| MKV/ MP4 (H.264/HEVC), TS (MPEG-2/H.264/HEVC) | yes |
| MPEG-2/ AVCHD/ AVCHD 3D | yes |
| JPEG/ MPO | yes |
| HIGH QUALITY PICTURE | HCX Processor for Ultra HD Blu-ray | yes |
| HDR | HDR10 | yes*3 |
| Dolby Vision | yes*3 |
| HybridLog Gamma(HLG) | yes |
| HDR Optimiser | yes |
| 4K Up-scaling | 60p/50p/ 4:4:4 (HDMI2.0) | yes*4*5 |
| 24p/ 25p | yes*4*5 |
| 4K Direct Chroma Up-scaling | yes*4 |
| 4K Networking (4K Video*6 Playback/ 4K JPEG Playback*4) | yes |
| 4K VOD | yes*7 |
| Picture Type Presets | (Normal/ Cinema/ Fine Cinema/ Retro Cinema/ Animation/ Live)*8 |
| Block/Randam/ Mosquito Noise Reduction | yes |
| Video on Demand in HD Quality | yes |
| Ultra HD Premium | yes |
| Deep Colour | yes |
| x.v.Colour | yes*9 |
| HIGH QUALITY SOUND | TWIN HDMI | yes |
| Pure Audio on HDMI (HDMI Low Clock Jitter Process) | yes |
| High Quality Network Audio Playback (DLNA) | yes*10 (FLAC/ WAV/ ALAC/ AIFF/ DSD/ WMA/ AAC/ MP3) |
| High Clarity Sound Premium | yes |
| Digital Tube Sound | yes (Up to 192kHz/ 32 bit) |
| Surround Re-Master | yes*11 (Up to 192kHz/ 32 bit) |
| Audio D/A Converter | yes |
| SMART FEATURE | Viewing Experience Controlled via Voice(Google Assitant/ Amazon Alexa)(Available for English) | yes |
| Unit Display | yes (Dot Matrix) |

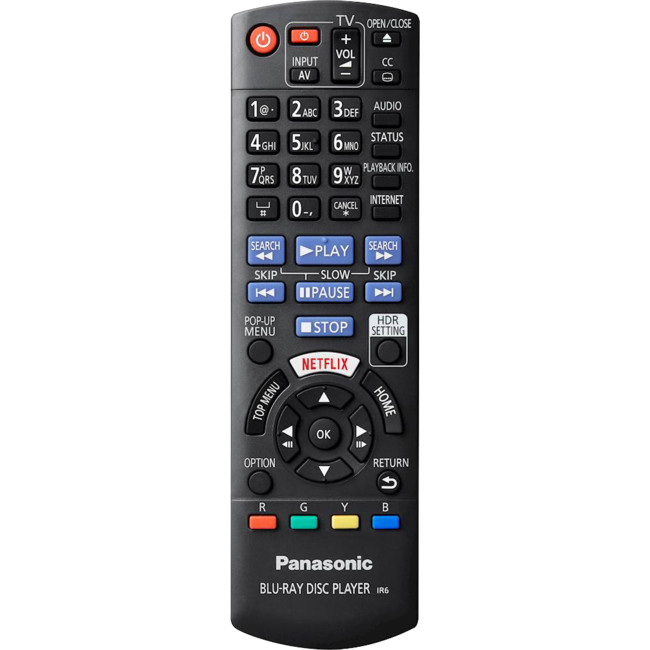

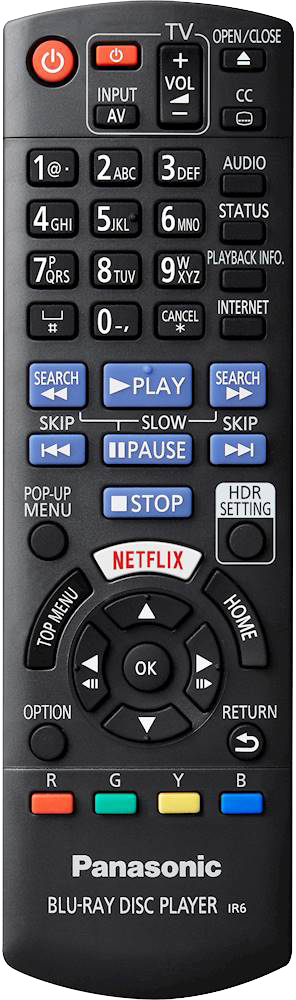

| RemoteControl | yes (Simple) |
| Subtitle Position/Brightness Adjustment | yes |
| HDAVI Control 5 (VIERA Link) | yes |
| Mirroring with Smartphone/Tablet | yes*12 |
| Internet Apps | yes*13 |
| Web Browser | yes |
| Wireless LAN System | yes (Built-in) IEEE802.11 a/b/g/n/ac |
| Network Contents Playback (Client & Renderer) | yes*10 |
| External HDD Playback | yes*14 |
| Network Drive Access | yes |
| BD-Live™ | yes*15 |

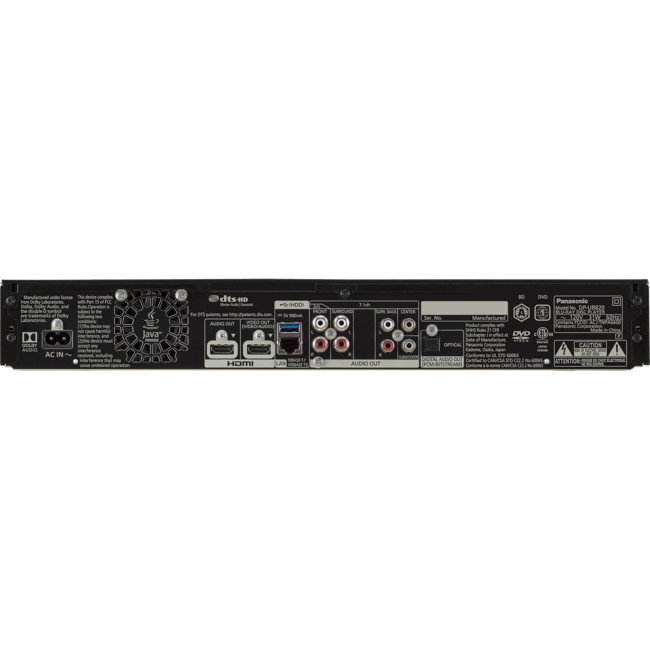

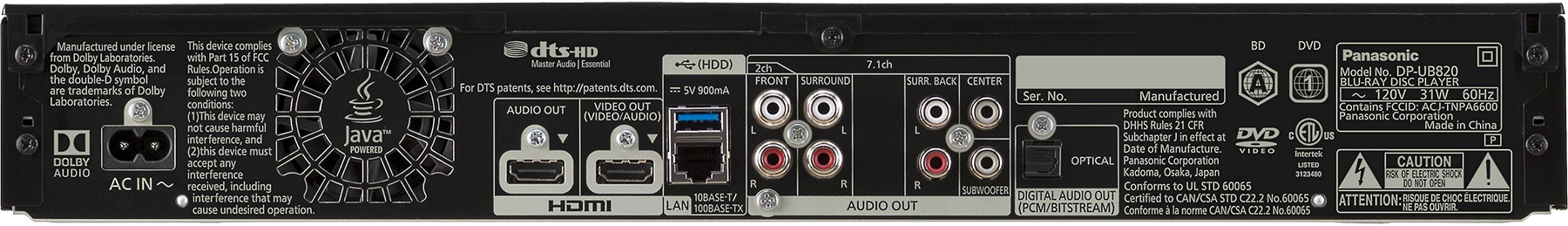

| TERMINAL | HDMI Output | yes (2) |
| Optical Output | yes |
| Analogue Audio LR Output | yes*16 |
| Analogue Audio 7.1ch Output | yes |
| LAN (Ethernet) Terminal | yes (for Ultra HD Blu-ray, Network Contents Playback*10, BD-Live™*15, Internet Apps*13 and Firmware Update) |
| OTHERS | Video System | PAL/ NTSC |
| Power Supply | AC 220-240 V, 50 Hz |
| Power Consumption | NormalUse | 32 W |
| Standby (Quick Start Off)-Network Standby Off | 0.3 W |
| DIMENSIONS, WEIGHT | Dimensions (W x H x D) | 430 x 62 x 204 mm*17 |
| Weight | 2.4 kg |
| NOTE | *1 Discs recorded and finalized on recording devices. |
| NOTE | *2 HDMI connections and compatible equipment (e.g. AV Receiver) required. |
| NOTE | *3 Enabled by software update |
| NOTE | *4 For 4K Up-scaling playback a TV with same resolution is required. |
| NOTE | *5 For 4K/60p video, a high speed HDMI cable supporting 18 Gbps bandwidth is required. |
| NOTE | *6 MP4/ MKV/ TS (H.264/ HEVC) Up to 3840x2160 25p/ 30p, 4096x2160 24p |
| NOTE | *7 Some network content services may not be available in your country. |
| NOTE | *8 Ultra HD Blu-ray and Photo (JPG/ MPO) are not supported. |
| NOTE | *9 This function is effective only when reproducing AVCHD data recorded with x.v.Color technology. The function cannot be used with BD-ROM or DVD-ROM discs. HDMI connection is required. |
| NOTE | *10 File formats that are not supported byyour Network Contents server (DLNA compatible server, etc.) cannot be played. |
| NOTE | *11 CD sampling is done at 176.4/88.2 kHz. |
| NOTE | *12 A device that supports the Mirroring function and AndroidTM ver. 4.2 or higher is required. |
| NOTE | *13 Requires broadband Internet service. |
| NOTE | *14 The external HDD with capacities of 4TB or less in processing NTFS/ FAT32 data is supported. Playback is not possible with some external hard disk drives. |
| NOTE | *15 To enjoy content, you will need to insert a USB (1GB or more of free space/ sold separately). Requires broadband Internet service. |
| NOTE | *16 The analog 2-channel output terminal can also be used as an analog 7.1-channel output terminal. |
| NOTE | *17 Excluding the projecting parts. |
| NOTE | Specifications are subject to change without notice. All numbers given here are approximate. |
| WARNING | The recording and playback of content on this or any other device may require permission from the owner of the copyright or other such rights in that content.Panasonic has no authority to and does not grant you that permission and explicitly disclaims any right, ability or intention to obtain such permission on your behalf. It is your responsibility to ensure that your use of this or any other device complies with applicable copyright legislation in your country. Please refer to that legislation for more information on the relevant laws and regulations involved orcontact the owner of the rights in the content you wish to record or playback. |
| WARNING | Playability may vary depending on the contents, discs and quality of the recording. For content recorded for your personal use. |
| WARNING | Specifications are subject to change without notice. |
| TRADEMARK NOTICE | Blu-ray Disc™, Blu-ray™, UltraHD Blu-ray™ and the logos |
| TRADEMARK NOTICE | are trademarks of Blu-ray Disc Association. |
| TRADEMARK NOTICE | "AVCHD" and the "AVCHD" logo are trademarks of Panasonic Corporation and Sony Corporation. |
| TRADEMARK NOTICE | MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS and Thomson. |
| TRADEMARK NOTICE | HDR10 TM logo is a trademark of HDR10 Technologies, LLC. |
| TRADEMARK NOTICE | Dolby, Dolby Audio, Dolby Vision, and the double-D symbol are trademarks of Dolby Laboratories. |
| TRADEMARK NOTICE | For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, DTS-HD, the Symbol, & DTS and the Symbol together are registered trademarks, and DTS-HD Master Audio is a trademark of DTS, Inc. © DTS, Inc. All Rights Reserved. |
| TRADEMARK NOTICE | The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing, LLC in the United States and other countries. |
| TRADEMARK NOTICE | DLNA, the DLNA Logo and DLNA CERTIFIED aretrademarks, service marks, or certification marks of the Digital Living Network Alliance. |
| TRADEMARK NOTICE | Android is a trademark of Google Inc. |
| TRADEMARK NOTICE | THX and the THX logo are trademarks of THXLtd., registered in the United States a
