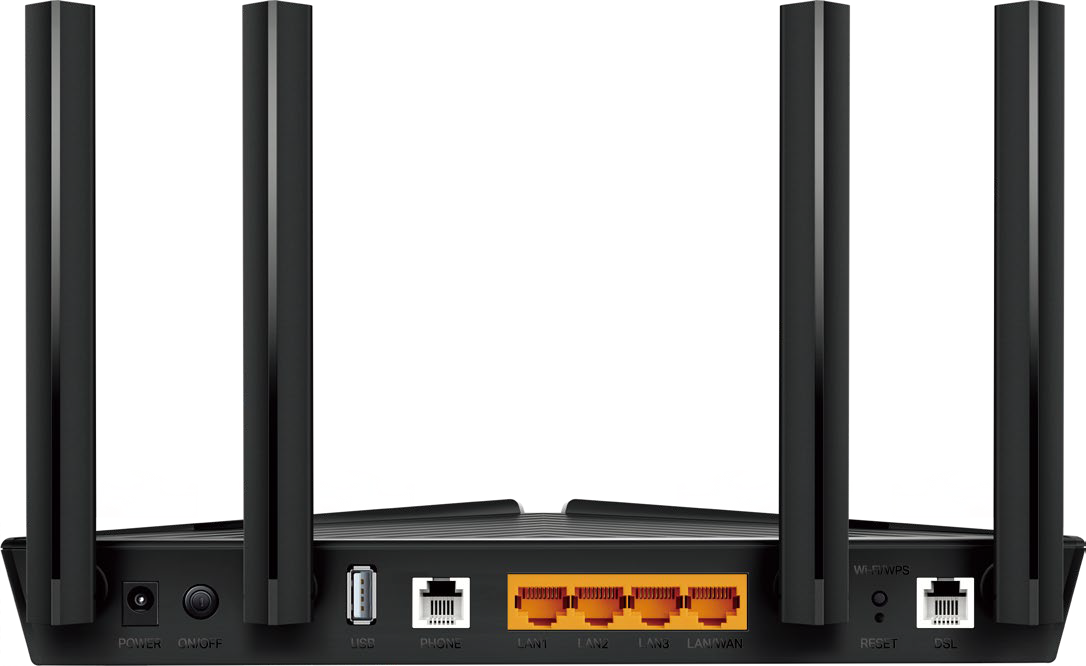

HARDWARE FEATURES | Interface | - 1 × Gigabit WAN/LAN
- 3 × Gigabit LAN
- 1 × USB 2.0
- 2 × RJ11 (1 × DSL + 1 × FXS)
|
---|
External Power Supply | 12V / 1.5A |
IEEE Standards | - IEEE 802.3
- IEEE 802.3u
- 802.3ab
|
VDSL2 Standards | - ITU-T G.993.2
- ITU-T G.993.5 (G.vector)
- ITU-T G.998.4 (G.INP)
|
ADSL Standards | - Full-rate-ANSI T1.413 Issue 2
- ITU-T G.992.1 (G.DMT)
- ITU-TG.992.2 (G.Lite)
- ITU-T G.994.1 (G.hs)
- ITU-T G.995.11
|
ADSL2 Standards | - ITU-T G.992.3 (G.DMT.bis)
- ITU-T G.992.4 (G.lite.bis)
|
ADSL2+ Standards | ITU-T G.992.5 (Annex A/L/M) |
Dimensions (W×D×H) | 260.2mm × 135.0mm × 41.6mm |
Antenna | 4 × External Antennas |
WIRELESS FEATURES | Wireless Standards | - IEEE 802.11ax/ac/n/a 5 GHz
- IEEE 802.11ax/n/b/g 2.4 GHz
|
---|
Wireless Speeds | - 1201 Mbps at 5 GHz
- 574 Mbps at 2.4 GHz
|
Frequency | 2.4 GHz and 5 GHz |
Transmit Power | CE: <20dBm(2.4 GHz), <23dBm (5.15 GHz~5.25 GHz) |
Wireless Functions | Enable/Disable Wireless Radio, WMM |
Wireless Security | - WPA2-PSK
- WPA2-PSK/WPA-PSK
- WPA3-Personal
- WPA3-Personal/WPA2-PSK
- WPA2-Enterprise
- WPA/WPA2-Enterprise encryptions
|
Wireless Schedule | Supports 2.4GHz and 5GHz Wireless Schedule |
VoIP FEATURES | VoIP Standards | - SIP(RFC3261)/RTP(RFC1889/3550)
- G.711A/u
- G.722
- G.729AB
- G.726
|
---|
Integrated Answering Machine | Stores long voice messages internally on the modem router or store voice messages externally on USB storage devices. |
Advanced Telephone Functions | - Call Forwarding
- Call Transfer
- Call Back on Busy
- Call Blocking
- Anonymous Call Blocks
- Speed Dial
- Emergency Number
|
SOFTWARE FEATURES | Advanced Features | - IPTV
- Parental Controls
- Network Address Translation (NAT)
- Port Mapping (Grouping)
- Static Routing
- RIP v1/v2 (optional)
- DNS Relay
- DDNS
- IGMP V1/V2/V3
|
Security | - NAT Firewall
- SPI Firewall
- Access Control
- Service Filtering
- Denial of Service (DoS)
- SYN Flooding
- Ping of Death
- IP and MAC Address Binding
|
Operating Modes | - VDSL/ADSL Modem Router
- 3/4G Router
- Wireless Router
|
Management | - Access Control
- Local Management
- Remote Management
|
DHCP | - Server
- DHCP Client List
- Address Reservation
|
Port Forwarding | - Port Forwarding
- Port Triggering
- UPnP
- DMZ
|
Dynamic DNS | DynDns, NO-IP, TP-Link |
VPN | OpenVPN, PPTP VPN, IPSec VPN |
Protocols | Support IPv4 and IPv6 |
ATM/PPP Protocols | - ATM Forum UNI3.1/4.0
- PPP over ATM (RFC 2364)
- PPP over Ethernet (RFC2516)
- IPoA (RFC1577/2225)
- Bridge (RFC1483 Bridge)
- PVC – Up to 8 PVCs
|
USB Sharing | - Support Samba (Storage)
- FTP Server
- Media Server
- 3G/4G Modem
- SFTP Server
- Web Storage
|
Guest Network | - 2.4GHz guest network
- 5GHz guest network
|
IPSec VPN | Support up to 10 IPSec VPN tunnels |
OTHERS | Certification | CE, RoHS |
---|
Package Contents | - Wi-Fi 6 VDSL/ADSL Modem Router Archer VX1800v
- External Splitter
- RJ11 DSL Cable
- RJ45 Ethernet Cable
- Power Adapter
- Quick Installation Guide
|
System Requirements | - Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser.
- Cable or DSL Modem (if needed)
- Subscription with an internet service provider (for internet access)
|
ENVIRONMENT | Operating Temperature | 0°C~40°C (32°F~104°F) |
---|
Storage Temperature | −40°C~60°C (−40°F~140°F) |
Operating Humidity | 10%~90% non-condensing |
Storage Humidity | 5%~90% non-condensing |
