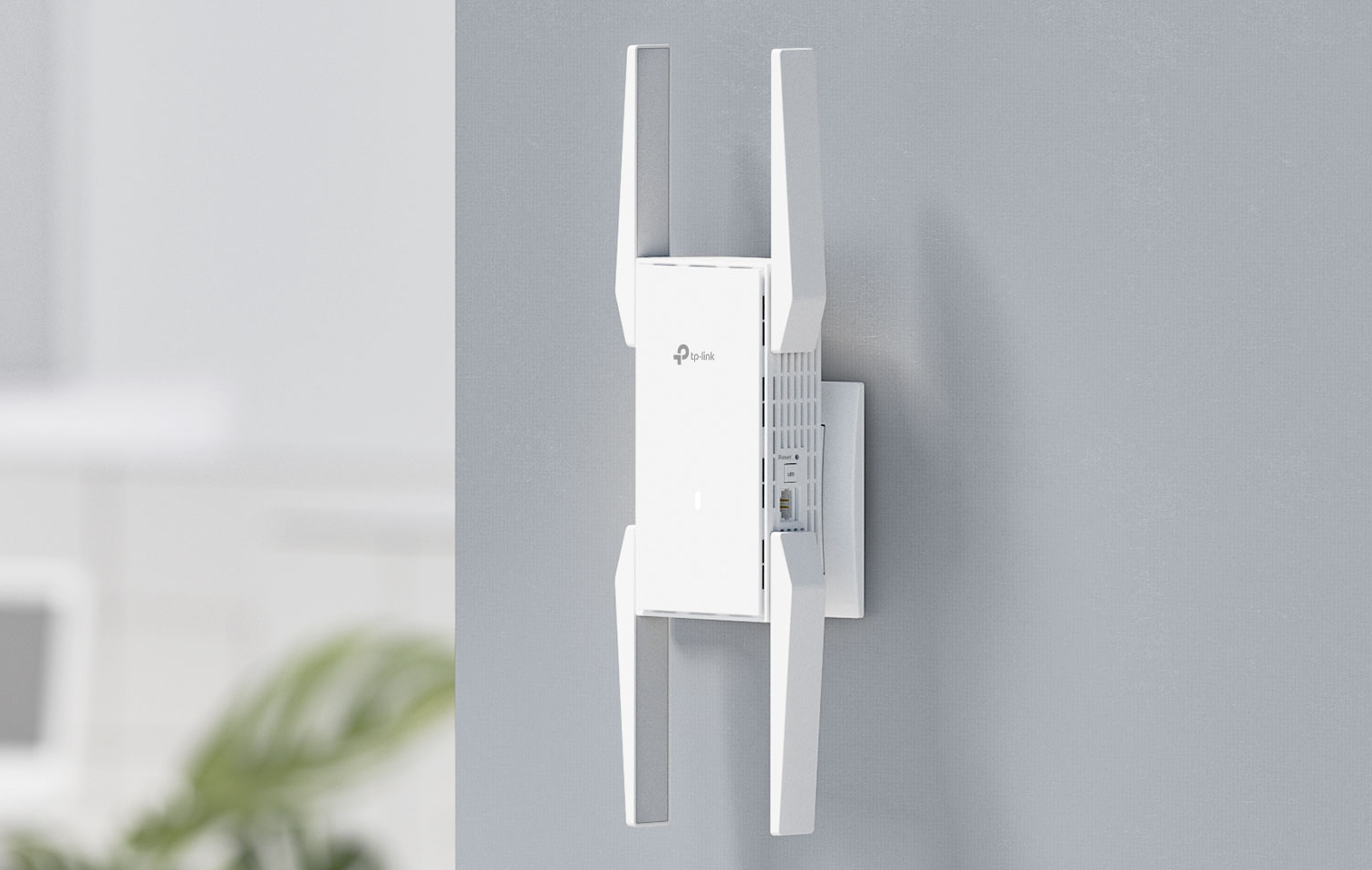

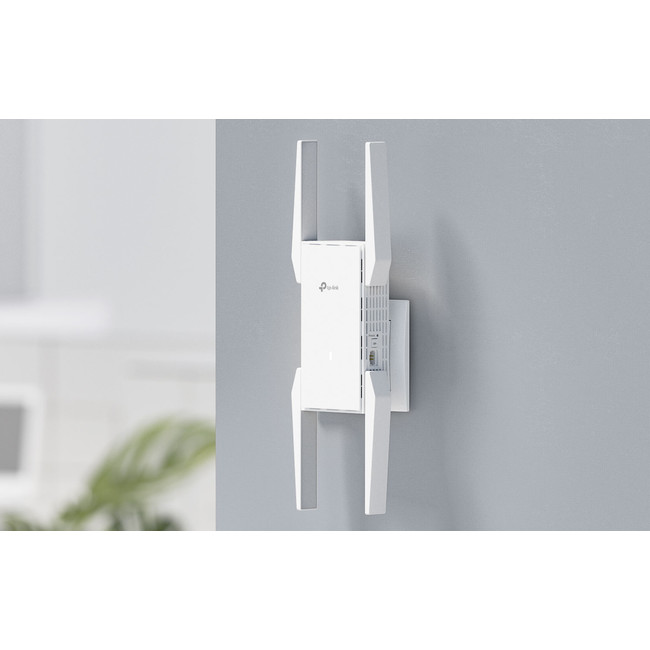

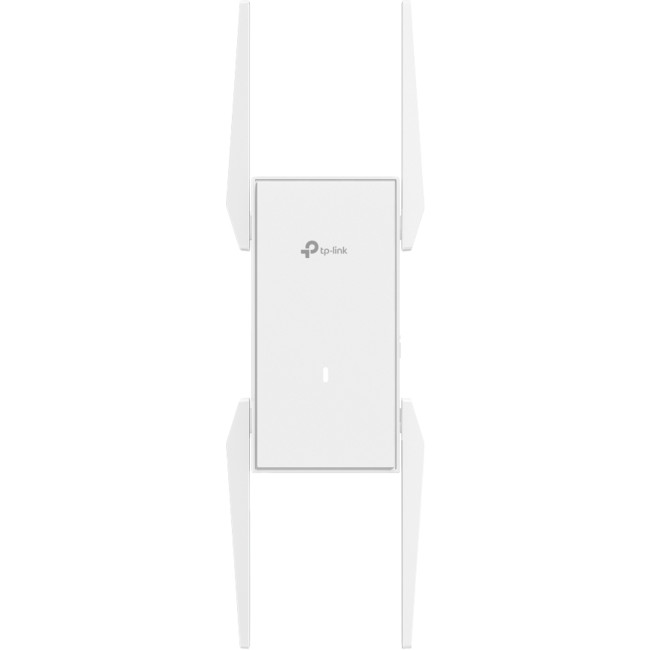

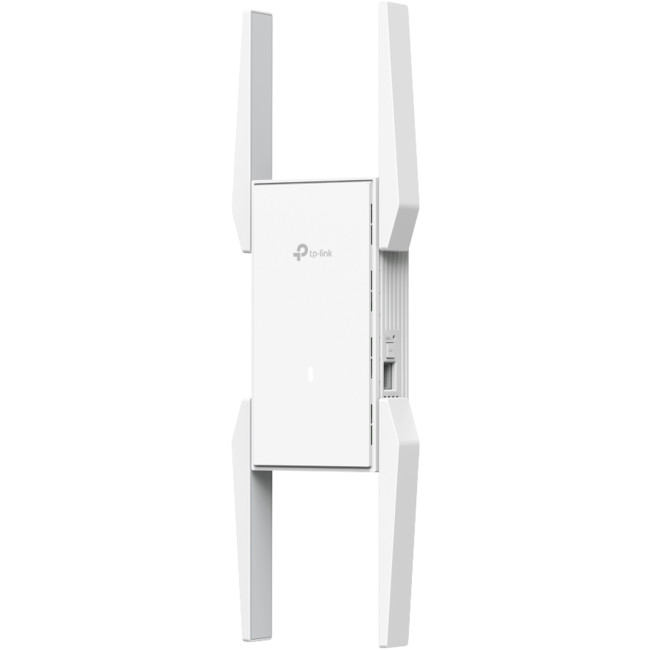

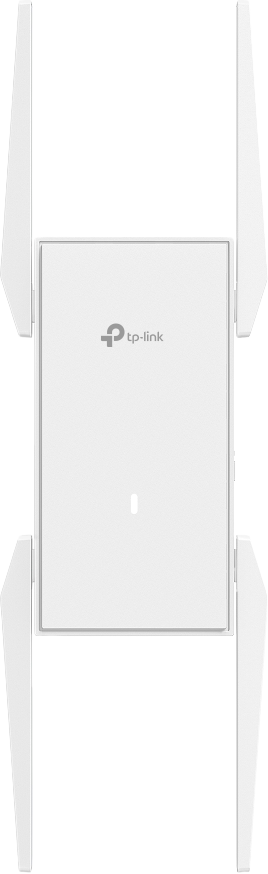

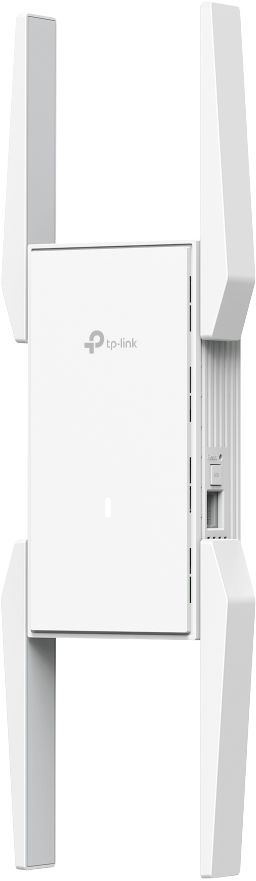

EAP673-EXTENDER AX5400 Mesh Wi-Fi 6 Extender
- AX5400 Dual-Band Wi-Fi 6: Up to5.4Gbps wireless speeds*¹.
- Wi-Fi Dead-Zone Killer: Four high-gain external antennas extend Wi-Fi signals to every dead zone.
- AP Mode: Simply plug in an Ethernet cable to create a new Wi-Fi AP.
- Seamless Mesh Networking: Supports Omada Mesh and Roaming for reliable networking, ideal for large-scale scenarios*².
- Easy & Quick Installation: Standard AC power supply for flexible deployment.
- Quick adoption: Conveninet operationvia Omada web or app once the extender powers on.
- Centralised Cloud Management: Integrates into Omada SDN for cloud access and remote management.
1: Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed. They will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead; and 3) client limitations, including rated performance, location, connection, quality, and client condition.
2: Omada Mesh, Seamless Roaming, and Captive Portal require an Omada SDN controller.
{tab Specifications}
Specifications
| HARDWARE FEATURES | Interface | 1 × Gigabit Ethernet Port |
|---|
| Physical Security Lock | No |
| Button | Reset, LED |
| Power Supply | 100~240V, 50/60Hz |
| Max. Power Consumption | 18W |
| Dimensions (W×D×H) | 160mm × 80mm × 37.8mm (6.3″ × 3.1″ × 1.5″) |
| Antenna | - 4 × External Antennas
- 2.4 GHz: 2 × 3dBi
- 5 GHz: 4 × 5dBi
|
| Mounting | Plug in |
| WIRELESS FEATURES | Coverage | 140m (1500ft²)*&sup5; |
|---|
| Concurrent Clients | 250+*&sup4; |
| Wireless Standards | IEEE 802.11ax/ac/n/g/b/a |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | - 5 GHz: Up to 4804 Mbps
- 2.4 GHz: Up to 574 Mbps
|
| Wireless Functions | - 16 SSIDs (Up to 8 SSIDs on each band)
- Enable/Disable Wireless Radio
- Automatic Channel Assignment
- Transmit Power Control (Adjust Transmit Power on dBm)
- QoS (WMM)
- Seamless Roaming*²
- Beamforming
- Rate Limit
- Load Balance
- Airtime Fairness
- Band Steering
- Reboot Schedule
- Wireless Schedule
- RADIUS Accounting
- MAC Authentication
- Wireless Statistics
- Static IP/Dynamic IP
|
| Wireless Security | - Captive Portal Authentication*&sup4;
- Access Control
- Wireless Mac Address Filtering
- Wireless Isolation Between Clients
- VLAN
- Rogue AP Detection
- 802.1X Support
- WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
|
| Transmission Power | CE:- <20 dBm (2.4 GHz, EIRP)
- <23 dBm (5 GHz, band1 & band2, EIRP)
- <30 dBm (5 GHz, band3, EIRP)
FCC:- <25 dBm (2.4 GHz)
- <28 dBm (5 GHz)
|
| MANAGEMENT FEATURES | Omada App | Yes |
|---|
| Centralised Management | - Omada Hardware Controller
- Omada Software Controller
- Omada Cloud-Based Controller
|
| Cloud Access | Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | Yes |
| SSH | Yes |
| Web-based Management | Yes |
| Management VLAN | Yes |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
| ENVIRONMENT | Operating Temperature | 0°C~40°C (32°F~104°F) |
|---|
| Storage Temperature | −40°C~70°C (−40°F~158°F) |
| Operating Humidity | 10~90% RH, non-condensing |
| Storage Humidity | 5~90% RH, non-condensing |
| OTHERS | Certification | CE, FCC, IC, RoHS, UL |
|---|
| Package Contents | - EAP673-Extender AX5400 Mesh WiFi 6 Extender
- Installation Guide
|
1: Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed. They will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead; and 3) client limitations, including rated performance, location, connection, quality, and client condition.
2: Omada Mesh, Seamless Roaming, and Captive Portal require an Omada SDN controller.
3: Use of Wi-Fi 6 (802.11ax) and its features, including OFDMA and 1024-QAM, require clients to support the corresponding features.
4: The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.
5: Coverage value is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of client limitations and environmental factors.
