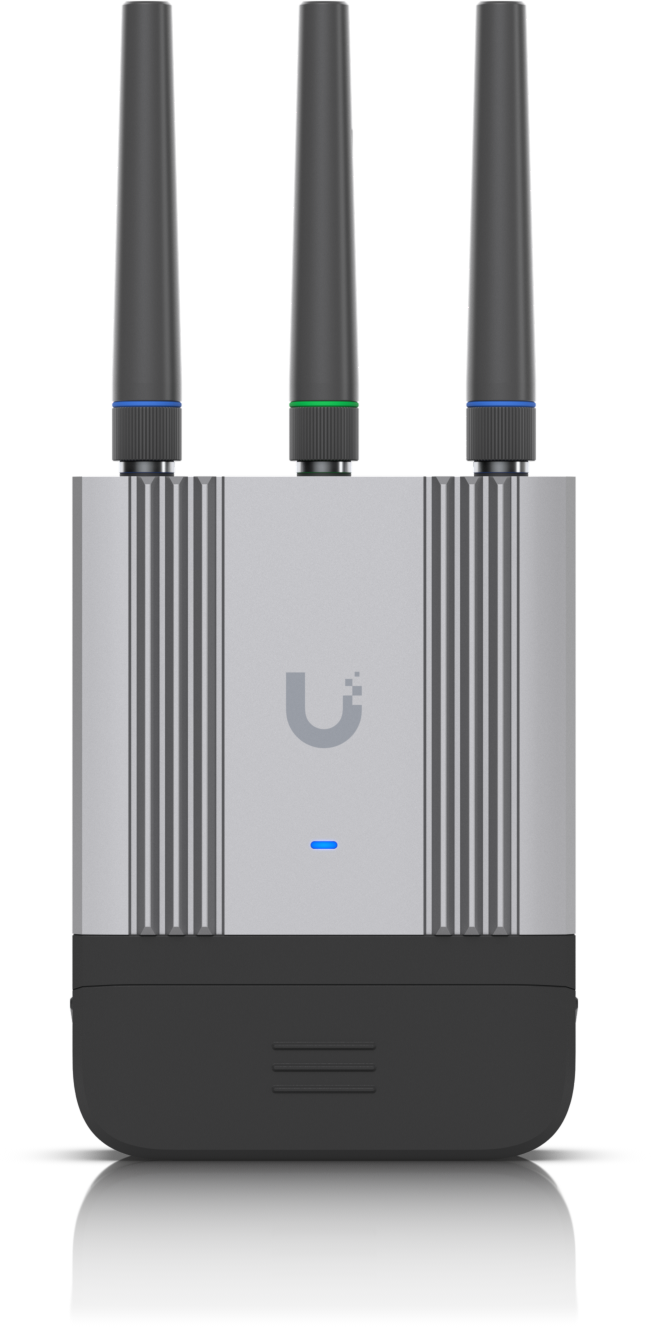

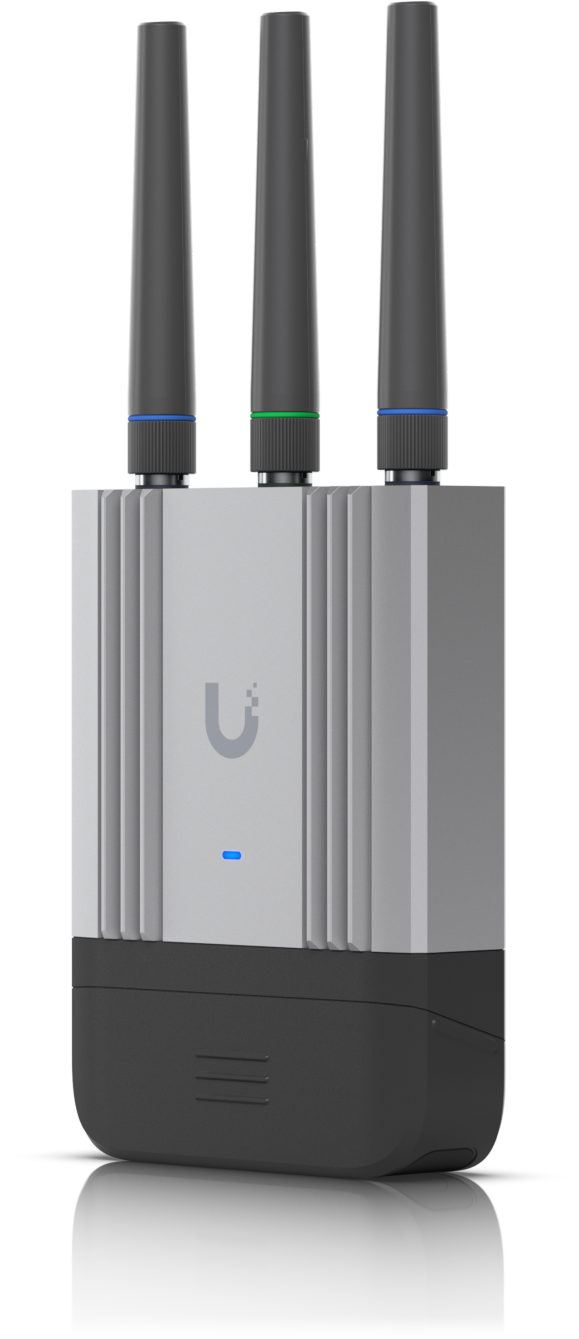

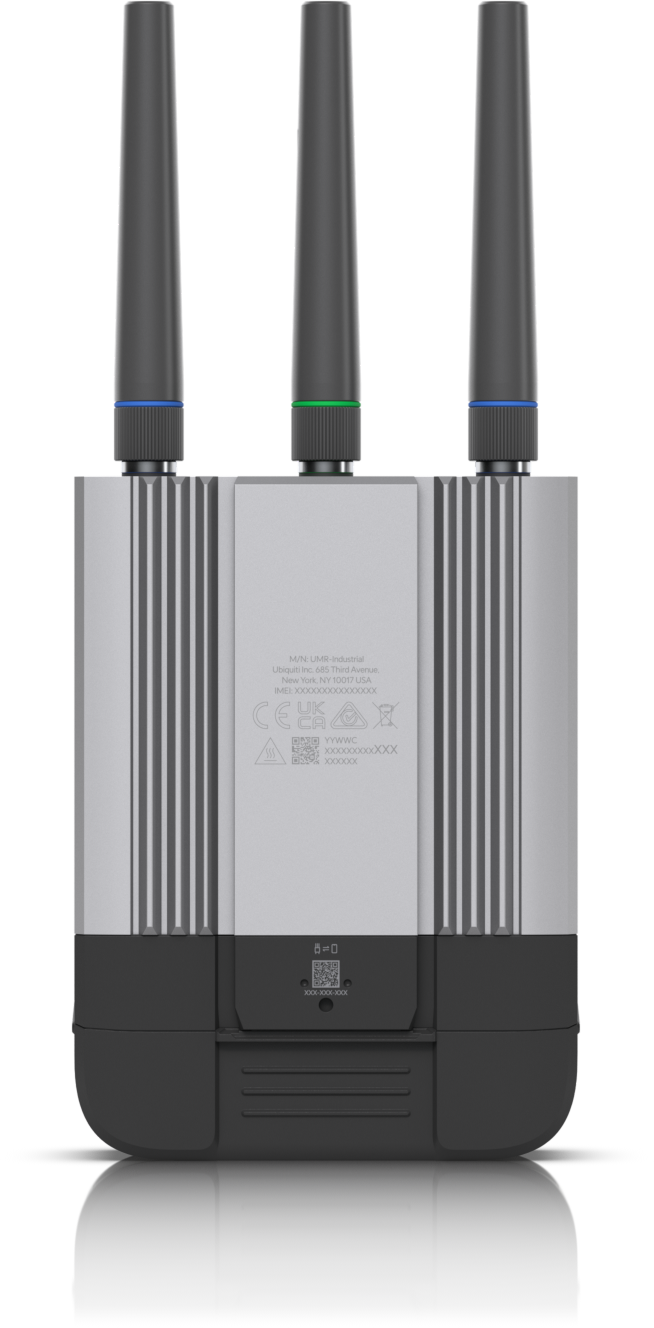

UMR-INDUSTRIAL LTE CAT4 MOBILE WIFI ROUTER

Code: 09051863

1.02 kg
810084693407
EACH
Special Buy-In
$399 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Interested in purchasing this product?
This product is a special buy-in. Special buy-in products are goods especially bought in on customer's request. After acceptance, special buy-in products cannot be cancelled or the goods returned, unless Radio Parts and its supplier agrees to the cancellation of the corresponding order and return of goods. Prices are subject to change and in the event that our purchase price has changed, we will notify you before finalising your order. Please call us on (03) 93218300 for availability, ETA, or if you have further questions.
Click here if you agree to these terms and to show the Add To Cart button.
View Product
Enter 4 digit postcode

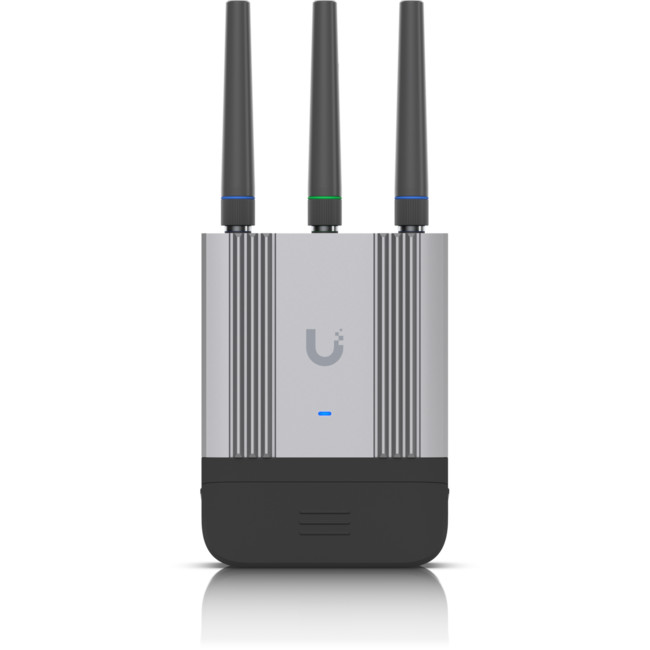

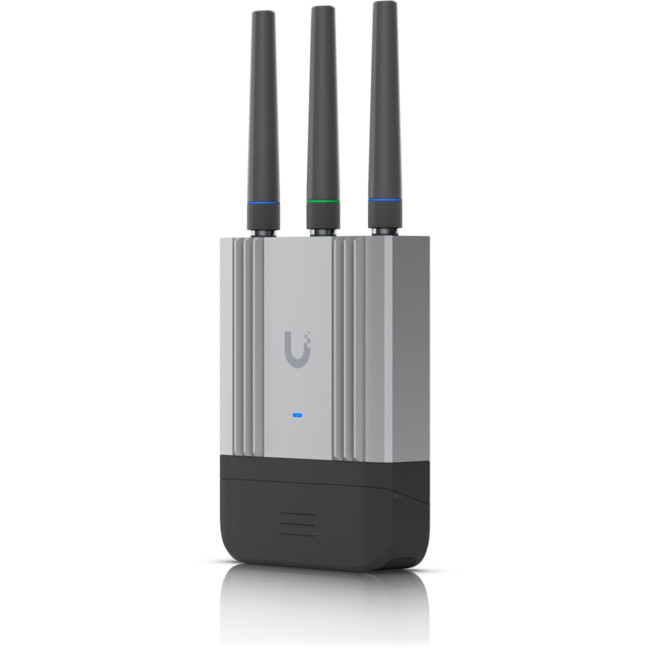

Ubiquiti Mobile Router Industrial, Compact& Ruggedized LTE Cat 4 Mobile WiFi Router Designed For Indoor/Outdoor loT Applications

Features

  • Compact, ruggedised, and carrier unlocked LTE Cat 4 mobile WiFi router designed for indoor/outdoor IoT applications.
  • Site-to-site VPN and VPN client routing
  • (2) GbE ports with (1) PoE output*
  • Powered using PoE, USB Type-C, or 4-pin DC power socket
  • Outdoor GPS location tracking
  • Flexible wall, pole, and DIN rail mounting
  • Weatherproof (outdoor exposed) with the included cover
  • Optional Mobility Cloud subscription**

*PoE input required for PoE passthrough.
**Offers secure remote access and full management via the UniFi Mobility Manager at mobility.ui.com for $2 per month or $19 per year per Mobile Router. 30-day free trial included. Core management is free and always available via local connection.

Mechanical
Dimensions Without outdoor cover: 114.5 x 93.6 x 32 mm (4.5 x 3.7 x 1.3")
With outdoor cover: 217 x 94 x 32 mm (8.5 x 3.7 x 1.3")
Weight Device: 360 g (12.7 oz)
Device with outdoor cover: 395 g (13.9 oz)
DIN rail/wall mounts: 25 g (0.9 oz)
Enclosure material Polycarbonate, aluminum
Mount material Wall/pole mount: polycarbonate
DIN rail mount: polycarbonate
Pole mount diameter 1–2" on pipe outer diameter
Wind loading 38.8 N at 200 km/h (8.7 lbf at 125 mph)
Weatherproofing Device with outdoor cover: IP66
Hardware
Management interface Ethernet
WiFi

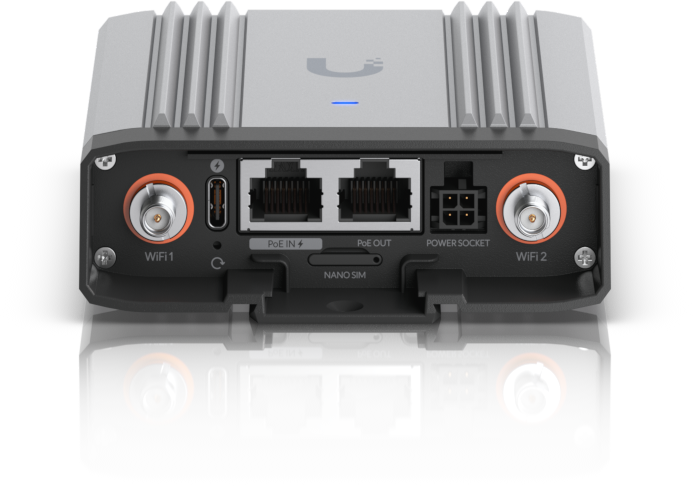

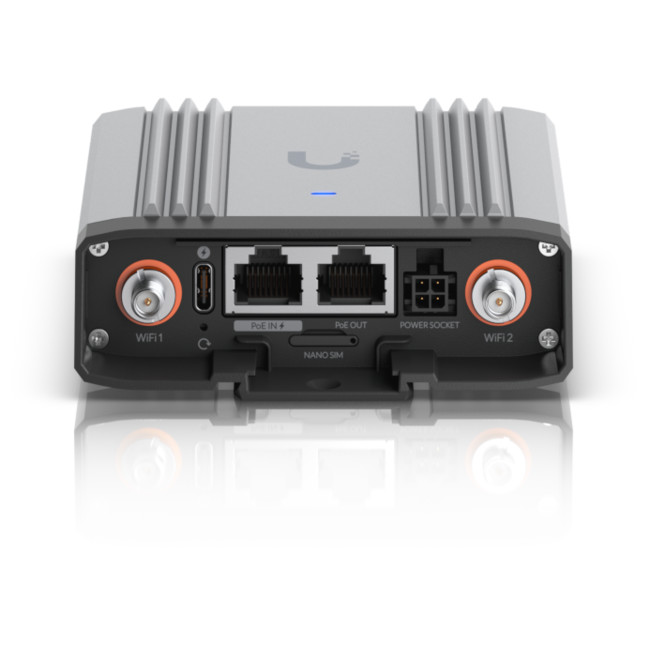

Networking interface (2) GbE RJ45 ports
LTE Category 4 radio
WiFi 4
PoE interface (1) PoE input
(1) PoE output* (Max. 10W)
*Requires a PoE switch.
Power supply UniFi PoE switch (48 54V DC)
USB Type-C (5V DC)
4-pin* ATX DC power socket (9 30V DC)
*Pin 1 for Power and Pin 2 for Ground –. Please refer to theInstallation Guidefor detailed power socket pinout.
Max. power consumption 12.5W
SIM nano-SIM (4FF)
LTE bands B2, B4, B5, B12, B13, B14, B25, B26, B66, B71
LTE throughput speed* Download 150 Mbps / Upload 50 Mbps
*Speed depends on network coverage and performance at the device location.
WiFi standards 802.11 b/g/n, WiFi 2.4G, 20/40 MHz
Max. WiFi TX power 22 dBm
WiFi MIMO 2 x 2
GPS Yes

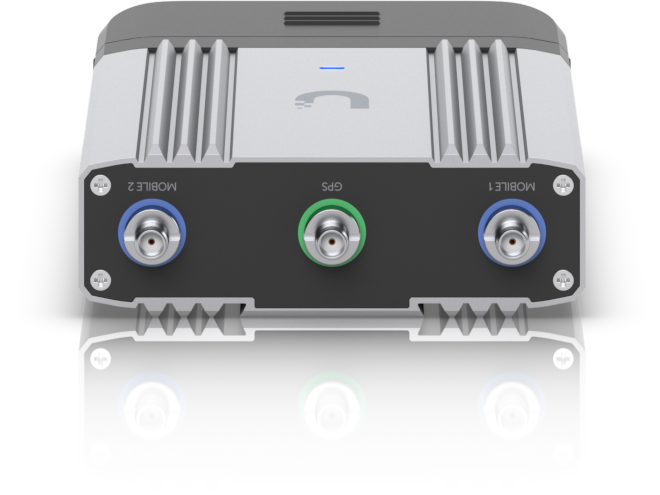

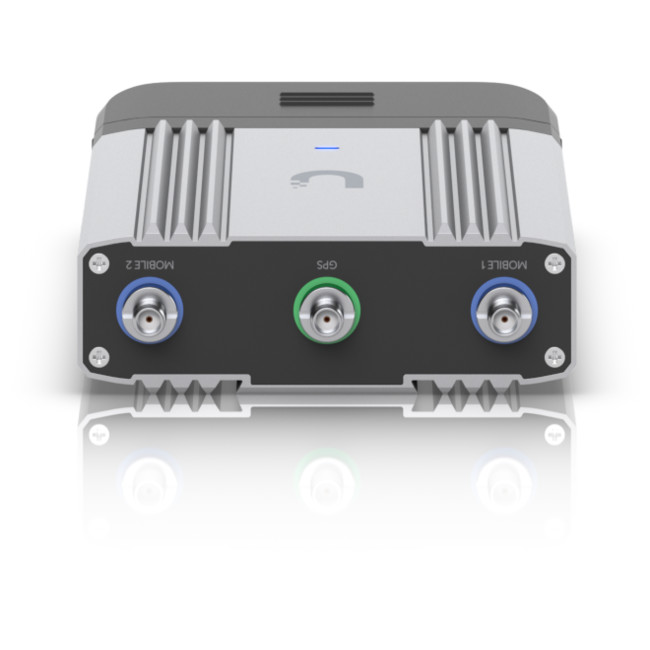

Antenna SMA ports (1) Mobile 1: SMA female connector, supports 1Tx and 1Rx
(1) Mobile 2: SMA female connector, supports 1Rx only
(1) GPS: SMA female connector
(2) WiFi: RP-SMA female connectors
Note: Ensure all SMA / RP-SMA connectors are secured with antennas or the provided caps to maintain weatherproofing.
External antennas (2) Mobile/LTE antennas with SMA male connectors
(1) GPS antenna with SMA male connector
(2) WiFi antennas with RP-SMA male connectors
LED Status: blue/white
Button Factory reset
Mounting DIN rail/wall/pole mount (Included)
Ambient operating temperature -40 to 70° C (-40 to 158° F)
Ambient operating humidity 5 to 95% noncondensing
Certifications FCC, IC, PTCRB, GCF, AT&T, T-Mobile, Verizon, Wi-Fi Alliance®
Supported WiFi Data Rates
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (WiFi 4) 6.5 Mbps to 300 Mbps (MCS0 - MCS7, HT 20/40)
