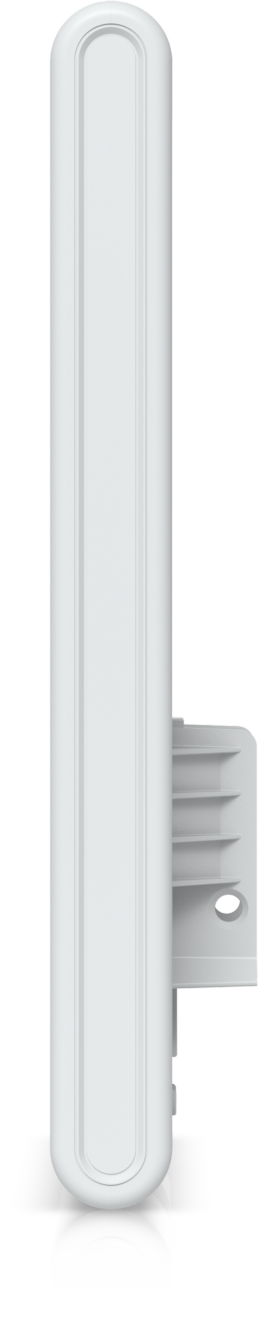

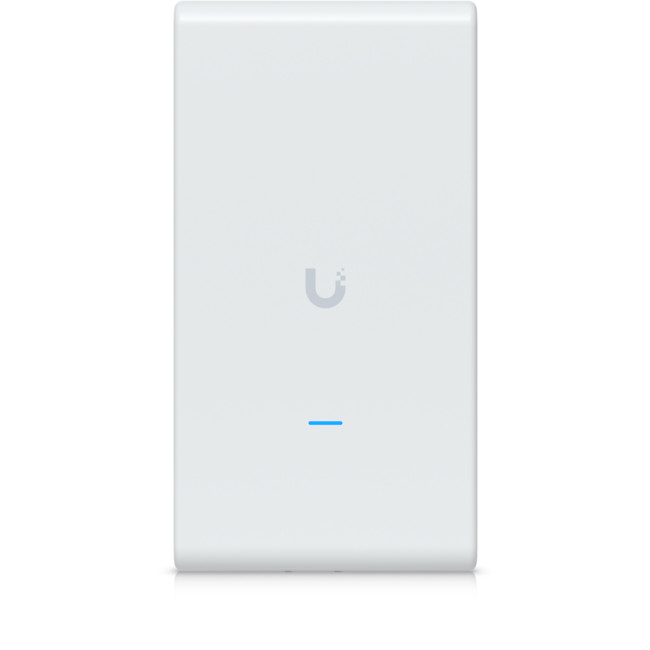

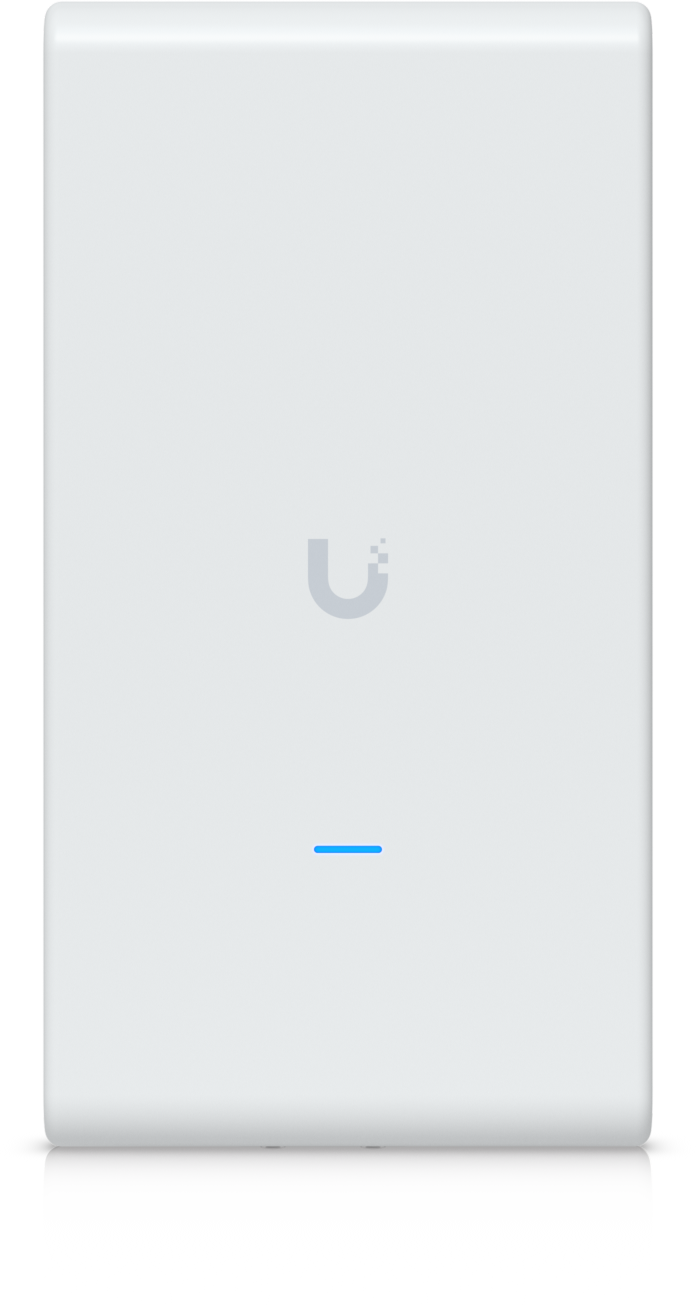

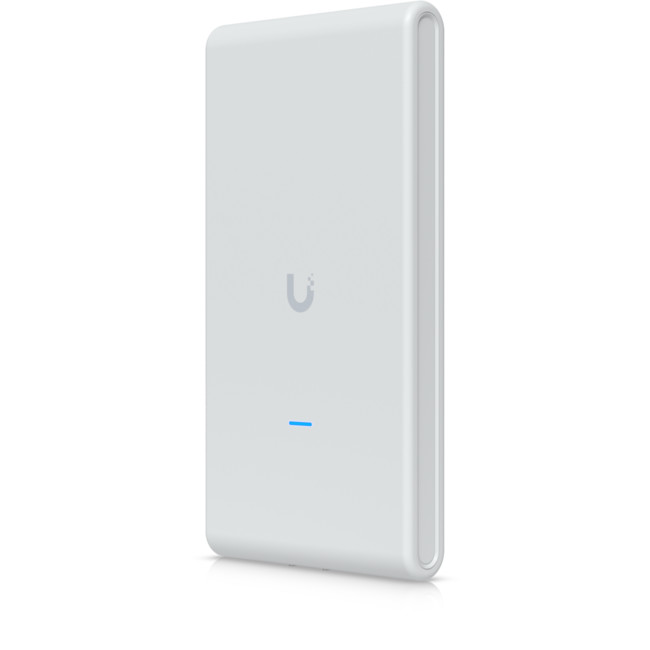

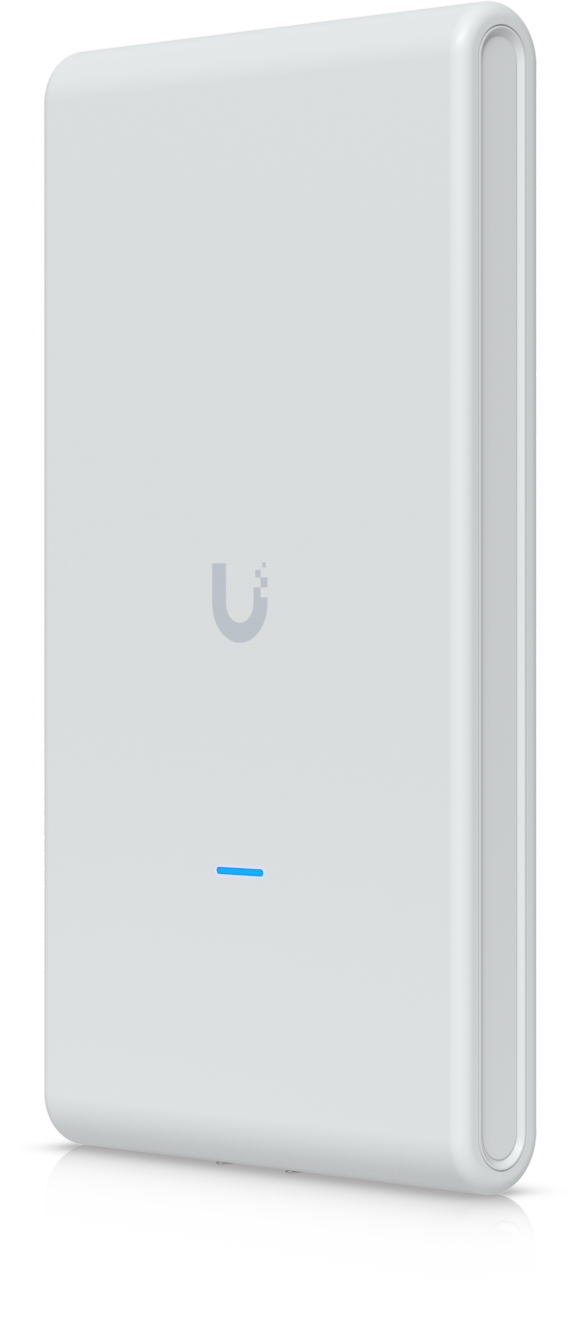

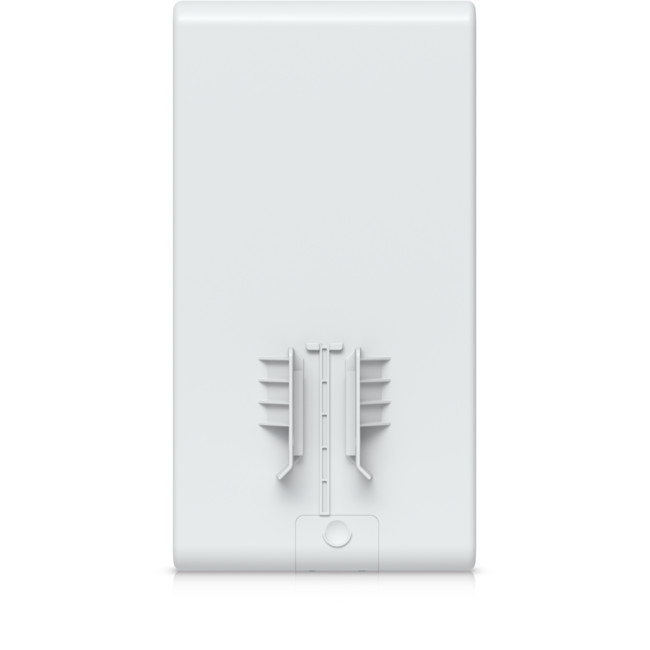

U6-MESH-PRO WI-FI 6 INDOOR OUTDOOR MESH ACCESS POINT

Code: 09051856

1.02 kg
810084697085
EACH
10
ETA
2025-01-13
$399 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

Ubiquiti U6 Mesh ProIndoor/Outdoor WiFi 6 AP,4 Spatial Stream,An Integrated Super Antenna& Gigabit Passthrough Port,PoE Power,185 m Coverage

Features:

  • WiFi 6
  • 4 spatial streams
  • 185 m (2,000 ft ) coverage with the integrated omnidirectional super antenna
  • 350 connected devices
  • Powered using PoE
  • GbE uplink with (1) GbE passthrough port

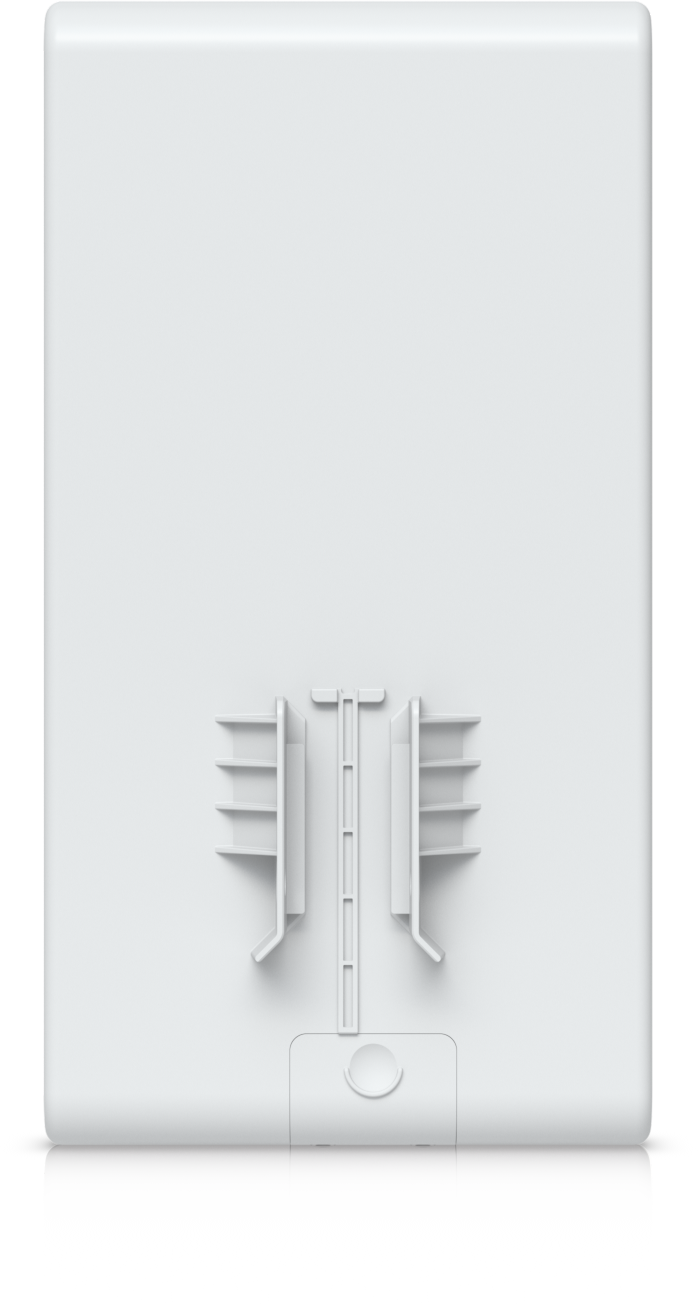

  • Versatile wall and pole mounting
  • Weatherproof (outdoor exposed)

Specifications

Mechanical
Dimensions 343.2 x 181.2 x 60.2 mm (13.5 x 7.1 x 2.4")
Weight 819 g (1.8 lb)
Enclosure material UV-stabilized polycarbonate
Mount material Aluminum alloy, steel
Pole mount diameter 1~2.5" on pipe outer diameter
Weatherproofing IPX6
Hardware

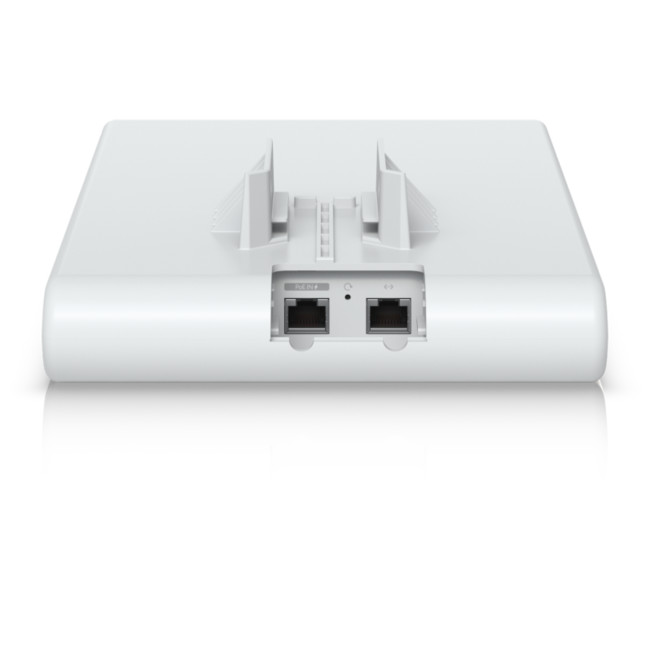

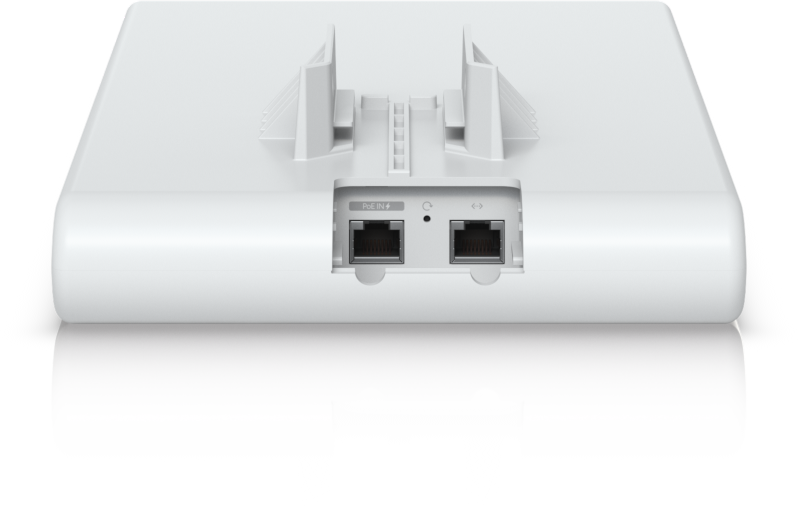

Networking interface (2) GbE RJ45 ports
Management interface Ethernet
WiFi
Power method PoE
Power supply UniFi PoE switch
48V, 0.5A PoE adapter (Included)
Supported voltage range 42.5 57V DC
Max. power consumption 9W
Max. TX power
2.4 GHz
5 GHz
6 GHz
22 dBm
27 dBm
–
MIMO
2.4 GHz
5 GHz
6 GHz
2 x 2 (DL/UL MU MIMO)
2 x 2 (DL/UL MU-MIMO)
–
Max. data rate
2.4 GHz
5 GHz
6 GHz
573.5 Mbps (BW40)
2.4 Gbps (BW160)
–
Antenna gain
2.4 GHz
5 GHz
6 GHz
8 dBi
8 dBi
–
LEDs White/blue
Button Factory reset
Mounting Wall, pole (Included)
Ambient operating temperature -30 to 60 C (-22 to 140 F)
Ambient operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
Software
WiFi standards 802.11a/b/g/n/ac/ax (WiFi 6)
Wireless security WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
BSSID 8 per radio
VLAN 802.1Q
Advanced QoS Per-user rate limiting
Guest traffic isolation Supported
Concurrent clients 350
Supported Data Rates
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n 6.5 Mbps to 300 Mbps (MCS0 - MCS15 , HT 20/40)
802.11ac 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11ax (WiFi 6) 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
Application Requirements
UniFi Network Version 8.1.127 and later
