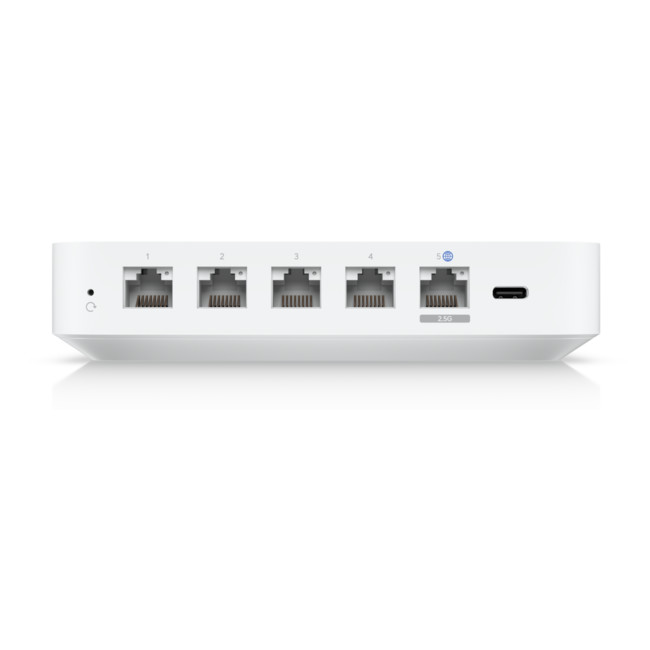

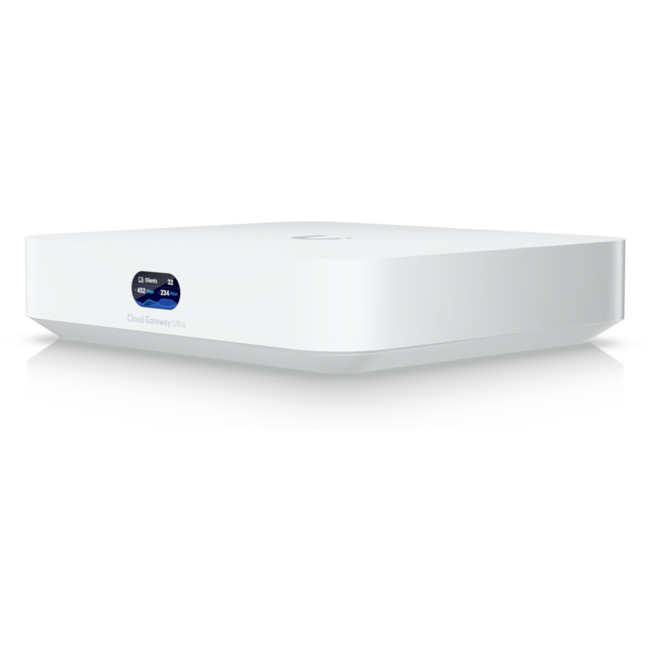

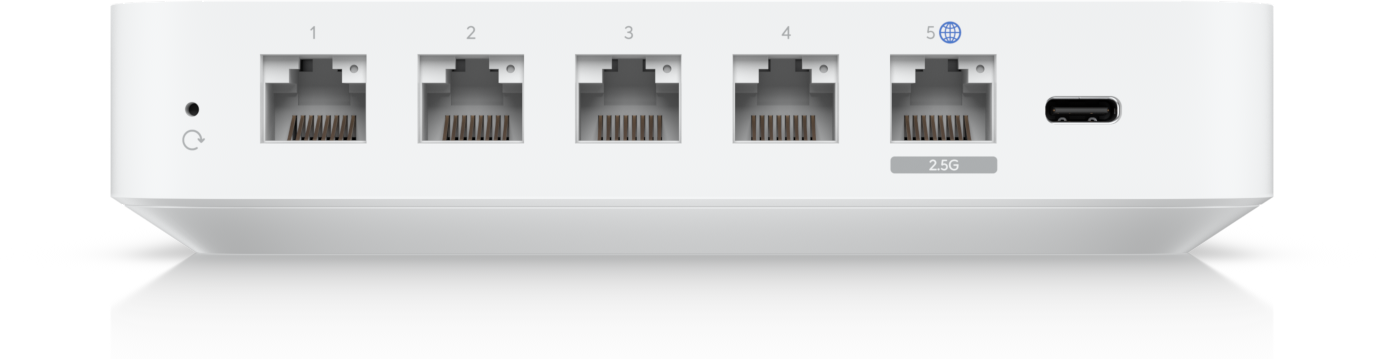

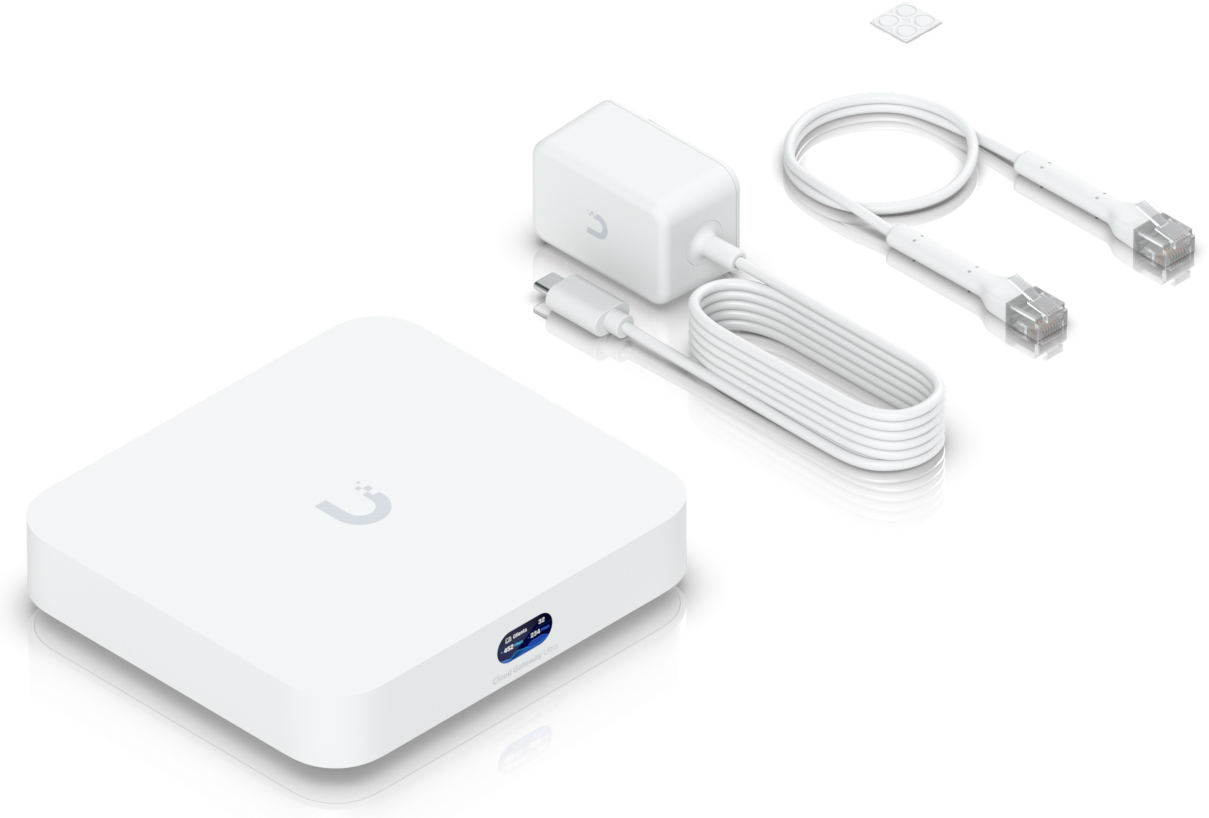

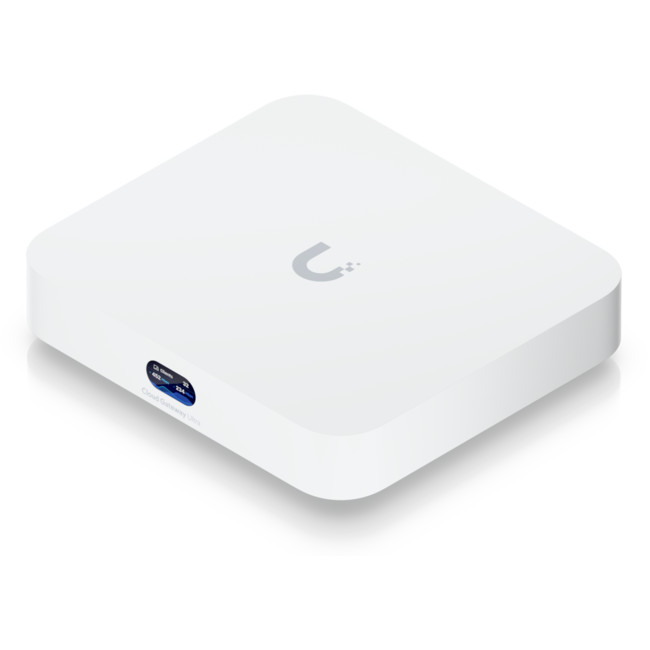

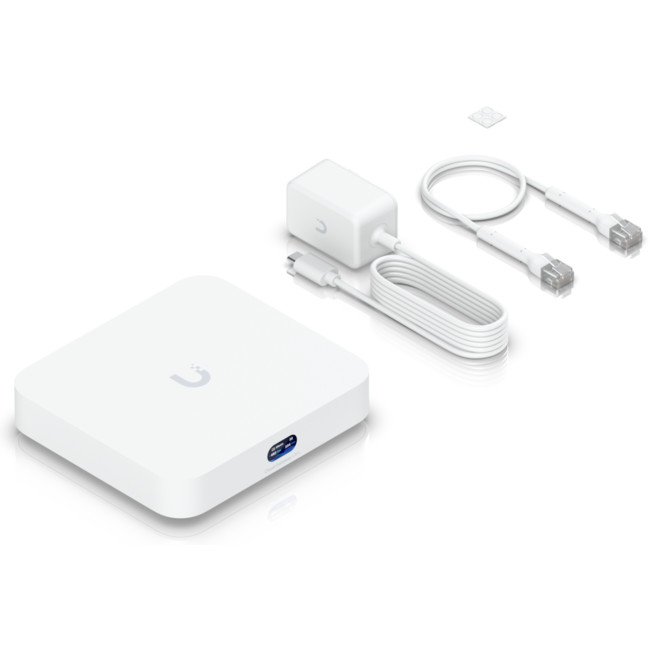

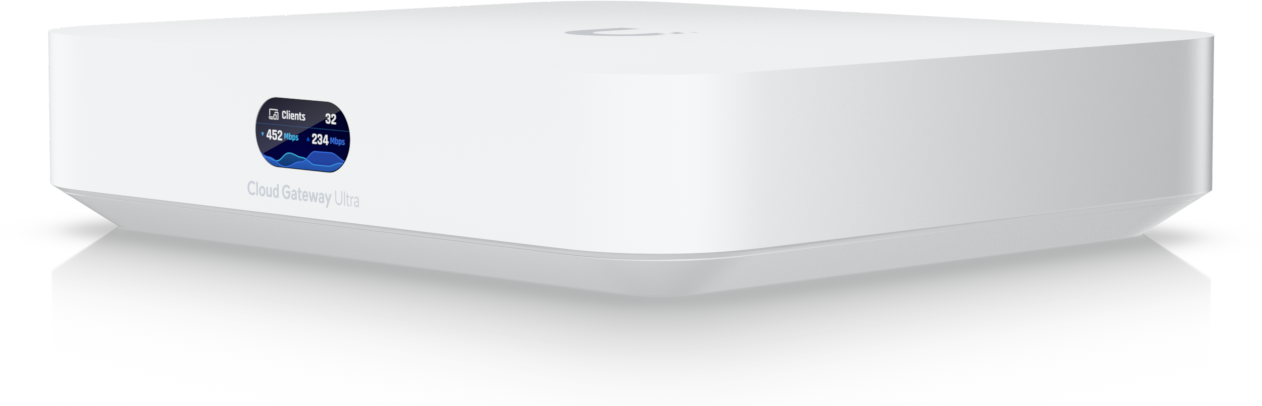

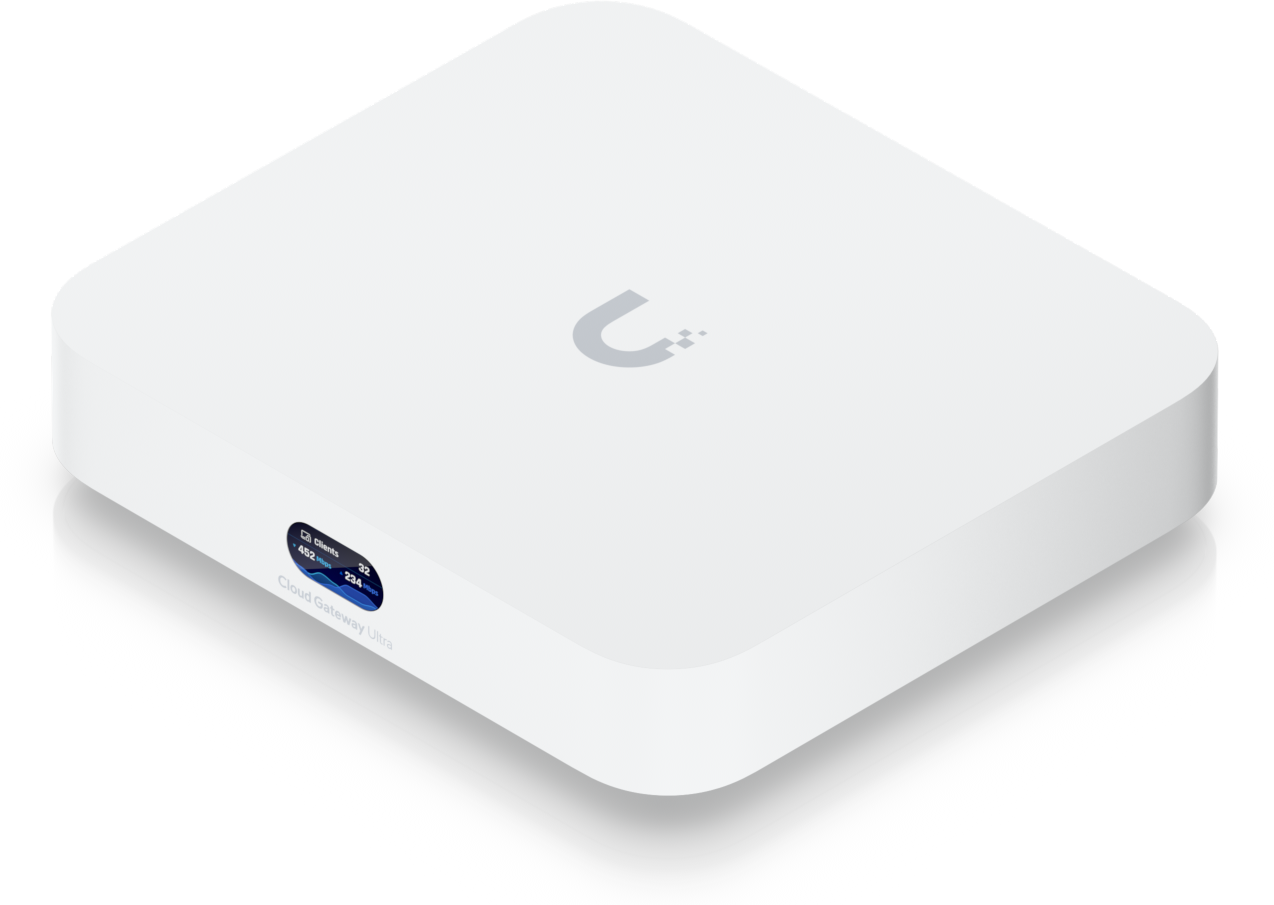

UCG-ULTRA UNIFI CLOUD GATEWAY ULTRA

Code: 09051852

1.02 kg
810084695395
EACH
10
Low Stock
$199 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

Ubiquiti Cloud Gateway Ultra, Multi-WAN, 1 Gbps Routing with IDS/IPS, USB Type C, 5V DC/3A, Support Voltage 100–240V AC, Max 6.2W

  • Runs UniFi Network for full-stack network management
  • Manages 30 UniFi Network devices and 300 clients
  • 1 Gbps routing with IDS/IPS
  • Multi-WAN load balancing
  • 0.96" LCM status display
  • USB-C powered (adapter included)
Mechanical
Dimensions 141.8 x 127.6 x 30 mm (5.6 x 5 x 1.2")
Weight 520 g (1.1 lb)
Enclosure material Polycarbonate
Hardware
Processor Quad-core ARM® Cortex®-A53 at 1.5 GHz
System memory 3 GB DDR4
On-board storage 16 GB eMMC
Management interface Ethernet
Bluetooth
Networking interface LAN:
(4) GbE RJ45 ports

WAN:
(1) 1/2.5 GbE RJ45 port
IDS/IPS throughput 1 Gbps
Power method USB type C (5V DC/3A)
Supported voltage range 100–240V AC
Max. power consumption 6.2W
LCM display 0.96" status display
Button Factory reset
Ambient operating temperature -10 to 40° C (14 to 104° F)
Ambient operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
Gateway Features
Performance Redundant WAN with failover and load balancing
WiFi QoS with UniFi APs
Application, domain, and country-based QoS
Application and device type identification
Additional internet failover with LTE Backup
Internet quality and outage reporting
Next-generation security Application-aware firewall rules
Signature-based IPS/IDS threat detection
Content, country, domain, and ad filtering
VLAN/subnet-based traffic segmentation
Full stateful firewall
Advanced networking License-free SD-WAN
WireGuard, L2TP and OpenVPN server
OpenVPN client
OpenVPN and IPsec site-to-site VPN
One-click Teleport and Identity VPN
Policy-based WAN and VPN routing
DHCP relay
Customizable DHCP server
IGMP proxy
IPv6 ISP support
LEDs
Ethernet White: link/activity
Application Requirements
Mobile app UniFi iOS™: Version 10.12.0 and later
UniFi Android™: Version 10.11.2 and later
