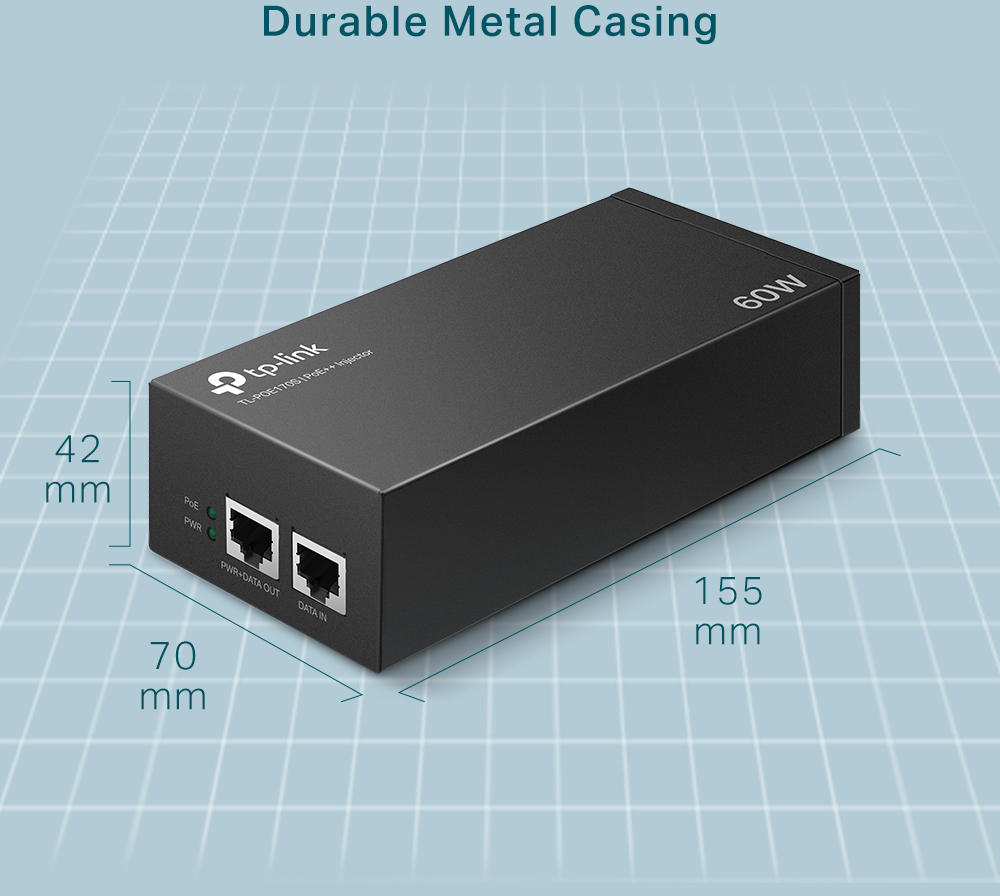

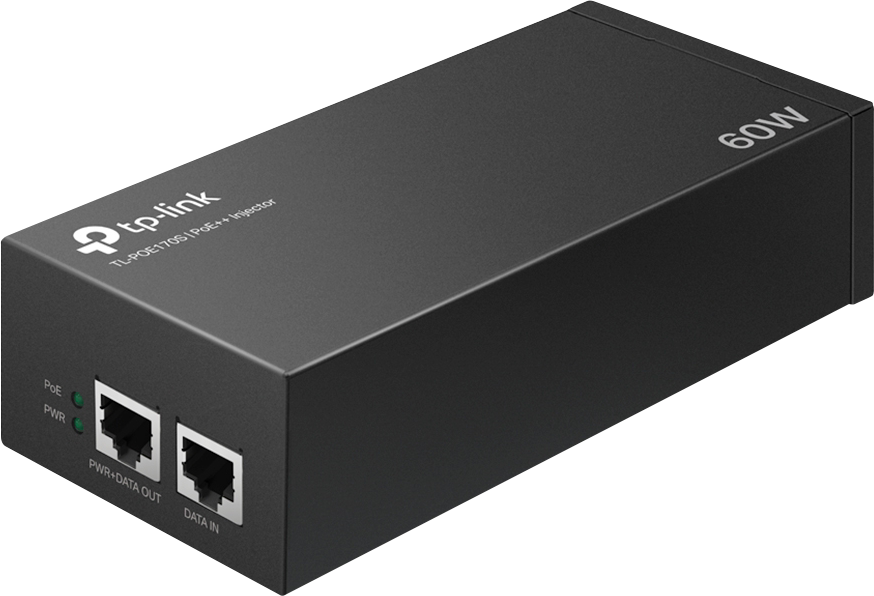

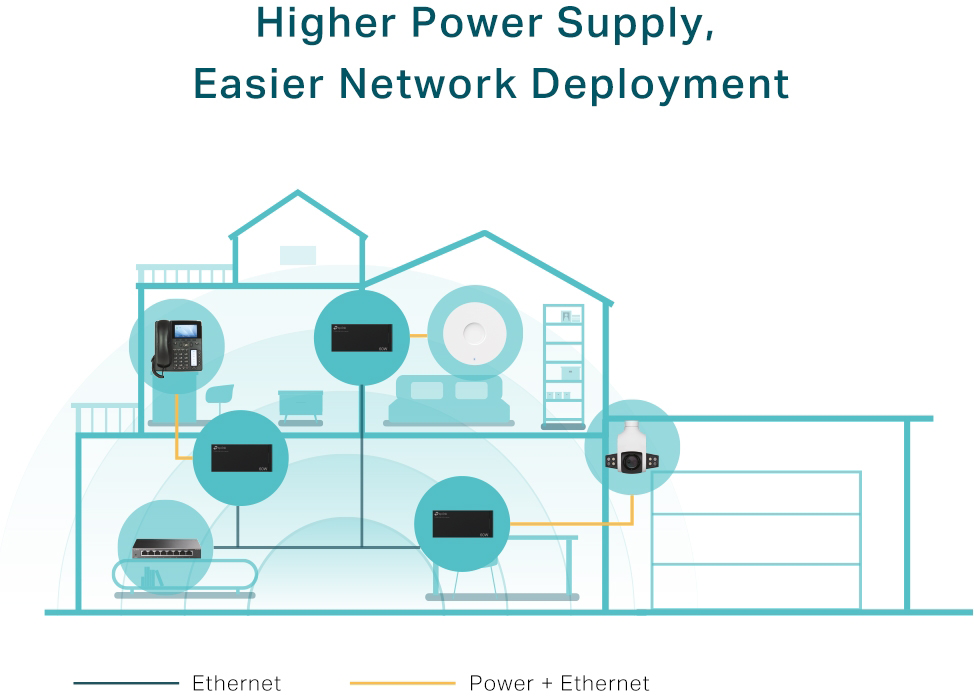

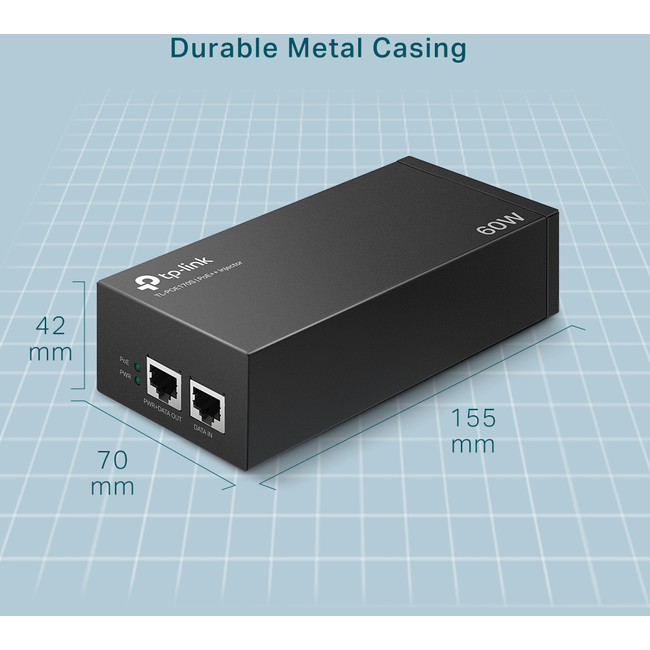

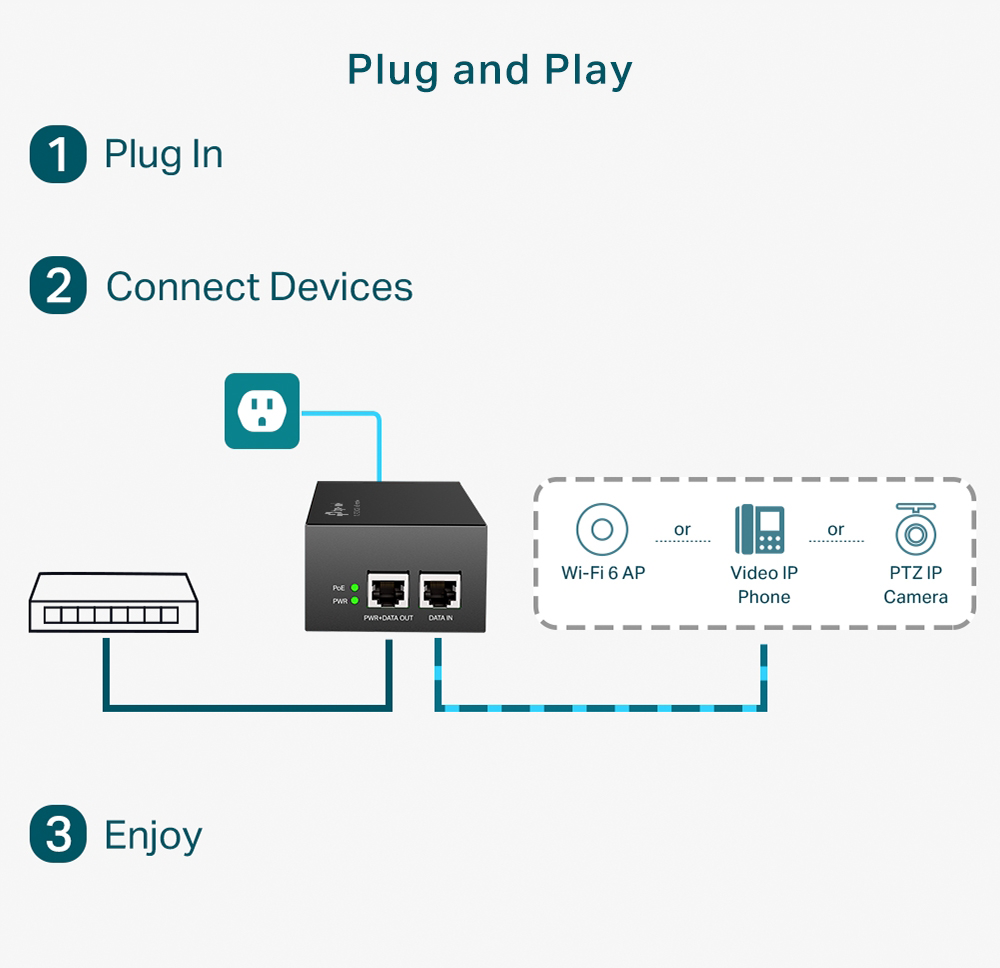

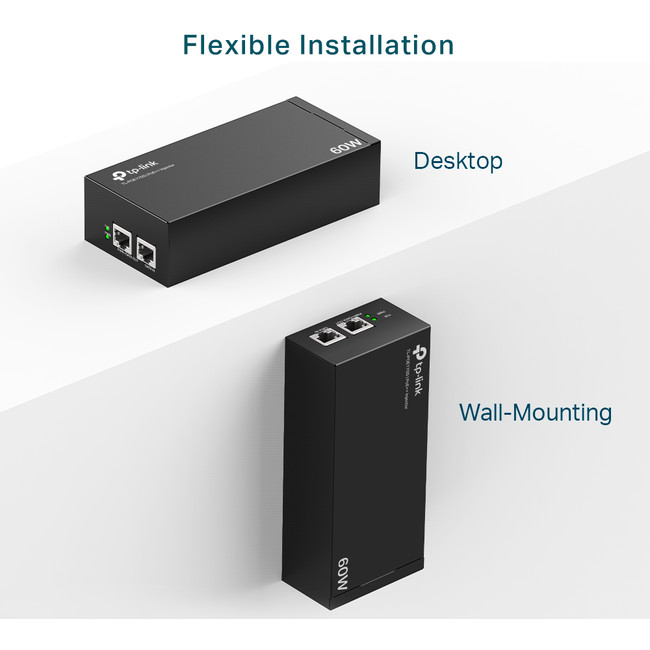

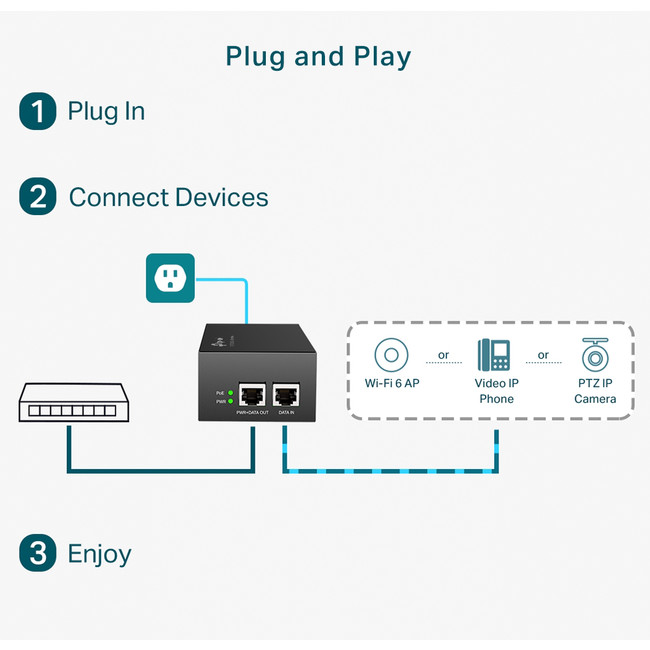

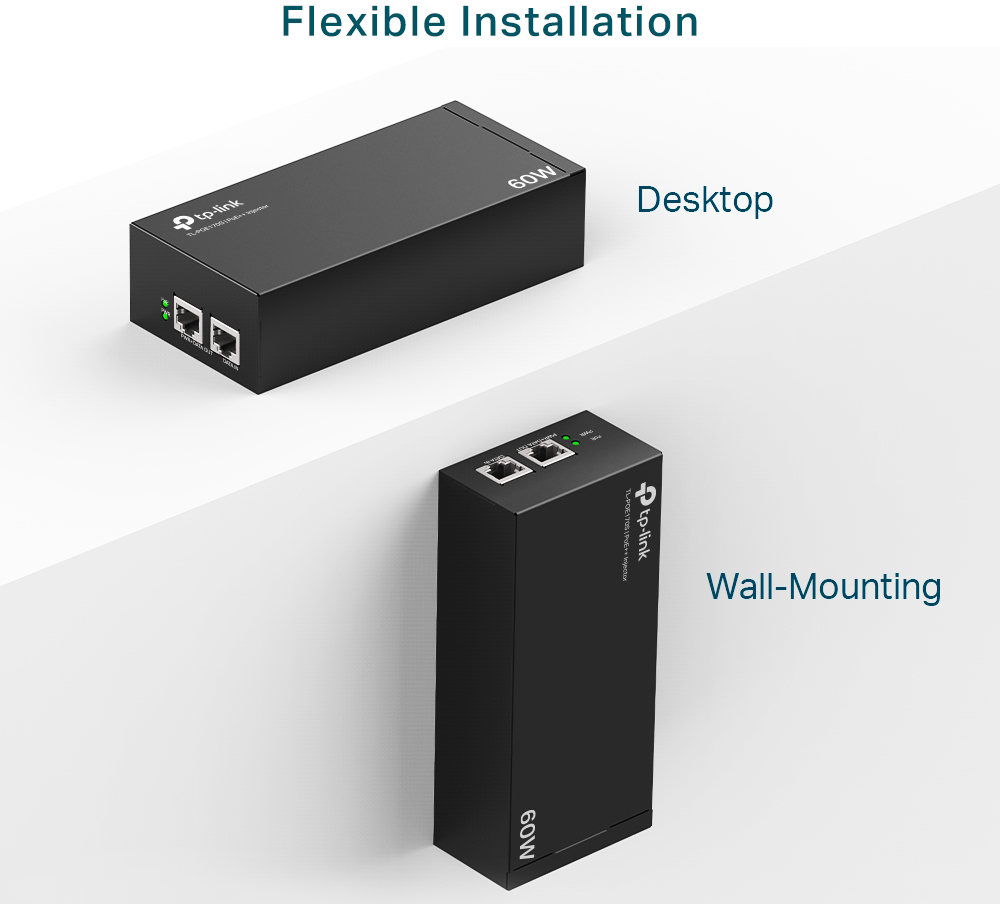

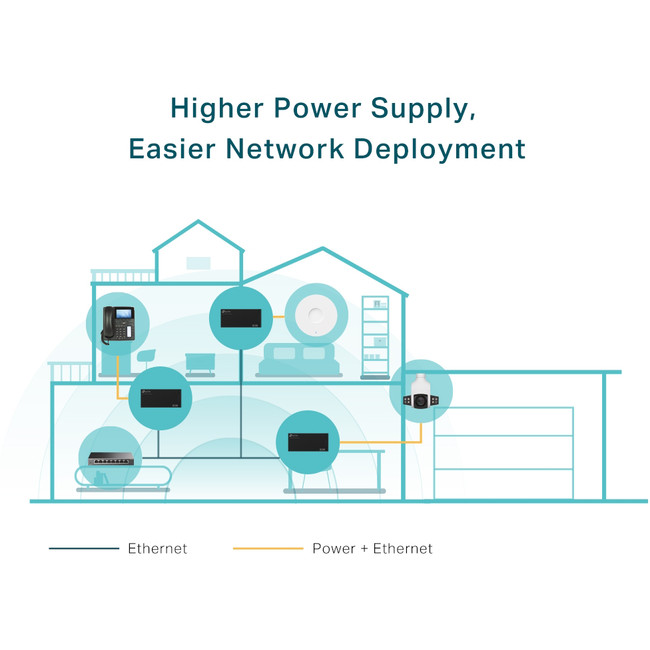

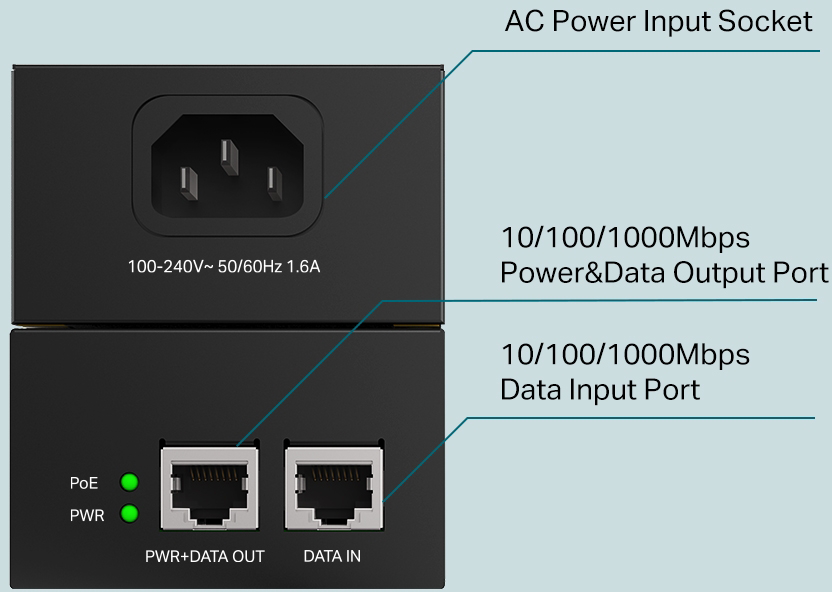

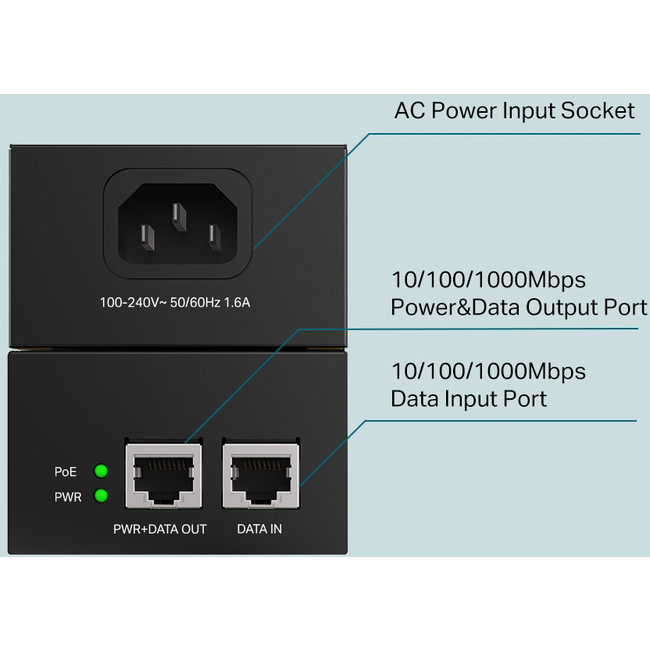

• 2 Gigabit ports ensure faster transmission • Complies with IEEE802.3af/at/bt standards, supplies up to 60 W • Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable • Automatically determines and supplies the exact power to meet the device's need • Wall-mounting and desktop design accommodates most installation scenarios • Plug & Play installation requires no configuration • Integrated power supply • Durable metal casing NETWORK Standards and Protocols IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at, IEEE802.3bt HARDWARE FEATURES Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m) EIA/TIA-568 100Ω STP (maximum 100 m) 100BASE-TX: UTP category 5, 5e cable (maximum 100 m) EIA/TIA-568 100Ω STP (maximum 100 m) 1000BASE-T: UTP category 5, 5e, 6 cable(maximum 100 m) Ports 1 10/100/1000Mbps RJ45 data-in port 1 10/100/1000Mbps RJ45 power data-out port 1 AC socket Power Consumption Input: 100-240 V, 50/60 Hz, 1.6A Output: Auto-determine the necessary power requirements (max. 60 W) Basic Function Auto-Sensing Algorithm enables providing power with 802.3af/at/bt PD Auto-determine the necessary power requirements Wall-mounting and desktop installation supported Plug-and-Play Dimensions ( W x D x H ) 6.1*2.8*1.7 in (155*70*42 mm)
