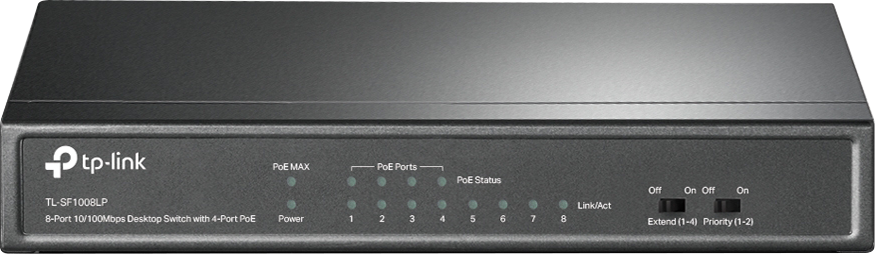

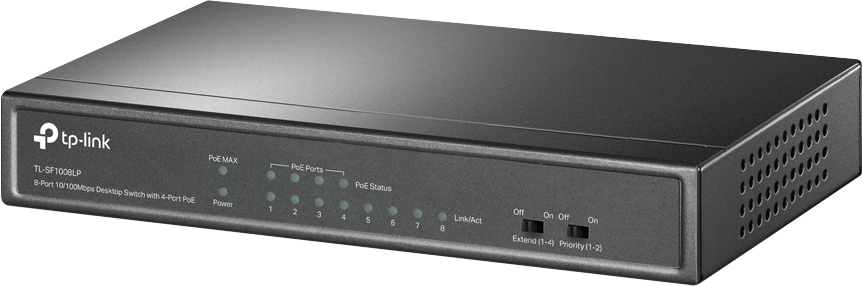

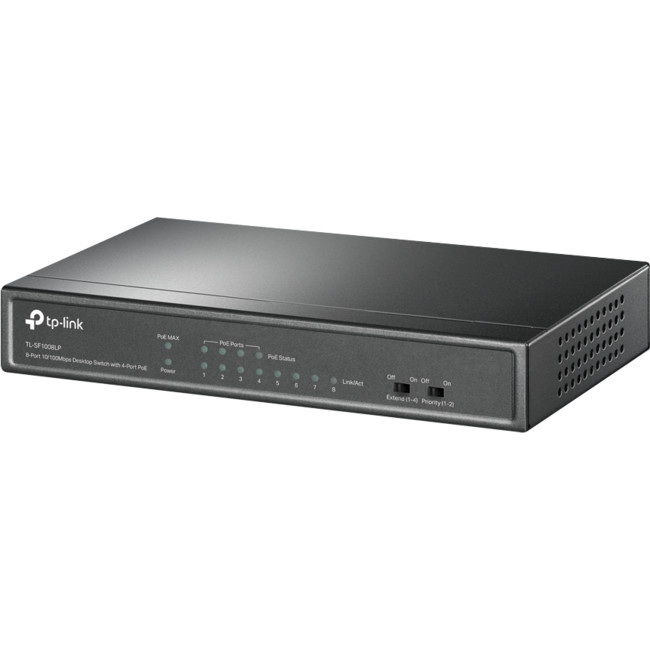

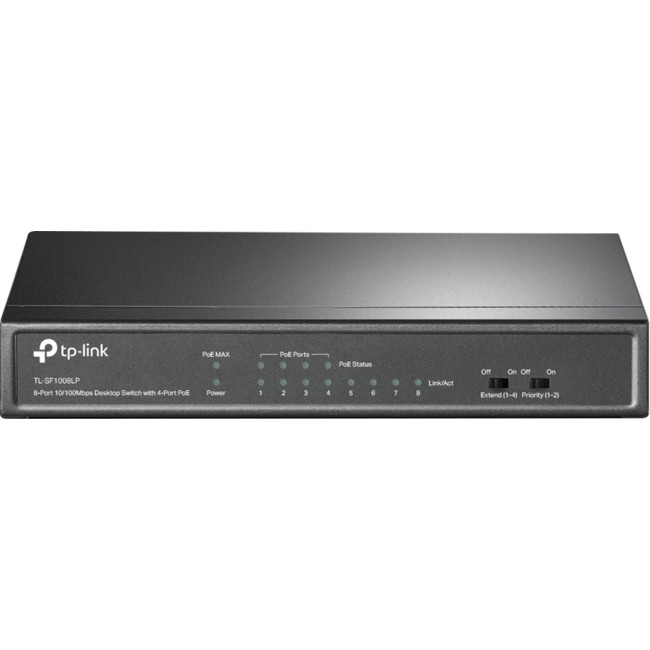

Name: TLSF1008LP 8 PORT 10/100 SWITCH 4 X POE PORT 41W Extend Mode 250M
Brand: TP-LINK
SKU: 09051817
Price: 72 AUD
Availability: InStock

Extend Mode 250M

Code: 09051817

0.7620 kg

6935364052768

EACH

In Stock

$72 inc GST

Increase value Decrease value

Qty	Each (inc GST)	Each

Request Price Match

Freight Estimator Enter 4 digit postcode

Features
Downloads

TP-Link TL-SF1008LP 8-Port 10/100Mbps Desktop Switch with 4-Port PoE, Up To 41W For all PoE Ports

8× 10/100 Mbps RJ45 ports
4× PoEports transfer data and power on individual cables
Works with IEEE 802.3afcompliant PDs
Up to 250m data and power transmitting range under Extend Mode**
Priority Mode ensures high priority of ports 1–2to guarantee the quality of sensitive application

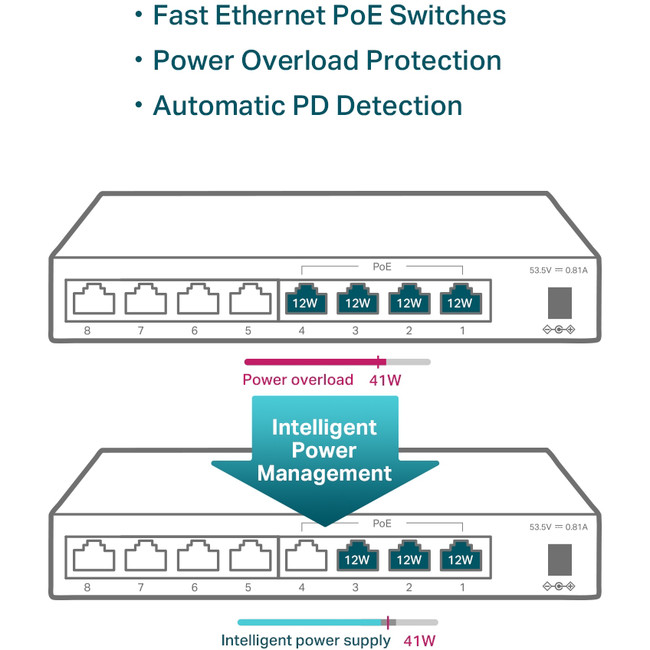

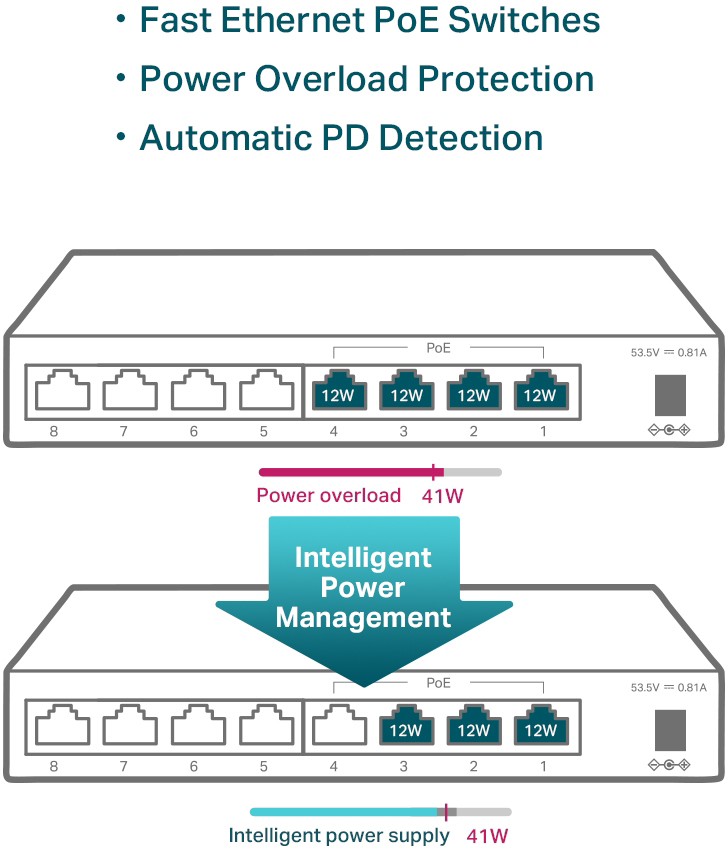

Supports PoE Power up to 41 W for all PoE ports*
Plug and play with no configuration required

HARDWARE FEATURES
Interface	• 8× 10/100 Mbps RJ45 Ports (Ports 1–4 support 802.3af PoE) • AUTO Negotiation • AUTO MDI/MDIX
Network Media	• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity	Fanless
Physical Security Lock	Yes
External Power Supply	External Power Adapter (Output: 53.5 V DC / 0.81 A)
Packet Forwarding Rate	1.1904 Mpps
PoE Ports (RJ45)	• Standard: 802.3 af compliant • PoE Ports: Ports 1–4 • Power Supply: 41 W
Mac Address Table	2K
Jumbo Frame	2 KB
Switching Capacity	1.6 Gbps
Dimensions ( W x D x H )	6.7 × 3.9 × 1.1 in (171 × 98 × 27 mm)
Max Power Consumption	• 2.2 W (220 V/ 50 Hz. no PD connected) • 47.1 W (220 V/ 50 Hz. with 41 W PD connected)
Max Heat Dissipation	• 7.5 BTU/h(no PD connected) • 160.61 BTU/h(with 41 W PD connected)

SOFTWARE FEATURES
Transmission Method	Store-And-Forward
Advanced Functions	• Compatible With IEEE 802.3af Compliant PDs • Extend Mode Button (Ports 1–4) • Priority Mode Button (Ports 1–2) • Mac Address Auto-Learning and Auto-Aging • IEEE802.3x Flow Control for Full-Duplex Mode and Backpressure for Half-Duplex Mode

OTHERS
Certification	FCC, CE, RoHS
Package Contents	• TL-SF1008LP • Power Adapter • Installation Guide
Environment	• Operating Temperature: 0–40 °C (32–104 °F) • Storage Temperature: -40–70 °C (-40–158 °F) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing
