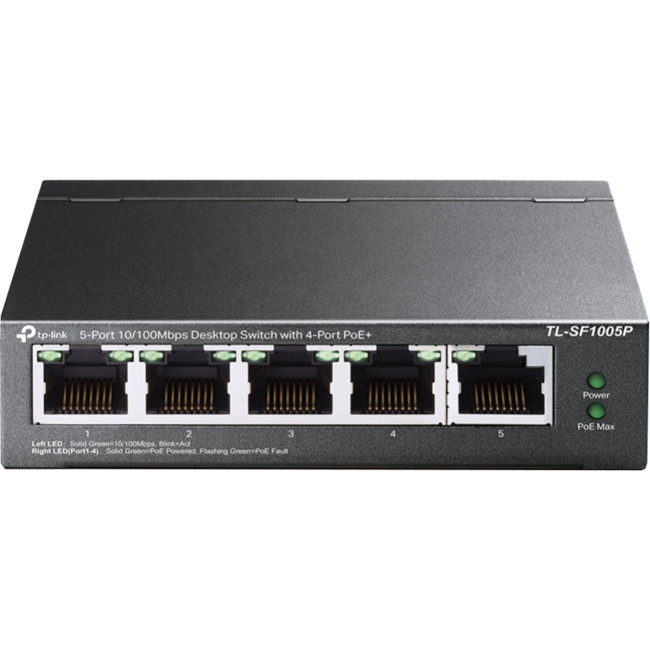

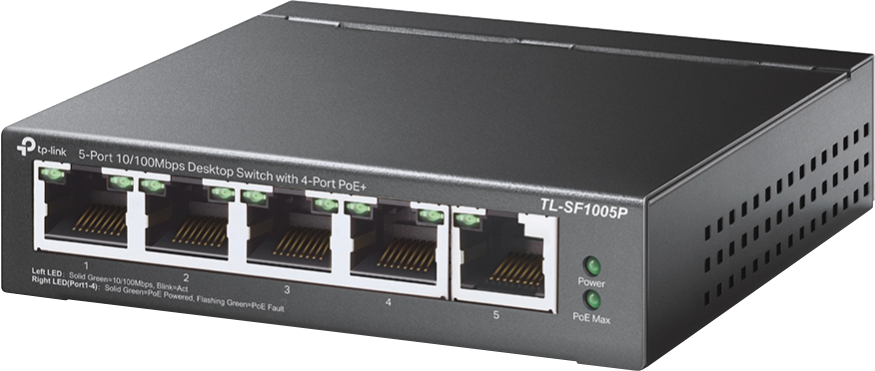

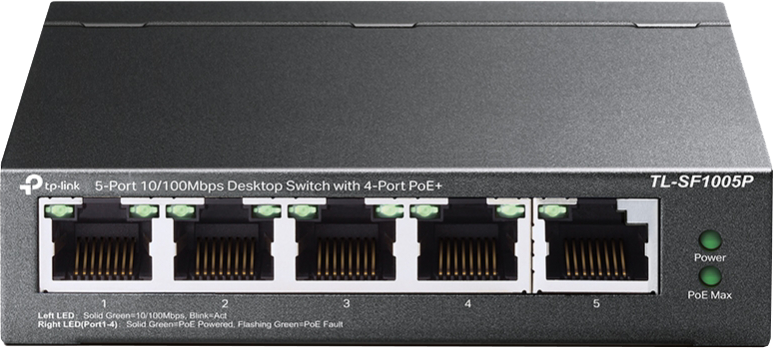

5-Port 10/100Mbps Desktop Switch with 4-Port PoE

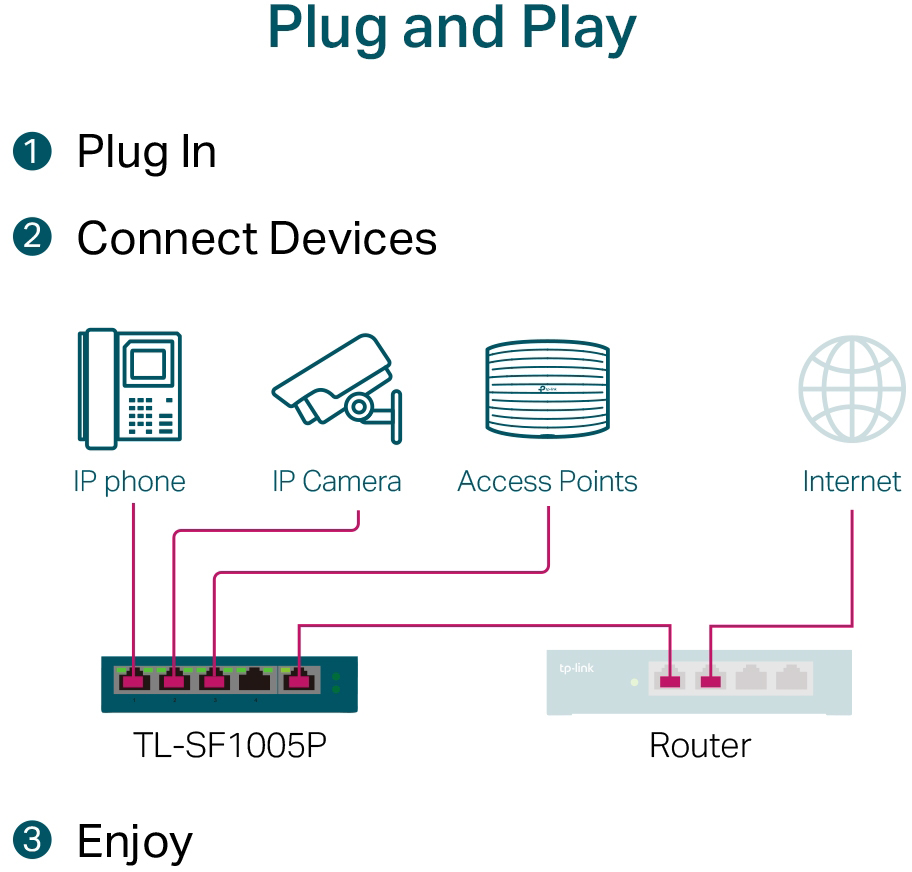

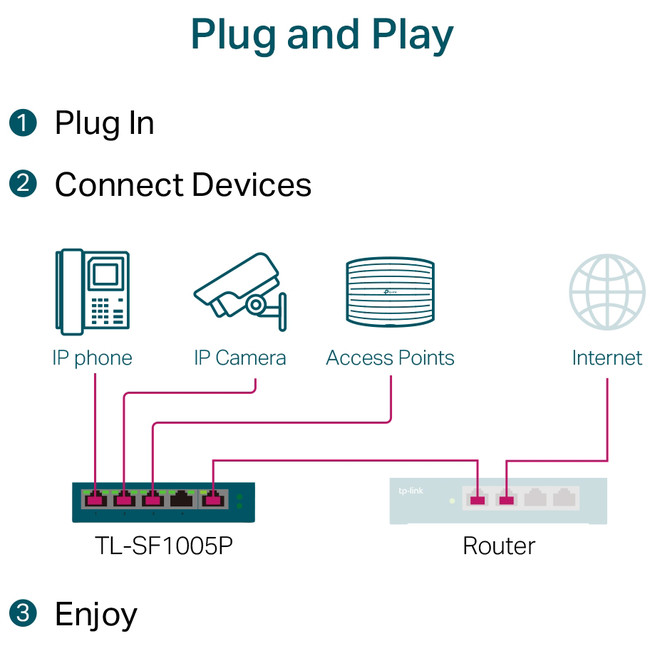

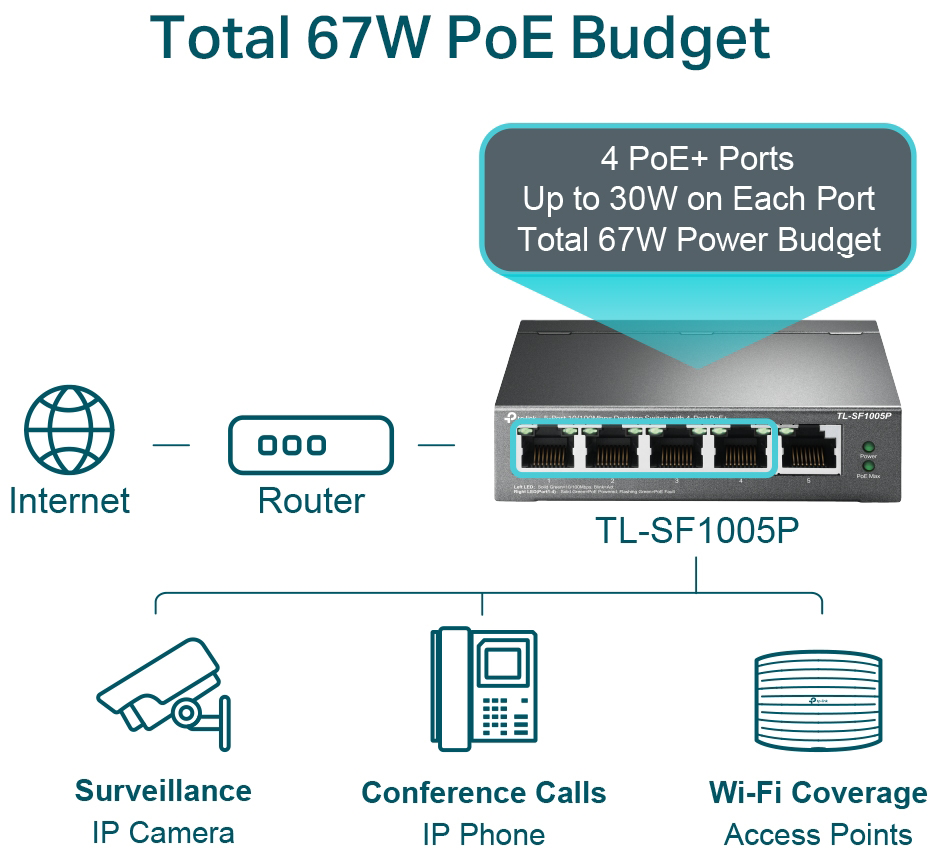

Dedicated 4-Port PoE Switch (67 W Budget) for Numerous Applications Compliance with the 802.3af/at PoE standard supports up to 30 W on each PoE port. The total 67 W PoE power budget* for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories,and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.

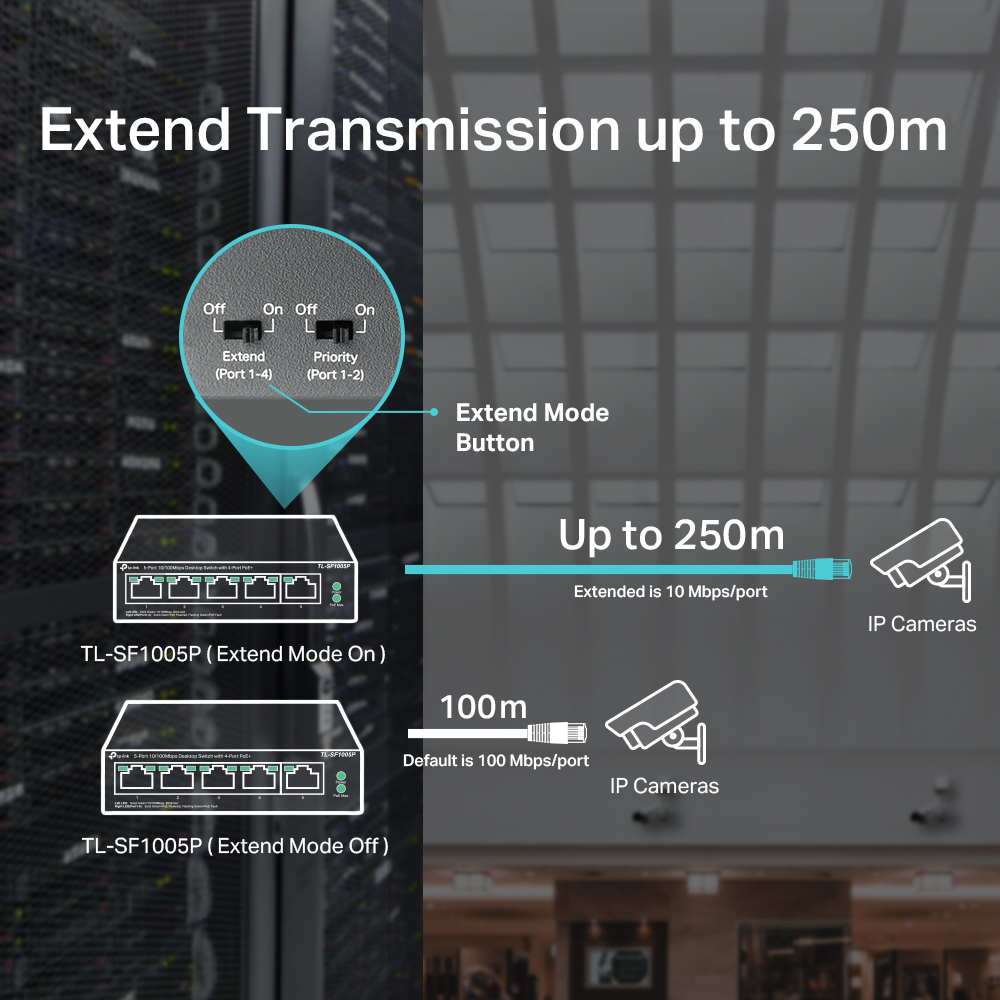

Ideal for IP Surveillance ?Up to 250 m Transmissions With extend mode, the PoE transmission distance reaches up to 250 m**?perfect for IP Camera deployment in large areas.

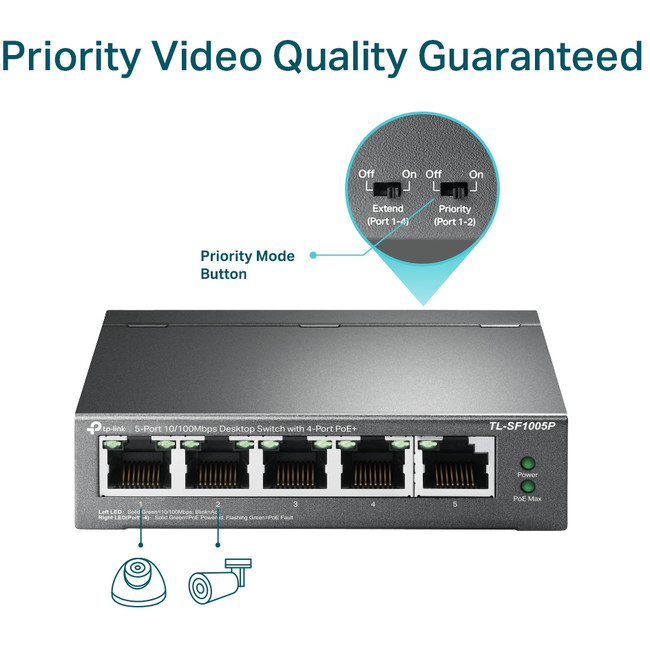

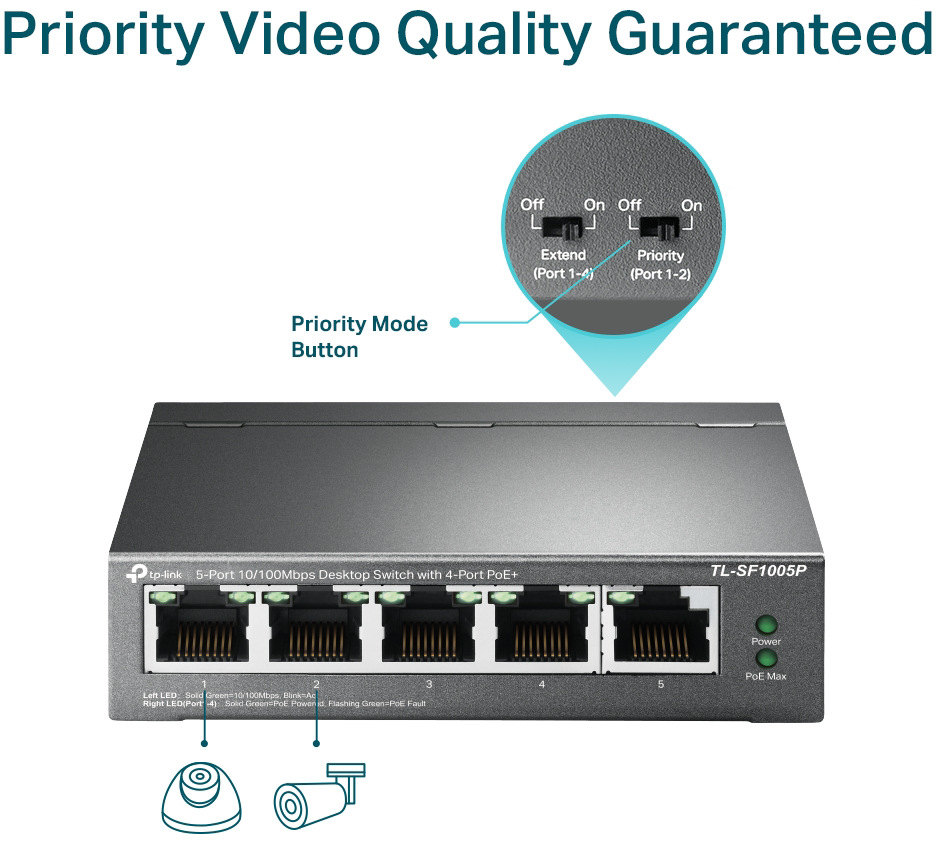

Priority Video Quality Guaranteed Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1–2 when one-touch Priority Mode is on.
Intelligent Power Management When total power consumption exceeds 67 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.

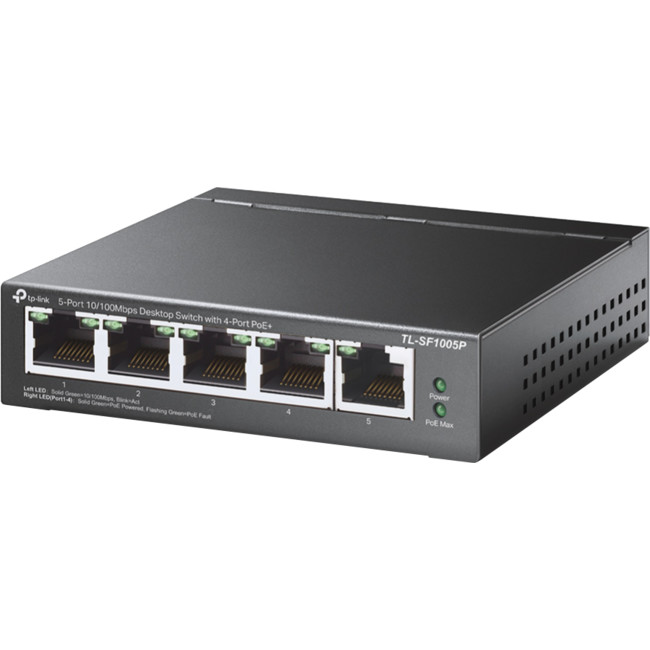

Durable Metal Casing The interior components of TL-SF1005P are protected by a high-quality metal casing to ensure a long product life. Having passed anarray of stringent reliability tests, TL-SF1005P delivers switching performance you can depend on. {taab Specifications}
| HARDWARE FEATURES |
| Interface | • 5× 10/100 Mbps RJ45 Ports(4× 10/100 Mbps 802.3af/at PoE ports)
• AUTO Negotiation
• AUTO MDI/MDIX
|
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
|
| Fan Quantity | Fanless |
| Physical Security Lock | Yes |

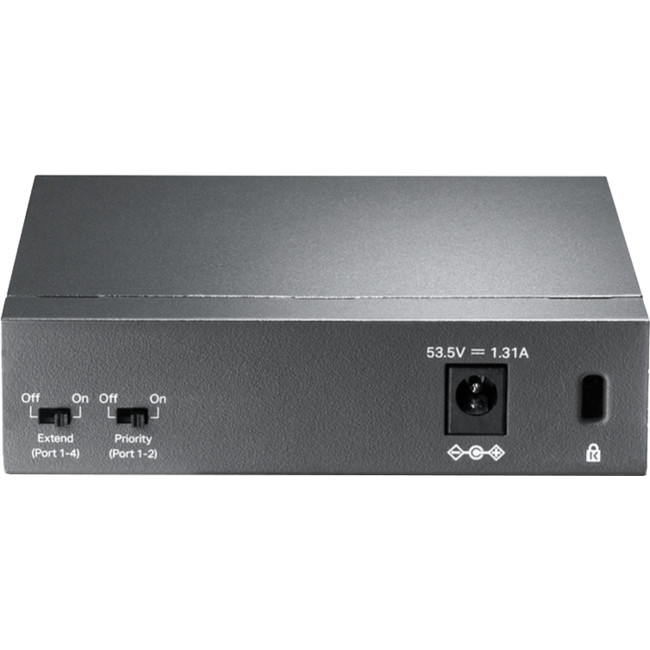

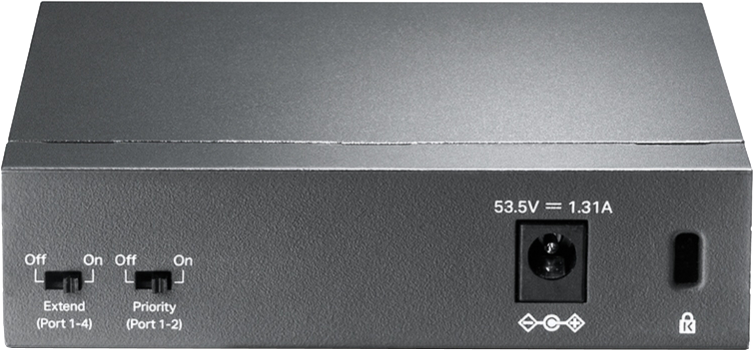

| External Power Supply | External Power Adapter (Output: 53.5 VDC / 1.31 A) |
| Packet Forwarding Rate | 0.744 Mpps |
| PoE Ports (RJ45) | • Standard: 802.3 af/at compliant
• PoE Ports: Ports 1–4
• Power Supply: 67 W
|
| Mac Address Table | 2K |
| Jumbo Frame | 2 KB |
| Switching Capacity | 1 Gbps |
| Dimensions ( W x D x H ) | 3.9 x 3.9 x 1.0 in (99.8 x 98 x 25 mm) |
| Max Power Consumption | • 1.9 W (220 V / 50 Hz, no PD connected)
• 74 W (220 V / 50 Hz, with 67 W PD connected) |
| Max Heat Dissipation | • 6.48 BTU/h(no PD connected)
• 252.34 BTU/h(with 67 W PD connected)
|
| SOFTWARE FEATURES |
| Transmission Method | Store-And-Forward |
| Advanced Functions | • Compatible With IEEE 802.3af/atCompliant PDs
• Extend Mode Button (Ports 1–4)
• Priority Mode Button (Ports 1–2)
• Mac Address Auto-Learning And Auto-Aging
• IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode
|
| OTHERS |
| Certification | FCC, CE, RoHS |
| Package Contents | • TL-SF1005P
• Power Adapter
• Installation Guide |
| Environment | • Operating Temperature: 0–40 °C (32–104 °F)
• Storage Temperature: -40–70 °C (-40–158 °F)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing |
