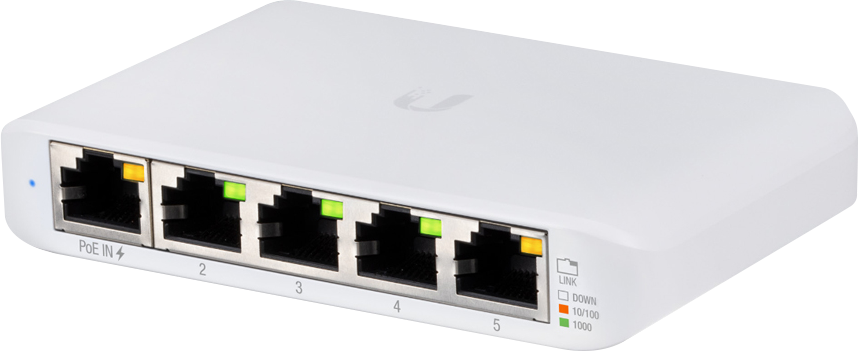

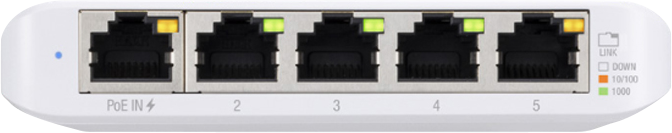

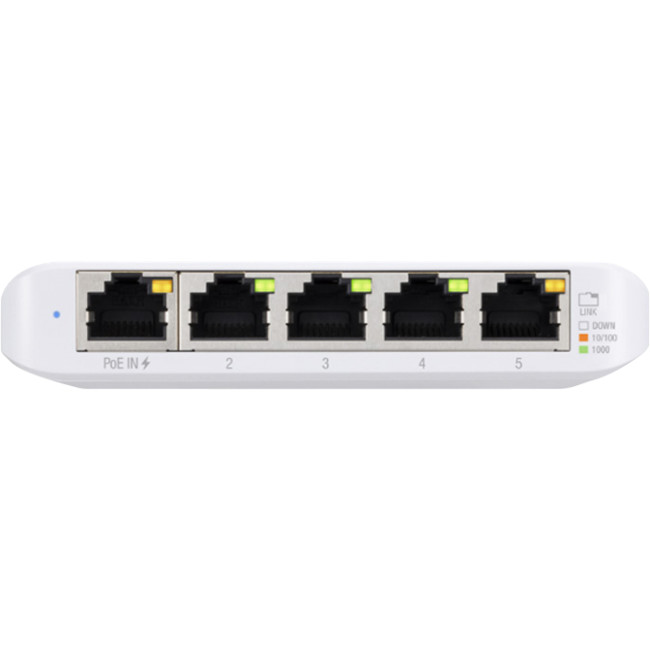

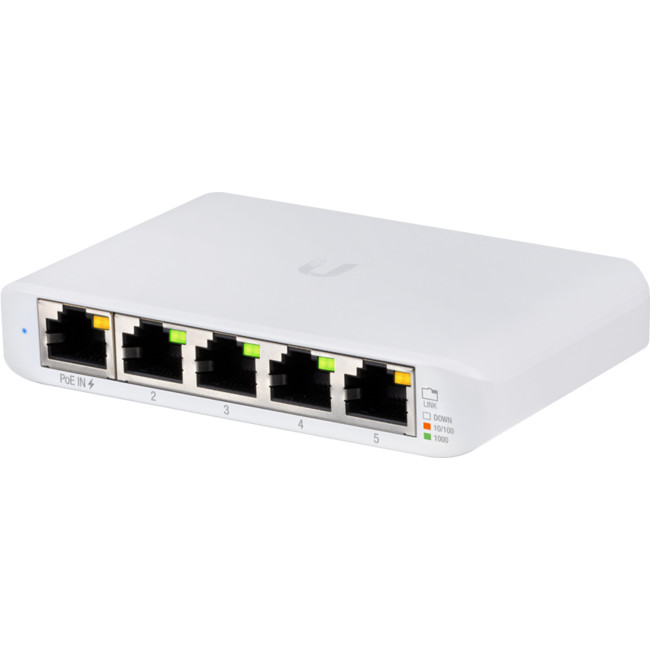

Build and expand your network with the UniFi® Switch,part of the Ubiquiti Networks® UniFi Enterprise System. The UniFi Switch, model USW-Flex-Mini, is a smart managed Gigabit switch. It offers 5 RJ45 Ethernet ports, providing 1Gigabit links to your devices. The 5-Port managed Gigabit Ethernet Switch can be powered by 802.3af/at PoE switch, PoEAdapter (Model USW-FLEX-MINI-NPS), or 5V, 1A USB-C power adapter (Model USW-FLEX-MINI-PS).

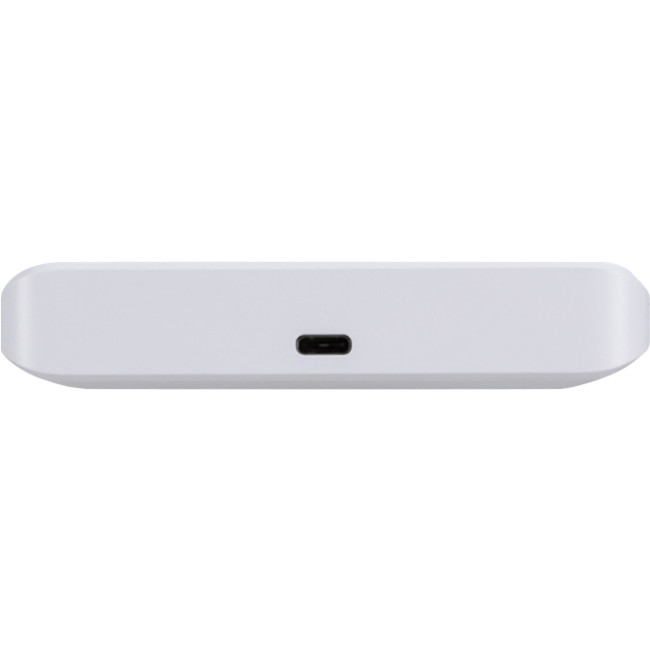

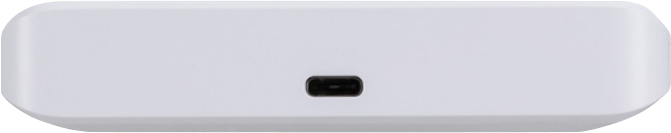

Power Options Power up with USB Type-C power adapter or with802.3af/at PoE Adapter(Sold Separately), or 802.3af/at PoE switch via Ethernet in port 1.
USW-Flex-Mini
Dimensions
107.16 x 70.15 x 21.17 mm (4.22 x 2.76 x 0.83")
Weight
150 g (5.29 oz)
Networking Interfaces
(5) 10/100/1000 Mbps RJ45 Ports
PoE In Interface
802.3af/at PoE (Pins 1, 2 ; 3, 6-)
Max. Power Consumption
2.5W
Power Method
USB Type C, 5V 802.3af/at PoE (44 - 57VDC, 0.05 - 0.04A)
Power Supply
5V, 1A Power Adapter*
Voltage Range
LEDs
ESD/EMP Protection
± 16kV Air, ± 12kV Contact
Operating Temperature
-5 to 45°C (23 to 113° F)
Operating Humidity
10 to 90% Noncondensing
Certifications
CE, FCC, IC
* Included only in the single-pack of the USW-Flex-Mini.
