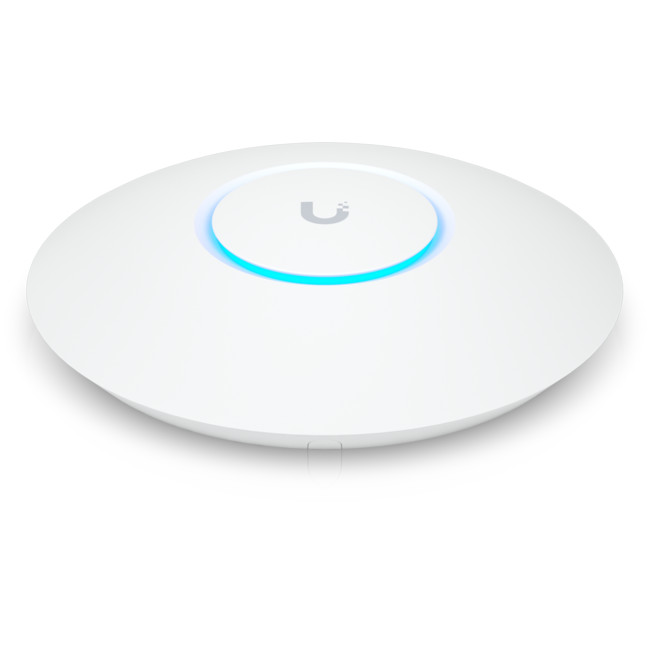

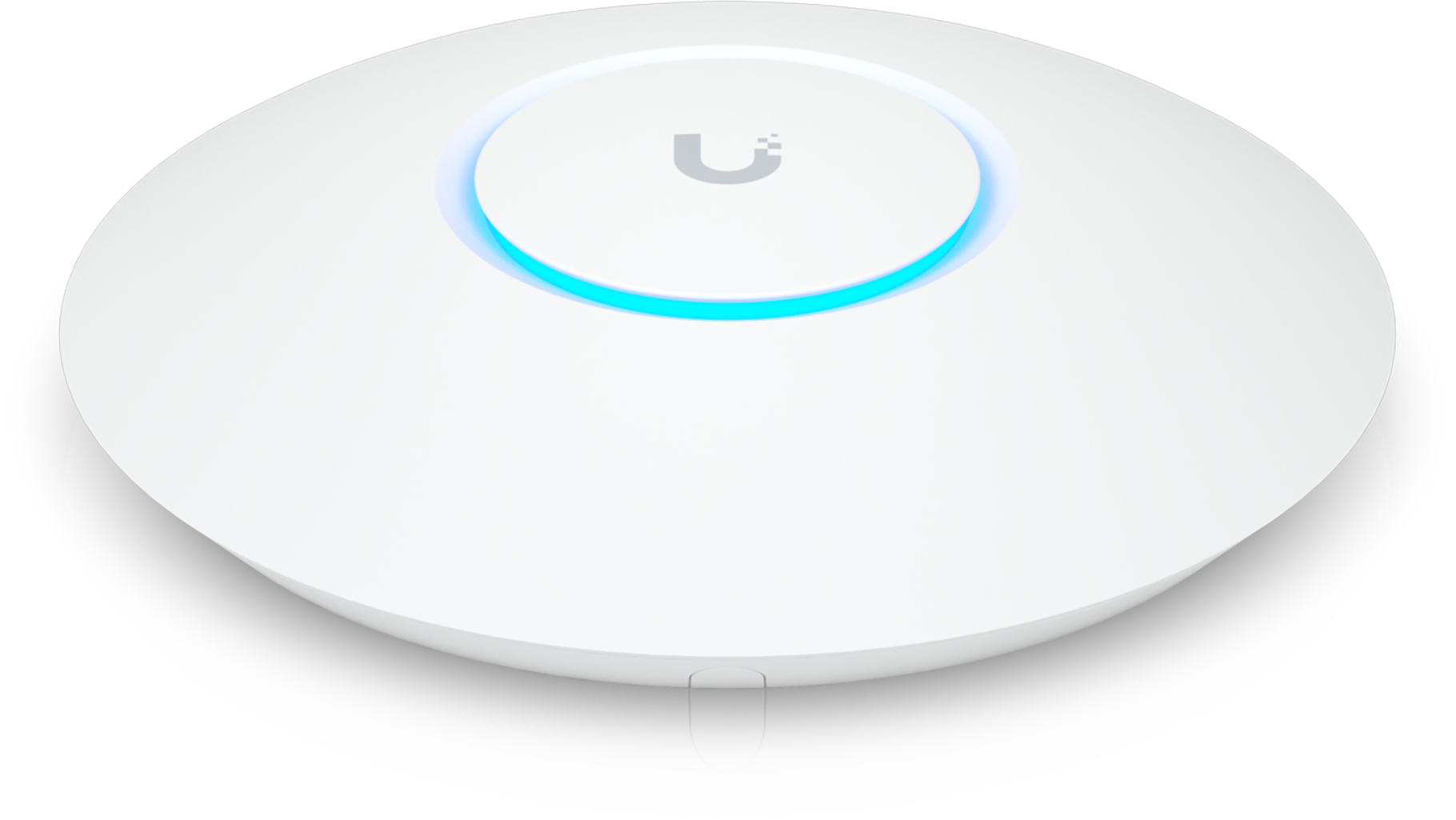

Ubiquiti UniFi U6 , Dual-band WiFi 6 PoE Access Point
AP 2x2 Mimo, 2.4GHz @ 573.5Mbps & 5GHz @ 2.4Gbps,300 Devices *No POE Injector
Experience the future of wireless connectivity with the Ubiquiti U6 , the Plus UniFi Compact AP that brings the power of Wi-Fi 6 to your network. With a compact design measuring Ø160mm × 33mm, this cutting-edge access point delivers exceptional performance and efficiency without compromising on space. The U6 is designed to meet the demands of modern, data-intensive applications, making it an ideal choice for homes, businesses, or educational institutions.
The U6 takes advantage of Wi-Fi 6 (802.11ax) technology, providing faster speeds, increased capacity, and improved performance in high-density environments. Enjoy seamless connectivity on both 2.4GHz and 5GHz bands, ensuring optimal performance for a wide range of devices. With advanced features like MU-MIMO and BSS Coloring, the U6 maximizes network efficiency, delivering a superior wireless experience for all users.
For added convenience, please note that the PoE injector is not included with the U6 . This ensures flexibility in power supply options, allowing you to tailor your network setup to specific requirements. Elevate your wireless network to the next level with the Ubiquiti U6 , embracing the latest in Wi-Fi technology within a sleek and compact form factor. Unleash the potential of Wi-Fi 6 for improved speeds, increased capacity, and enhanced performance in a variety of environments.
Features
- Wi-Fi 6 Powerhouse: Ubiquiti U6 is a cutting-edge Wi-Fi 6 (802.11ax) access point, ensuring faster speeds, increased capacity, and superior performance for data-intensive applications.
- Compact Design: U6 with dimensions of Ø160mm × 33mm is a UniFi Compact AP, delivering exceptional wireless connectivity without compromising space ideal for homes, businesses, or educational institutions.
- Dual-Band Connectivity: Seamless 2.4GHz and 5GHz connectivity caters to diverse devices, ensuring optimal performance in high-density environments.
- Advanced Features: U6 incorporates features like MU-MIMO and BSS Coloring, maximising network efficiency for a superior wireless experience.
- Flexible Power Options: Note that the PoE injector is not included, offering flexibility in power supply options for tailored network setups.
- Future-Ready Technology: Elevate your network with U6 , embracing the latest Wi-Fi 6 tech for improved speeds, increased capacity, and enhanced performance across diverse environments.
{tab Specifications}
Speifications
| Mechanical |
| Dimensions | Ø160mm × 33mm (Ø6.3″ × 1.3″) |
| Weight | Without Mount: 338g (0.8lb)
With mount: 413g (0.9lb) |
| Enclosure Material | Polycarbonate, aluminum |
| Mount Material | ABS, SGCC steel |
| Hardware |
| Networking Interface | (1) GbE RJ45 port |
| Management Interface | Ethernet |
| Power Method | PoE |
| Supported Voltage Range | 44–57V DC |
| Max. Power Consumption | 9W |
Max. TX Power
2.4 GHz
5 GHz
6 GHz |
23 dBm
23 dBm
– |
MIMO
2.4 GHz
5 GHz
6 GHz |
2 × 2 (DL/UL MU-MIMO)
2 × 2 (DL/UL MU-MIMO)
– |
Throughput rate
2.4 GHz
5 GHz
6 GHz |
573.5 Mbps (BW40)
2.4 Gbps (BW160)
– |
Antenna gain
2.4 GHz
5 GHz
6 GHz |
3 dBi
5.4 dBi
– |
| LEDs | White/blue |
| Button | Factory reset |

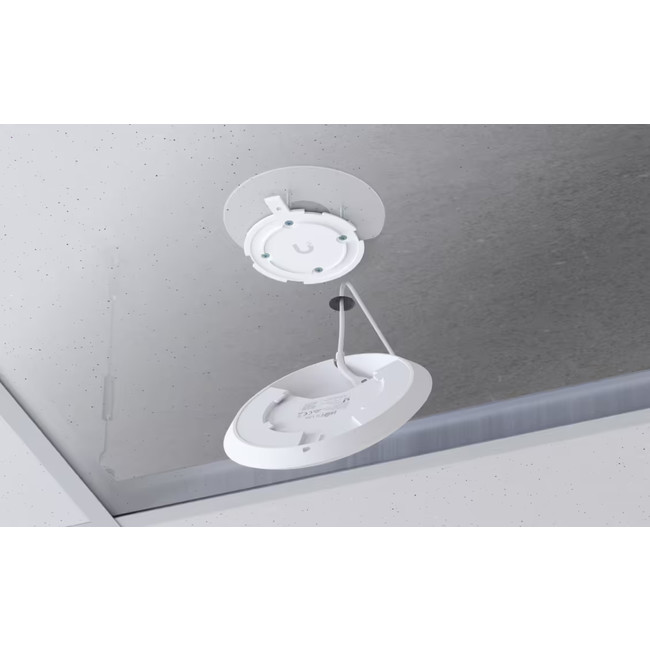

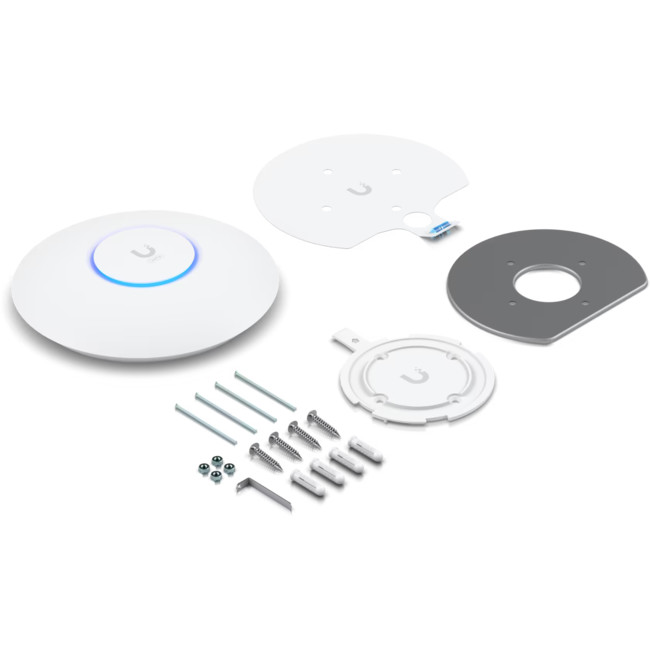

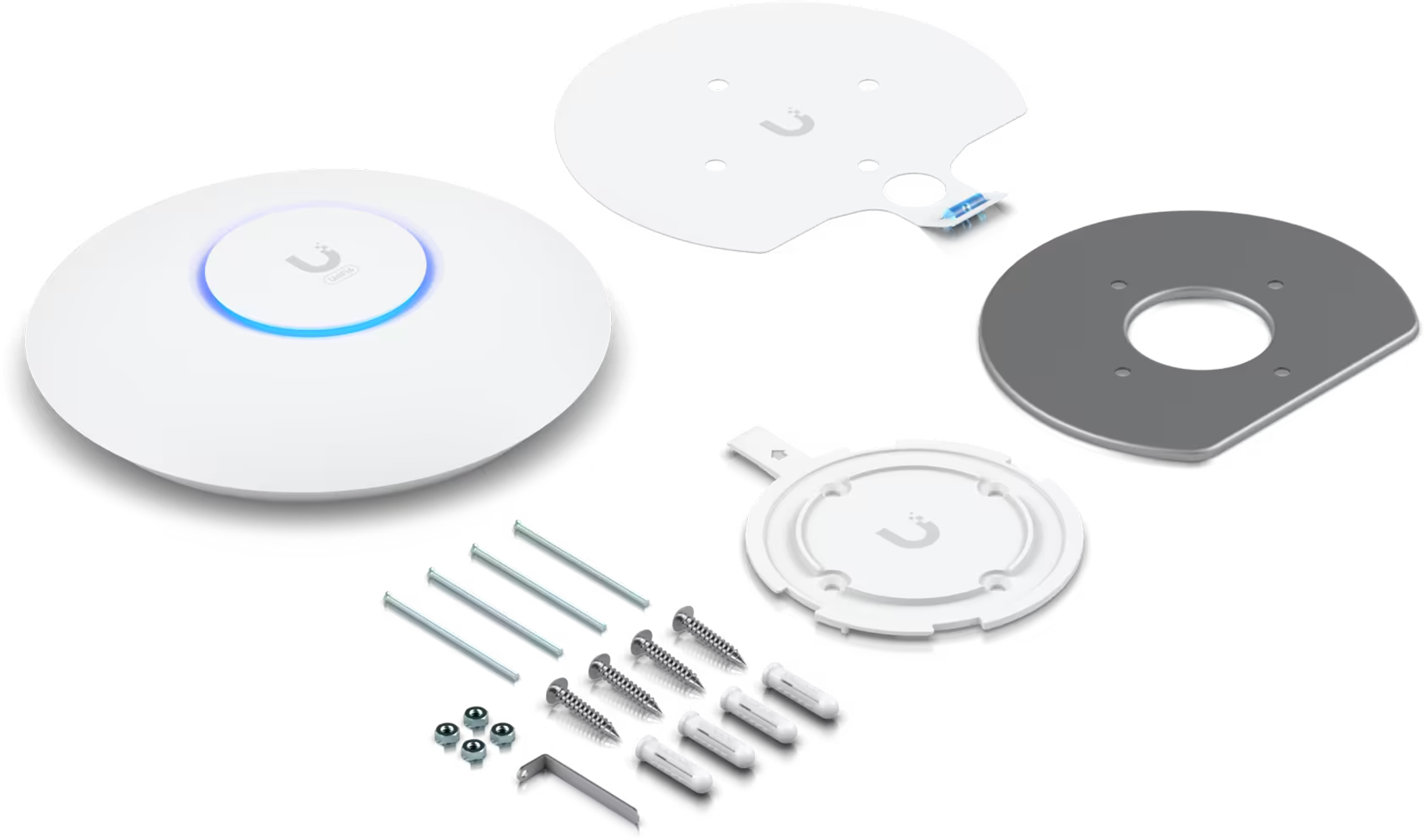

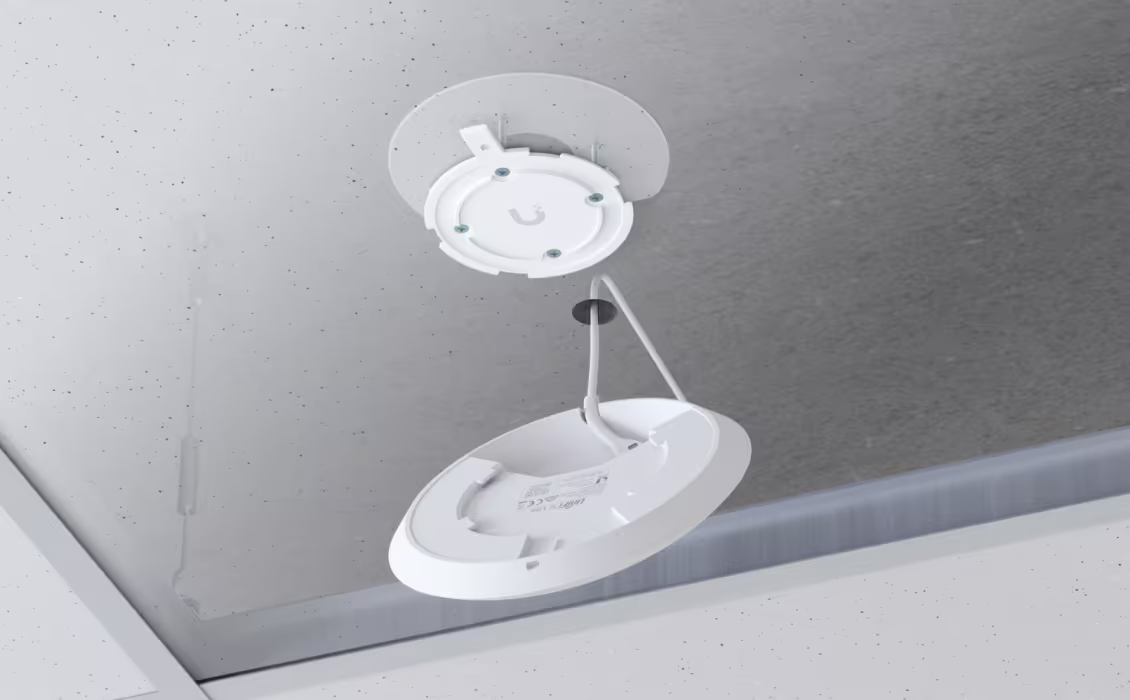

| Mounting | Wall, ceiling (Included) |
| Ambient operating temperature | -30°C to 60°C (−22°F to 140°F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Software |
| Wi-Fi Standards | 802.11a/b/g/n/ac/ax (Wi-Fi 6) |
| Wireless Security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3) |
| BSSID | 8 per radio |
| VLAN | 802.1Q |
| Advanced QoS | Per-user rate limiting |
| Guest Traffic Isolation | Supported |
| Zero-wait DFS | Yes*
*Supported with upcoming firmware versions. |
| Concurrent Clients | 300 |
| Supported Data Rates |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| 802.11ac | 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) |
| 802.11ax (Wi-Fi 6) | 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) |
| Software |
| Management Application | UniFi Network: Version 7.3.76 and later |
