USBCAT14V2 USB2.0 OVER CAT5 EXTENDER 50M

1 IN 4 OUT HOT PLUG

Code: 09051747

0.3760 kg
9328202035592
EACH
30
In Stock
TRADE ALERT!
$119 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

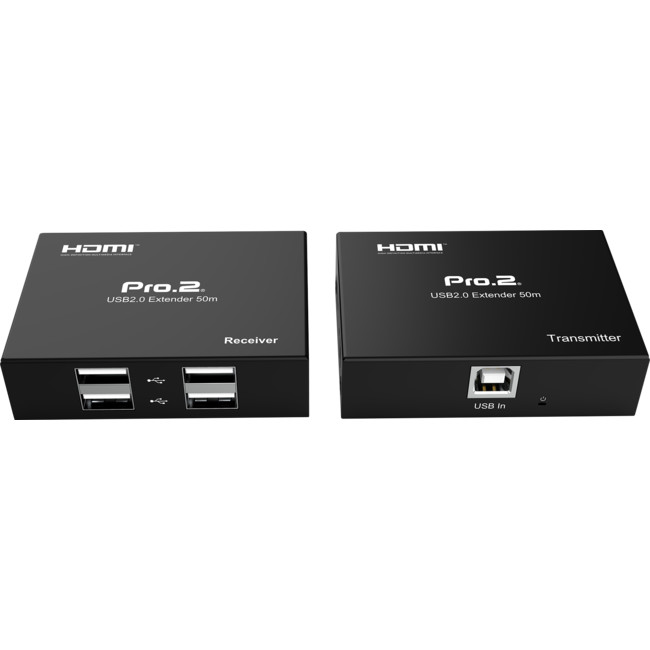

USBCAT14 PRO2 50M USB2.0 OVER CAT5 EXTENDER

1 in 4 out USB2.0 extender over single CAT5e/6 cable

Extend a USB port to a 4-port USB hub over a single CAT5e/6 cable

Features

  • 1 in 4 out USB2.0 extender

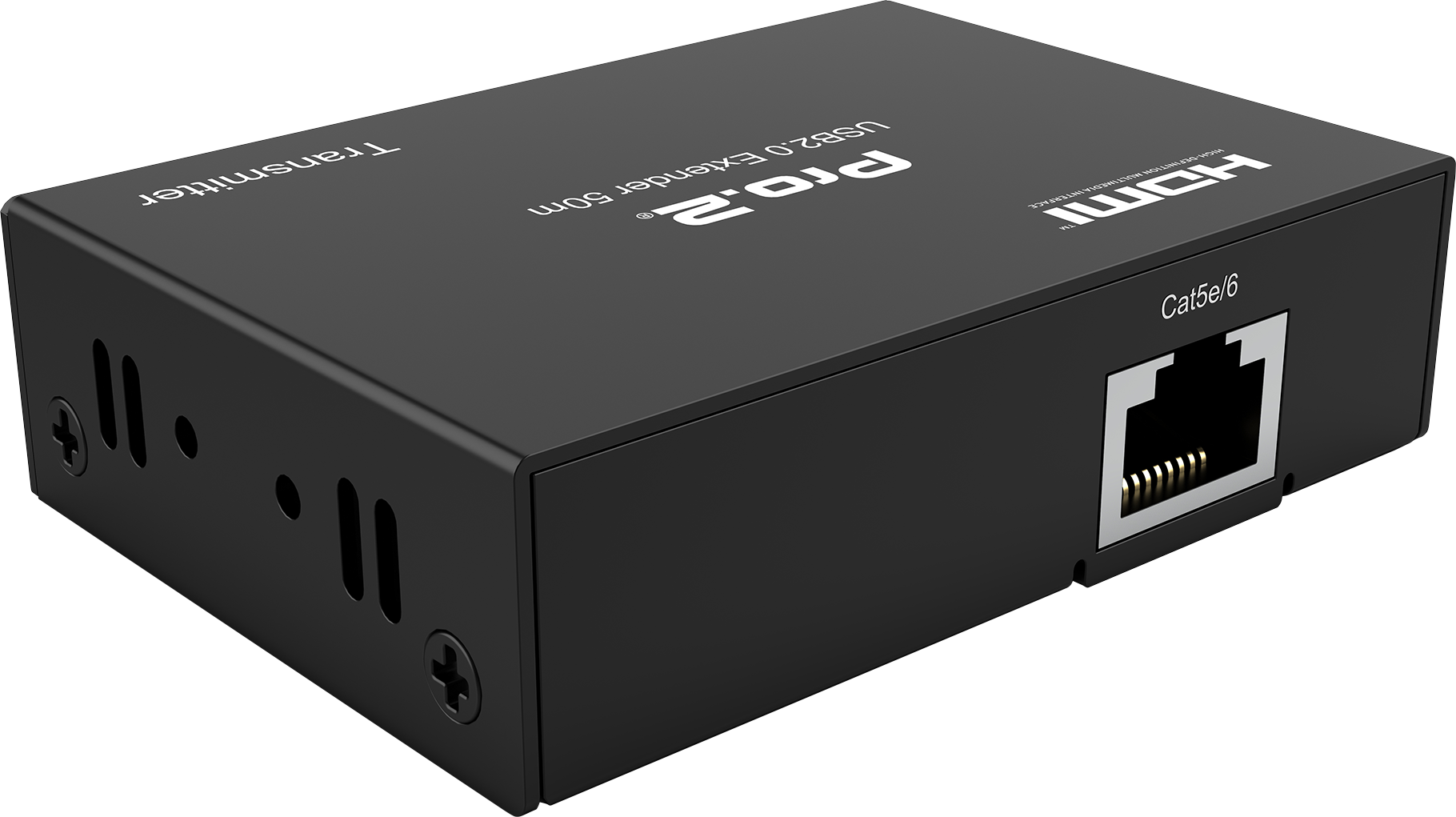

  • Data transmission up to 50m over a single CAT5e/6 cable
  • Built-in USB2.0 concentrator, backward compatible
  • Support various operation systems, such as Windows7/8/10, Mac OS V8.6, and above, Linux
  • Low power consumption. One power supply is required on the receiver end only
  • Supports hot plug, no need to install the driver
  • Supports keyboard/mouse hibernate or awaken PC in along distance
  • Mini compact size

Specifications

Operating Temperature Range0°C to +40°C (32°F to +104°F)
Operating Humidity Range 5 to 90 % RH (no condensation)

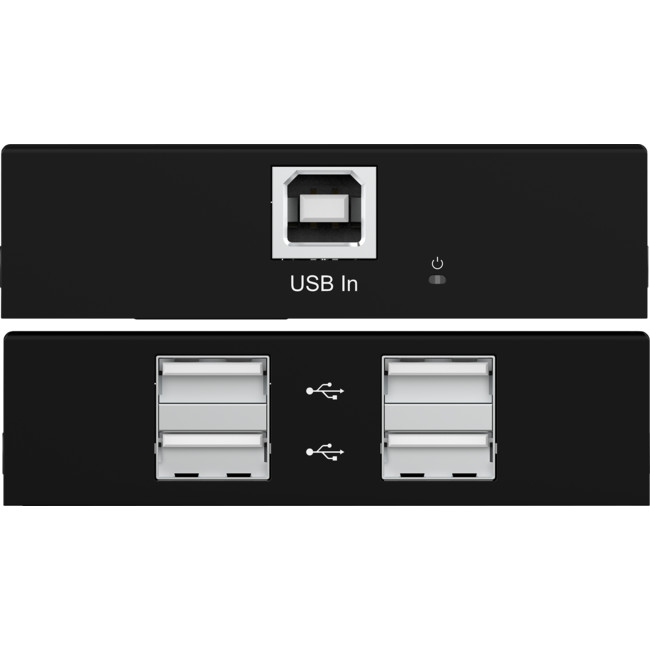

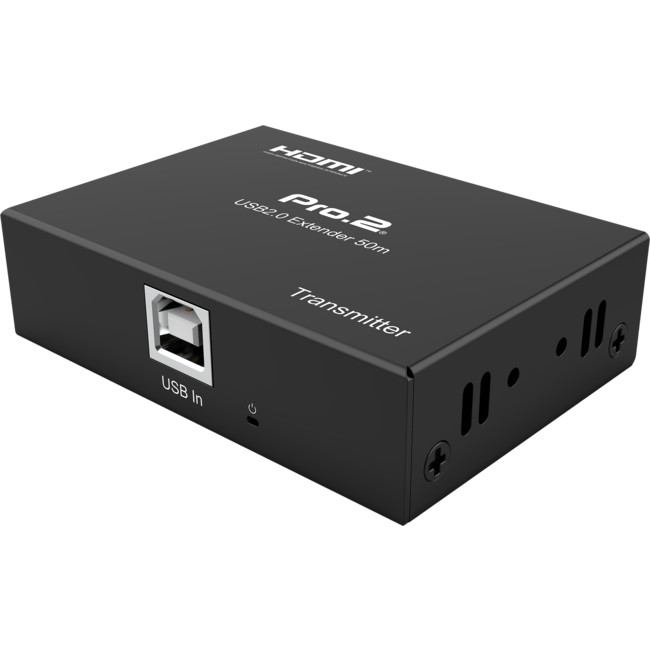

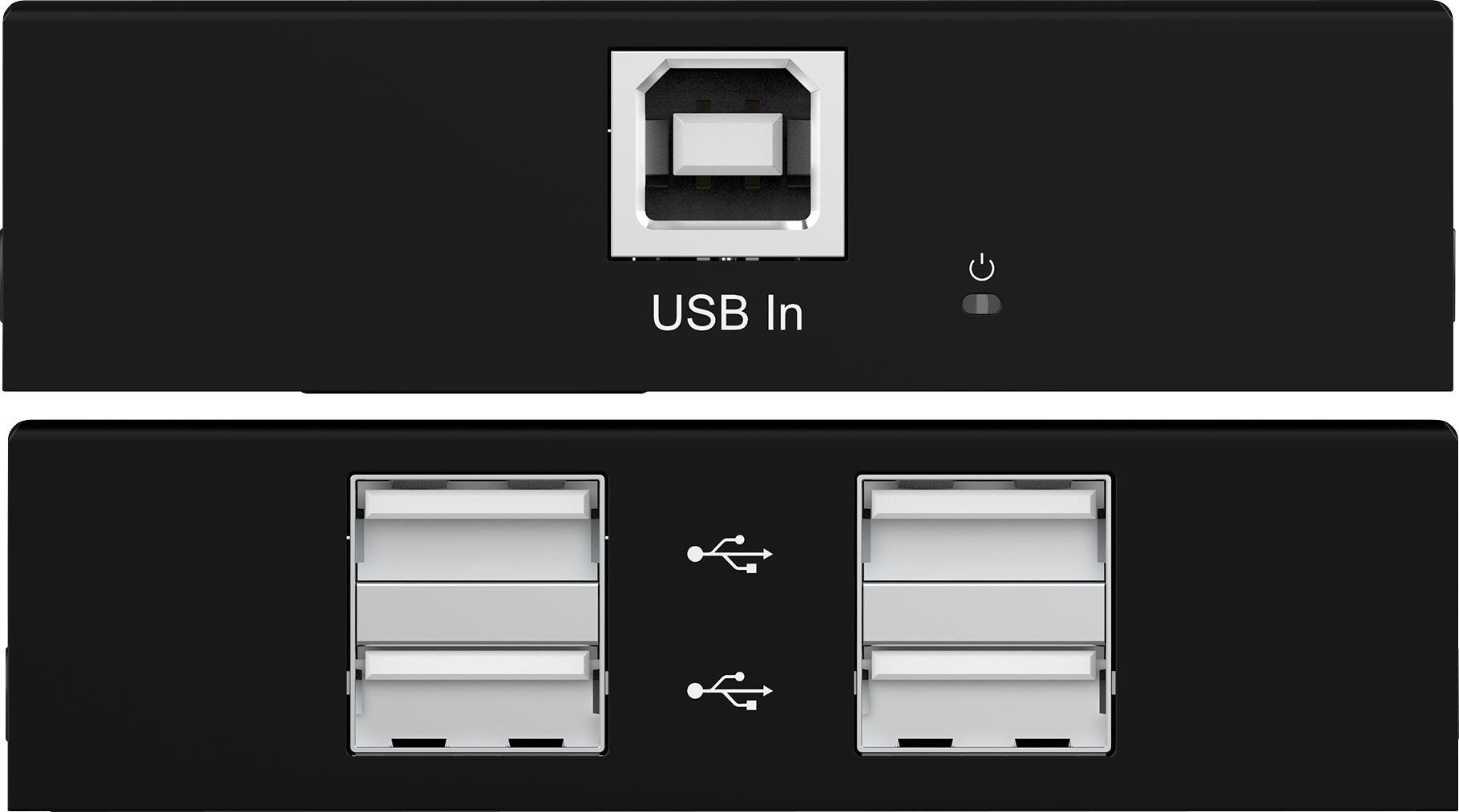

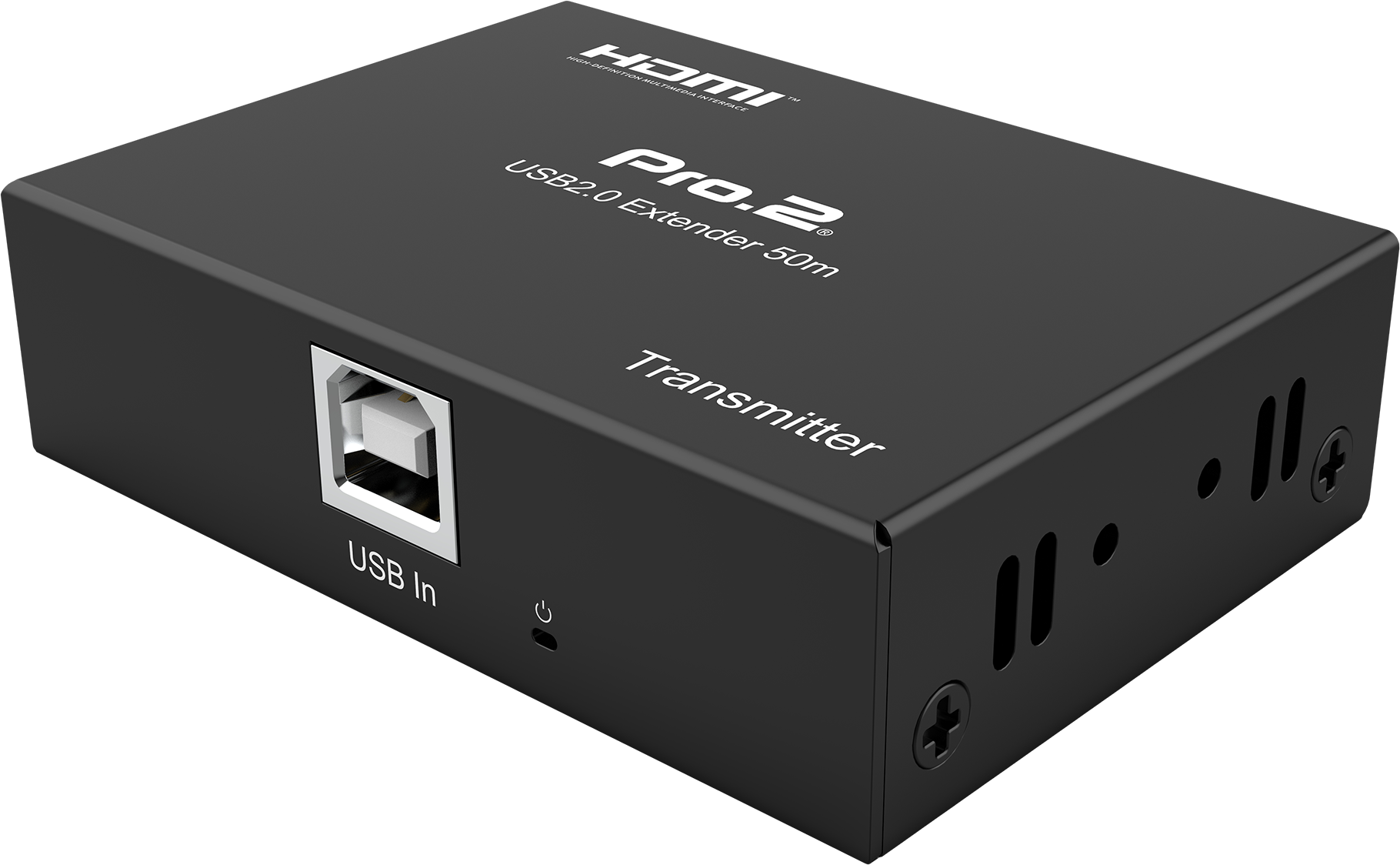

USB port at transmitter 1 × USB type B

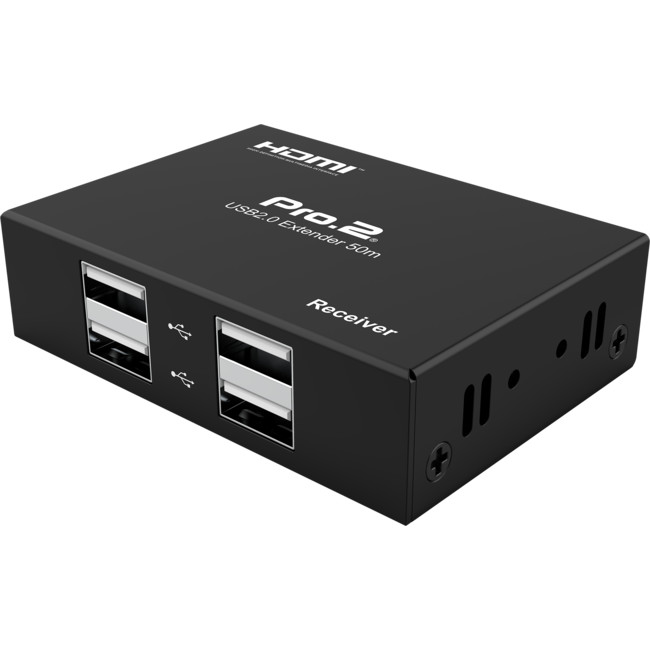

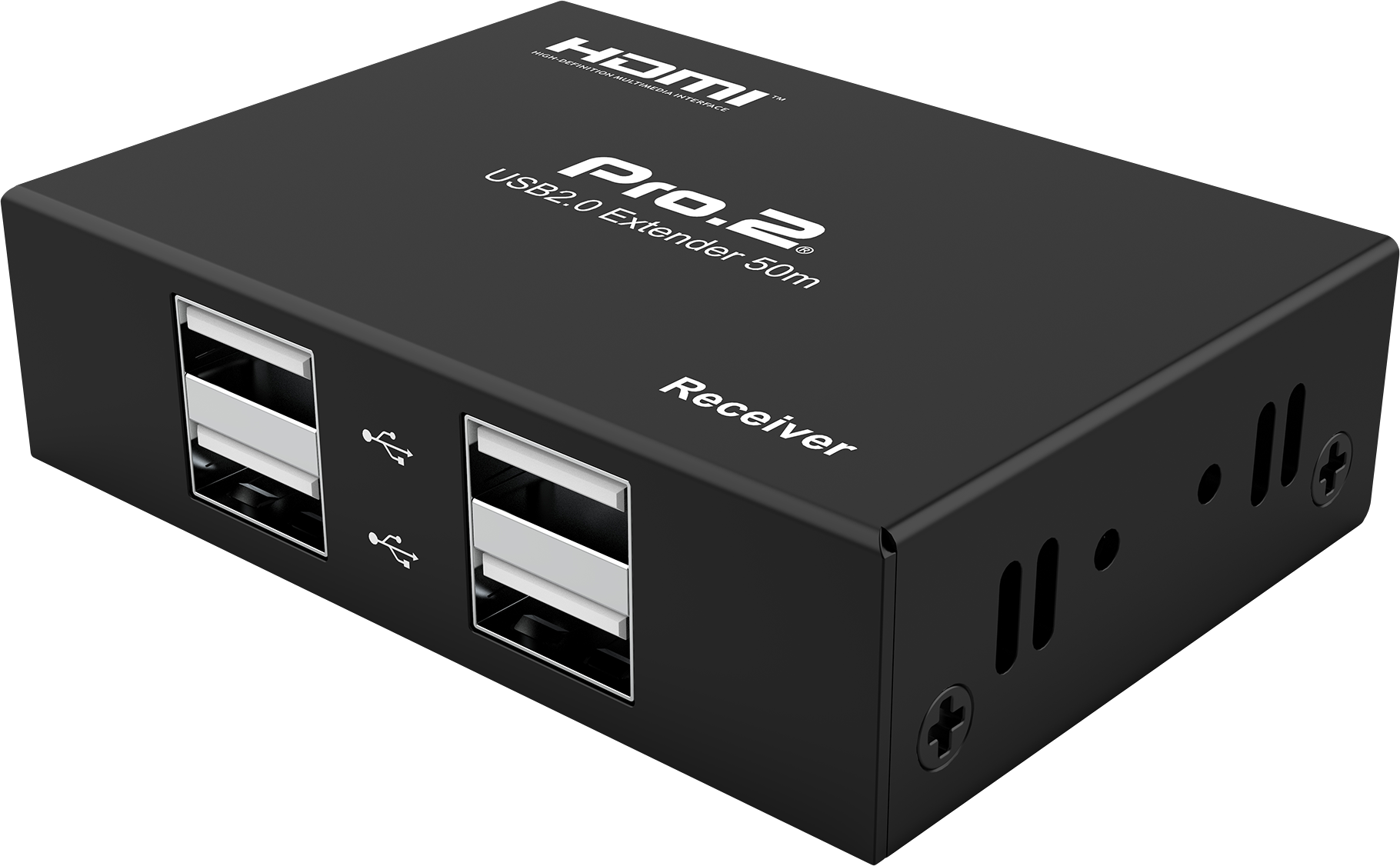

USB port at receiver 4 × USB2.0 type A
Support Operating Systems Windows 7/8/10, Mac OS v8.6 and above, Linux system
USB Standard USB2.0
Transmitter USB Electric Current Less than 0.1A

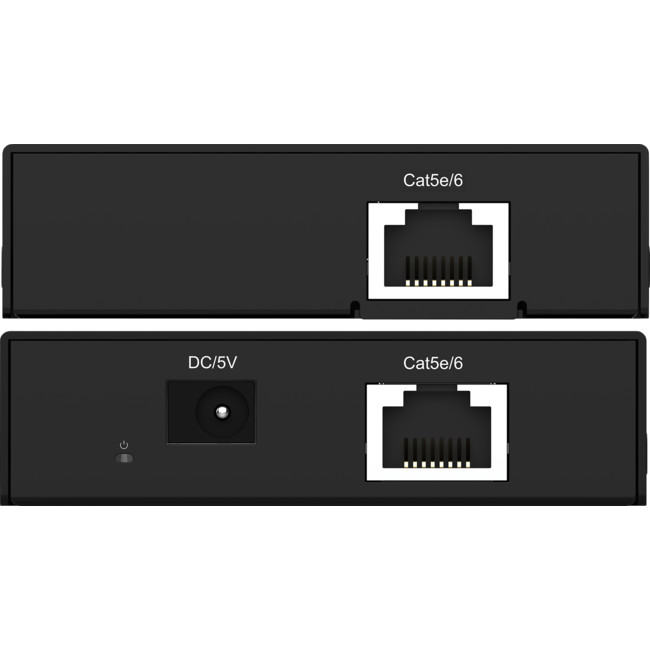

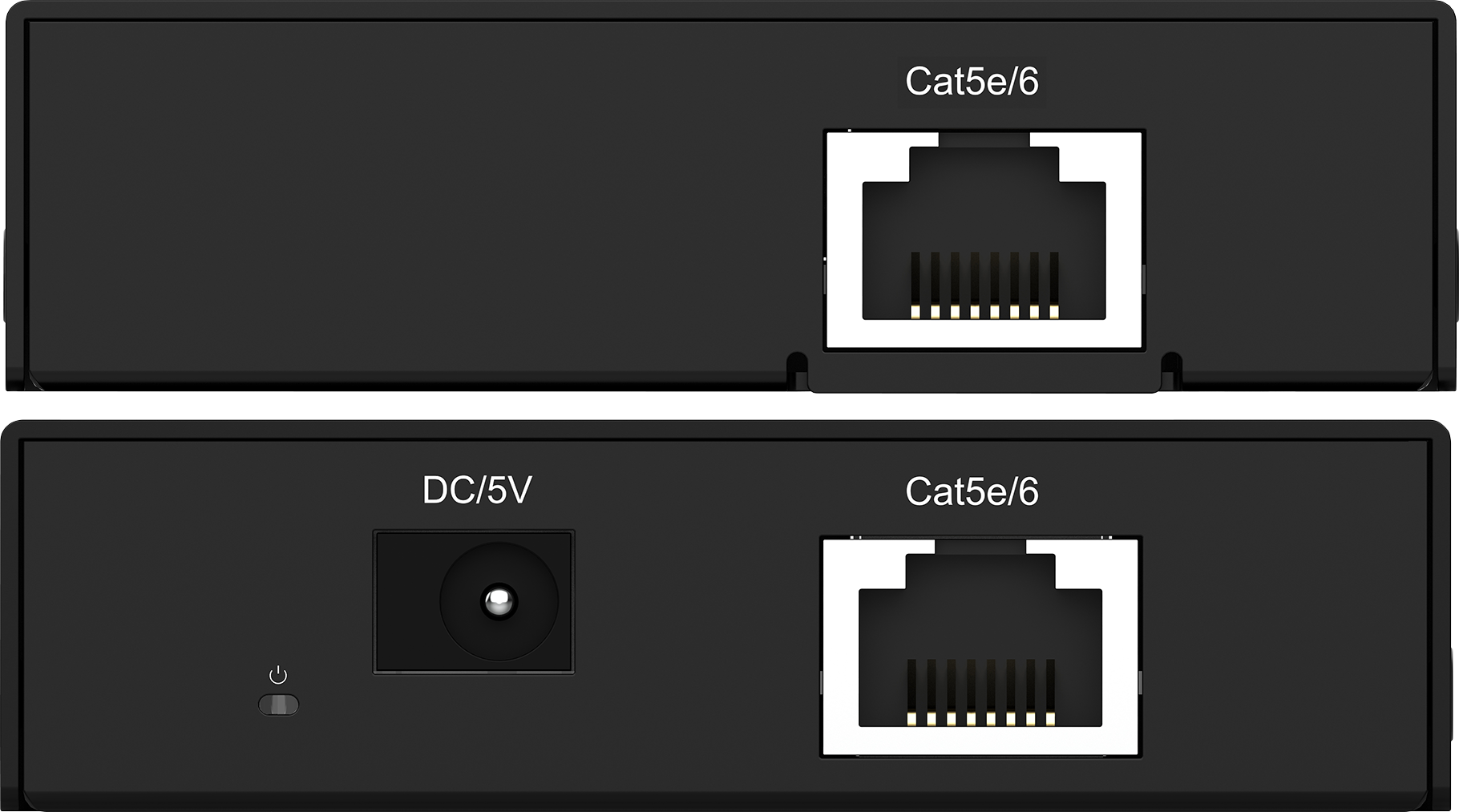

Data Transmission Distance 50m over CAT5e/CAT6 cable
Receiver Power Consumption 4W (Maximum)
Dimensions (L×W×H) 70mm × 53.2mm × 22mm
Weight 140g (pair)

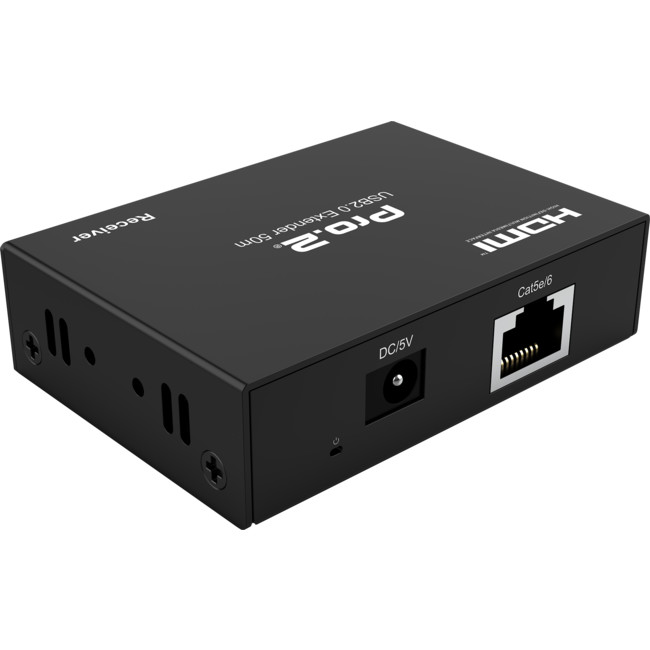

Power Supply 5V DC 1A

What's In The Box?

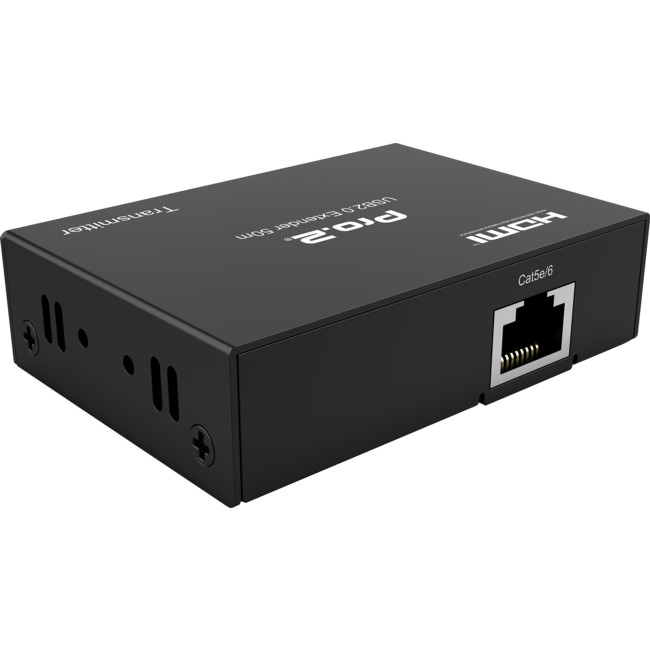

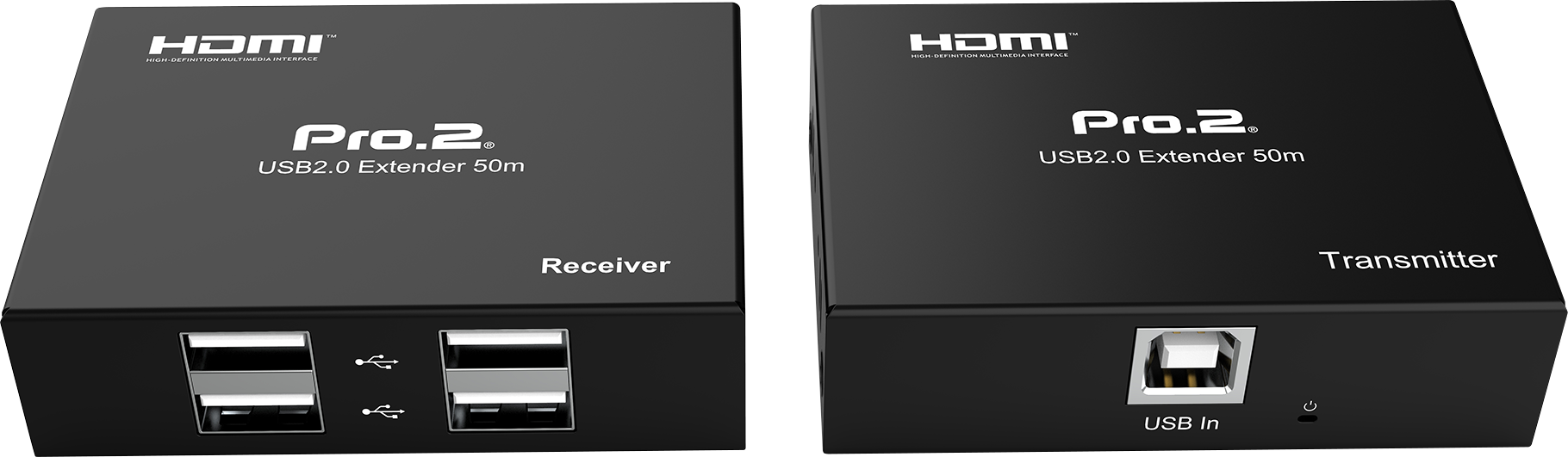

  • Transmitter × 1pc

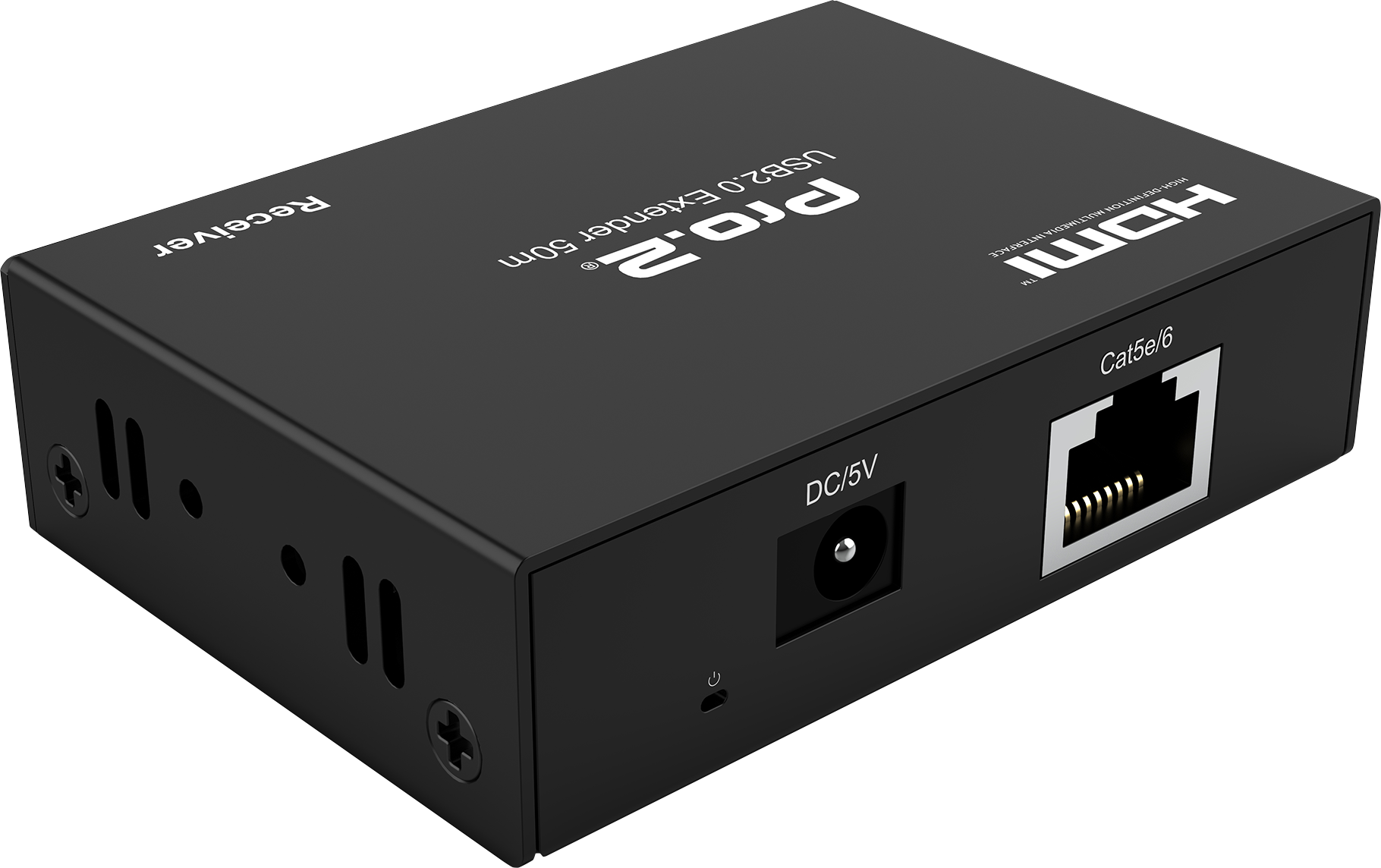

  • Receiver × 1pc
  • 5V DC 1A Power Supply × 1pc
  • USB B plug to USB A plug cable × 1pc
  • Manual
