UE4P 4 PORT USB 2.0 CAT5 EXTENDER

50M INDUSTRIAL

Code: 09051720

0.6000 kg
EACH
Special
Buy-In
$199 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Interested in purchasing this product?
This product is a special buy-in. Special buy-in products are goods especially bought in on customer's request. After acceptance, special buy-in products cannot be cancelled or the goods returned, unless Radio Parts and its supplier agrees to the cancellation of the corresponding order and return of goods. Prices are subject to change and in the event that our purchase price has changed, we will notify you before finalising your order. Please call us on (03) 93218300 for availability, ETA, or if you have further questions.
Click here if you agree to these terms and to show the Add To Cart button.
View Product
Enter 4 digit postcode

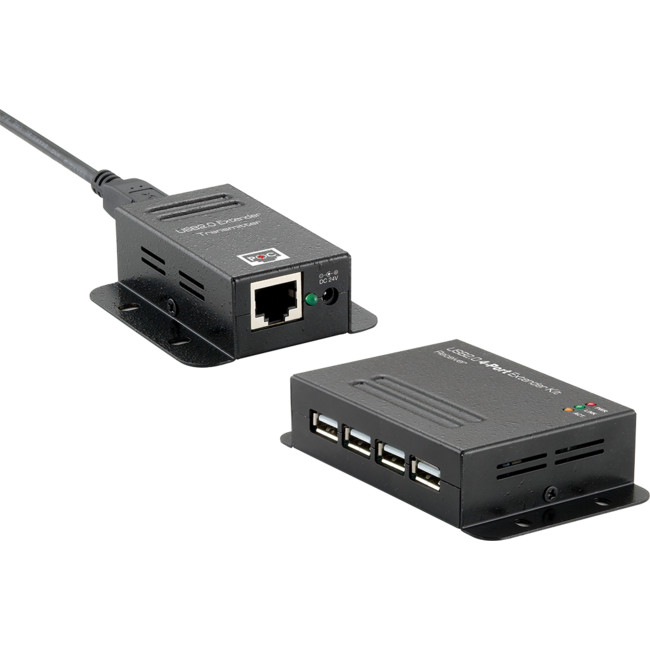

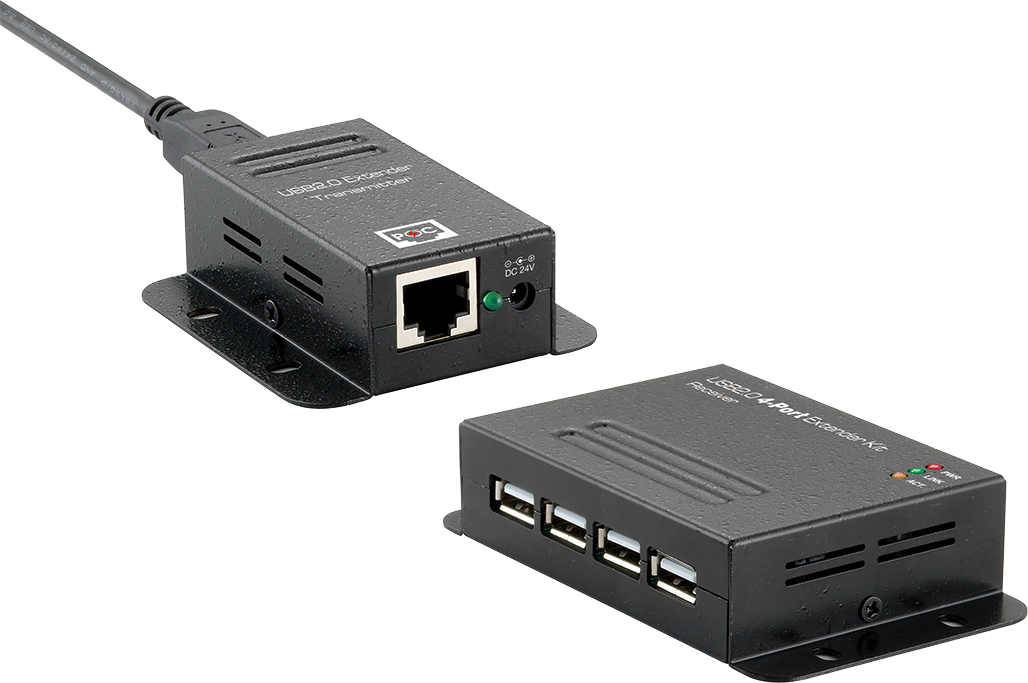

KRYSMA USB 2.0 INDUSTRIAL 4-PORT CAT5 EXTENDER KIT 50M

Krysma USB 2.0 CAT5/6 4 Port Extender can be used to extend the distance between a USB peripheral device and hostcomputer by up to 50m.

It consists of a local unit which connects to the computer and a remote unit that connects up to 4 devices. Standard, low cost CAT5/5e/6 network cable (not included) isthen used to bridge the connection between the two units.

The Extender features Power over CAT5/6, this requires a single power supply to be connected to the Transmitter/Localunit, and this handy feature allows the Receiver/Remote unitand connected devices to be located more freely as no power supply is required.

For added convenience both the Transmitter and Receiver units both feature integrated mounting brackets making installation even easier.Extend a USB 2.0 port up to 50m using low cost CAT5/5e/6 network cable (not included)

Specifications

General

  • USB 2.0 interface, backwards compatible with USB 1.1/1.0
  • Maximum distance between Local and Remote Unit: 50m
  • Connection via CAT5 (or higher) cable
  • Power over CAT5 requires a single power supply to be connected to the Transmitter only
  • Plug & Play installation, no drivers required
  • Compatible with all OS with USB support

Transmitter

  • Ports: USB 2.0 Type B Female, RJ45 Female, 3.5/1.35mm Outer/Inner DC socket
  • Dimensions (WxDxH): 60x67x23mm (includes mounting brackets)
  • Metal Housing

Receiver

  • Ports: RJ45 Female, 4 x USB Type A Female
  • Dimensions (WxDxH): 110x64x23mm
  • Metal Housing
  • Temperature Range: 0° – 40°C (operating), -10° – 70°C (storage)
  • Humidity: max. 80% (operating), max. 95% (storage)

Package Contents

  • USB 2.0 4 Port CAT5/6 Extender
  • Power Adapter
  • USB 2.0 Type A/B Cable
  • User Manual
