{tab Overview}

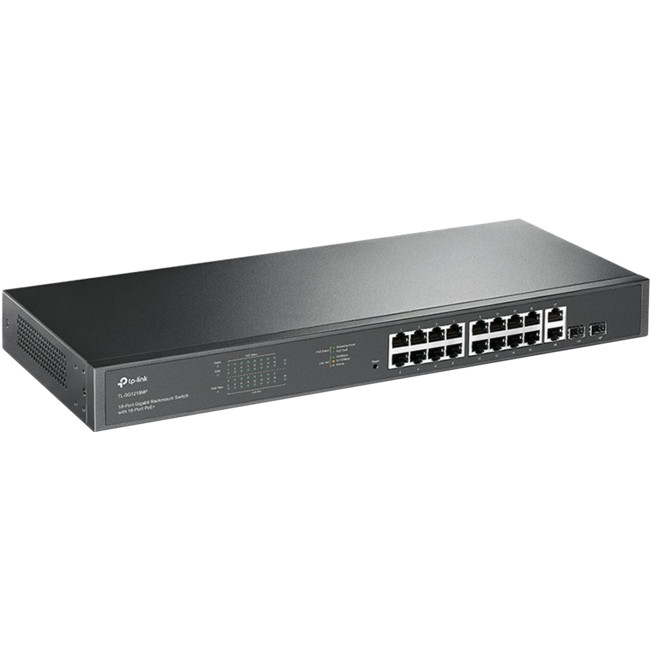

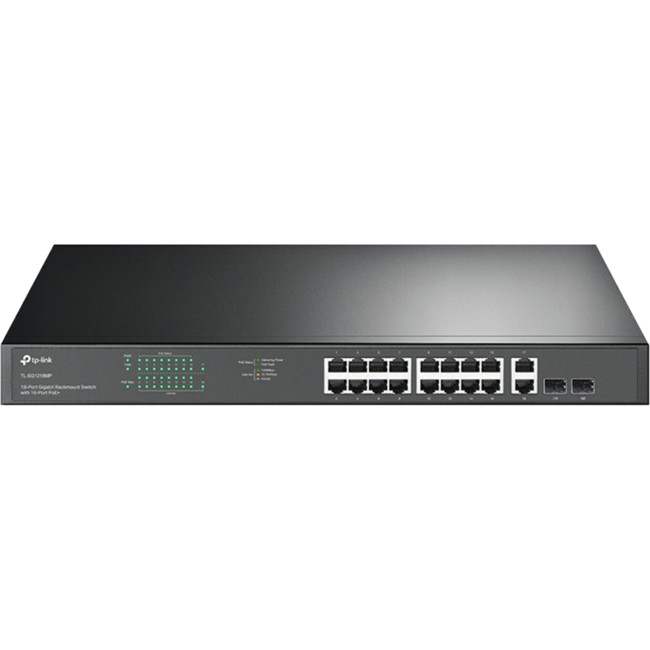

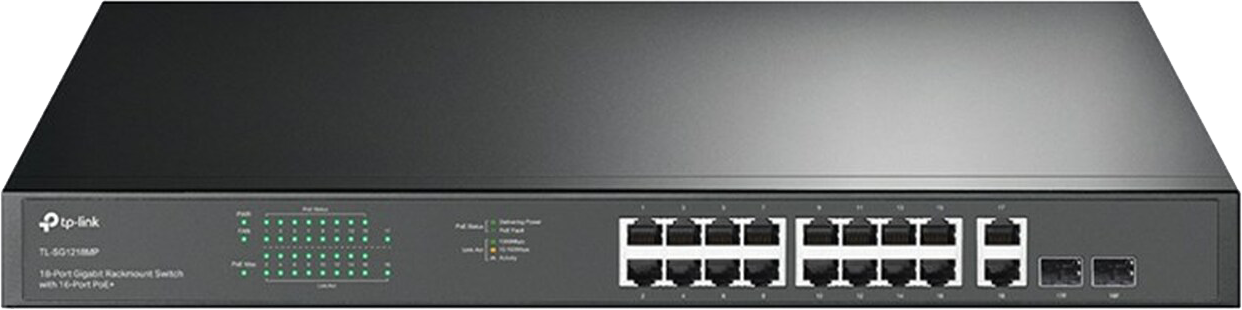

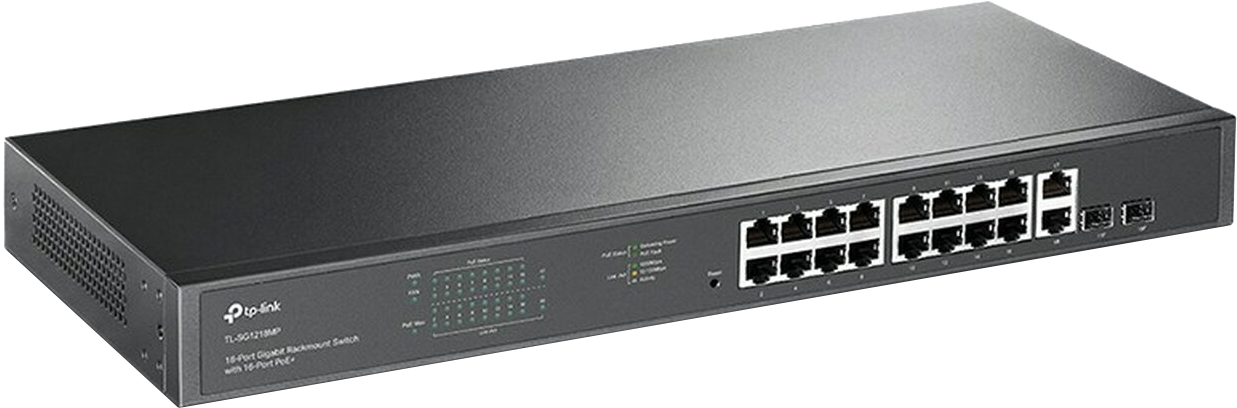

TP-Link TL-SG1218MP 18-Port Gigabit Rackmount Switch with 16 PoE+
Dedicated 16-Port PoE+ Switch (250W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30W on each PoE port. The total 250W PoE power budget for the 16 × gigabit PoE+ ports makes it suitable for a wide range of applications, from surveillance to networking in offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc.
QoS for a Lag-Free Experience
Ensures smooth traffic for latency sensitive applications, such as voice and video, by designating the priority of traffic based on Quality of Service (QoS).
Intelligent Power Management to Prevent Power Overload
When your total power consumption exceeds 250W, Intelligent Power Management automatically cuts lower priority ports’ power to ensure high-priority ports’ power supply. This protects the device from power overload operation. It also automatically detects the required PoE power for your device and protects your non-PoE equipment from being damaged.
Wide Operating Temperature with Good Heat Dissipation
Durable metal casing and professional heat dissipation design ensure the wide operating temperature (0°C ~ 50°C) with reliability.
Multiple Application Scenarios
The TL-SG1218MP is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices to provide gigabit connections, such as PCs, printers, and IPTV.
{tab Specifications}
Specifications
| HARDWARE FEATURES | Standards and Protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab,IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p |
|---|
| Interface | - 16 × PoE+ gigabit RJ45 ports
- 2 × gigabit non-PoE RJ45 ports
- 2 × combo gigabit SFP slots
|
| Network Media | - 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
- EIA/TIA-568 100Ω STP (maximum 100m)
- 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
- EIA/TIA-568 100Ω STP (maximum 100m)
- 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
- EIA/TIA-568 100Ω STP (maximum 100m)
- 1000BASE-X MMF, SMF
|
| Fan Quantity | 2 |
| Physical Security Lock | Yes |
| Power Supply | 100V-240V AC, 50/60Hz |
| PoE+ Ports(RJ45) | - Standard: 802.3at/802.3af compliant
- PoE Ports: Ports 1 – 16
- PoE Power Budget: 250W
|
| Dimensions (W×D×H) | 440mm × 180mm × 44mm (17.3″ × 7.1″ × 1.73″) |
| Mounting | Rack Mountable |
| Max Power Consumption | - 21.4W (220/50 Hz. no PD connected)
- 286.64W (220/50 Hz. with 250W PD connected)
|
| Max Heat Dissipation | - 72.97 BTU/h (no PD connected)
- 977.44 BTU/h (with 250W PD connected)
|
| PERFORMANCE | Switching Capacity | 36 Gbps |
|---|
| Packet Forwarding Rate | 26.78 Mbps |
| MAC Address Table | 8K |
| Packet Buffer Memory | 4.1 Mbit |
| Advanced Functions | - Compatible With IEEE 802.3af/atCompliant PDs
- 802.1p/DHCP QoS
- Mac Address Auto-Learning And Auto-Aging
- IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode
|
| Jumbo Frame | 10KB |
| ENVIRONMENT | Operating Temperature | 0°C ~ 50°C (32°F ~ 122°F) |
|---|
| Storage Temperature | −40°C ~ 70°C (−40°F ~ 158°F) |
| Operating Humidity | 10~90% RH non-condensing |
| Storage Humidity | 5~90% RH non-condensing |
| OTHERS | Certification | CE, FCC, RoHS |
|---|
| Package Contents | - TL-SG1218MP
- Installation Guide
- Power Cord
- Rackmount Kit
- Rubber Feet
|
{/tabs}
