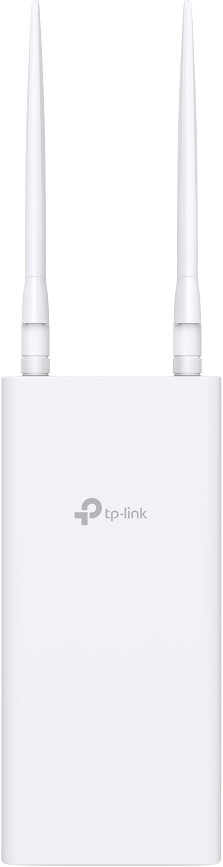

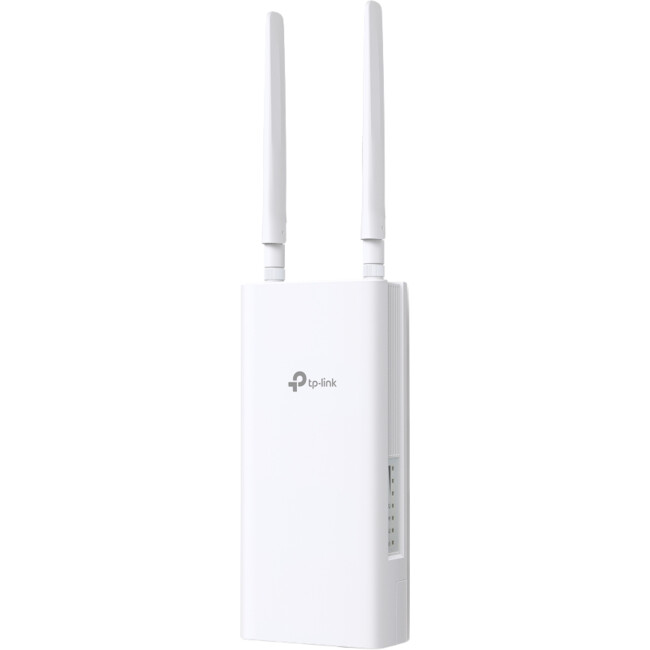

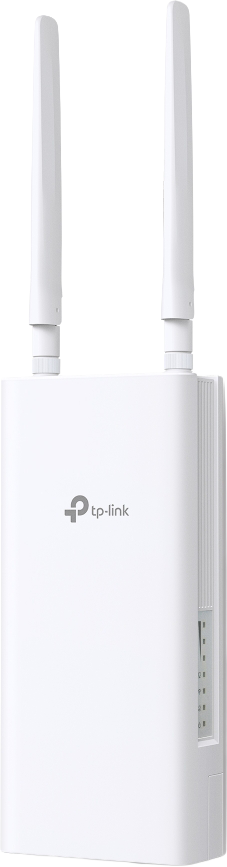

Name: MR100-OUTDOOR 300MBPS 4G LTE OUTDOOR ROUTER SIM
Brand: TP-LINK
SKU: 09051661
Price: 179 AUD
Availability: InStock

SIM

Code: 09051661

0.4840 kg

1210002601641

EACH

ETA 2026-08-31

$179 inc GST

Increase value Decrease value

Qty	Each (inc GST)	Each

Request Price Match

Freight Estimator Enter 4 digit postcode

Features
Downloads

4G 300 Mbps Wi-Fi Outdoor Router

4G LTE and Fast Wi-Fi Speed :supports LTE up to 150 Mbps and Wi-Fi up to 300 Mbps on 2.4 GHz .*
Durable Outdoor Enclosure:Robust outdoor connectivity and reliability with IP65 weatherproof protection**and±6kV lightning protection & ±15kV ESD protection§.

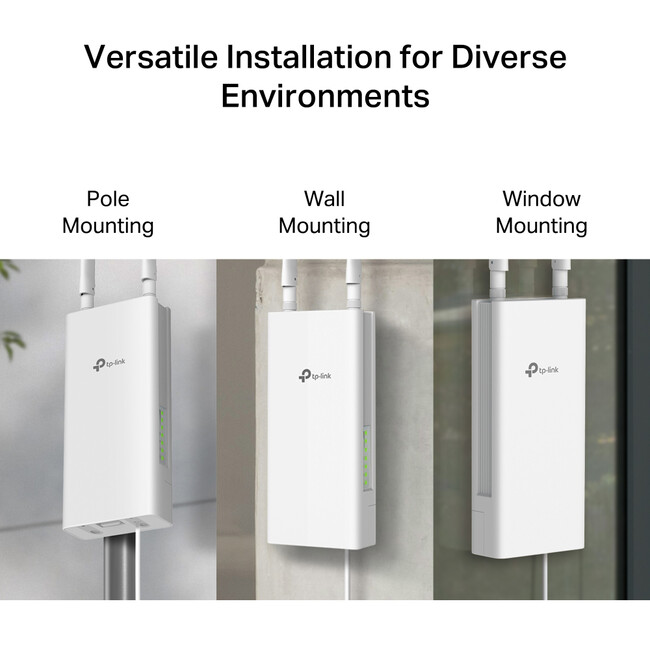

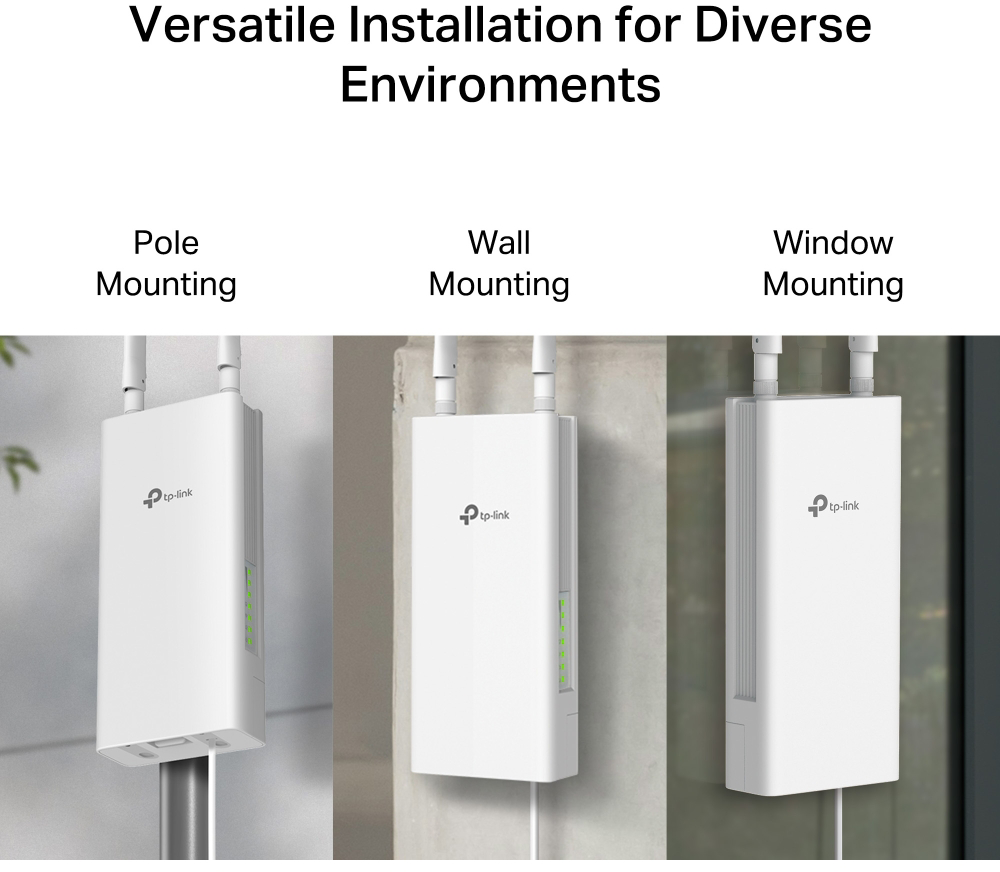

Multiple Mounting Installation:Install easily anywhere with pole, wall, or window mounting for flexible, convenient use.

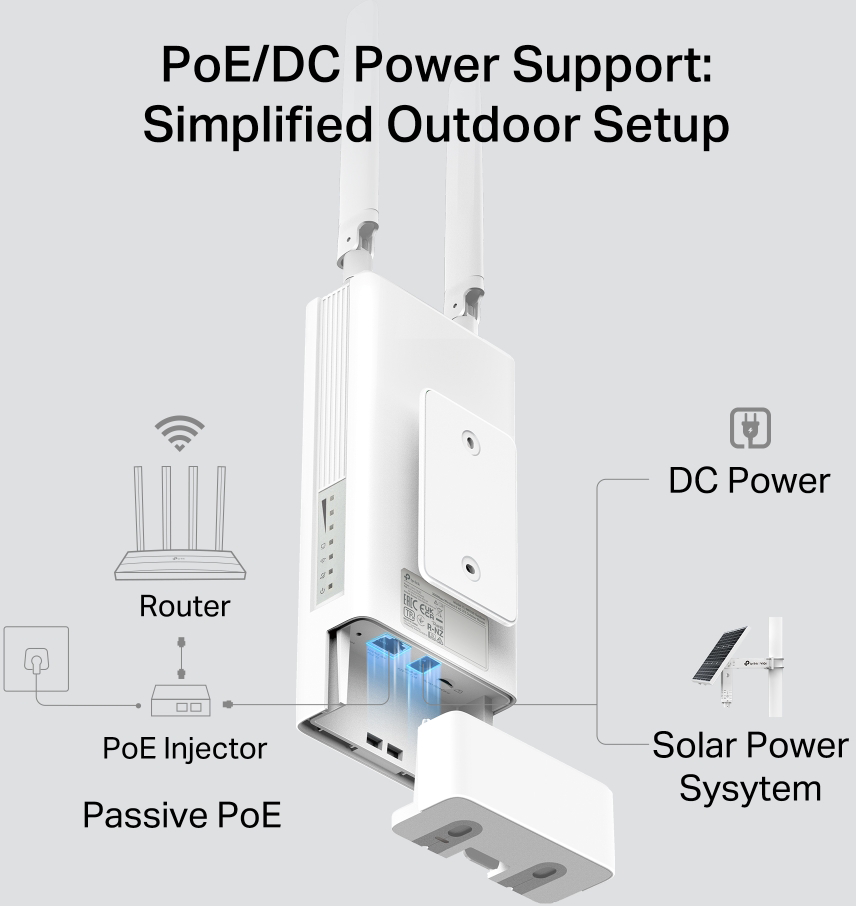

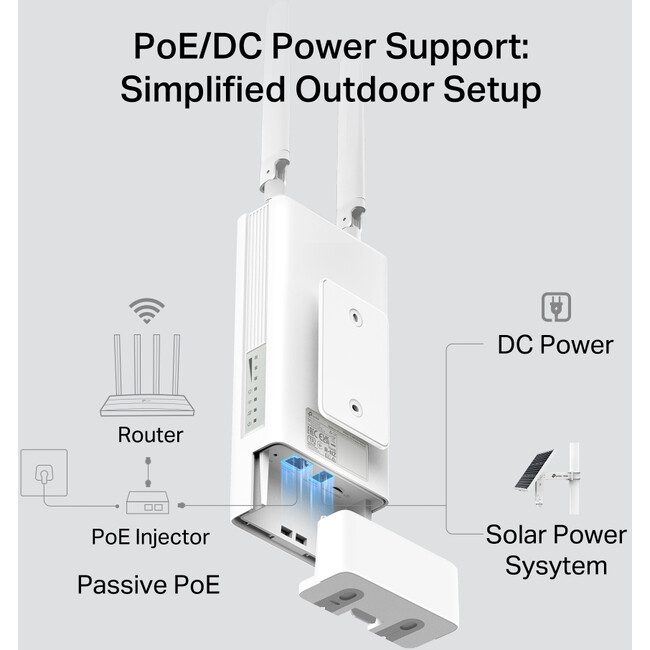

PoE/DC Power Supply:Supports802.3af/802.3at PoEand passive PoE, enabling easy deployment.
Plug and Play:Plug in a SIM card to get instant internet access anywhere.
Simplified Setup: Easily set up and manage your network with the Tether app.

4G
Network Type	4G FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz) TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz) 3G: DC-HSPA+/HSPA/UMTS:B1/B5/B8(2100/850/900 MHz)
Speed	Download Speed 150 Mbps Upload Speed 50 Mbps
SIM Type	1×Nano SIM Card

SOFTWARE FEATURES
Security	DoS, IPv4 SPI Firewall, IP and MAC Address Binding
Operating Modes	3G/4G Router, Wireless Router
WAN Type	Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)
Management Features	Local Management, Remote Management
DHCP	Server, DHCP Client List, Address Reservation
Port Forwarding	ALG, Virtual Server, Port Triggering, UPnP, DMZ
Dynamic DNS	TP-Link, DynDns, NO-IP
Protocols	IPv4, IPv6
Guest Network	2.4 GHz guest network
Administration	Upgrade Firmware, Factory Default, System Log, Diagnostic Tools

HARDWARE
Interface	1× 100 Mbps WAN/LAN Port (PoE In) 1× Nano SIM Card Slot 1 × DC Port
Buttons	1× Reset Button
Power	12V/1A DC 24V/0.5A Passive PoE 44-57V/0.35A 802.3af
Dimensions (W x D x H)	8.9 x 3.9 x 2.2 in (226.6 x 100x 54.7mm)
Antennas	2 × Detachable LTE Antennas

WIRELESS FEATURES
Wireless Standards	IEEE 802.11b/g/n
Frequency	2.4 GHz
Signal Rate	300 Mbps
Reception Sensitivity	11g 54M: -74 dBm 11n HT20: -73 dBm 11n HT40: -70 dBm
Wireless Functions	Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics
Wireless Security	WPA/WPA2, WPA-PSK/WPA2-PSK encryptions

OTHER
Network Services Enabled by Default	Web Server Manage and configure device through web (HTTP/HTTPS) • Port: 80/443 Protocol: TCP DHCP Server IP address assignment (DHCP) • Port: 67 Protocol: UDP DNS • Port: 53 Protocol: TCP App management Manage and configure device through app • Port: 22 Protocol: TCP • Port: 20002 Protocol: TCP CWMP CPE WAN Management Protocol • Port: 7547 Protocol: TCP

OTHERS
Package Content	1× TL-MR100-Outdoor Unit 1× 10-meter RJ45 Ethernet Cable 1× PoE Adapter 1× AC Power Cord 1× Quick Installation Guide Window/Pole/Wall Mounting Kits
Requirements	Edge, Firefox, Chrome, Safari, or other JavaScript-enabled browser *You are recommended to use the latest version
Certifications	CE, RoHS
Environment	Operating Temperature: -30°C~60°C (-22°F~140°F) Storage Temperature: -40°C~70°C (-40 °F~158 °F) Operating Humidity: 10%~90% RH Storage Humidity: 5%~90% RH
