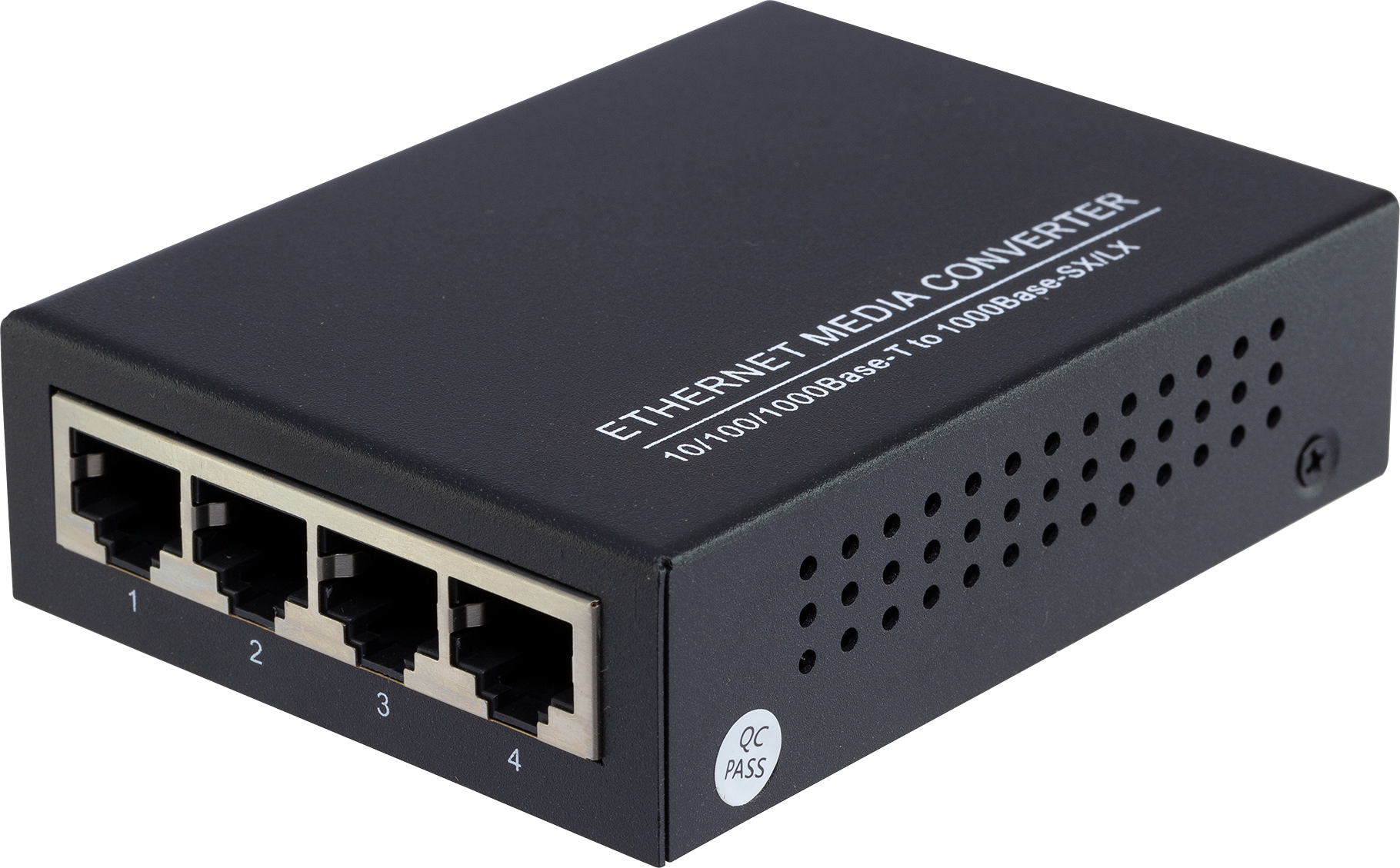

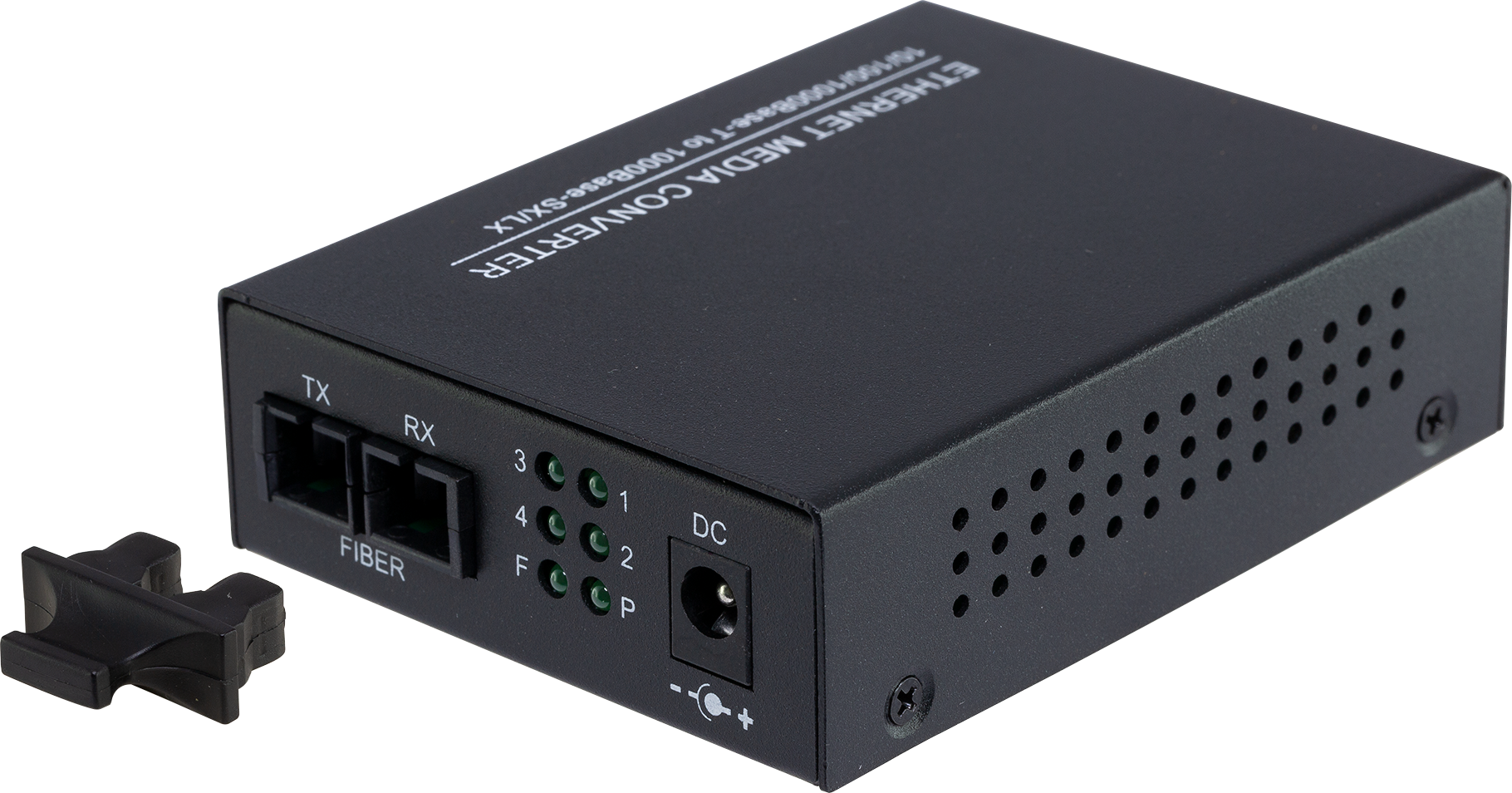

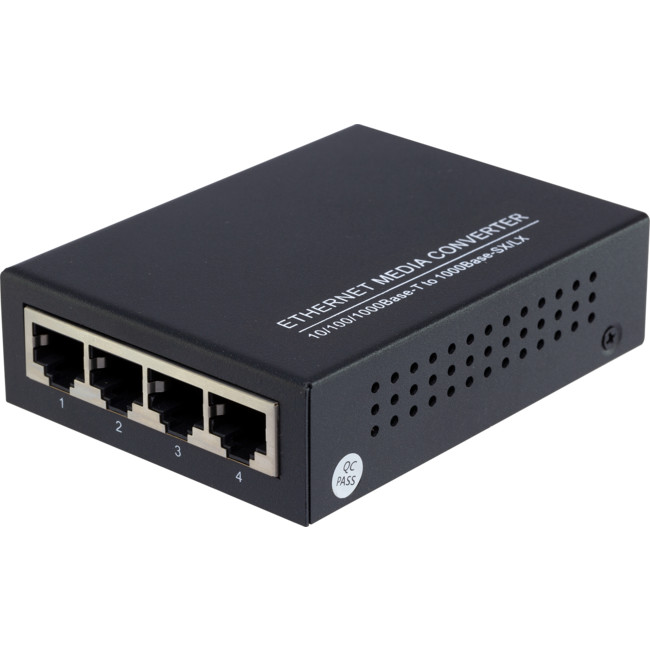

4P1GBSM20KSC 4 PORT 1G FIBRE MEDIA CONVERTER

10/100/1000M SM DUAL FIBRE SC 20KM

Code: 09051552

0.3330 kg
9328202034908
EACH
20
Low Stock
$69 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

4P1GBSM20KSC is Gigabit Ethernet Media Converter and extends the 10,100 and 1000Mbbps twisted-pair network segments up to 20km over the fiber technology. The series media converter is compact and cost-effective design, provide 4-port 10/100/1000Mbps auto negotiation RJ45 connector and 1-port 1.25Gbps full-duplex on the fiber port with SC/FC/ST interface optional. It’s widely used in security monitoring, wireless networking, optical fiber access and other application scenarios.

Features

  • 4-port 10/100/1000M auto-negotiation RJ45 with auto-MDI/MDI-X
  • Fiber port: SC single mode
  • Full duplex and Half duplex operation with IEEE 802.3x flow control
  • 9k Jumbo Frame
  • LED indicators for working status
  • Support hot plug and play
  • 5~12Vdc Wide range power input
  • -20~60 C working temperature
  • ESD, surge protection
  • IP30 enclosure
  • Low power consumption, lead-free process
  • CE/FCC/ROHS compliance

Specifications

Performance

Standard

IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x

Data Forwarding

Store and Forward

Switch capacity

12Gbps

Packet forwarding Rate

7.44Mpps

MAC address

2k

Buffer Space

1M

Jumbo Frame

9k bytes

Flow Control

support

Interface

Copper Port

4x 10/100/1000M Auto-negotiation, RJ45 auto-MDI/MDI-X
Cat5/Cat5e/Cat6, ≤100m

Fiber Port

1.25G SC Single Mode
OS1/OS2 ≤120km; OM1/OM2 ≤550m

LED indicators

Status

PWR, Fiber Link/act, Copper Link/act

Electrical characteristics

Input Voltage

5~12Vdc

Power Consumption

<3W

Power Port

DC socket, Φ2.5mm

Power Adaptor

100~240Vac 50/60Hz input, 5Vdc 1A output

Physical characteristics

Dimension

94x71x26mm





Enclosure

Metal IP30

Environment

Working Temperature

-20~60 C

Storage Temperature

-40~85 C

Relative Humidity

5%~95% (no condensation )

Certification

Safety

EN62368

EMC

EN55032, EN55035, FCC Part 15 Subpart B Class A
IEC61000-3-2, IEC 61000-3-3, IEC61000-4-2, IEC 61000-4-3,
IEC 61000-4-4, IEC 61000-4-5, IEC61000-4-6, IEC61000-4-8, IEC61000-4-11

Reliability

IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-32

ROHS

ROHS 2.0

Available Fibre Media Converters

Code Model Ports Speed Mode Dual Fibre Connector Distance
09051505 FMC100SM20KSC 1 100MB SM Y SC 20KM
09051507 FMC1GBSM20KSC 1 1GB SM Y SC 20KM

09051512 FMC1GBMM550MSC2 1 1GB MM Y SC 550M

09051550 4P100SM20KSC 4 100MB SM Y SC 20KM
09051552 4P1GBSM20KSC 4 1GB SM Y SC 20KM

09051522 FMC1GBSFP 1 1GB Requires SFP Module, can be SM/MM and LC/SC etc.
