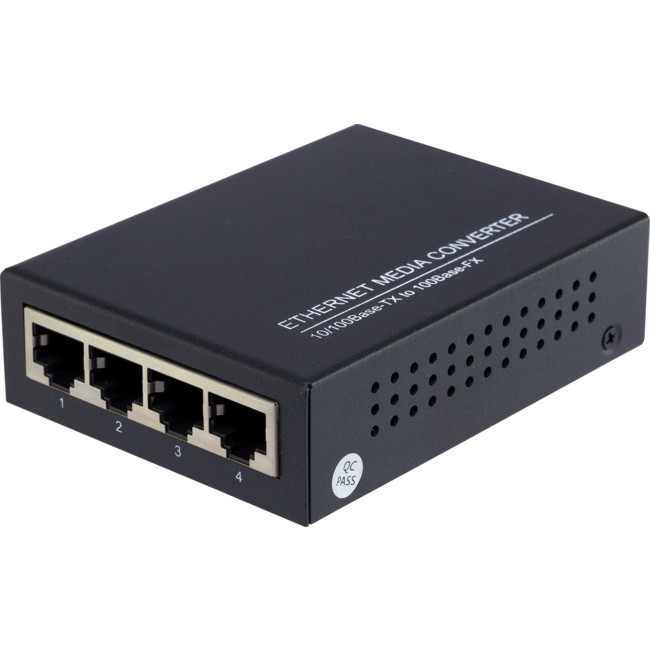

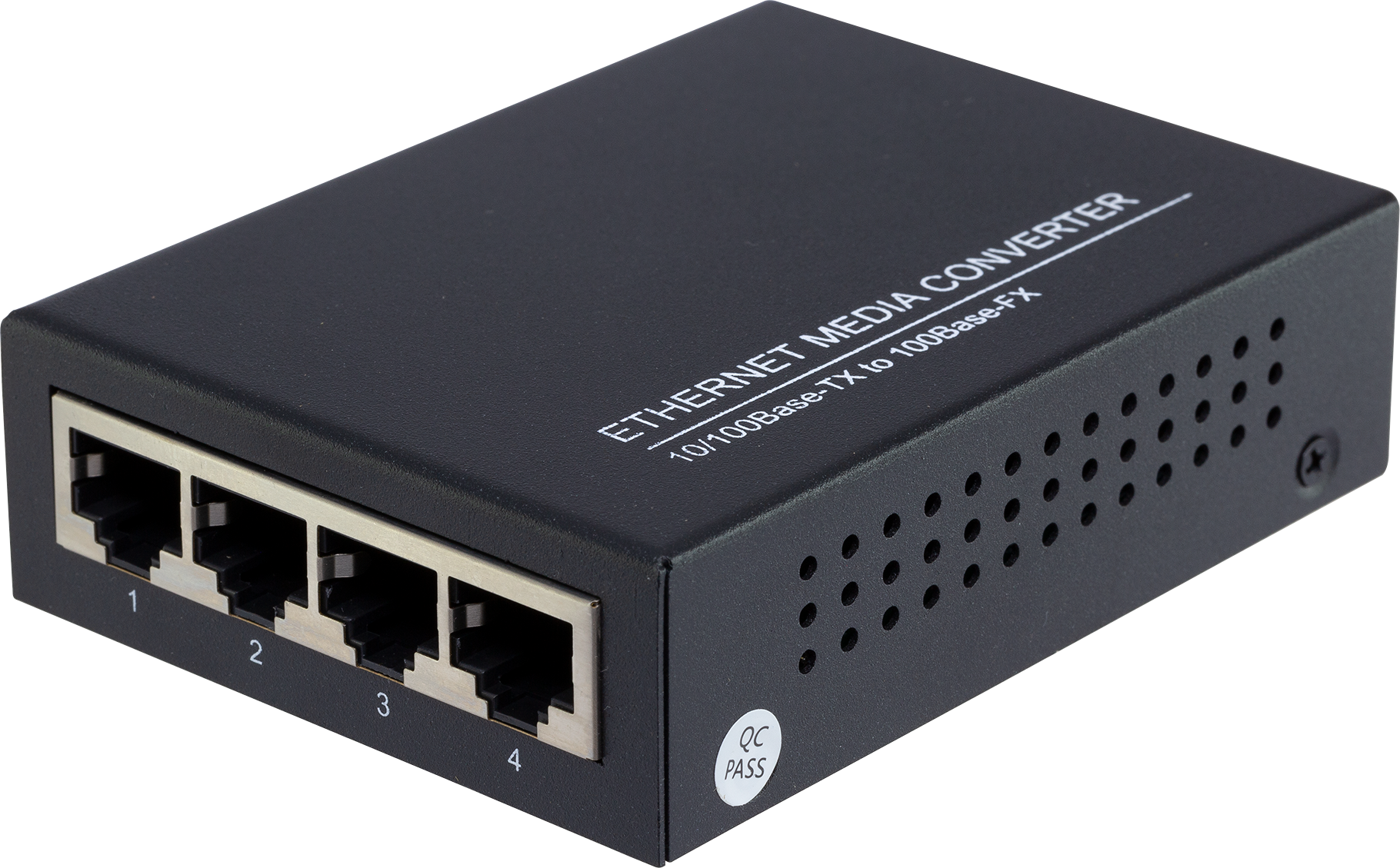

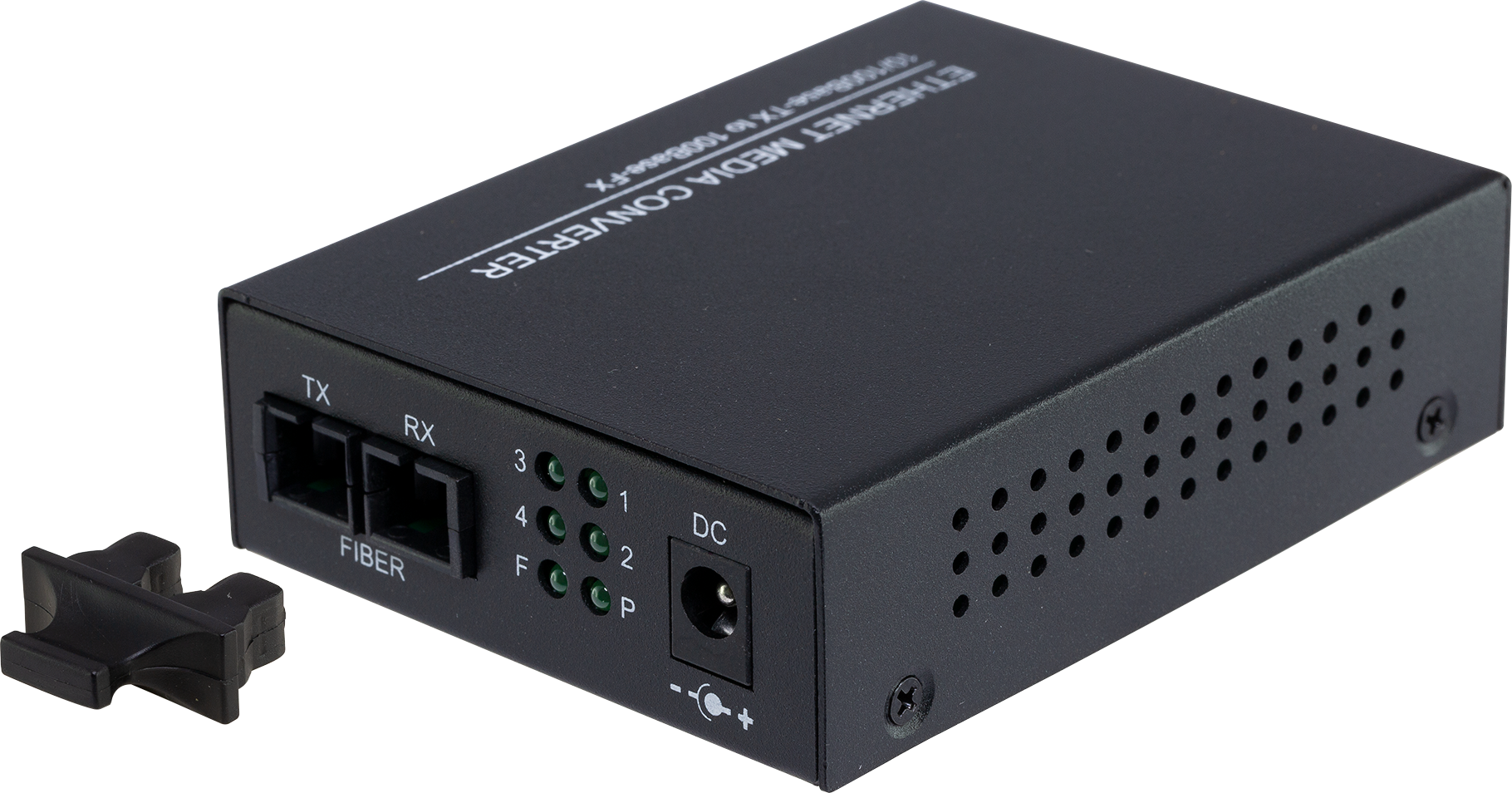

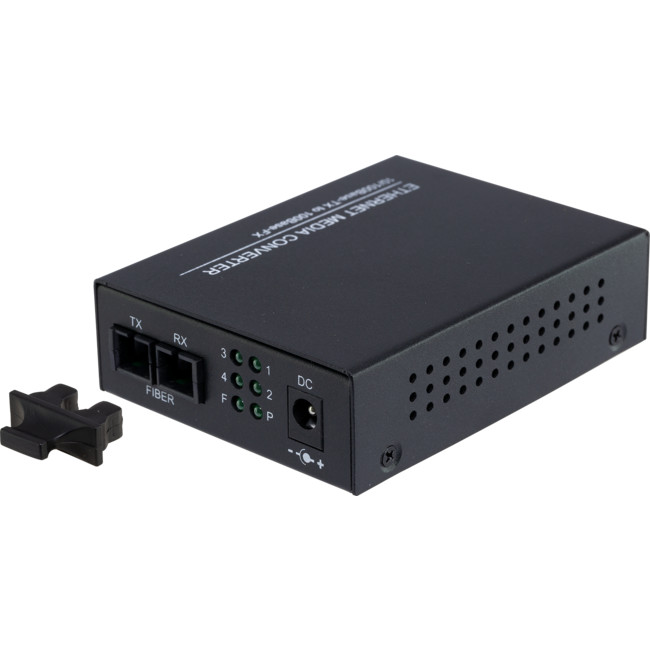

4P100SM20KSC is a Fast Ethernet Media Converter, extends the 10/100Mbbps twisted-pair network segments up to 20km over the fiber technology. The series media converter is compact and cost-effective design, provide 4-port 10/100Mbps auto negotiation RJ45 connector and 1-port 155Mbps full-duplex on the fiber port with SC interface. It’s widely used in security monitoring, wireless networking, optical fiber access and other application scenarios.
Performance
Standard
IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Data forwarding
Store and Forward
Switch capacity
1Gbps
Packet forwarding Rate
0.744Mpps
MAC address
2k
Buffer Space
512Kbit
Flow Control
support
Max. Packet Length
2048bytes
Interface
Copper Port
4x 10/100M Auto-negotiation, RJ45 auto-MDI/MDI-X Cat5/Cat5e/Cat6, ≤100m
Fiber Port
155M SC Single Mode OS1/OS2 ≤120km; OM1/OM2 ≤2km
LED indicators
Status
PWR, Fiber Link/Act, Copper Link/Act
Electrical characteristics
Input Voltage
5Vdc
Power Consumption
<2W
Power Port
DC socket, Φ2.5mm
Power Adaptor
100~240Vac 50/60Hz input, 5Vdc 1A output
Physical characteristics
Dimension
94x71x26mm
Enclosure
Metal IP30
Environment
Working Temperature
-20~60 C
Storage Temperature
-40~85 C
Relative Humidity
5%~95% (no condensation )
Certification
Safety
EN62368
EMC
EN55032, EN55035, FCC Part 15 Subpart B Class A IEC61000-3-2, IEC 61000-3-3, IEC61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC61000-4-6, IEC61000-4-8, IEC61000-4-11
Reliability
IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-32
ROHS
ROHS 2.0
