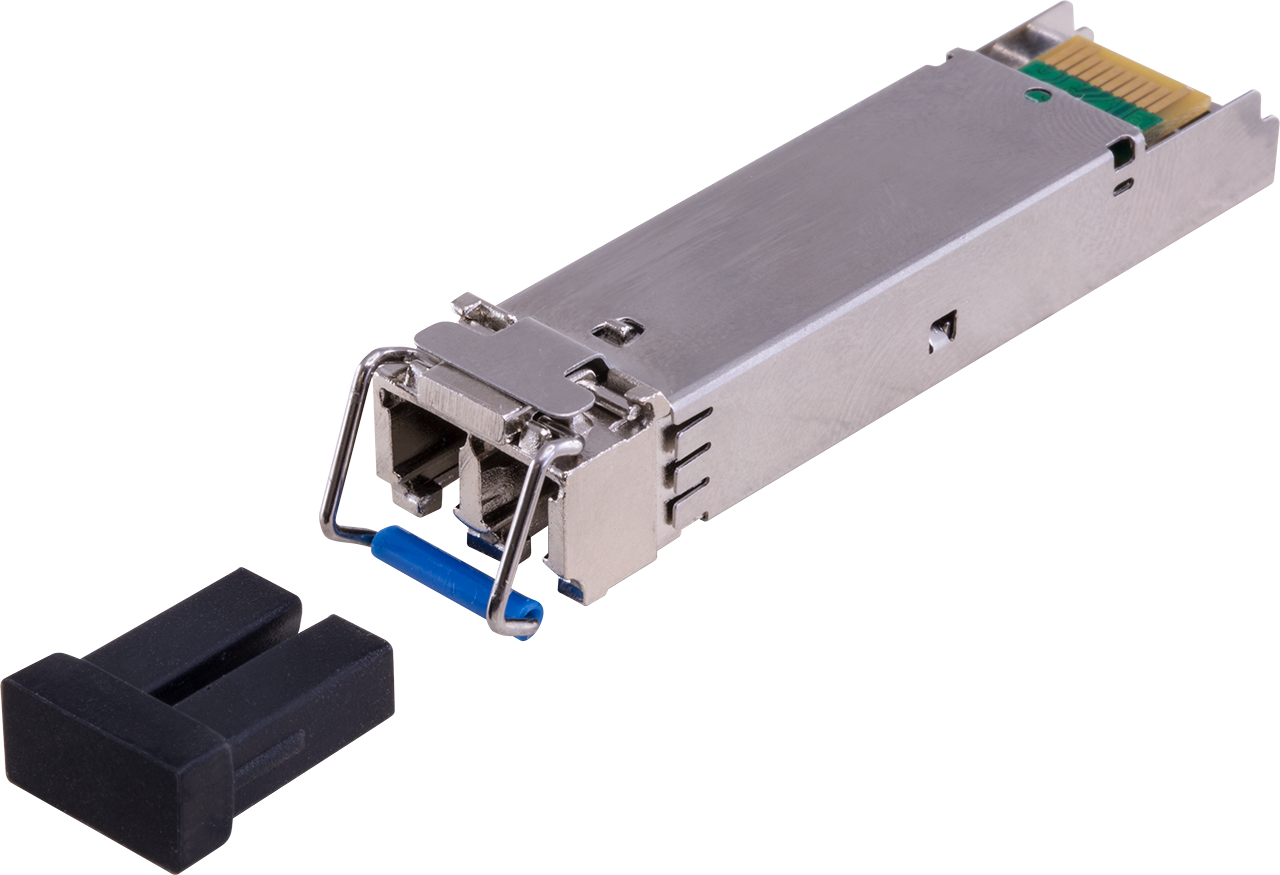

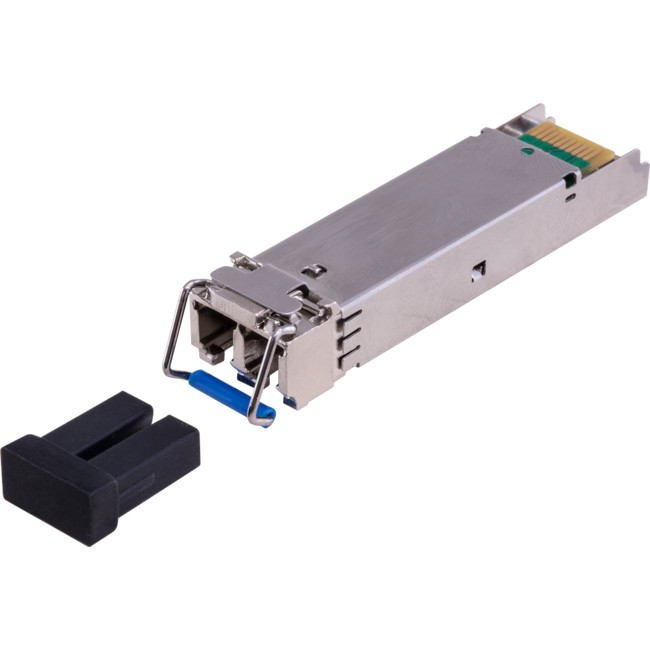

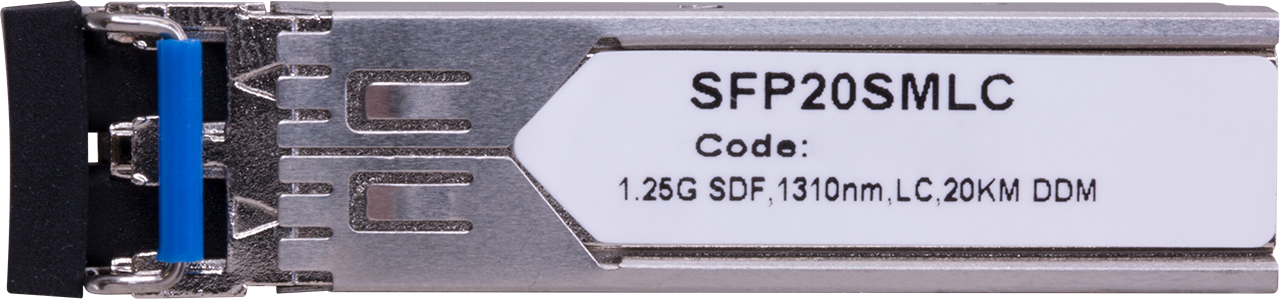

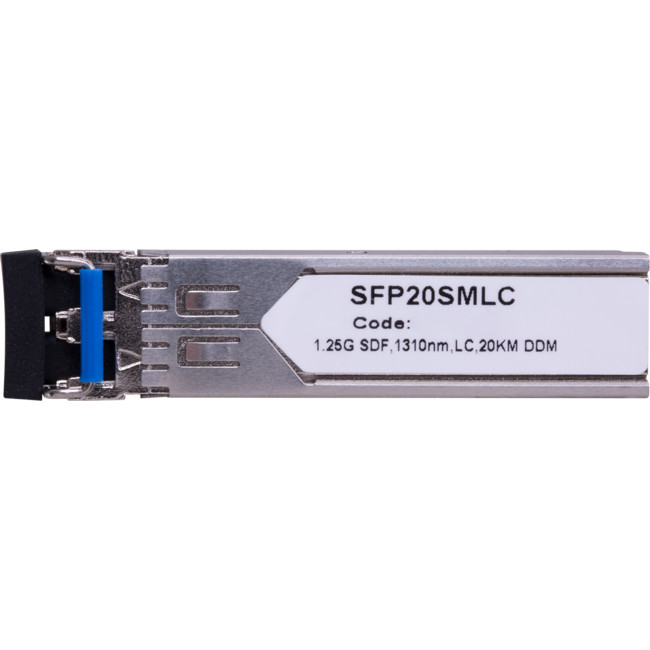

The SFP transceivers are high performance, cost effective modules supporting dual data-rate of 1.25Gbps and 20km transmission distance with SMF. The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
Symbol
Min
Typical
Max
Unit
Notes
Transmitter
Centre Wavelength
1260
1310
1360
nm
Spectral Width(RMS)
4
Average OutputPower
Pout
-9
-3
dBm
1
Extinction Ratio
ER
9
dB
Optical Rise/Fall Time (20%~80%)
tr/tf
0.26
ns
Data Input Swing Differential
VIN
400
1800
mV
2
Input Differential Impedance
ZIN
90
100
110
O
TXDisable
Disable
2.0
Vcc
V
Enable
0
0.8
TXFault
Fault
Normal
Receiver
1580
Receiver Sensitivity
-23
3
Receiver Overload
LOS De-Assert
LOSD
-24
LOS Assert
LOSA
-35
LOS Hysteresis
Data Output Swing Differential
Vout
700
900
LOS
High
Low
Notes: 1. The optical power is launched into SMF. 2. PECL input, internally AC-coupled and terminated. 3. Measured with a PRBS 27-1 test pattern @1250Mbps, BER =1x10-12. 4. Internally AC-coupled.
