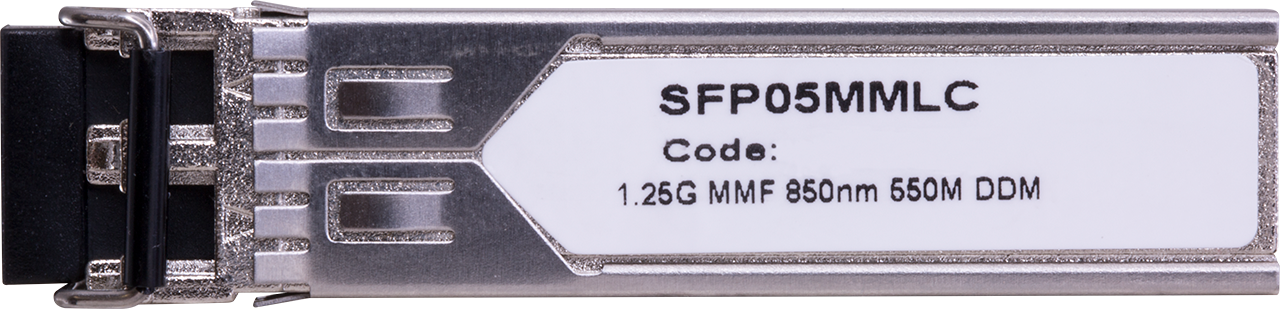

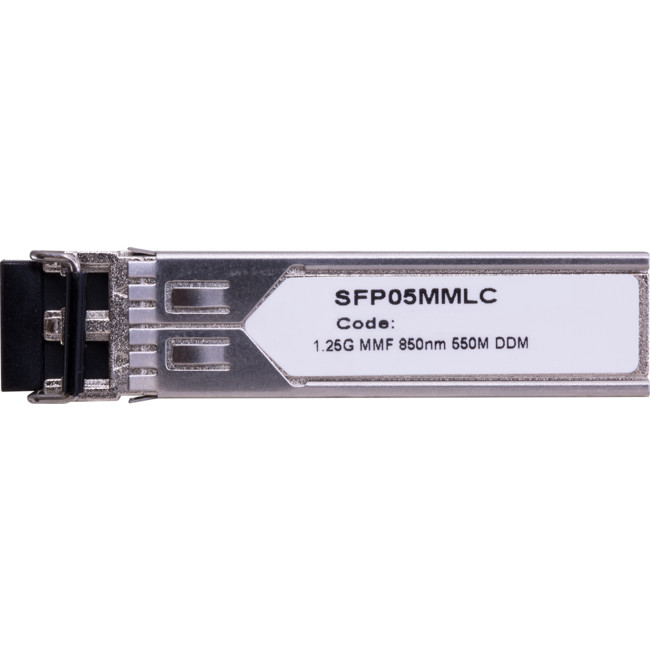

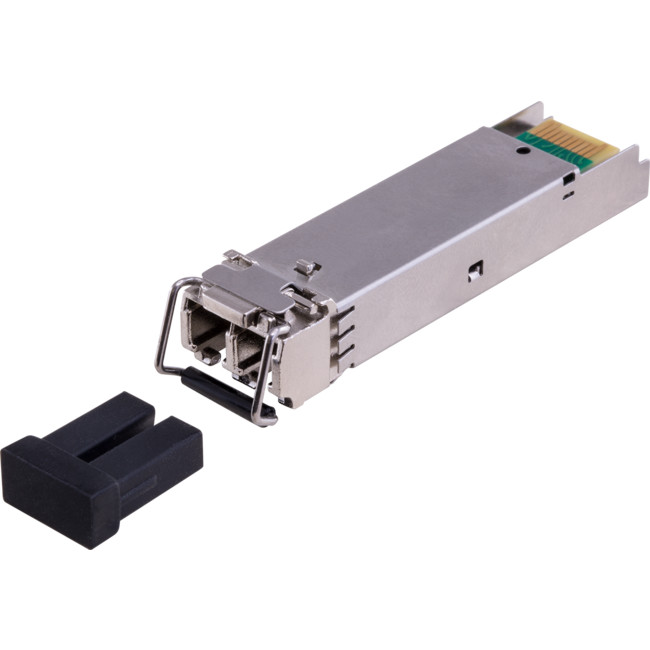

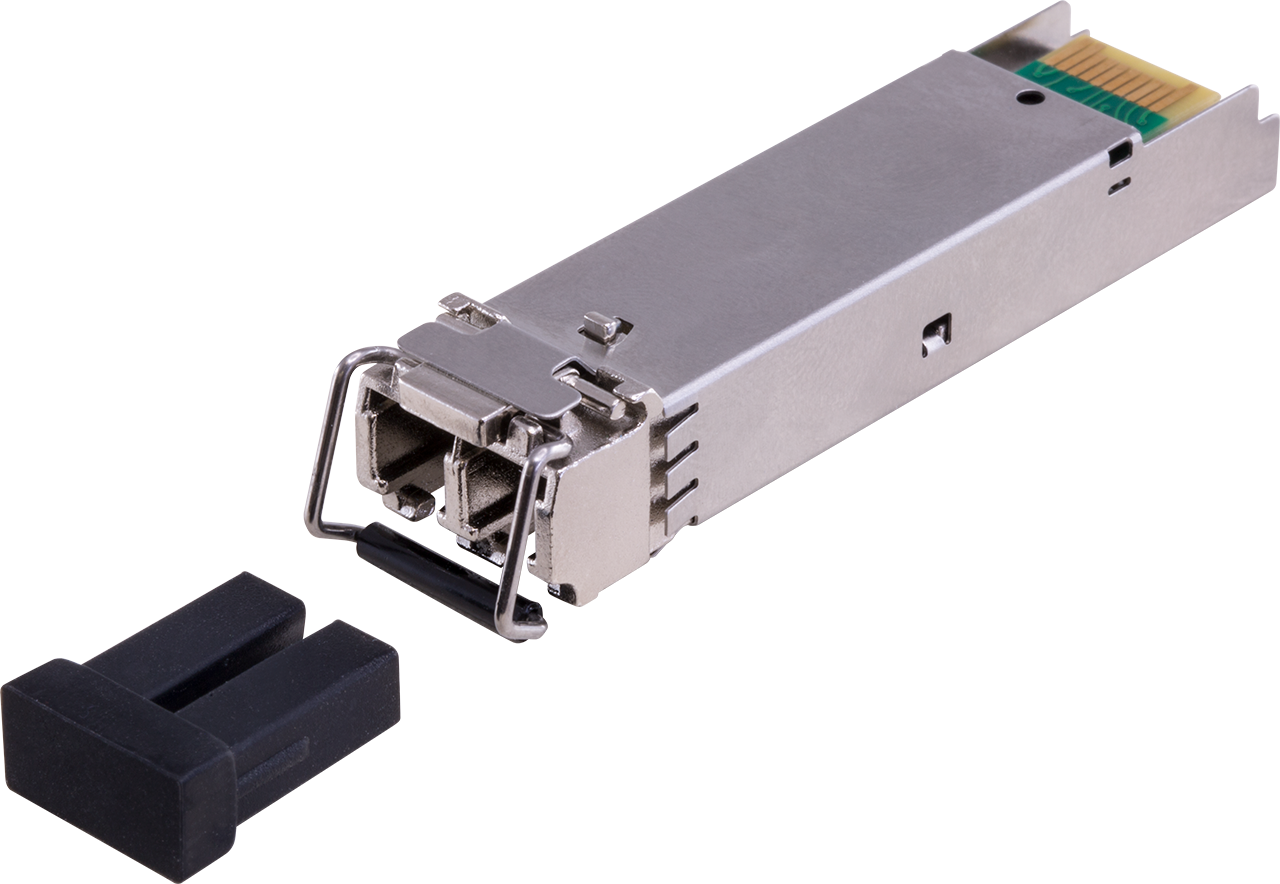

The SFP transceivers are high performance, cost effective modules supporting dual data-rate of 1.25Gbps and 550m transmission distance with MMF. The transceiver consists of three sections: a VCSEL lasertransmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
Symbol
Min
Typical
Max
Unit
Notes
Transmitter
Centre Wavelength
830
850
860
nm
SpectralWidth (RMS)
0.85
Average Output Power
Pout
-9.5
-3
dBm
1
Extinction Ratio
ER
9
dB
Optical Rise/Fall Time (20%~80%)
tr/tf
0.26
ns
Data Input Swing Differential
VIN
400
1800
mV
2
Input Differential Impedance
ZIN
90
100
110
O
TX Disable
Disable
2.0
Vcc
V
Enable
0
0.8
TX Fault
Fault
Normal
Receiver
770
ReceiverSensitivity
-18
3
ReceiverOverload
LOS De-Assert
LOSD
-20
LOS Assert
LOSA
-30
LOS Hysteresis
4
Data Output Swing Differential
Vout
700
900
LOS
High
Low
Notes: 1. The optical power is launched into MMF. 2. PECL input, internally AC-coupled and terminated. 3. Measured with a PRBS 27-1 test pattern @1250Mbps, BER =1x10-12. 4. Internally AC-coupled.
